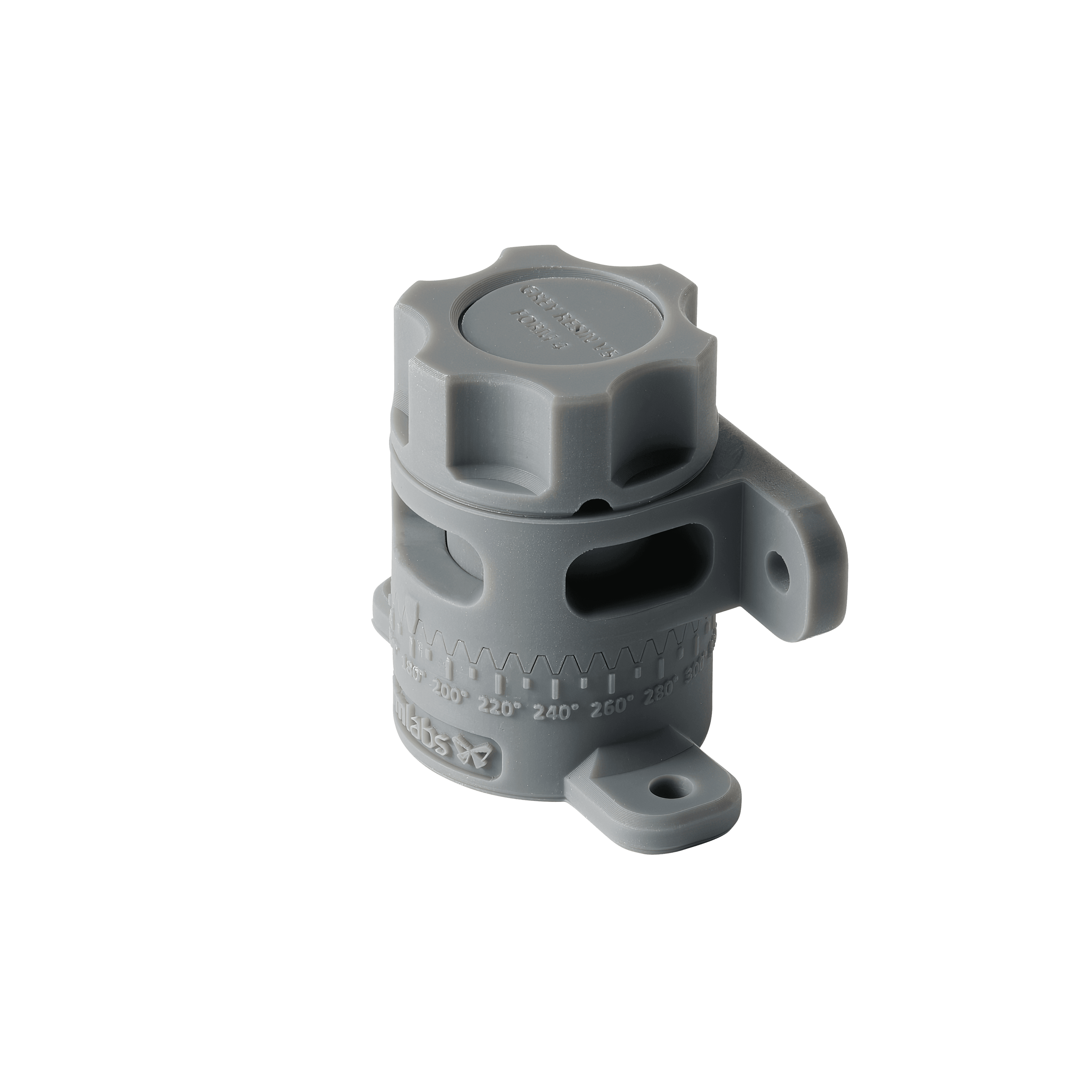

Grey V5 Adjustable Angle Bracket

Grey Resin V5 is an exceptionally versatile General Purpose Resin, offering an optimal balance of fast print speed, high accuracy, presentation-ready appearance, and strong mechanical properties.

• Surface finish that rivals injection molding
• Minimum feature size of 50 μm
• Versatile mechanical properties
• Fast printing at speeds of up to 50 mm/hr

This bracket uses a Hirth joint to allow the angle between two components to be adjusted in 10 degree increments, while a threaded cap secures the serrated teeth together. The design leverages the ±0.15% dimensional tolerances of the Form 4 to enable the creation of tapered teeth that mesh tightly. The crisp detail resolution of Grey Resin V5 allows for a position indicator with embossed text and M20 x 2.5 mm printed threads.

Layer Thickness: 100 μm
Print Time: 7 full sets (21 pieces) in 1 hour 12 minutes on Form 4
