What Material is Right for You?
Tough 2000 Resin V2
Learn more
Overview

Tough 2000 Resin V2 is a rugged material with strength and stiffness comparable to ABS, combining toughness with high temperature and creep resistance.

Tough 2000 Resin V2 excels in heavy-duty applications and delivers highly functional prototypes and end-use parts that resist shattering, deformation, and long-term wear. With a 79% elongation at break and a heat deflection temperature (HDT) of 70 °C, parts maintain structural integrity under mechanical and environmental stress. The new formulation is darker with a matte finish, for presentation-ready parts with enhanced details and a smooth finish.

Tough 2000 Resin V2 is a new material formulation that leverages the technology of Form 4 Series printers to deliver 3x higher fracture toughness, improved temperature resistance, material longevity, and aesthetics compared to the previous version.

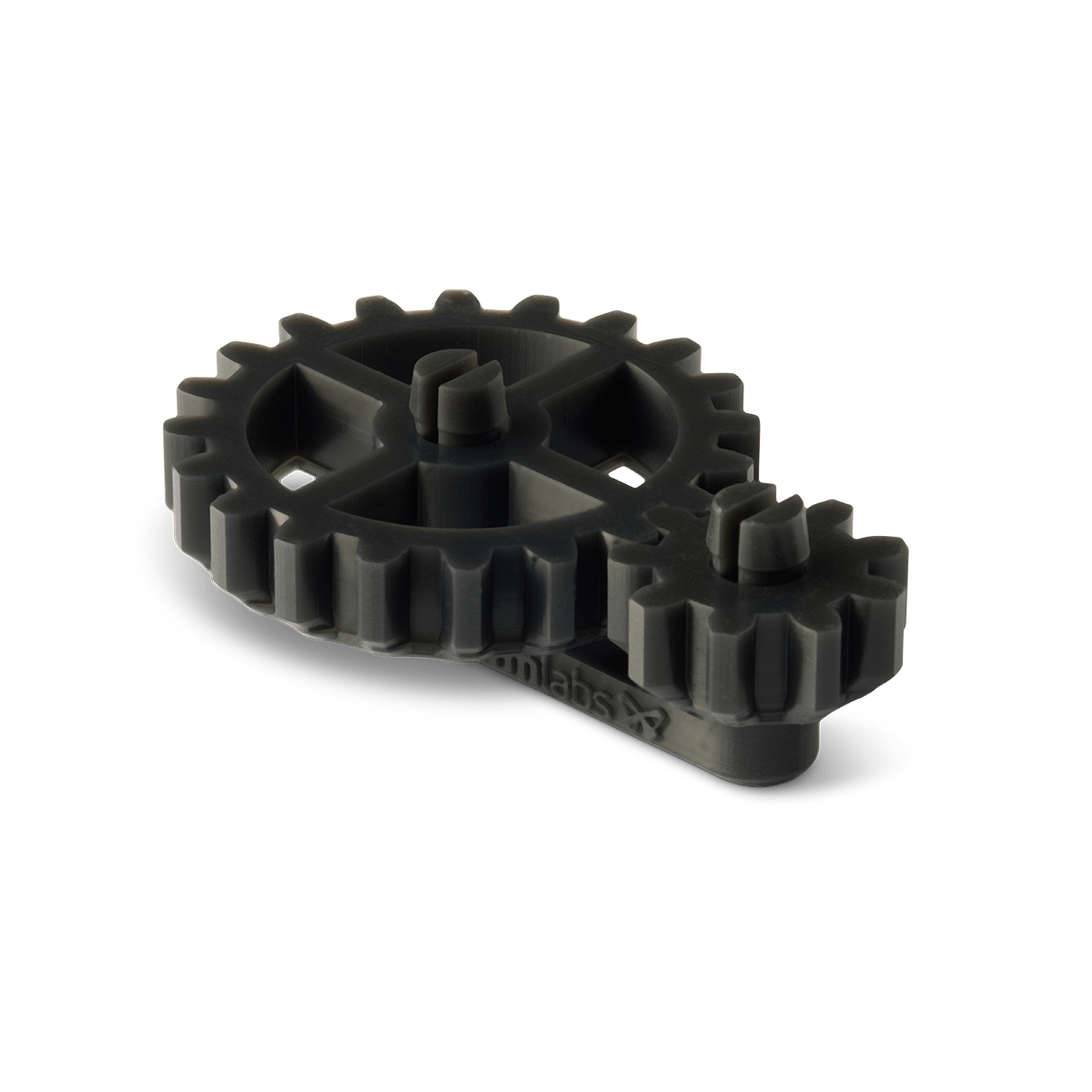

Tough 1000 Resin
Learn more
Overview

Tough 1000 Resin is a ductile, impact-resistant material with comparable strength, stiffness, and toughness to high-density polyethylene (HDPE), designed with exceptional wear and fatigue resistance for long-term toughness and utility.

The 180% elongation at break (EAB) and Gardner impact strength of 128 in-lb surpass HDPE, making it ideal for parts that bend, compress, or deform without cracking. Hinges and functional parts can handle repeated stress and wear with a work of fracture of 3,200 J/m2 and a Ross flex fatigue of >100,000 cycles (at 23 °C). With a matte, dark grey color, Tough 1000 Resin is engineered for applications that require smooth surfaces and low-friction finishes.

Tough 1000 Resin is a new material formulation that leverages the technology of Form 4 Series printers, with 5x higher fracture toughness, 2x higher EAB, and improved temperature, creep, and aging resistance compared to Durable Resin.

Material properties
Ultimate Tensile Strength
40.4 MPa
26.3 MPa
Thermal Expansion
134.2 μm/m/°C
168.2 μm/m/°C
Elongation at Break
79.0 %
180.0 %
Flexural Strength
67.0 MPa
29.0 MPa
Notched Izod
25.0 J/m
72.0 J/m
Unnotched Izod
325.0 J/m
Gardner at 1/32" (0.97 mm) thickness
1.6 J
13.1 J
Gardner at 1/16" (1.9 mm) thickness
14.5 J
Maximum Stress Intensity Factor (Kmax)
1.65 MPa-m1/2
1.94 MPa-m1/2
Work of Fracture (Wf)
305.0 J/m
3200.0 J/m
Heat Deflection Temp. @ 1.8 MPa
57.0 °C
44.6 °C
Heat Deflection Temp. @ 0.45 MPa
70.0 °C
55.3 °C
Tensile Modulus
1800.0 MPa
932.0 MPa
Flexural Modulus
1701.0 MPa
761.0 MPa
Ross Flexing Fatigue
100000.0 cycles
Recommended application

Robust jigs, fixtures, protective shells, and snap-fit enclosures
Parts that require high temperature and creep resistance

Impact-resistant jigs, fixtures, and parts, and squeezable prototypes
Low-friction assemblies, such as gears and ball joints
