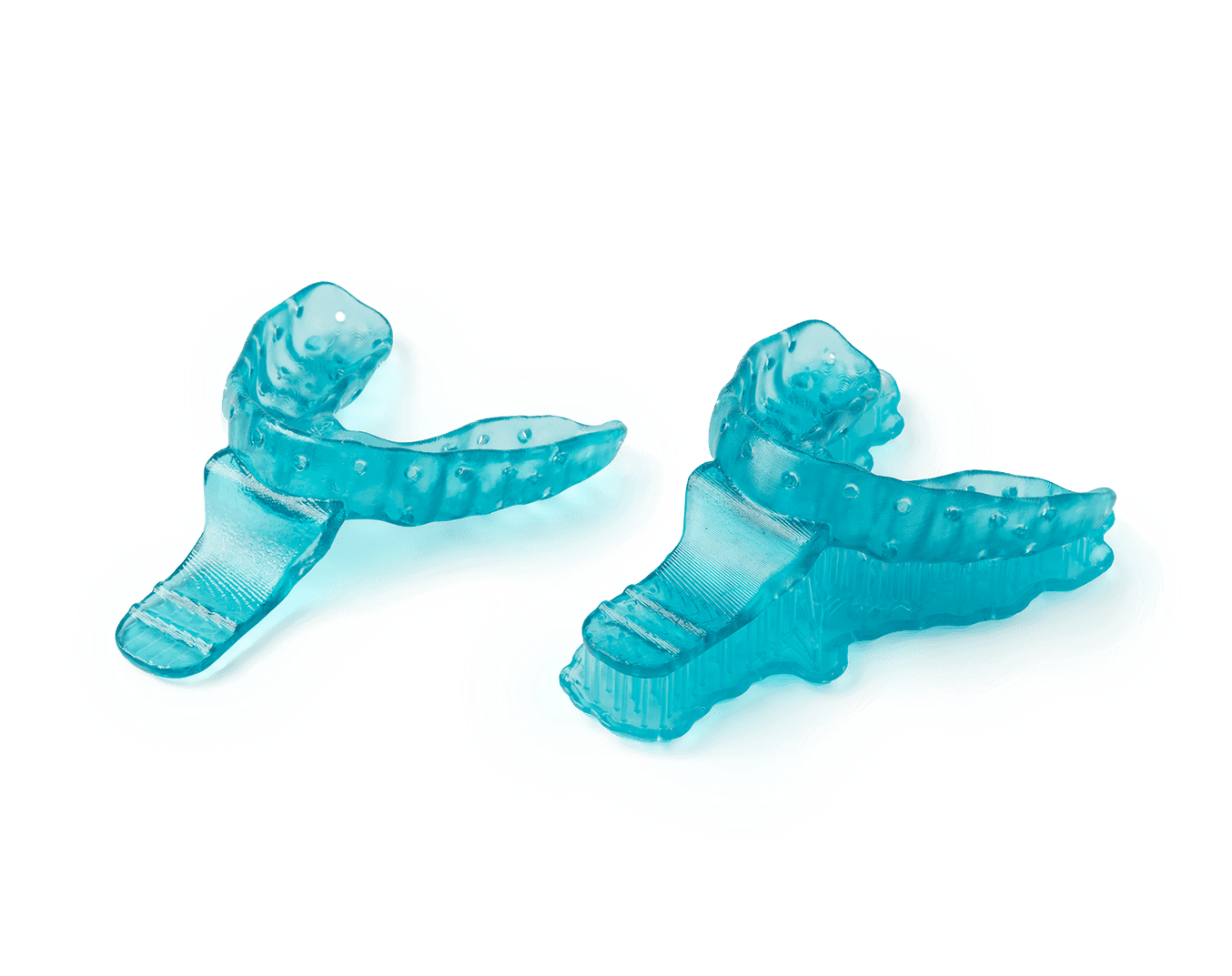

Impression trays produced with Custom Tray Resin

Why Choose Custom Tray Resin?

Custom Tray Resin is a production-ready material that enables highly accurate definitive impressions.


High Throughput

Print full impression trays quickly using 200 micron layer heights, reducing labor time.


Accurate

Provide consistent and accurate impressions for patient-matched trays with a digital workflow.


Made-to Measure

Create ideally fit definitive models for complex cases.


Biocompatibility

Provide the patient and clinician the peace of mind they deserve.

Applications

Leverage Custom Tray Resin to take highly accurate definitive impressions for crown and bridge, implant, dentures, and comprehensive cases.

Consider Custom Tray Resin for:

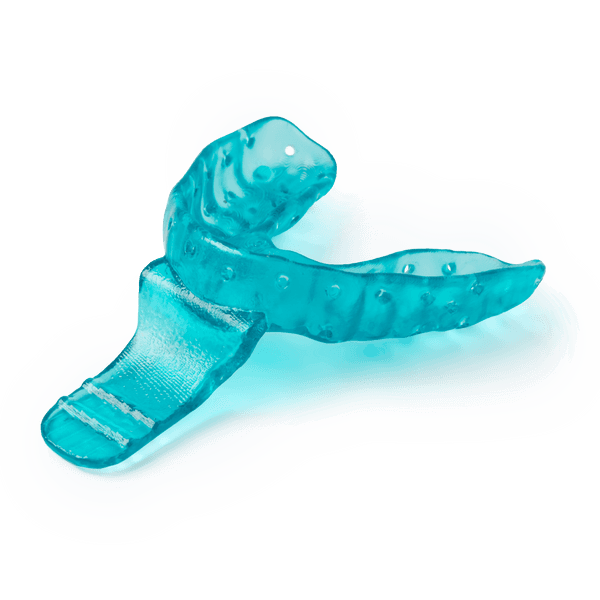

Impression Trays

Material Properties*

Custom Tray Resin

Ultimate Tensile Strength

≥ 70 MPa

Young's Modulus

> 2500 MPa

Elongation

> 3%

Hardness Shore A

< 80A

* Material properties may vary based on part geometry, print orientation, print settings, and temperature. Data for post-cured samples were measured on Type IV tensile bars printed on a Form 2 printer with 200 μm Custom Tray Resin settings, washed in a Form Wash for 10 minutes in ≥99% Isopropyl Alcohol, and post-cured at 60°C for 30 minutes in a Form Cure.

Post-Processing

Form Wash Settings

Duration

10 min in IPA

Notes

To ensure that finished parts are biocompatible, follow all part washing notes in the Instructions for Use. Maintain separate wash buckets for biocompatible materials.

Form Cure Settings

Duration

30 min



Temperature

60 °C

Notes

Post-curing as recommended in the material-specific Instructions for Use is required to ensure optimal performance and biocompatibility of 3D printed dental appliances.
