- Print Technology
- SLA
- Colors
- Matte
- Characteristics
- Biocompatibility, Sterilizable
- Ultimate Tensile Strength
- 36.0 MPa
- Elongation at Break
- 14.0 %
- Flexural Strength
- 57.16 MPa
- Shore Hardness
- 77.0 D
- Notched Izod
- 24.77 J/m
- Unnotched Izod
- 348.03 J/m
- Heat Deflection Temp. @ 1.8 MPa
- 49.4 °C
- Heat Deflection Temp. @ 0.45 MPa
- 67.9 °C
- Tensile Modulus
- 1523.74 MPa
- Flexural Modulus
- 1668.53 MPa
BioMed Black Resin is a rigid, matte material for biocompatible applications requiring long-term skin (>30 days) or short-term mucosal membrane contact (<24 hours). Parts printed with BioMed Black Resin are compatible with common solvent disinfection and sterilization methods.
BioMed Black Resin is manufactured in our FDA-registered, ISO 13485 certified facility and is also USP Class VI certified which makes it suitable for pharmaceutical and drug delivery applications.
- Print Technology
- SLA
- Colors
- Matte
- Characteristics
- Biocompatibility, Sterilizable
- Ultimate Tensile Strength
- 36.0 MPa
- Elongation at Break
- 14.0 %
- Flexural Strength
- 57.16 MPa
- Shore Hardness
- 77.0 D
- Notched Izod
- 24.77 J/m
- Unnotched Izod
- 348.03 J/m
- Heat Deflection Temp. @ 1.8 MPa
- 49.4 °C
- Heat Deflection Temp. @ 0.45 MPa
- 67.9 °C
- Tensile Modulus
- 1523.74 MPa
- Flexural Modulus
- 1668.53 MPa
Select Printer Series and Resin Volume
Bulk Order Discount
- 15%
- 30 L
- 20%
- 60 L
- 25%
- 120 L
- 30%
- 240 L
- 35%
- 1,000 L
- 40%
- 2,000 L
- 45%
- 3,000 L
Compatibility
- 3D Printer
- Form 4BL, Form 4B, Form 3B, Form 3BL, Form 2
- Build Platform
- Form 4 Build Platform, Form 4 Flex Build Platform, Form 3 Build Platform, Form 3 Build Platform 2, Form 3 Stainless Steel Build Platform, Form 3L Build Platform, Form 3L Build Platform 2L, Form 4L Build Platform, Form 4L Flex Build Platform
- Tank
- Form 2 Resin Tank (PDMS), Form 2 LT Tank, Form 3 Resin Tank V2.1, Form 3L Resin Tank V3, Form 4 Resin Tank
BioMed Black Resin—
Why Choose BioMed Black Resin?
Fuel medical innovation using 3D printing and BioMed Black Resin for producing end-use devices where performance and biocompatibility are critical.
Medical-Grade Material
Leverage a material manufactured within our Quality Management System, with strict adherence to ISO 13485.
Excellent Definition
Produce parts and assemblies with complex designs and geometries.
High Contrast
Create contrast between substances or surfaces to aid in visualization with the black, matte finish of BioMed Black Resin.
Biocompatible and Sterilizable Parts
Testing conducted by Formlabs for common use cases is intended to instill confidence that this material is suitable for biocompatible applications.
Applications*
Use BioMed Black Resin for producing rigid parts for point-of-care and medical manufacturing applications requiring biocompatibility and matte finish.
*Unlike Formlabs Dental Resins, no intended uses are provided for BioMed Resins. Material properties may vary based on part design, manufacturing practices, and other methods. It is the manufacturer’s responsibility and its respective customers and end-users to determine the biocompatibility and performance of all printed parts for their respective application and use. To instill confidence in potential users, Formlabs has tested biocompatibility and sterilization compatibility for common use cases and manufactures BioMed Resins in an ISO 13485 certified facility. We can offer representative examples of what customers have done with our products and the supporting documentation we make freely available.

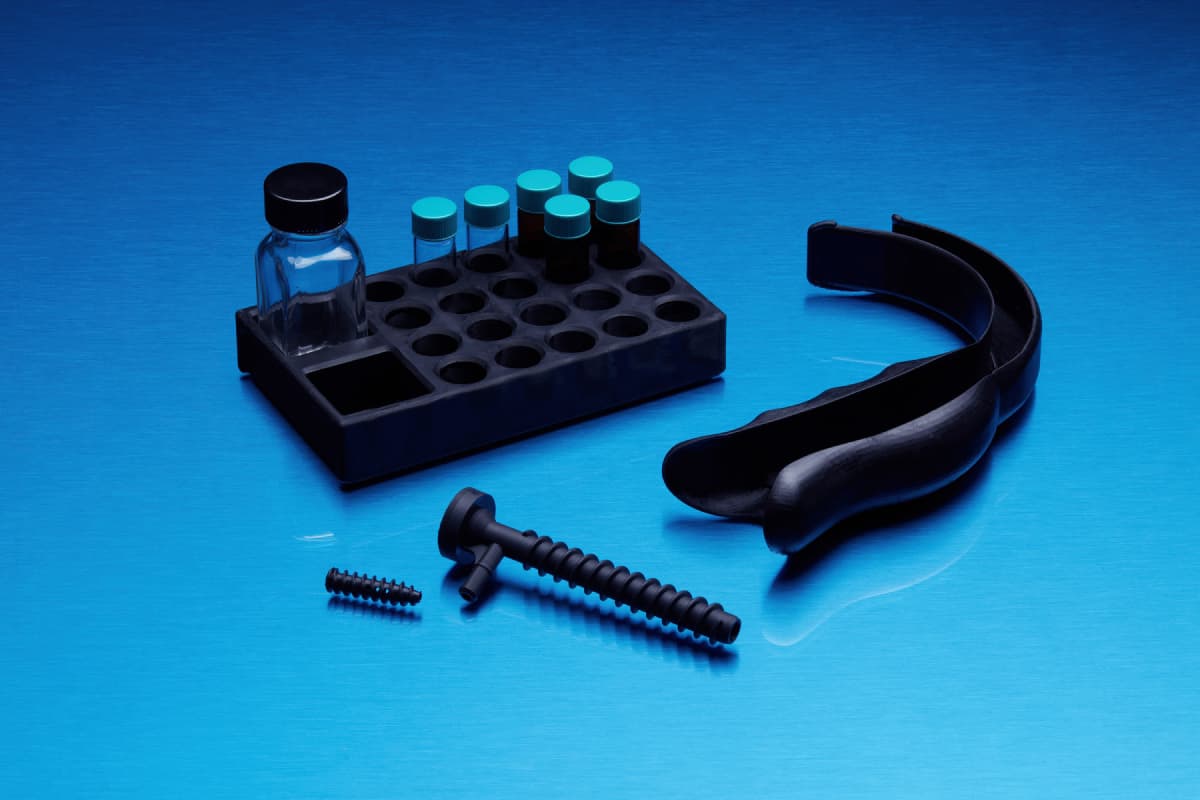

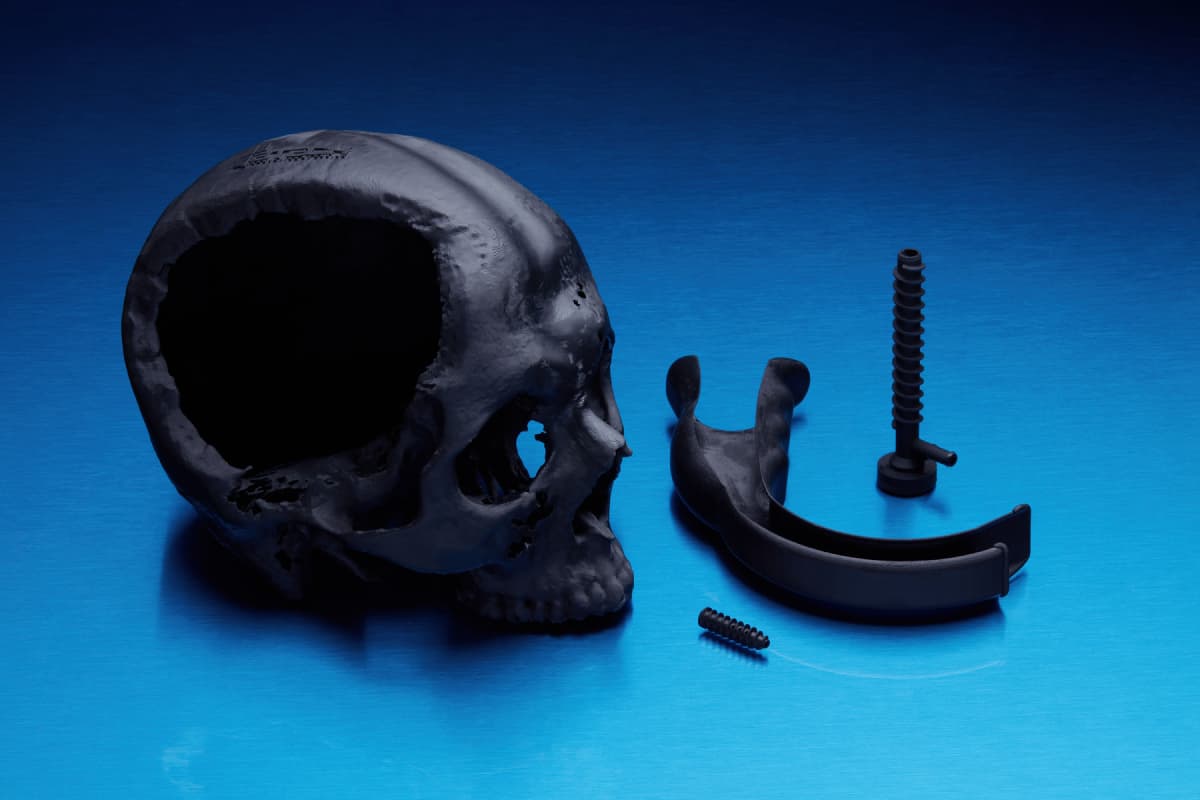

Medical devices and device components, biocompatible molds, jigs, and fixtures
End-use parts requiring patient contact, consumer goods
Manufactured in an ISO 13485-Certified Facility
Formlabs manufactures our Biomed and Medical Device Resins at our FDA-registered facility in Ohio. These materials are designed and manufactured within our robust Quality Management System that is ISO 13485 and EU MDR certified. A dedicated team of operators and quality assurance professionals makes the resins inside a certified ISO Class 8 clean room. All of our Medical Device Resins are appropriately registered with the FDA and CE marked according to the EU MDR.
Material Properties*
| Parameter |
Value |
|---|---|
|
Ultimate Tensile Strength |
36 MPa |
|
Tensile Modulus |
1500 MPa |
|
Elongation |
14% |
|
Flexural Strength |
57 MPa |
|
Flexural Modulus |
1600 MPa |
|
Shore Hardness |
77 D |
|
Notched Izod |
25 J/m |
|
Heat Deflection Temperature @ 0.45 MPa |
67.9 ºC |
1 Material properties may vary based on part geometry, print orientation, print settings, temperature, and disinfection or sterilization methods used.
2 Data were measured on post-cured samples printed on a Form 3B with 100um BioMed Black Resin settings, washed in a Form Wash for 5 minutes in 99% isopropyl alcohol.
3 BioMed Black Resin was tested at NAMSA World Headquarters, OH, USA.
Post-Processing
Washing
BioMed Black Resin may be washed using either a Formlabs-validated wash unit (1) or an ultrasonic wash unit (2).
The foundational step in any SLA post-processing workflow is to remove excess resin on the surface of the parts through an alcohol wash. Please refer to the material's manufacturing guide/IFU for washing instructions.
SETTINGS
Curing
For biocompatible materials, post-curing is necessary to achieve the safety standards determined by regulatory agencies. Please follow the material’s manufacturing guide/IFU for proper post-processing.
SETTINGS
Request a Free BioMed Black Resin Sample Part
See and feel Formlabs quality firsthand. We’ll ship a free BioMed Black Resin 3D printed sample part to your office.
