BioMed Clear Resin

BioMed Clear Resin

BioMed Clear Resin is a transparent, hard, strong, and wear-resistant material for biocompatible applications requiring long-term skin (>30 days), breathing gas pathways, and mucosal membrane contact (>30 hours) or short-term bone, tissue, and dentin (<24 hours). This USP Class VI certified material is suitable for pharmaceutical and drug delivery applications and uses that require wear resistance and low water absorption over time.

Parts printed with BioMed Clear Resin are compatible with common sterilization methods.

BioMed Clear Resin is manufactured in our FDA-registered, ISO 13485-certified facility and is supported with an FDA Device Master File.

Print Technology
SLA
Colors
Transparent
Characteristics
High Strength, Biocompatibility, Robust, Sterilizable
Flexural Modulus
2300.0 MPa
Tensile Modulus
2080.0 MPa
Ultimate Tensile Strength
52.0 MPa
Elongation at Break
12.0 %
Flexural Strength
84.0 MPa
Shore Hardness
78.0 D
Notched Izod
35.0 J/m
Unnotched Izod
449.0 J/m
Heat Deflection Temp. @ 1.8 MPa
54.0 °C
Heat Deflection Temp. @ 0.45 MPa
67.0 °C

Select Printer Series and Resin Volume

Bulk Order Discount

15%
30 L
20%
60 L
25%
120 L
30%
240 L
35%
1,000 L
40%
2,000 L
45%
3,000 L

Compatibility

3D Printer
Form 4BL, Form 4B, Form 3B, Form 3BL, Form 2
Build Platform
Form 4 Build Platform, Form 4 Flex Build Platform, Form 3 Build Platform, Form 3 Build Platform 2, Form 3 Stainless Steel Build Platform, Form 3L Build Platform, Form 3L Build Platform 2L, Form 4L Build Platform, Form 4L Flex Build Platform
Tank
Form 2 LT Tank, Form 3 Resin Tank V2.1, Form 3L Resin Tank V3, Form 4 Resin Tank, Form 4L Resin Tank

Added to Your Cart:

BioMed Clear Resin

BioMed Clear Resin

Checkout

BioMed Clear Resin

Why Choose BioMed Clear Resin?

Fuel medical innovation using 3D printing and BioMed Clear Resin for producing end-use devices where performance and biocompatibility are critical.



BioMed Clear Resin

Medical-Grade Material

Leverage a material manufactured within our Quality Management Systems, with strict adherence to ISO 13485.

Biocompatible and Sterilizable Parts

Testing conducted by Formlabs for common use cases is intended to instill confidence that this material is suitable for biocompatible applications.

Transparent

Visibility through parts allows light to pass through.

Excellent Definition

Produce parts and assemblies with complex designs and geometries.

Applications*

Use BioMed Clear Resin for producing rigid, transparent parts for point-of-care and medical manufacturing applications requiring biocompatibility.

*Unlike Formlabs Dental Resins, no intended uses are provided for BioMed Resins. Material properties may vary based on part design, manufacturing practices, and other methods. It is the manufacturer’s responsibility and its respective customers and end-users to determine the biocompatibility and performance of all printed parts for their respective application and use. To instill confidence in potential users, Formlabs has tested biocompatibility and sterilization compatibility for common use cases and manufactures BioMed Resins in an ISO 13485 certified facility. We can offer representative examples of what customers have done with our products and the supporting documentation we make freely available.

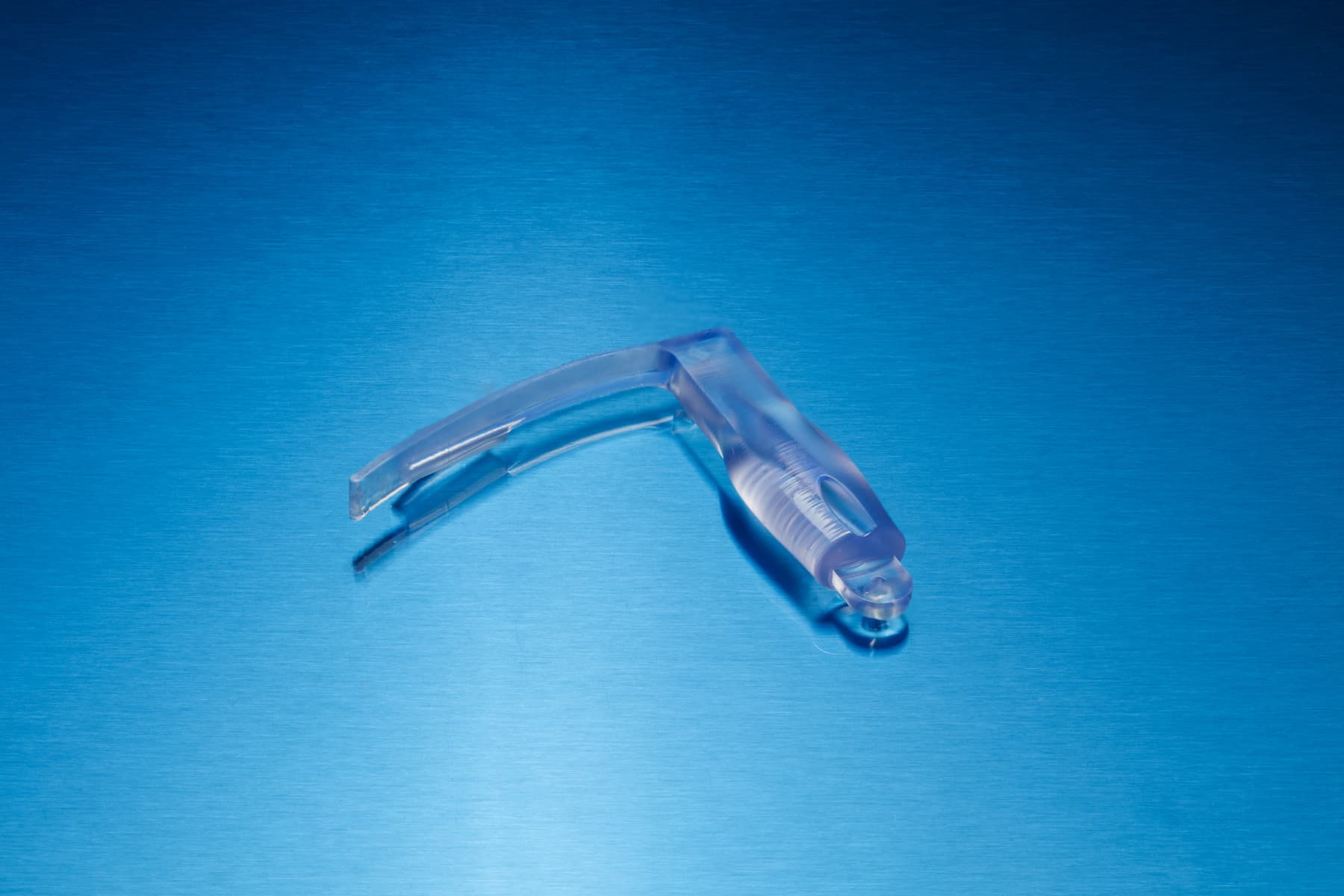

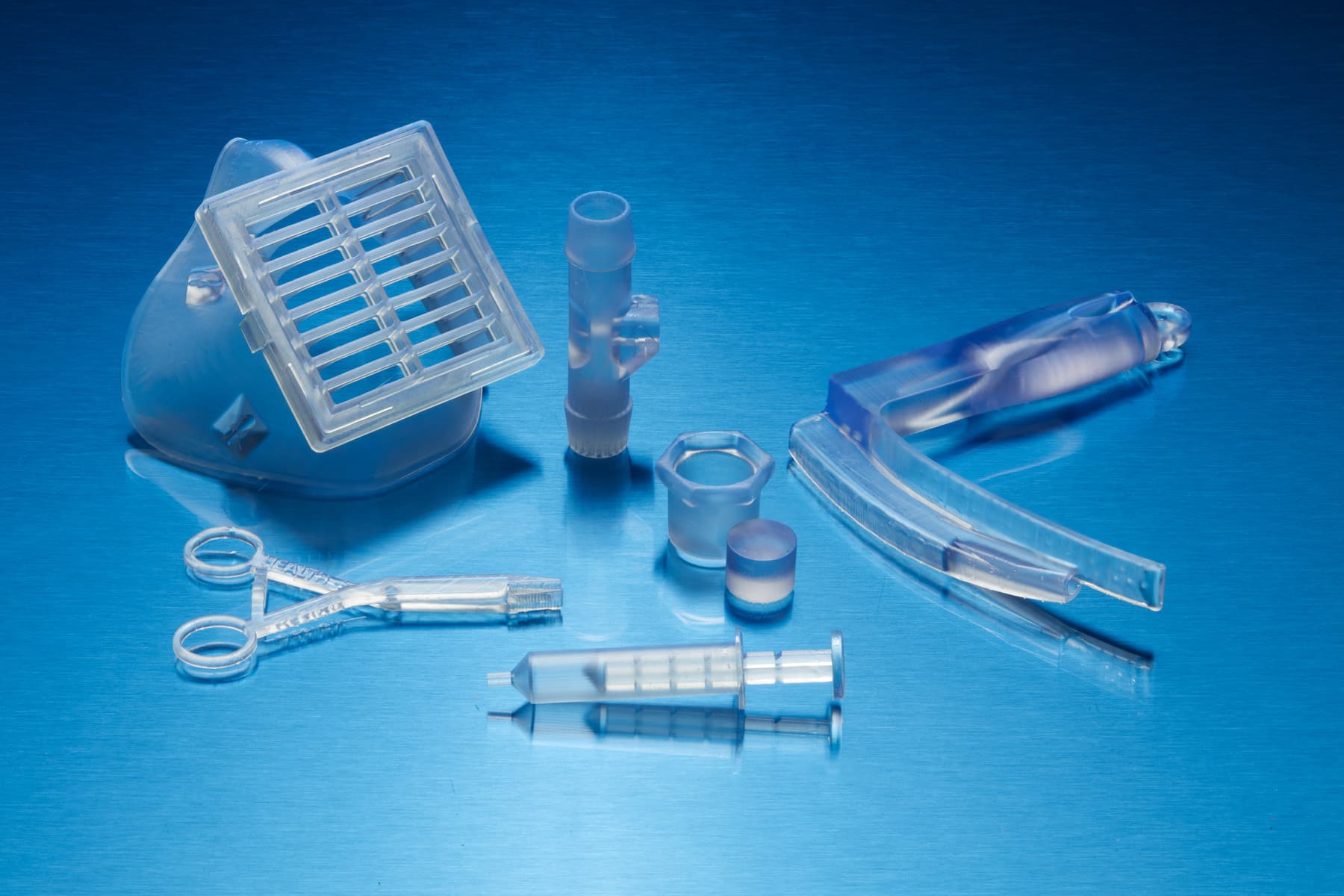

End-use medical devices

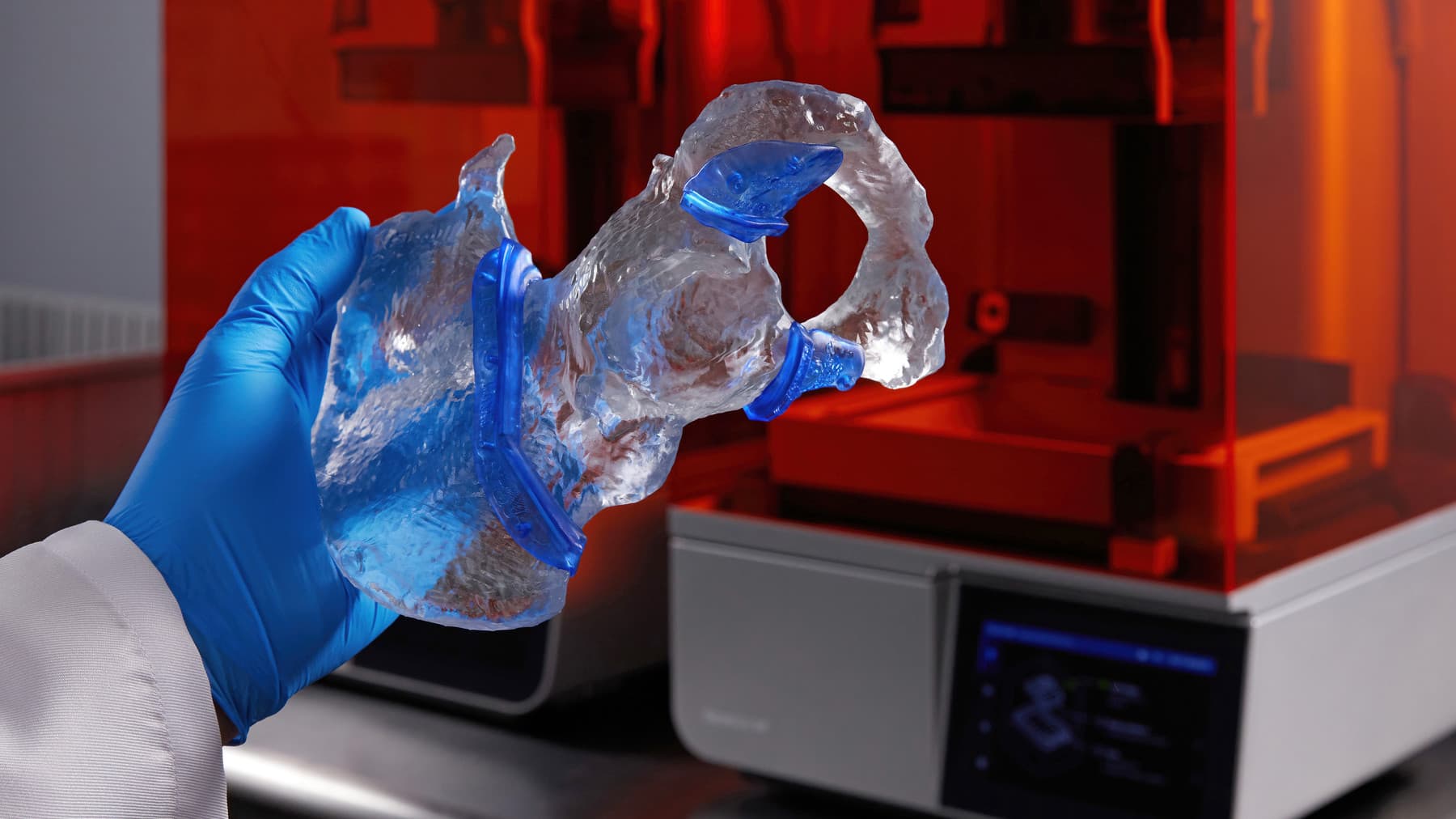

Models for visualization and implant sizing

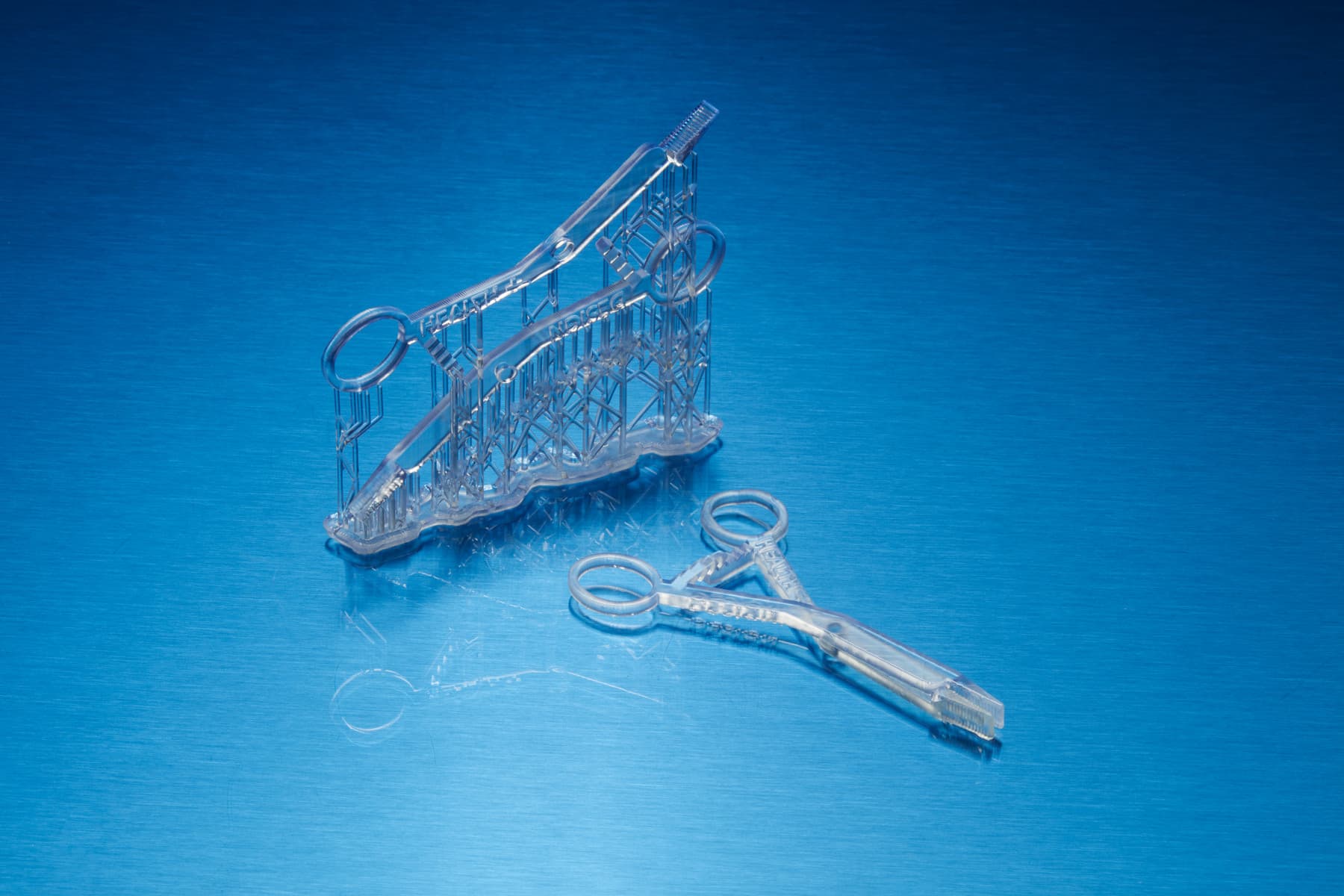

Biocompatible prototypes, molds, jig, and fixtures

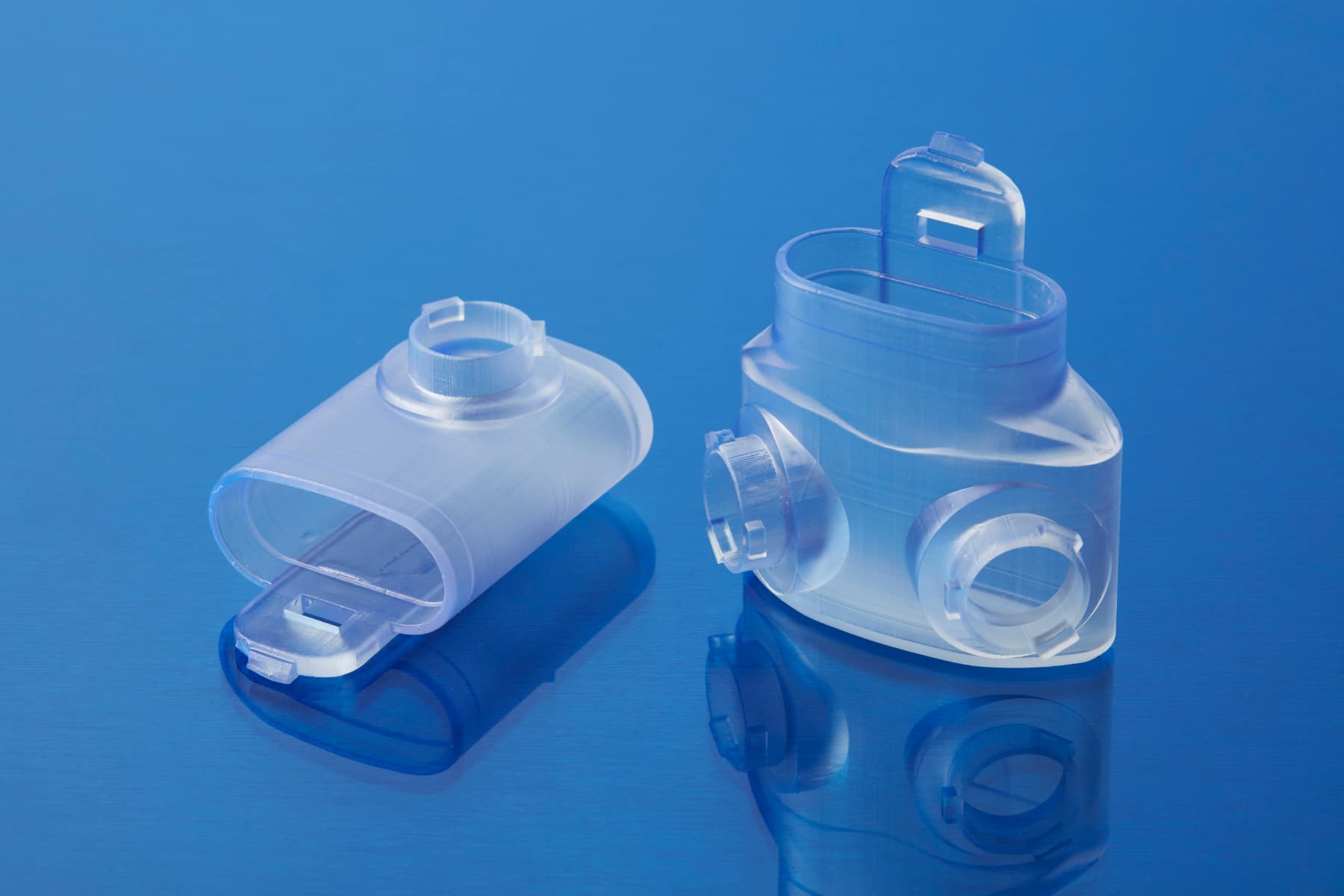

Gas pathway connectors, adapters, and devices

biomed clear resin
isocert logo

Manufactured in an ISO 13485-Certified Facility

Formlabs manufactures our Biomed and Medical Device Resins at our FDA-registered facility in Ohio. These materials are designed and manufactured within our robust Quality Management System that is ISO 13485 and EU MDR certified. A dedicated team of operators and quality assurance professionals makes the resins inside a certified ISO Class 8 clean room. All of our Medical Device Resins are appropriately registered with the FDA and CE marked according to the EU MDR.

Parameter

Value

Ultimate Tensile Strength

52 MPa

Young’s Modulus

2080 MPa

Elongation

12%

Flexural Strength

84 MPa

Flexural Modulus

2300 MPa

Shore Hardness

78D

Notched Izod

35 J/m

Heat Deflection Temperature @ 0.45 MPa

67 ºC

See resin compatibility

1 Material properties may vary based on part geometry, print orientation, print settings, temperature, and disinfection or sterilization methods used.

BioMed Clear Resin was tested at NAMSA World Headquarters, OH, USA.

Post-Processing

Washing

BioMed Clear Resin may be washed using either a Formlabs-validated wash unit (1) or an ultrasonic wash unit (2).

The foundational step in any SLA post-processing workflow is to remove excess resin on the surface of the parts through an alcohol wash. Please refer to the material's manufacturing guide/IFU for washing instructions.



SETTINGS

Manufacturing Guide



Curing

For biocompatible materials, post-curing is necessary to achieve the safety standards determined by regulatory agencies. Please follow the material’s manufacturing guide/IFU for proper post-processing.



SETTINGS

Manufacturing Guide







Request a Free BioMed Clear Resin Sample Part

Request a Sample Part
