- Print Technology
- SLA
- Characteristics
- Fine Details, Wax Filled
- Applications
- Investment Casting
- Tensile Modulus
- 220.0 MPa
- Ultimate Tensile Strength
- 12.0 MPa

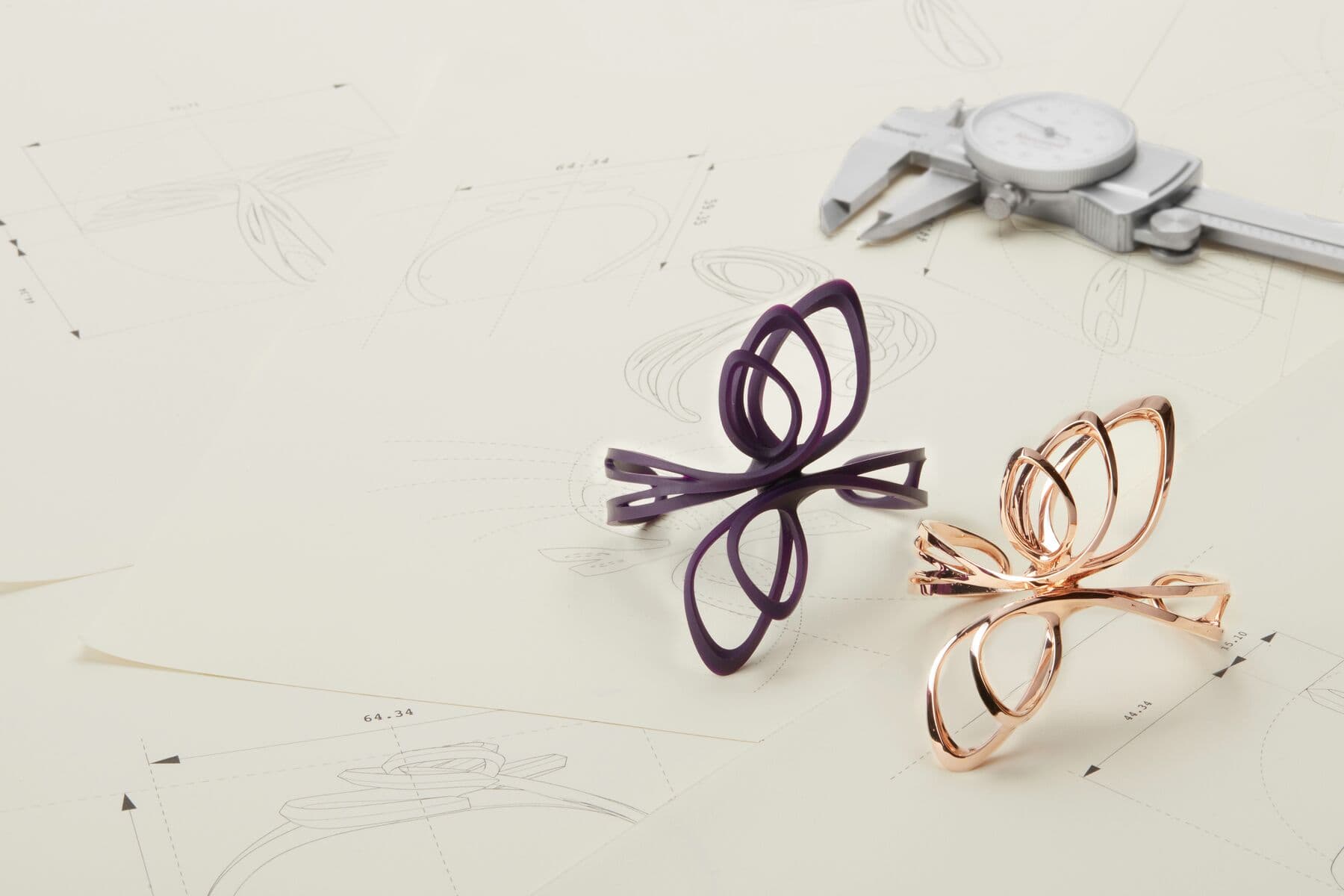

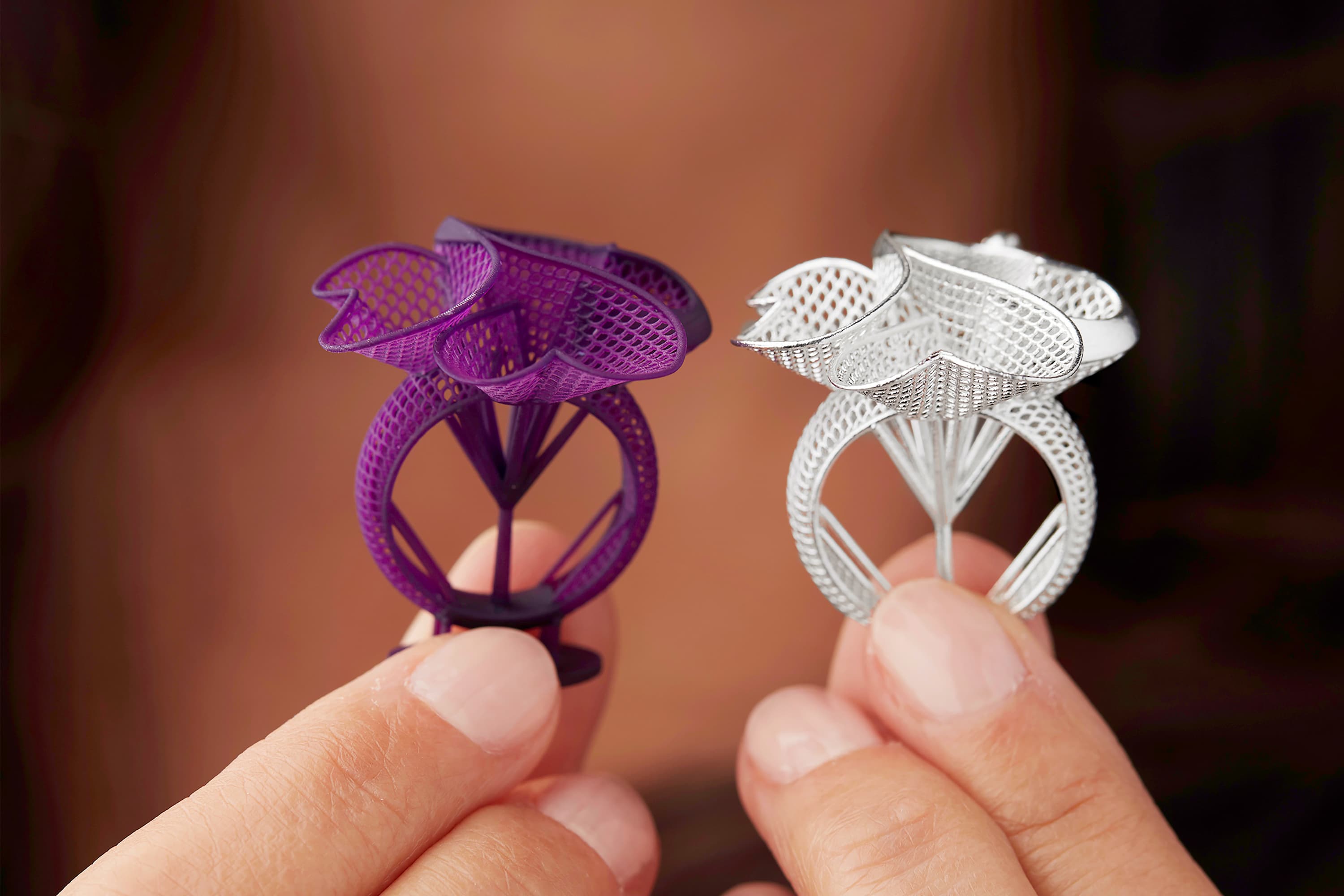

Castable Wax Resin is a 20% wax-filled material for casting that can capture intricate features and offers a smooth surface finish for accurate castings with zero ash content and clean burnout. It is ideal for ultrafine structures in jewelry.
Castable Wax Resin offers high strength and stiffness, making it capable of printing ultrafine structures. The high green strength ensures excellent shape retention for thin patterns such as wire filigree.
- Print Technology
- SLA
- Characteristics
- Fine Details, Wax Filled
- Applications
- Investment Casting
- Tensile Modulus
- 220.0 MPa
- Ultimate Tensile Strength
- 12.0 MPa
Select Printer Series and Resin Volume
Bulk Order Discount
- 15%
- 30 L
- 20%
- 60 L
- 25%
- 120 L
- 30%
- 240 L
- 35%
- 1,000 L
- 40%
- 2,000 L
- 45%
- 3,000 L
Compatibility
- 3D Printer
- Form 4L, Form 4BL, Form 4, Form 4B, Form 3, Form 3L, Form 3B, Form 3BL, Form 2
- Build Platform
- Form 4 Build Platform, Form 4 Flex Build Platform, Form 3 Build Platform, Form 3 Build Platform 2, Form 3 Stainless Steel Build Platform, Form 3L Build Platform, Form 3L Build Platform 2L, Form 4L Build Platform, Form 4L Flex Build Platform
- Tank
- Form 2 Resin Tank (PDMS), Form 2 LT Tank, Form 3 Resin Tank V2.1, Form 3L Resin Tank V3, Form 4 Resin Tank
Castable Wax Resin—
Why Choose Castable Wax Resin?
With high strength and stiffness, Castable Wax Resin makes it possible to print ultrafine and thin structures.
Clean, Reliable Casting
Contains 20% wax with zero ash content and clean burnout.
Faster and Simpler Workflow
Printed parts are strong enough to handle with no post-cure required, meaning they are ready to use right away.
Smooth, Refined Surfaces
Easily remove light-touch support tips that don’t leave dimples in your parts.
High Green Strength
Ensure shape retention for thin patterns such as wire filigree.
Applications

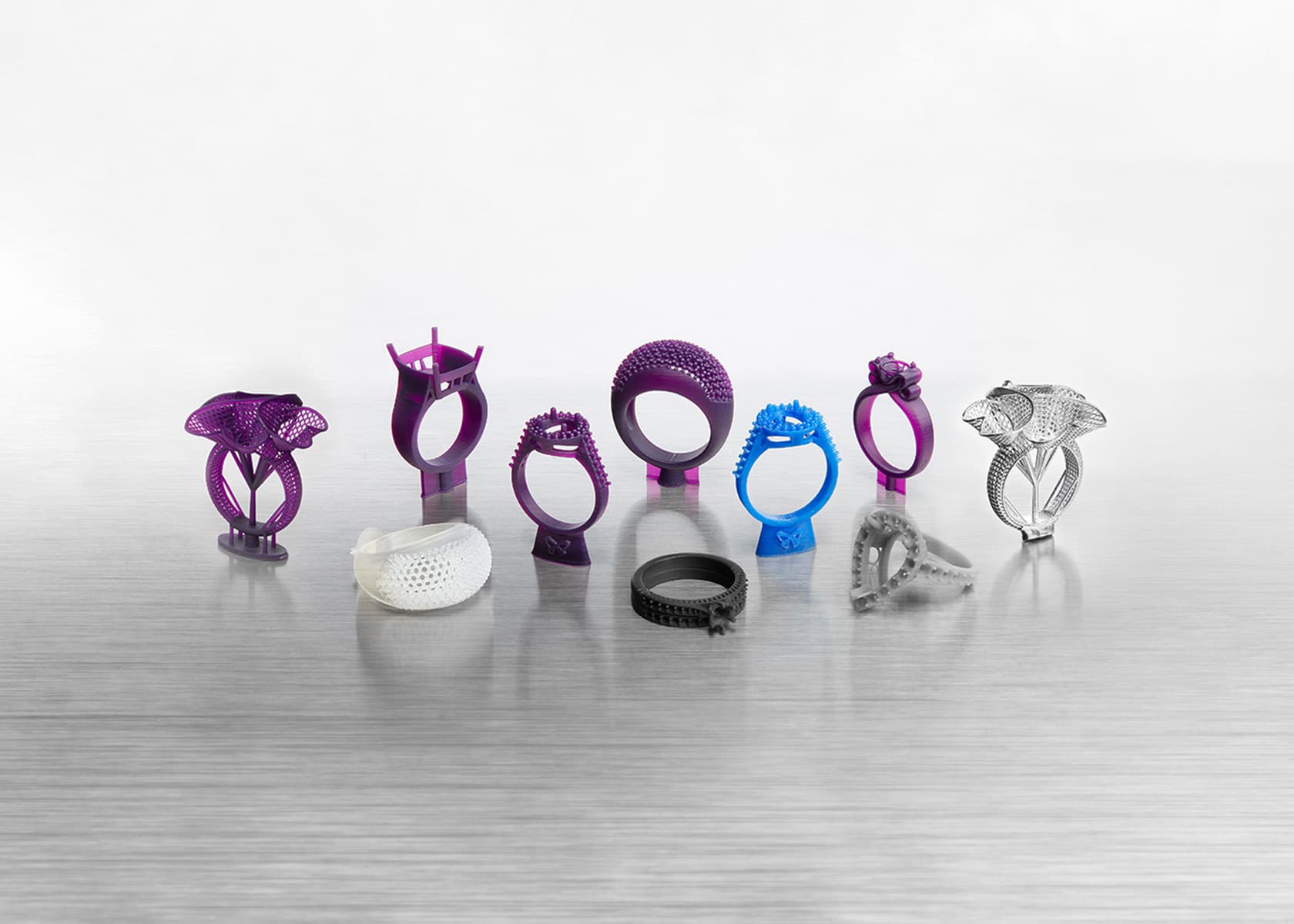

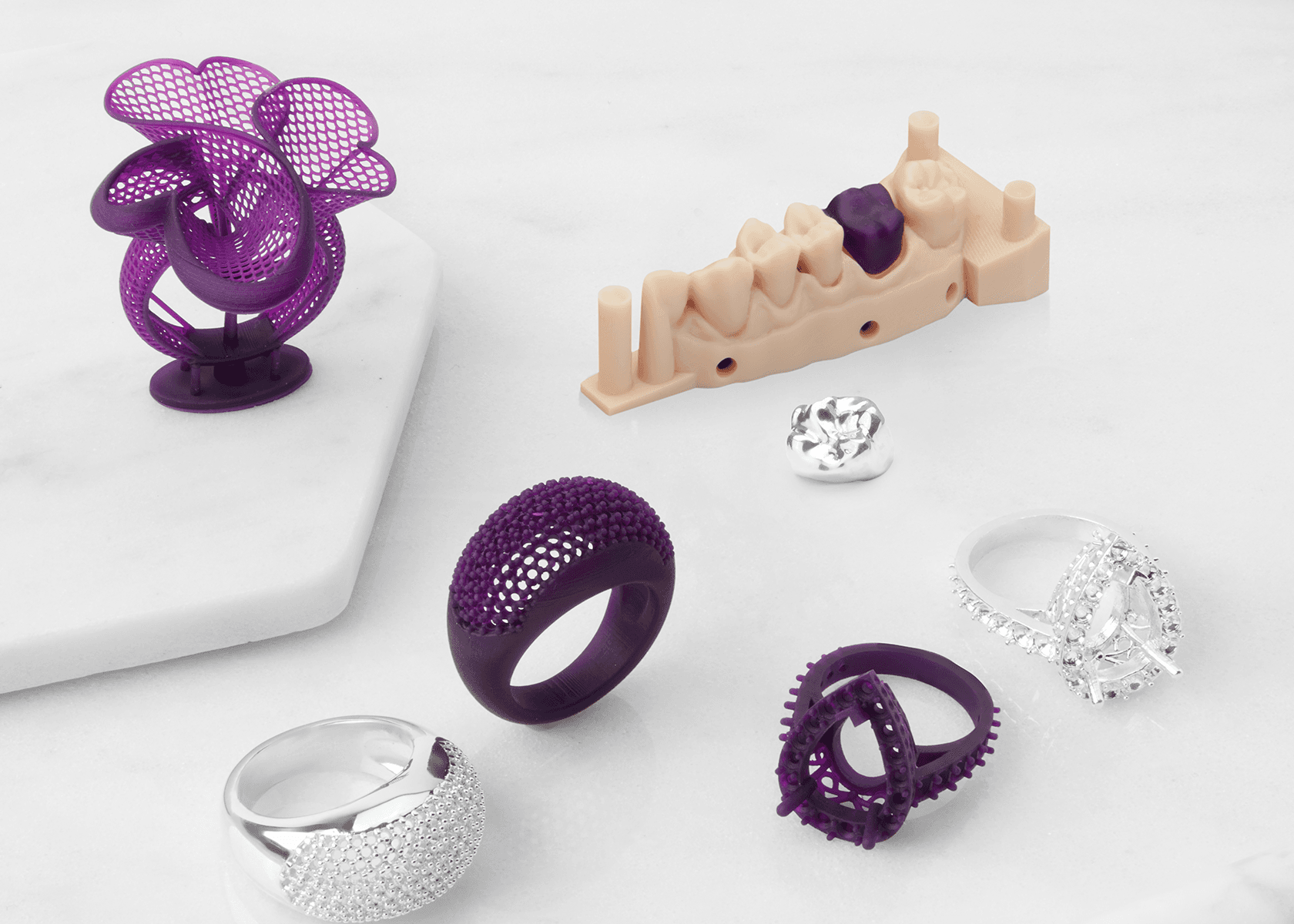

Castable Wax Resin is ideal for lightweight, intricate jewelry or for prototypes and production.

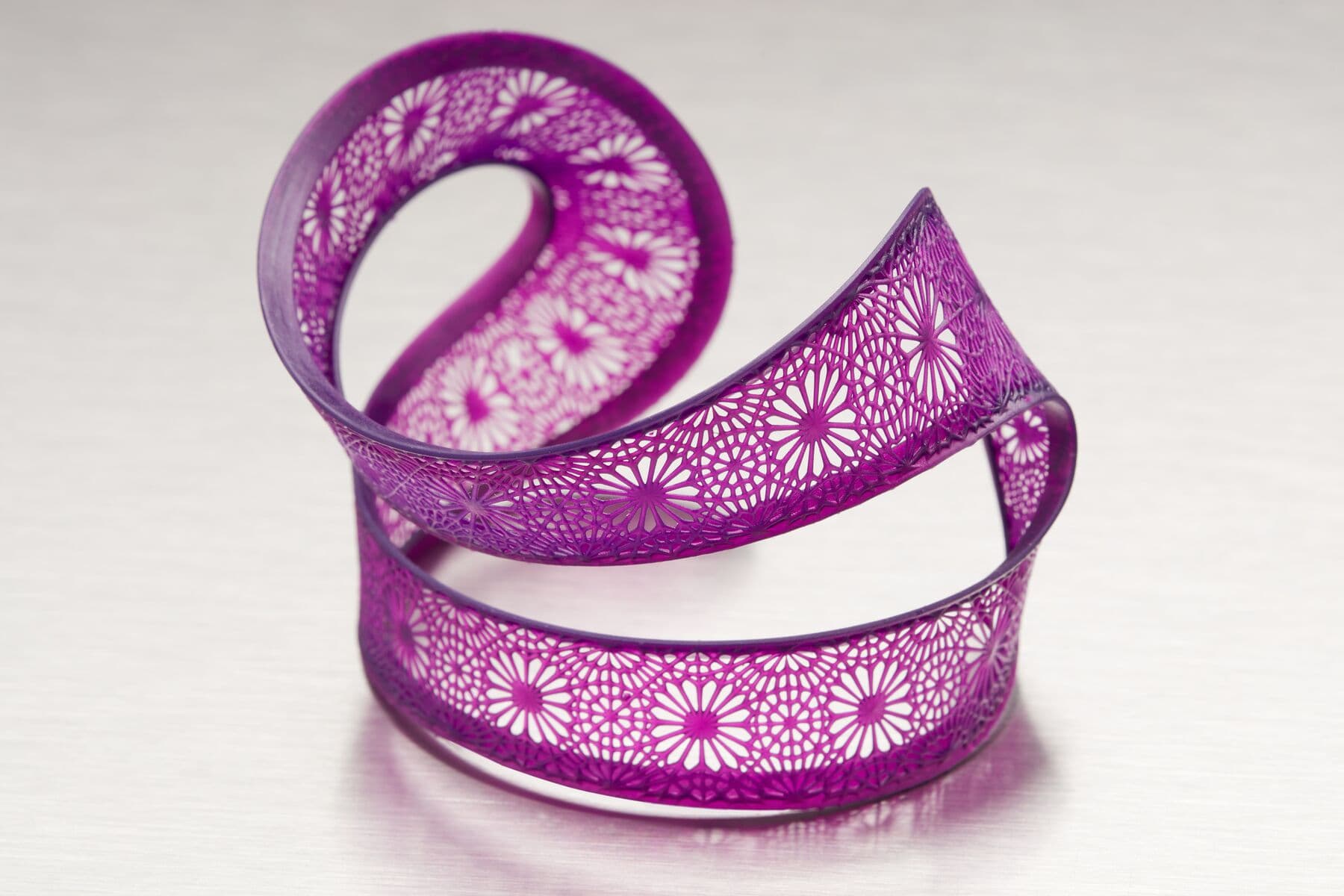

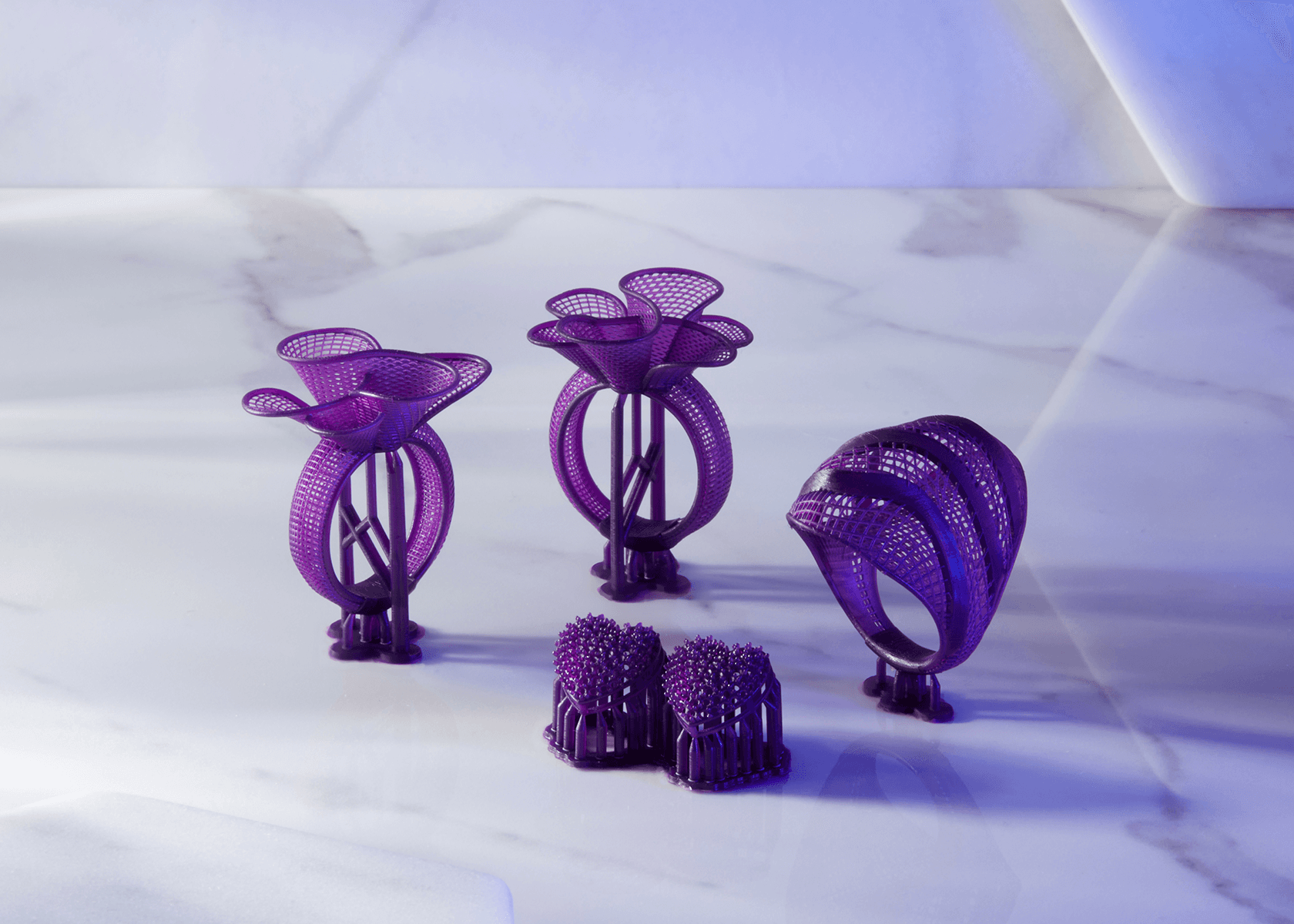

Delicate filigree designs

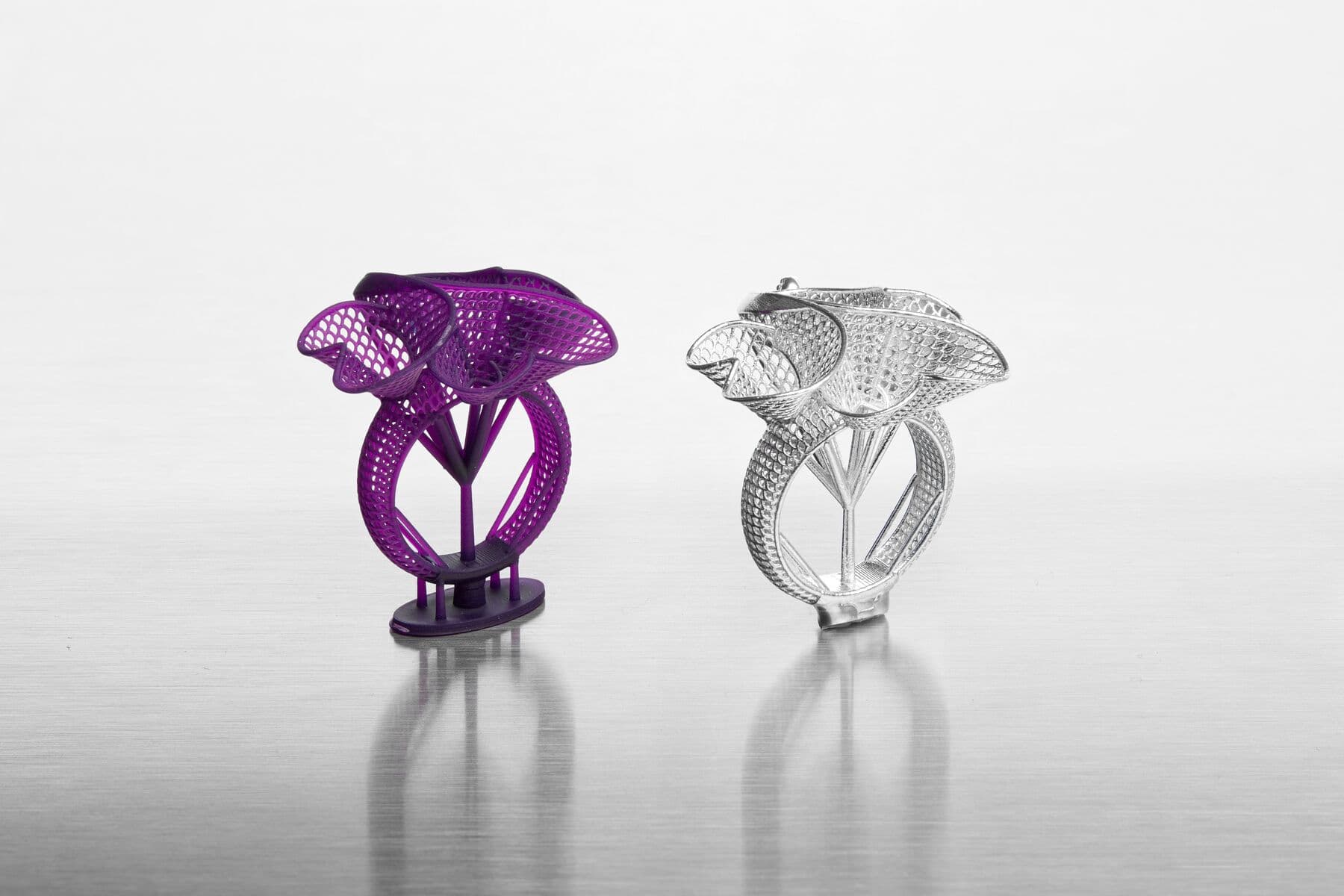

Direct investment casting

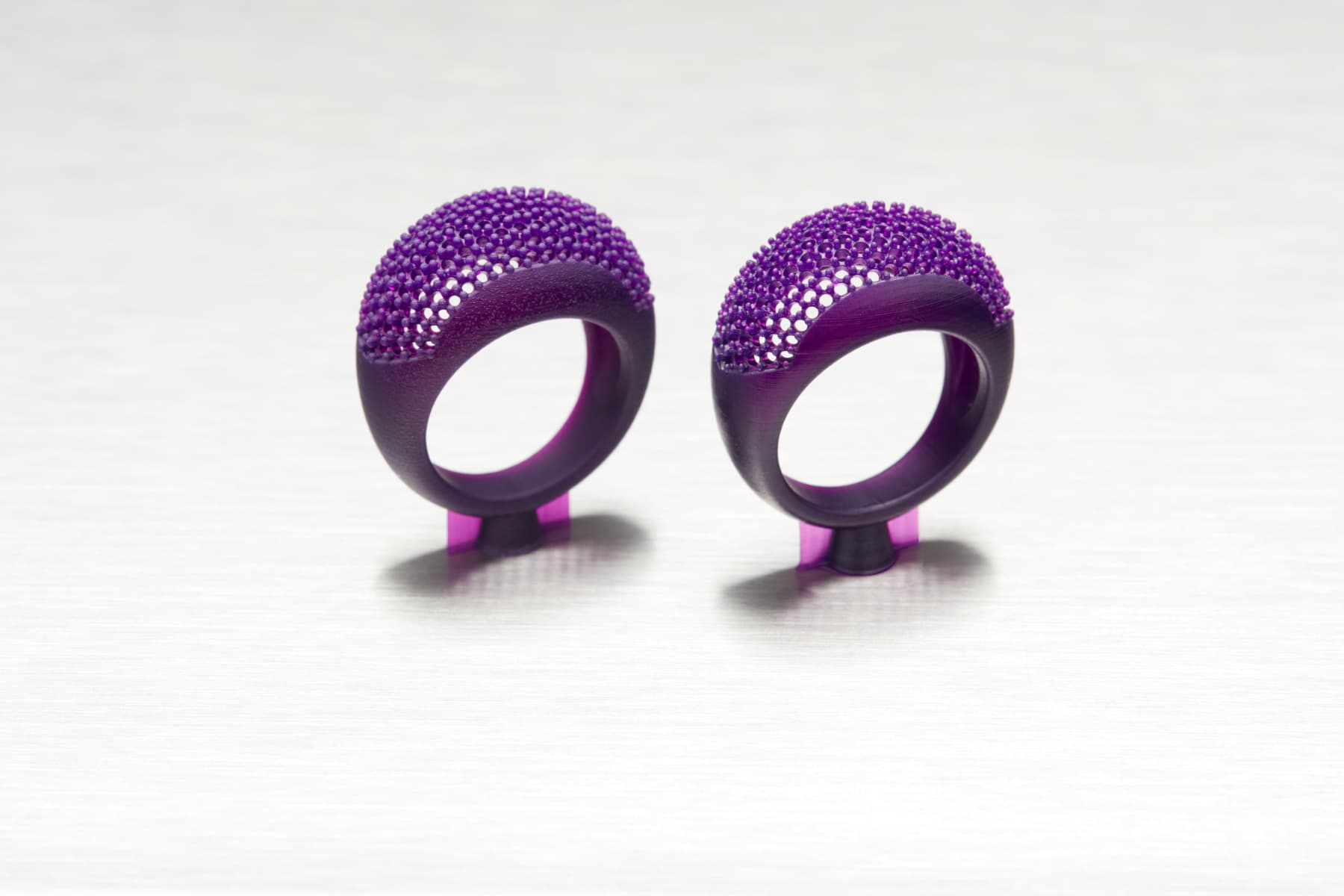

Now you can create 3D printed wax-like patterns that accurately capture fine features, like raised text, delicate filigree wires and meshes, and detailed pavé, with no visible layer lines.
Custom try-ons

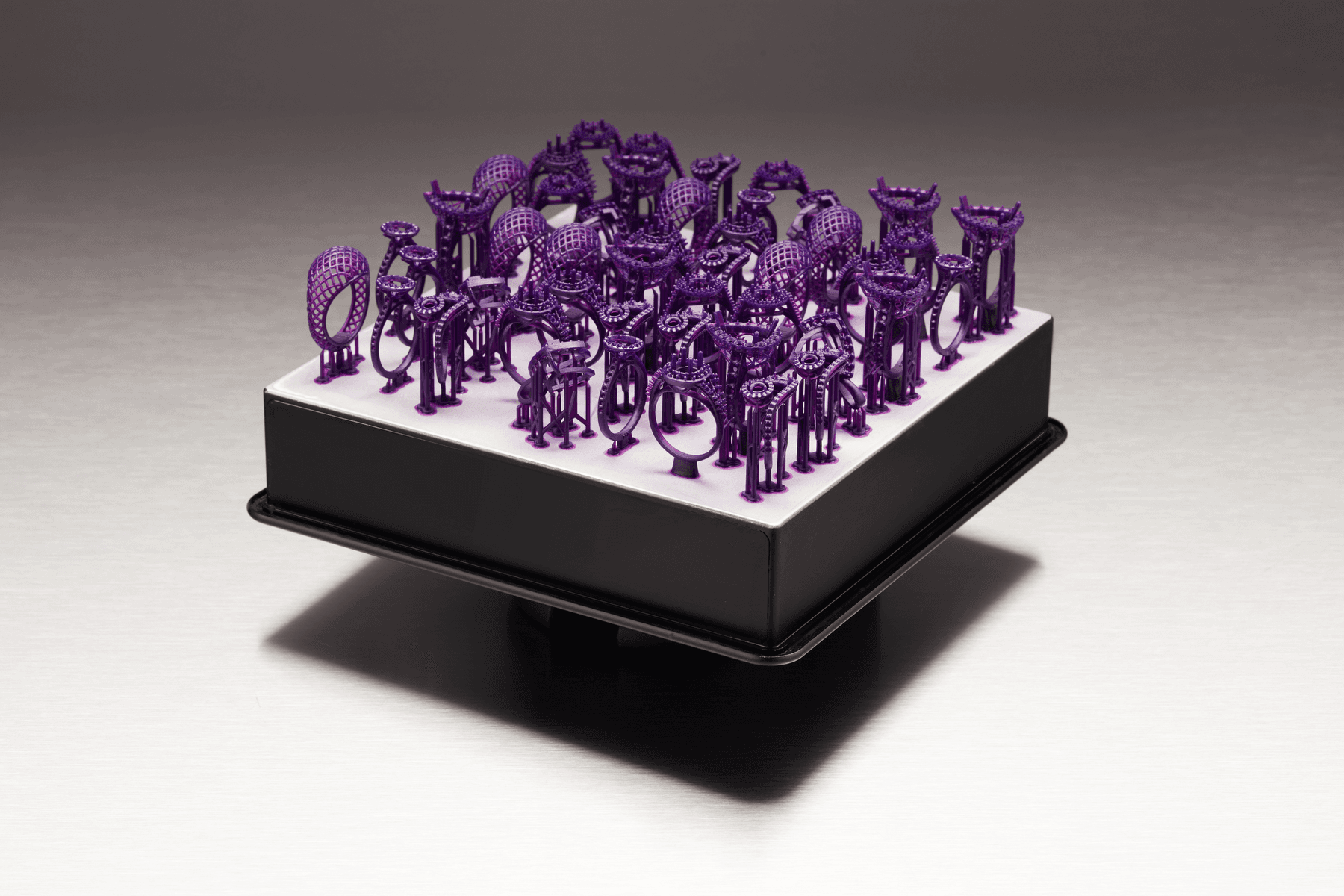

Thin pieces with fine details
Material Properties*
Castable Wax Resin does not require post-curing. Allow parts to fully dry before casting.*
| Parameter |
Value |
|---|---|
|
Ultimate Tensile Strength |
12 MPa |
|
Tensile Modulus |
220 MPa |
|
Elongation |
13% |
|
Temp @ 5% Mass Loss |
249 ºC |
|
Ash Content (TGA) |
0.0 - 0.1% |
* Material properties may vary based on part geometry, print orientation, print settings, and temperature.
** Data was optained from green parts, printed using Form 2, Castable 50 μm Fine Detail settings and washed without post-cure.
Post-Processing
Form Wash Settings
Wash Castable parts for the shortest time necessary to remove liquid resin. Ensure that all solvent has evaporated or been removed from the parts before curing and casting.
SETTINGS
Form Cure Settings
Castable Wax Resin does not require post-curing. Allow parts to fully dry before casting. While post-curing Castable Wax parts should not affect castability, post-curing may shrink parts slightly (by less than 1%), which can cause distortion.
SETTINGS
Form Cure V1 | Form Cure V2 | Form Cure L V1 | Form Cure L V2

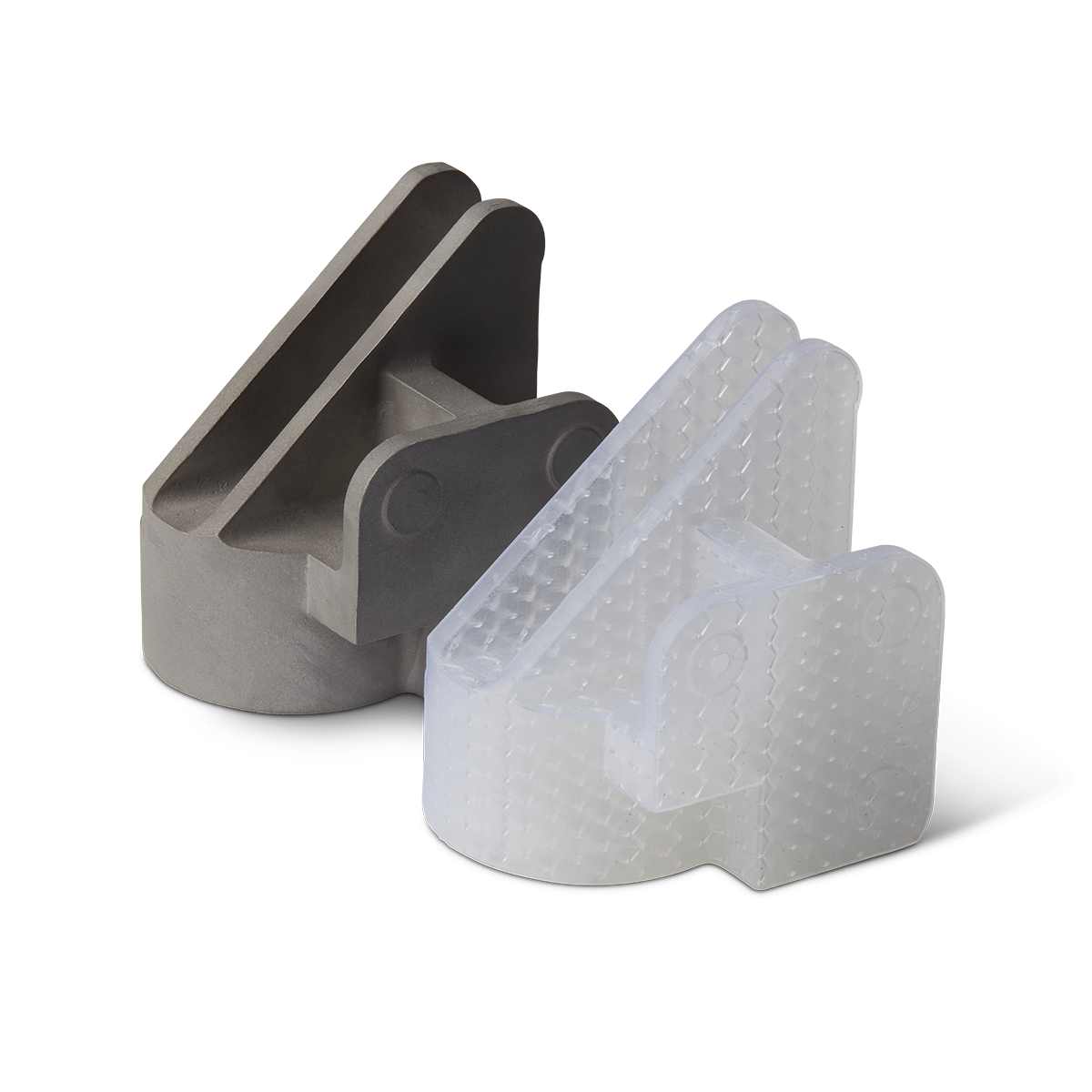

Compare Formlabs Castable Resins

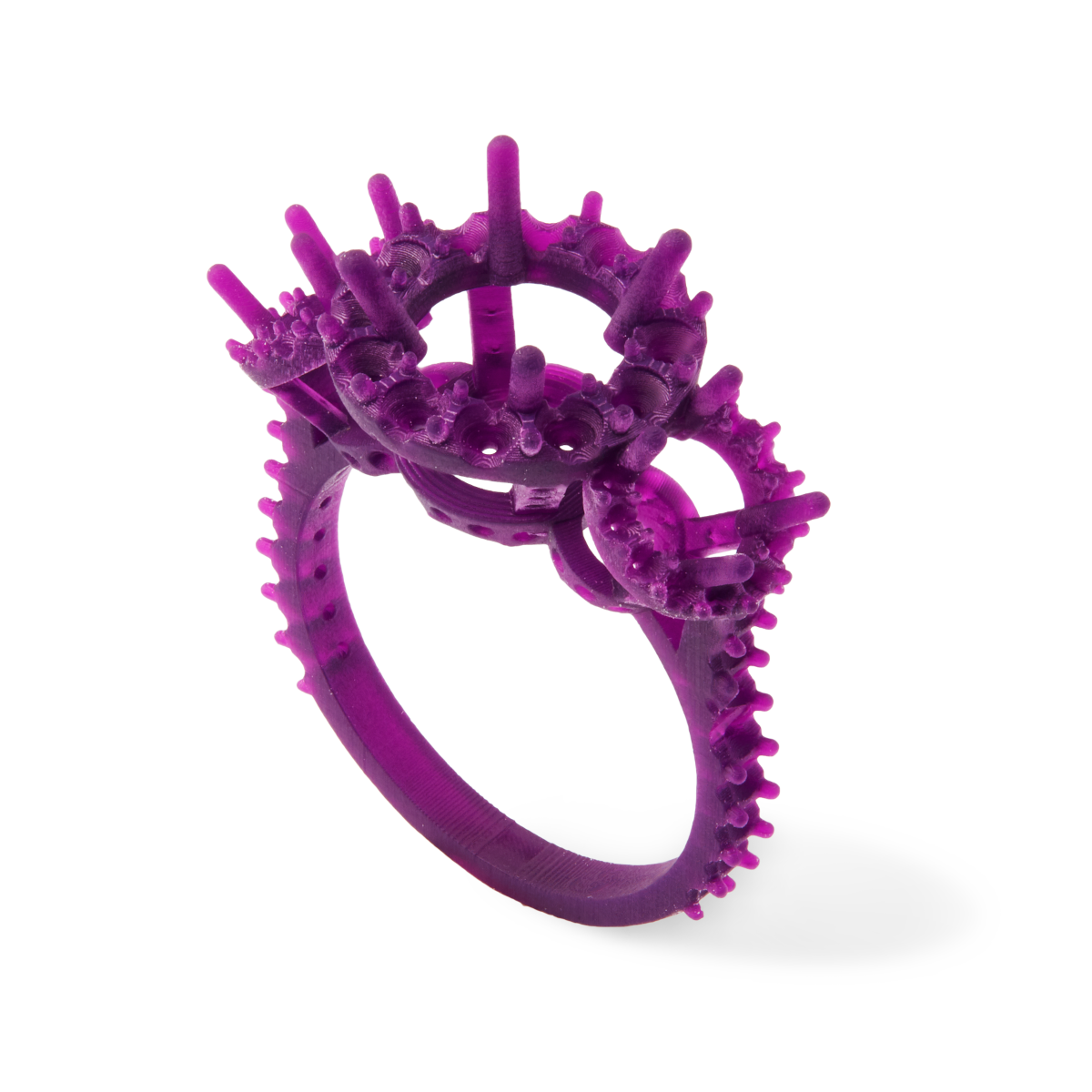

Learn moreCastable Wax Resin is a 20% wax-filled material for casting that can capture intricate features and offers a smooth surface finish for accurate castings with zero ash content and clean burnout. It is ideal for ultrafine structures in jewelry.
Castable Wax Resin offers high strength and stiffness, making it capable of printing ultrafine structures. The high green strength ensures excellent shape retention for thin patterns such as wire filigree.

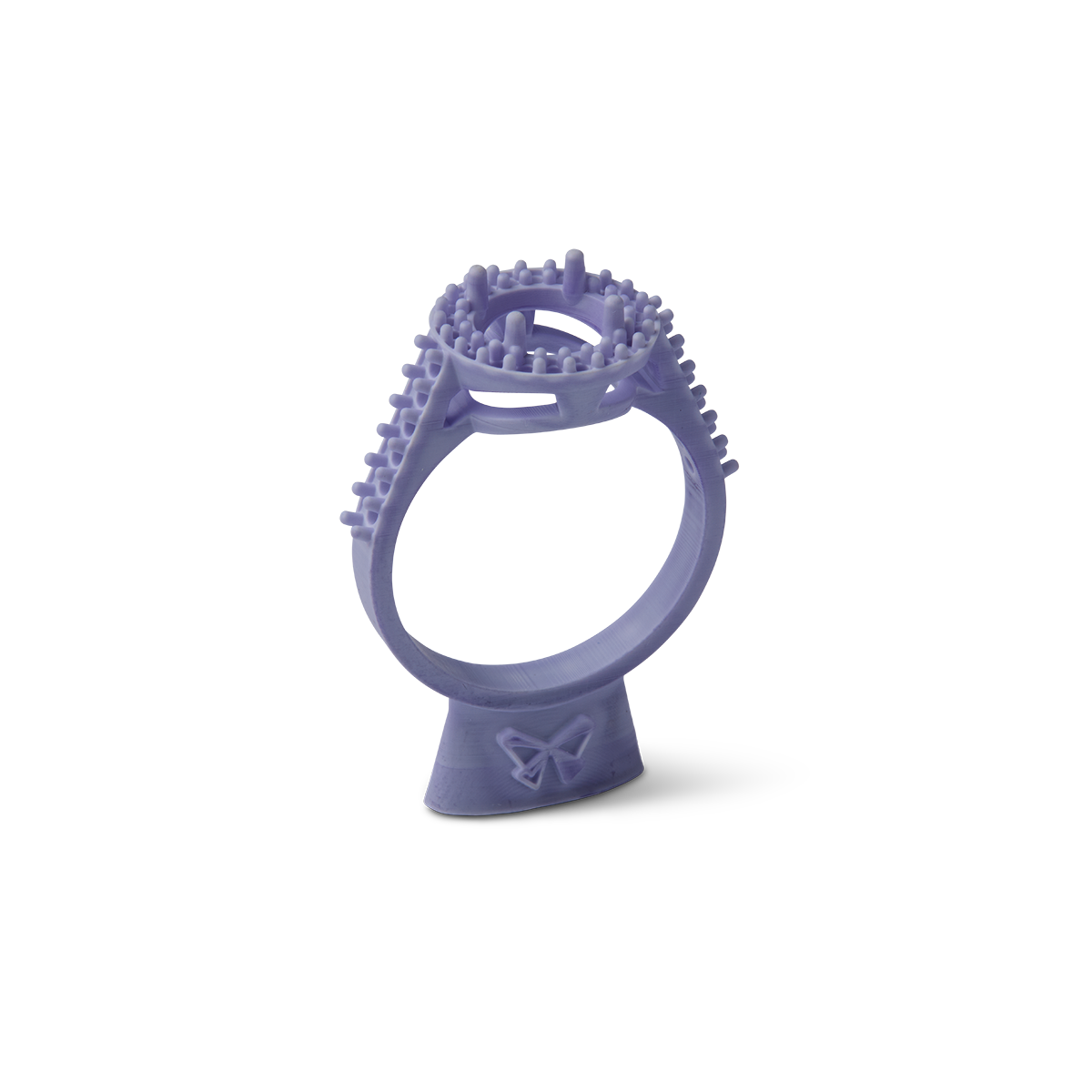

Learn moreTrue Cast Resin is a wax-filled material designed for precision casting of intricate jewelry to complex engineering components up to 5 mm thick. It delivers highly accurate parts with exceptional detail and smooth surfaces.
Engineered for reliability, quality, and versatility, True Cast Resin integrates easily into a wide range of burnout schedules. Low thermal expansion, minimal shrinkage, and 0.03% ash content ensure clean burnout and consistently excellent casting outcomes.
Fine filigree
Lightweight jewelry
Dental
Medium to heavy jewelry
Medallions
Figurines
Small engineering components up to 5 mm thick
