Color Kit is the first integrated color mixing solution for resin 3D printing. It enables 3D printing in a range of colors without the manual work of finishing, dying, or painting.
Color Base Resin is the foundation to mix with any Color Kit pigment and create Color Resin. Restock on Color Base Resin to mix with any Color Kit pigment and create Color Resin.
- Print Technology
- SLA
- Colors
- Custom Colors, Matte
- Characteristics
- Fine Details
Select Printer Series and Resin Volume
Bulk Order Discount
- 15%
- 30 L
- 20%
- 60 L
- 25%
- 120 L
- 30%
- 240 L
- 35%
- 1,000 L
- 40%
- 2,000 L
- 45%
- 3,000 L
Compatibility
- 3D Printer
- Form 4L, Form 4BL, Form 4, Form 4B, Form 3, Form 3L, Form 3B, Form 3BL, Form 2
- Build Platform
- Form 4 Build Platform, Form 4 Flex Build Platform, Form 3 Build Platform, Form 3 Build Platform 2, Form 3 Stainless Steel Build Platform, Form 3L Build Platform, Form 3L Build Platform 2L, Form 4L Build Platform, Form 4L Flex Build Platform
- Tank
- Form 2 Resin Tank (PDMS), Form 2 LT Tank, Form 3 Resin Tank V2.1, Form 3L Resin Tank V3, Form 4 Resin Tank
Color Base Resin—
Why Choose Color Base Resin?
Restock on Color Base Resin to create color models right off the printer with pigments available in Color Kit.
A Perfect Foundation
Pair Color Base Resin and Color Kit to create consistent colors throughout the entire part.
Minimize Waste
Use every bit of Color Pigment by replenishing your Color Base Resin.
Smooth Surface Finish
Print parts that have the polish and finish of a final product.
Applications
Color Base Resin paired with Color Kit is ideal for field testing aesthetic prototypes and concept models.

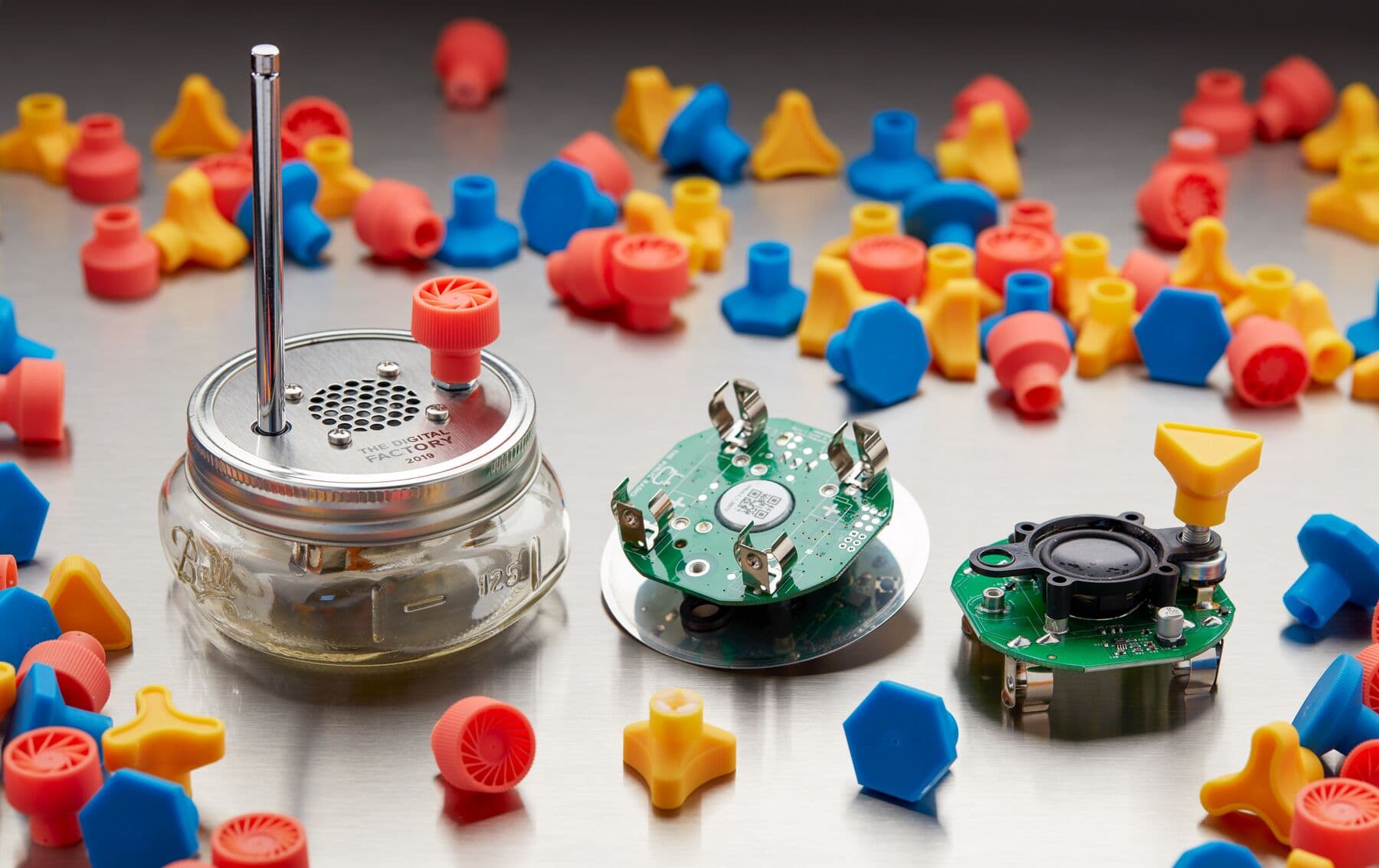

Concept models, looks-like prototypes

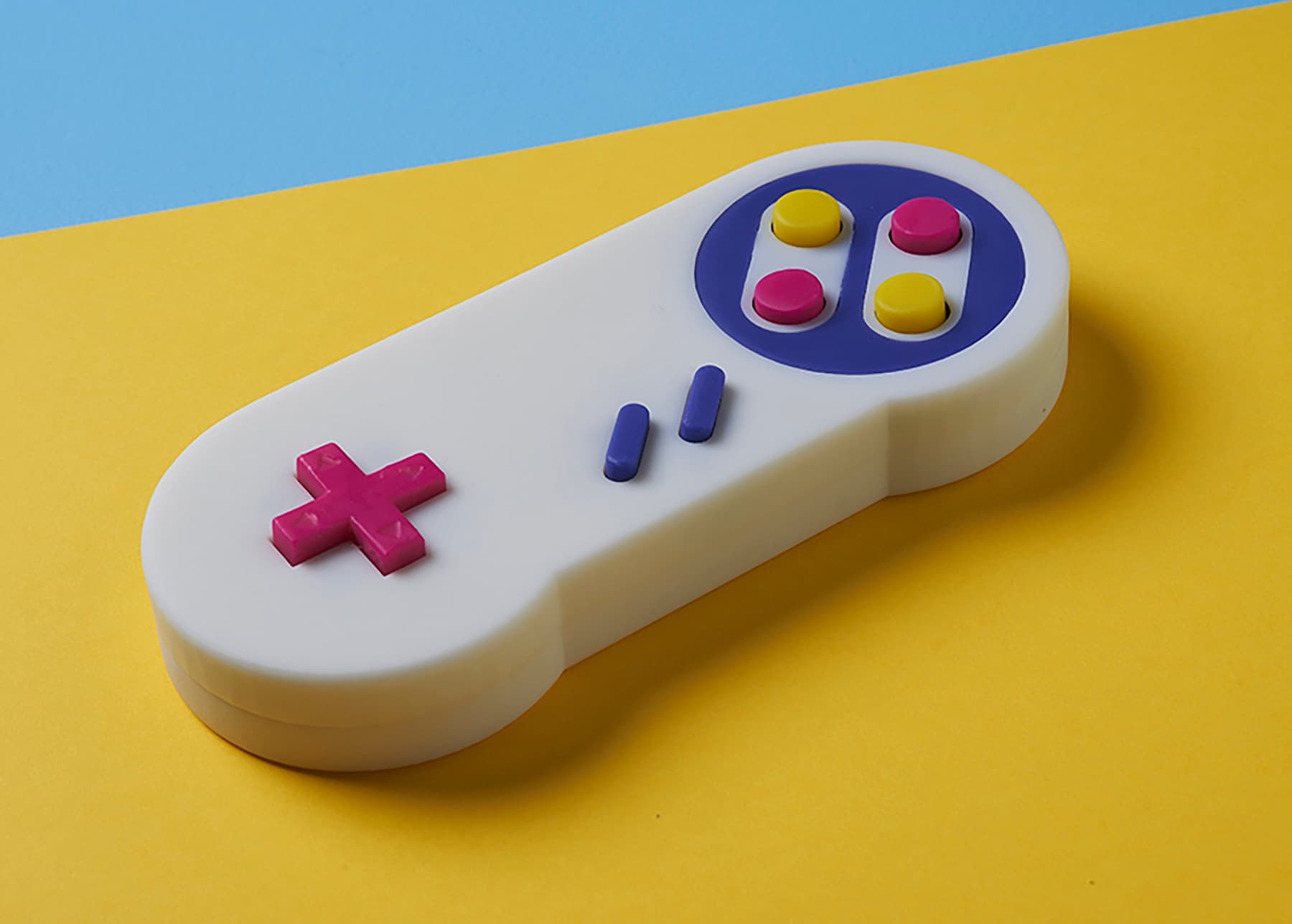

Props and figurines, solid color parts with a matte finish
Material Properties*
| Parameter | Color Base Resin |
|---|---|
|
Ultimate Tensile Strength |
65 MPa |
|
Tensile Modulus |
2.6 GPa |
|
Elongation |
6% |
|
Flexural Modulus |
2.2 GPa |
|
Notched Izod |
25 J/m |
|
Heat Deflection Temp @ 0.45 MPa |
73 ºC |
* Material properties may vary based on part geometry, print orientation, print settings, and temperature. Data was obtained from parts printed using Form 2, 100 μm, Clear settings and post-cured with 1.25 mW/cm³ of 405 nm LED light for 60 minutes at 60°C.
Post-Processing
Washing
The foundational step in any SLA post-processing workflow is to remove any excess resin on the surface of the parts through an alcohol or ether wash.
SETTINGS
Curing
Post-curing for General Purpose Resins is optional. However, Formlabs recommends a short post-curing to reduce surface tack and improve mechanical properties.
SETTINGS
Form Cure V1 | Form Cure V2 | Form Cure L V1 | Form Cure L V2
