- Print Technology
- SLA
- Applications
- Custom Impression Trays
- Colors
- Translucent
- Characteristics
- Biocompatibility
- Tensile Modulus
- 2500.0 MPa
- Flexural Modulus
- 2600.0 MPa
- Ultimate Tensile Strength
- 70.0 MPa
- Elongation at Break
- 3.0 %
- Flexural Strength
- 100.0 MPa
- Shore Hardness
- 80.0 D
Custom Tray Resin is a fast-printing biocompatible material used to directly print custom impression trays for implants, dentures, crowns and bridges, and other comprehensive cases. Digitally manufactured impression trays provide consistent, accurate impressions for high-quality dentistry.
Custom Tray Resin prints full impression trays quickly using 200-micron layer heights, reducing labor time and enabling higher throughput.
Read our application guide to learn the complete workflow and best practices for making 3D printed custom impression trays on your Formlabs 3D printer.
Regional Availability
Product availability is limited to certain regions. See regional availability.
- Print Technology
- SLA
- Applications
- Custom Impression Trays
- Colors
- Translucent
- Characteristics
- Biocompatibility
- Tensile Modulus
- 2500.0 MPa
- Flexural Modulus
- 2600.0 MPa
- Ultimate Tensile Strength
- 70.0 MPa
- Elongation at Break
- 3.0 %
- Flexural Strength
- 100.0 MPa
- Shore Hardness
- 80.0 D
Select Printer Series and Resin Volume
Bulk Order Discount
- 15%
- 30 L
- 20%
- 60 L
- 25%
- 120 L
- 30%
- 240 L
- 35%
- 1,000 L
- 40%
- 2,000 L
- 45%
- 3,000 L
Compatibility
- 3D Printer
- Form 4BL, Form 4B, Form 3B, Form 2
- Build Platform
- Form 4 Build Platform, Form 4 Flex Build Platform, Form 3 Build Platform, Form 3 Build Platform 2, Form 3 Stainless Steel Build Platform, Form 3L Build Platform, Form 3L Build Platform 2L, Form 4L Build Platform, Form 4L Flex Build Platform
- Tank
- Form 2 LT Tank, Form 3 Resin Tank V2.1, Form 4 Resin Tank, Form 4L Resin Tank
Custom Tray Resin—
Why Choose Custom Tray Resin?
Custom Tray Resin is a production-ready material that enables highly accurate definitive impressions.
High Throughput
Print full impression trays quickly using 200 micron layer heights, reducing labor time.
Accurate
Provide consistent and accurate impressions for patient-matched trays with a digital workflow.
Made-to Measure
Create ideally fit definitive models for complex cases.
Biocompatibility
Provide the patient and clinician the peace of mind they deserve.
Applications
Leverage Custom Tray Resin to take highly accurate definitive impressions for crown and bridge, implant, dentures, and comprehensive cases.
Manufactured in an ISO 13485-Certified Facility
Formlabs manufactures our Biomed and Medical Device Resins at our FDA-registered facility in Ohio. These materials are designed and manufactured within our robust Quality Management System that is ISO 13485 and EU MDR certified. A dedicated team of operators and quality assurance professionals makes the resins inside a certified ISO Class 8 clean room. All of our Medical Device Resins are appropriately registered with the FDA and CE marked according to the EU MDR.
Material Properties*
| Parameter |
Value |
|---|---|
|
Ultimate Tensile Strength |
≥ 70 MPa |
|
Young's Modulus |
> 2500 MPa |
|
Elongation |
> 3% |
|
Shore Hardness |
> 80D |
* Material properties may vary based on part geometry, print orientation, print settings, and temperature. Data for post-cured samples were measured on Type IV tensile bars printed on a Form 2 printer with 200 μm Custom Tray Resin settings, washed in a Form Wash for 10 minutes in ≥99% isopropyl alcohol.
Post-Processing
Washing
Custom Tray Resin may be washed using either a Formlabs-validated wash unit (1) or an ultrasonic wash unit (2).
The foundational step in any SLA post-processing workflow is to remove excess resin on the surface of the parts through an alcohol wash. Please refer to the material's manufacturing guide/IFU for washing instructions.
SETTINGS
Curing
For biocompatible materials, post-curing is necessary to achieve the safety standards determined by regulatory agencies. Please follow the material’s manufacturing guide/IFU for proper post-processing.
SETTINGS
Form Cure V1 | Form Cure V2 | Form Cure L V1 | Form Cure L V2

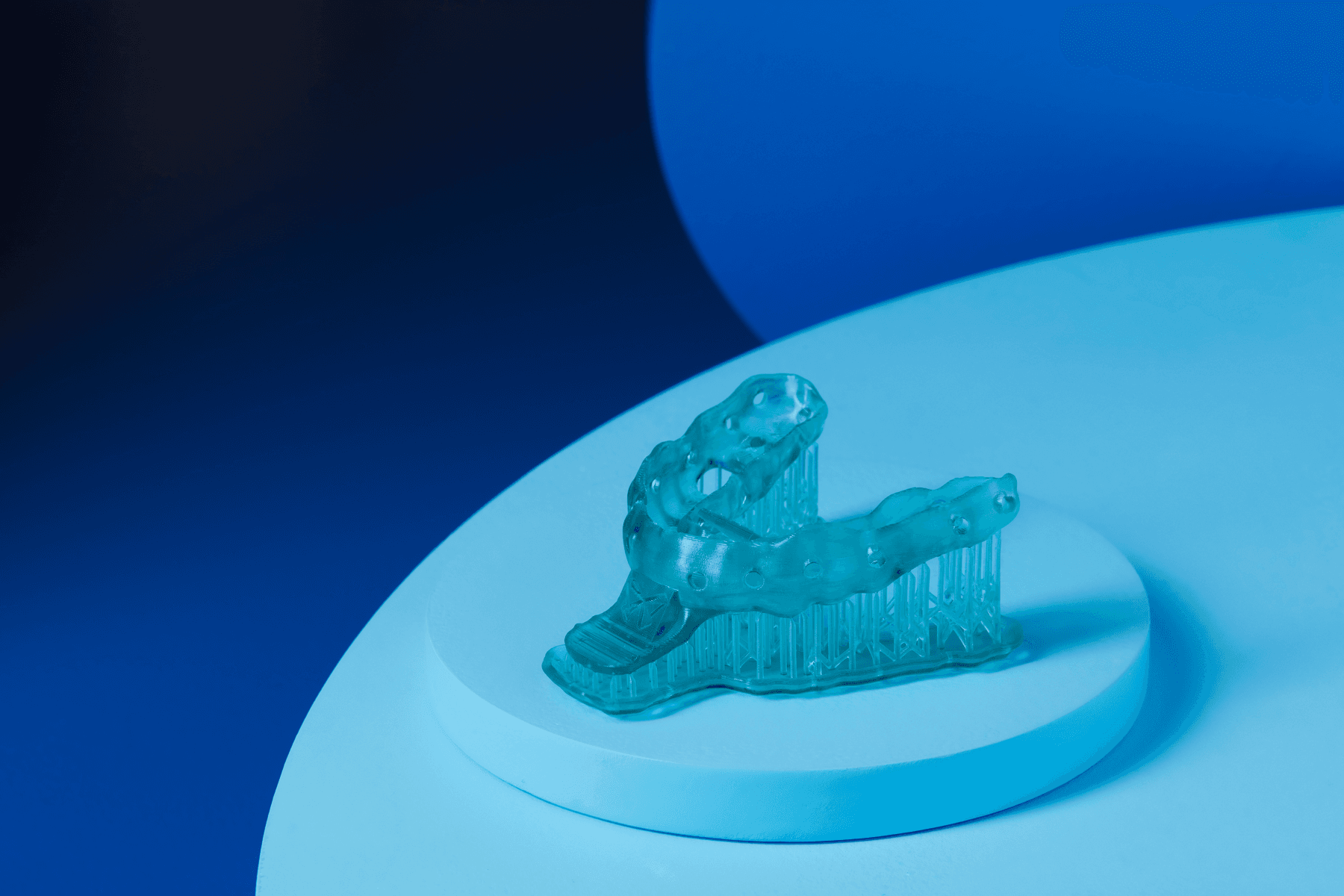

Request a Free Custom Tray Resin Sample Part
