- Print Technology
- SLA
- Colors
- Translucent
- Characteristics
- Elastomeric, Soft Silicone-Like
- Ultimate Tensile Strength
- 3.4 MPa
- Elongation at Break
- 160.0 %
- Shore Hardness
- 55.0 A
- Tear Strength
- 12.3 kN/m
- Compression Set 70°C for 22 hours
- 3.1 %
- Stress at 100% Elongation
- 1.7 MPa
Elastic 50A Resin V2 is a soft, translucent elastomer with a 50A Shore durometer that is ideal for prototyping parts normally produced with softer rubbers and silicones.
Parts printed in Elastic 50A Resin will bend, stretch, compress, and hold up to repeated cycles without tearing, and spring back quickly to their original shape.
- Print Technology
- SLA
- Colors
- Translucent
- Characteristics
- Elastomeric, Soft Silicone-Like
- Ultimate Tensile Strength
- 3.4 MPa
- Elongation at Break
- 160.0 %
- Shore Hardness
- 55.0 A
- Tear Strength
- 12.3 kN/m
- Compression Set 70°C for 22 hours
- 3.1 %
- Stress at 100% Elongation
- 1.7 MPa
Select Printer Series and Resin Volume
Bulk Order Discount
- 15%
- 30 L
- 20%
- 60 L
- 25%
- 120 L
- 30%
- 240 L
- 35%
- 1,000 L
- 40%
- 2,000 L
- 45%
- 3,000 L
Compatibility
- 3D Printer
- Form 4L, Form 4BL, Form 4, Form 4B, Form 3, Form 3L, Form 3B, Form 3BL
- Build Platform
- Form 4 Build Platform, Form 4 Flex Build Platform, Form 3 Build Platform, Form 3 Build Platform 2, Form 3 Stainless Steel Build Platform, Form 3L Build Platform, Form 4L Build Platform, Form 4L Flex Build Platform
- Tank
- Form 3 Resin Tank V2.1, Form 3L Resin Tank V3, Form 4 Resin Tank, Form 4L Resin Tank
Elastic 50A Resin V2—
Why Choose Elastic 50A Resin V2?
Elastic 50A Resin V2 is an elastomeric material with high elongation and high energy return. Parts are highly elastic, yet strong enough not to tear during printing.
Fast Springback
Bend, stretch, and compress parts that resume their normal shape afterwards.
Transparent
Create objects that are clear, providing visibility into the model.
Durable
Able to withstand rugged use for multiple cycles.
Pliable
Produce parts that look and feel like a molded silicone part.
Applications

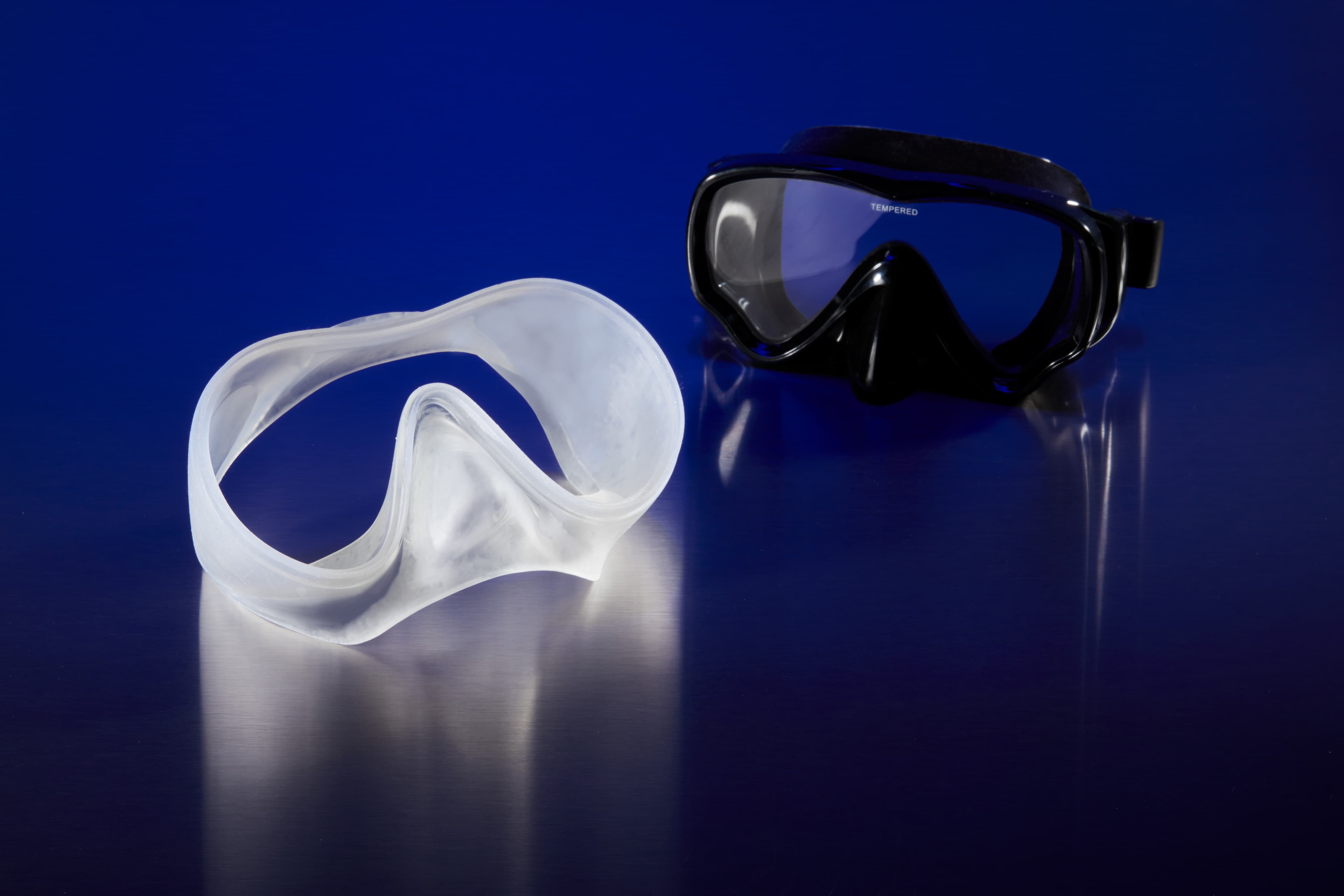

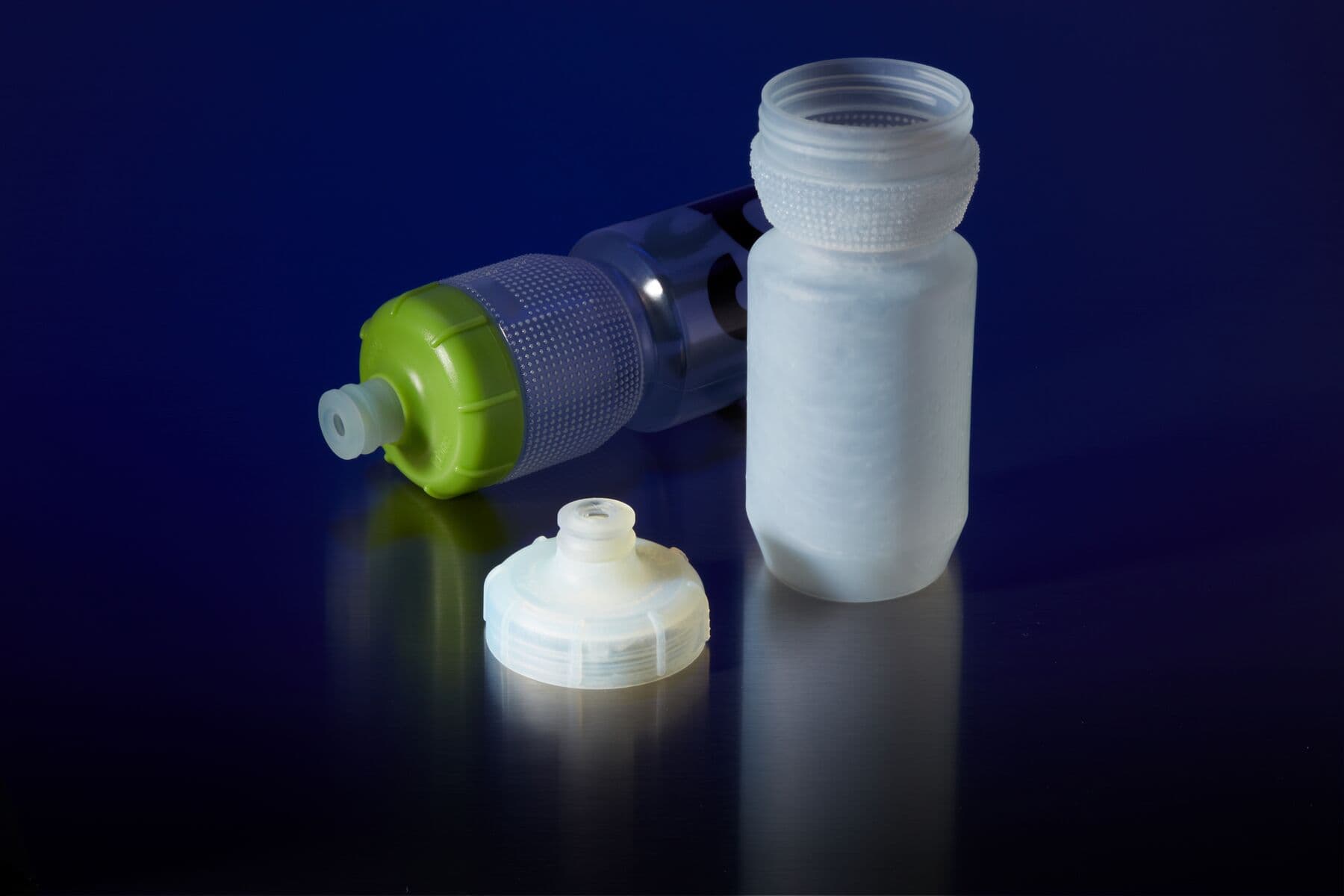

Elastic 50A Resin V2 is ideal for developing soft, flexible prototypes normally produced with silicone.

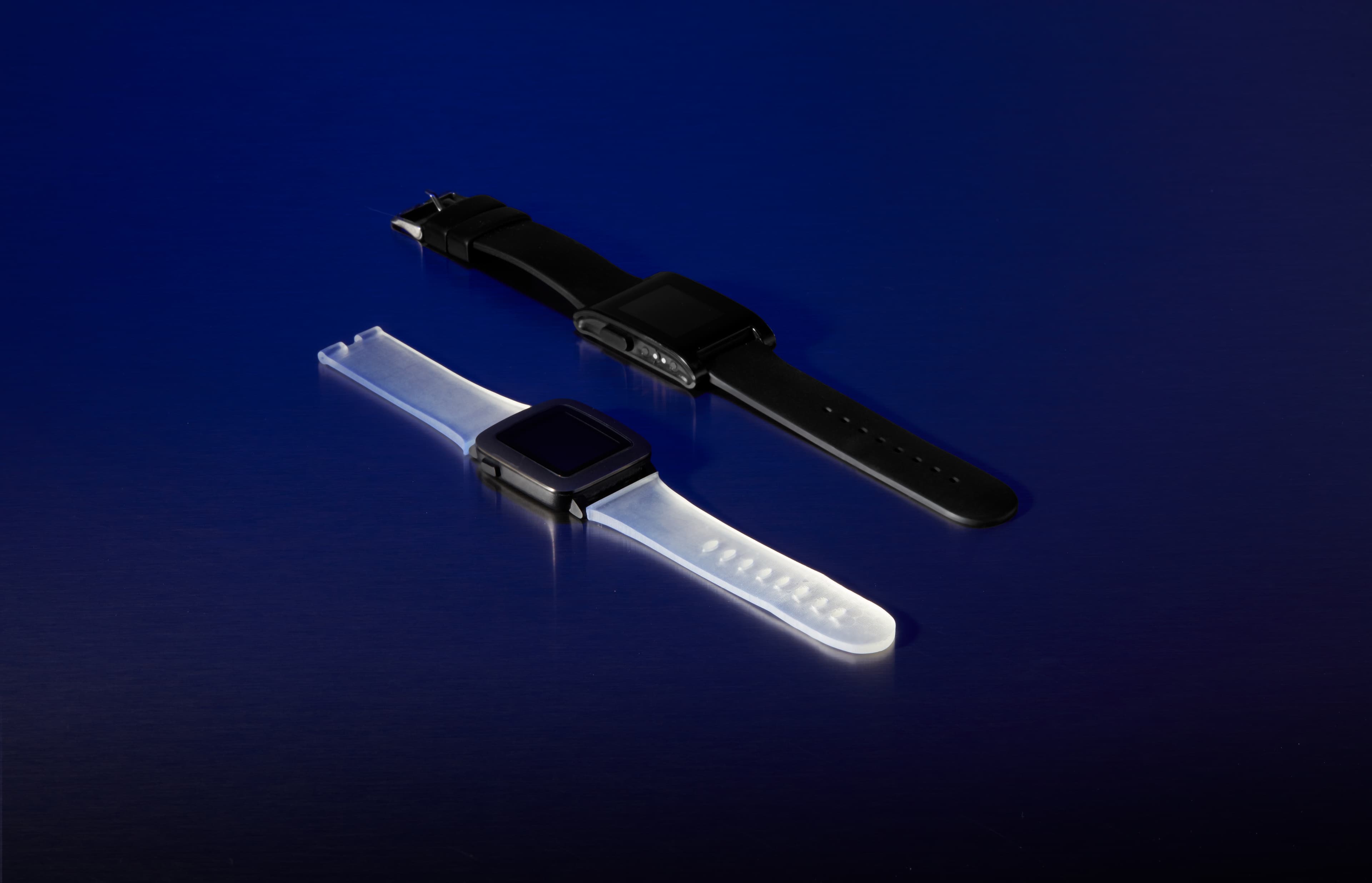

Wearables, such as straps

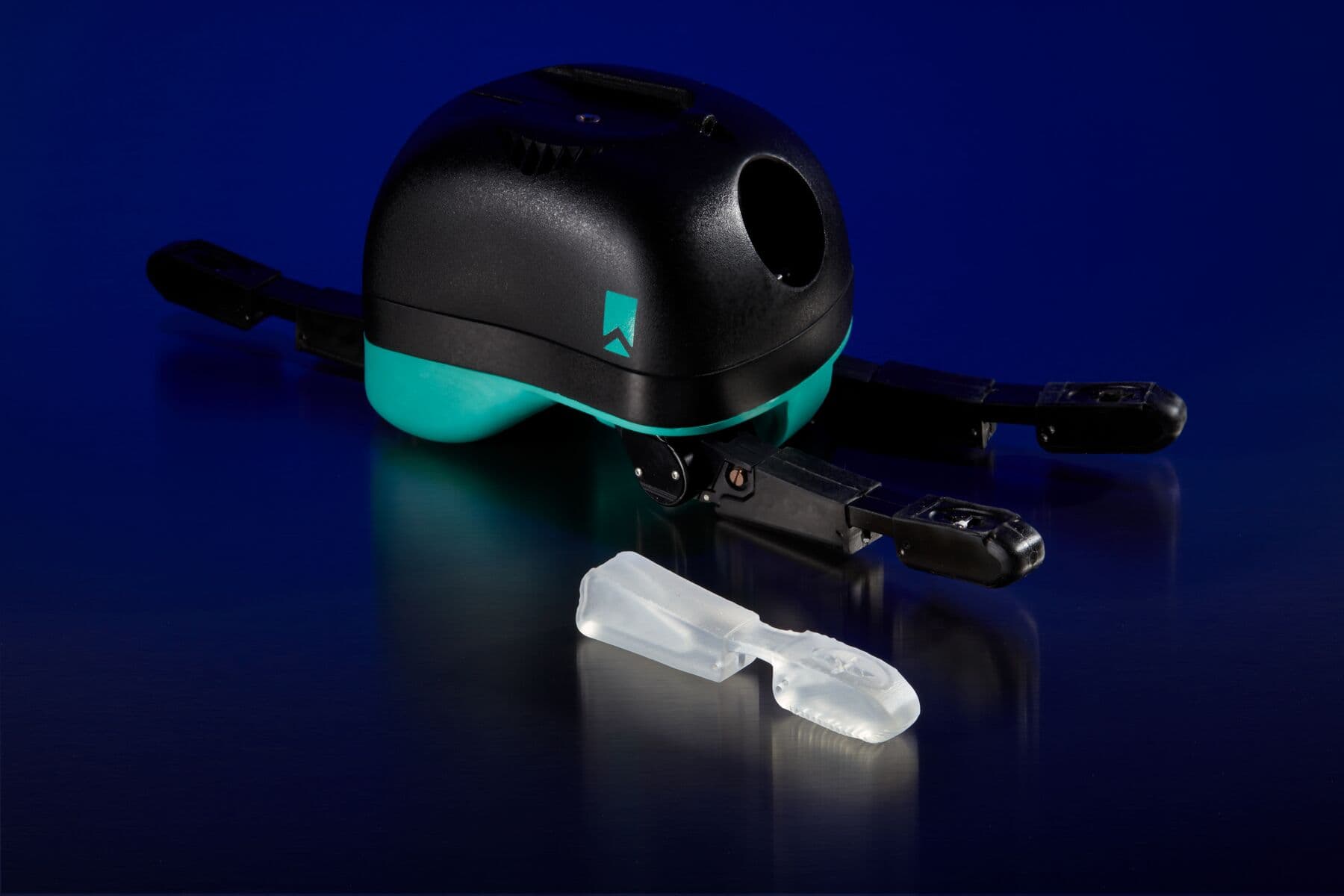

Compliant features for robotics
Compressible buttons

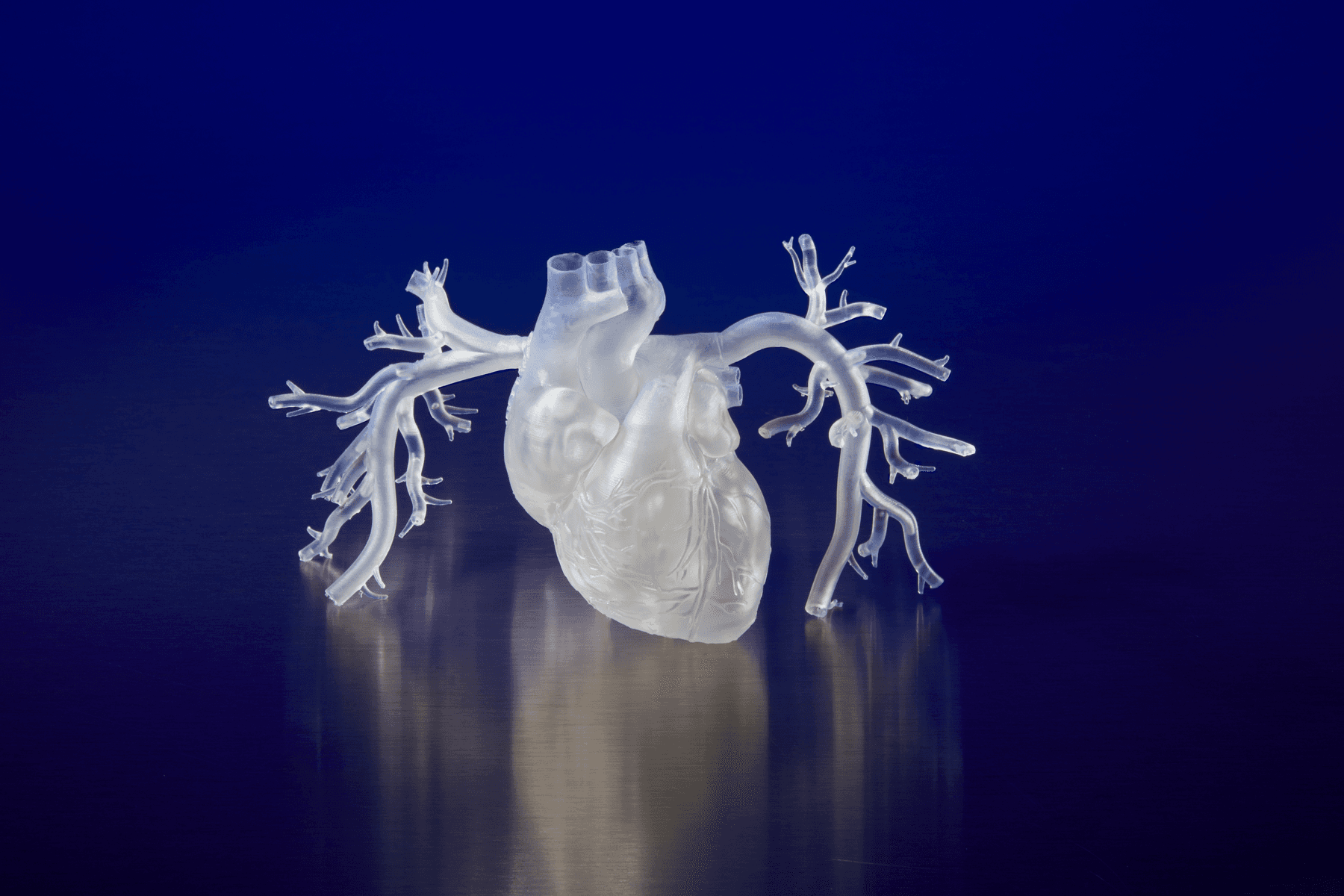

Soft tissue anatomy and medical models

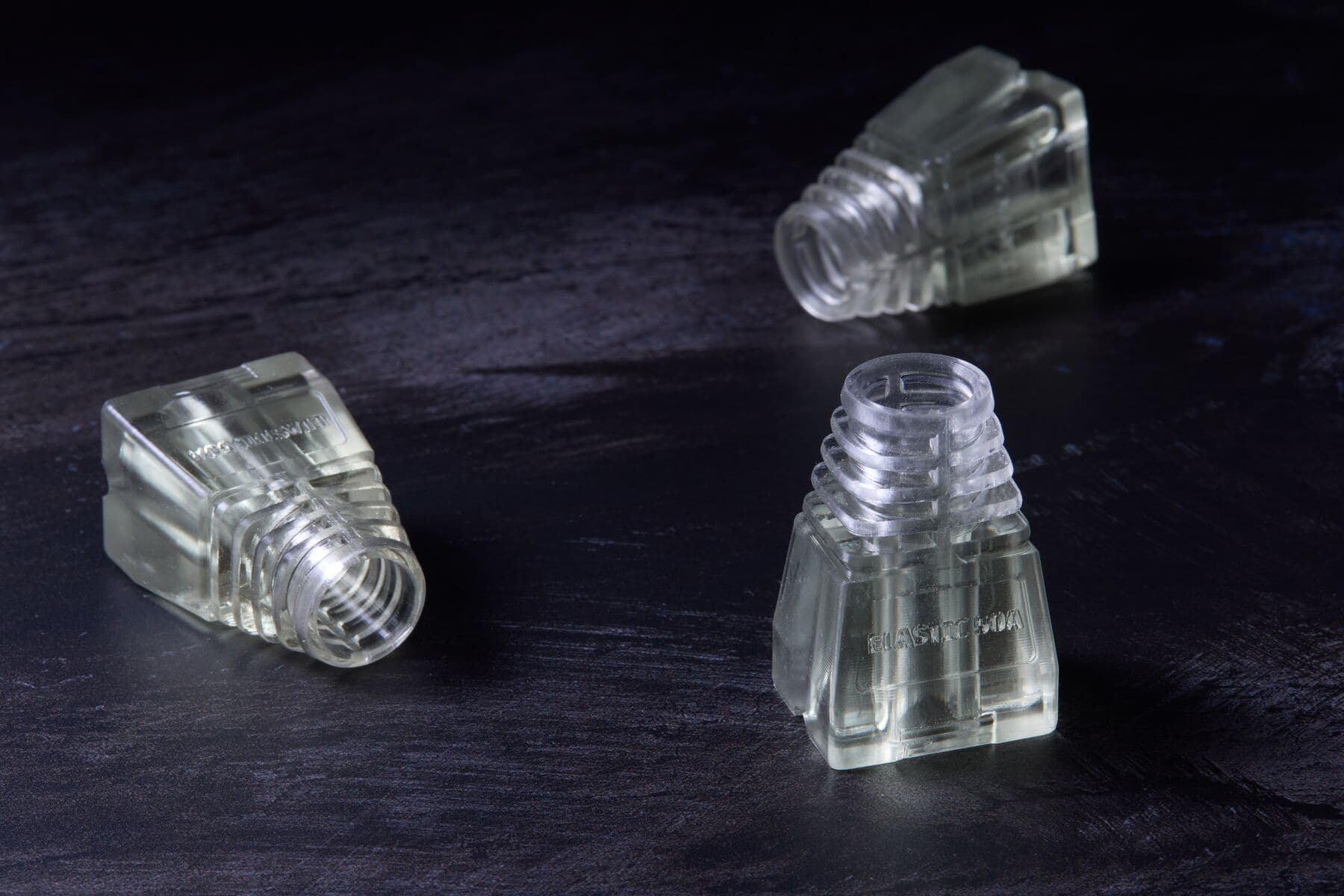

Stretchable enclosures and casings
Special effects props and models
Material Properties*
| Parameter |
Value |
|---|---|
|
Ultimate Tensile Strength |
3.4 MPa |
|
Stress at 50% Elongation |
0.9 MPa |
|
Stress at 100% Elongation |
1.7 MPa |
|
Elongation |
160% |
|
Tear Strength |
12.3 kN/m |
|
Shore Hardness |
55 A |
* Material properties may vary based on part geometry, print orientation, print settings, and temperature. Data was obtained from parts printed using Form 3, 100 μm, Elastic 50A Resin V2 settings, Elastic 50A Resin V2 post-processing steps.
Post-Processing
Washing
The foundational step in any SLA post-processing workflow is to remove any excess resin on the surface of the parts through an alcohol or ether wash.
SETTINGS
Curing
Post-curing Engineering and Specialty Resins is essential for parts to achieve their full strength and functionality. This step completes the chemical reaction initiated during printing, transforming the part from its green state into a fully finished component.
SETTINGS
Form Cure V1 | Form Cure V2 | Form Cure L V1 | Form Cure L V2
