- Print Technology
- SLA
- Characteristics
- Stiff & Strong, ABS-Like, Robust, ESD-Safe
- Ultimate Tensile Strength
- 44.2 MPa
- Flexural Strength
- 61.0 MPa
- Notched Izod
- 26.0 J/m
- Unnotched Izod
- 277.0 J/m
- Elongation at Break
- 12.0 %
- Heat Deflection Temp. @ 1.8 MPa
- 54.2 °C
- Heat Deflection Temp. @ 0.45 MPa
- 62.2 °C
- Thermal Expansion
- 123.7 μm/m/°C
- Tensile Modulus
- 1937.0 MPa
- Flexural Modulus
- 1841.0 MPa
ESD Resin is a specialty material for producing custom ESD-safe prototypes and production tooling to increase operational efficiency and improve the yield of electronics manufacturing lines. Parts printed in ESD Resin are static-dissipative and have high modulus and impact strength similar to ABS.
Choose ESD Resin to prototype and validate electronics production workflows, print static-dissipative parts that repel dust and powder, and create enclosures to protect sensitive electronics from static discharge.
- Print Technology
- SLA
- Characteristics
- Stiff & Strong, ABS-Like, Robust, ESD-Safe
- Ultimate Tensile Strength
- 44.2 MPa
- Flexural Strength
- 61.0 MPa
- Notched Izod
- 26.0 J/m
- Unnotched Izod
- 277.0 J/m
- Elongation at Break
- 12.0 %
- Heat Deflection Temp. @ 1.8 MPa
- 54.2 °C
- Heat Deflection Temp. @ 0.45 MPa
- 62.2 °C
- Thermal Expansion
- 123.7 μm/m/°C
- Tensile Modulus
- 1937.0 MPa
- Flexural Modulus
- 1841.0 MPa
Select Printer Series and Resin Volume
Bulk Order Discount
- 15%
- 30 L
- 20%
- 60 L
- 25%
- 120 L
- 30%
- 240 L
- 35%
- 1,000 L
- 40%
- 2,000 L
- 45%
- 3,000 L
Compatibility
- 3D Printer
- Form 4L, Form 4BL, Form 4, Form 4B, Form 3, Form 3L, Form 3B, Form 3BL
- Build Platform
- Form 4 Build Platform, Form 4 Flex Build Platform, Form 3 Build Platform, Form 3 Build Platform 2, Form 3 Stainless Steel Build Platform, Form 3L Build Platform, Form 3L Build Platform 2L, Form 4L Build Platform, Form 4L Flex Build Platform
- Tank
- Form 3 Resin Tank V2.1, Form 3L Resin Tank V3, Form 4 Resin Tank, Form 4L Resin Tank
ESD Resin—
Why Choose ESD Resin
Use ESD Resin to reduce risk and increase the yield on your manufacturing line by 3D printing custom tools, jigs, and fixtures for automotive, aerospace, electronics manufacturing.
Static-Dissipative
Protect your critical electronics from unregulated static discharge to prevent component failures.
High Toughness
With its high modulus and impact strength, ESD Resin is made to withstand operation on the production line.

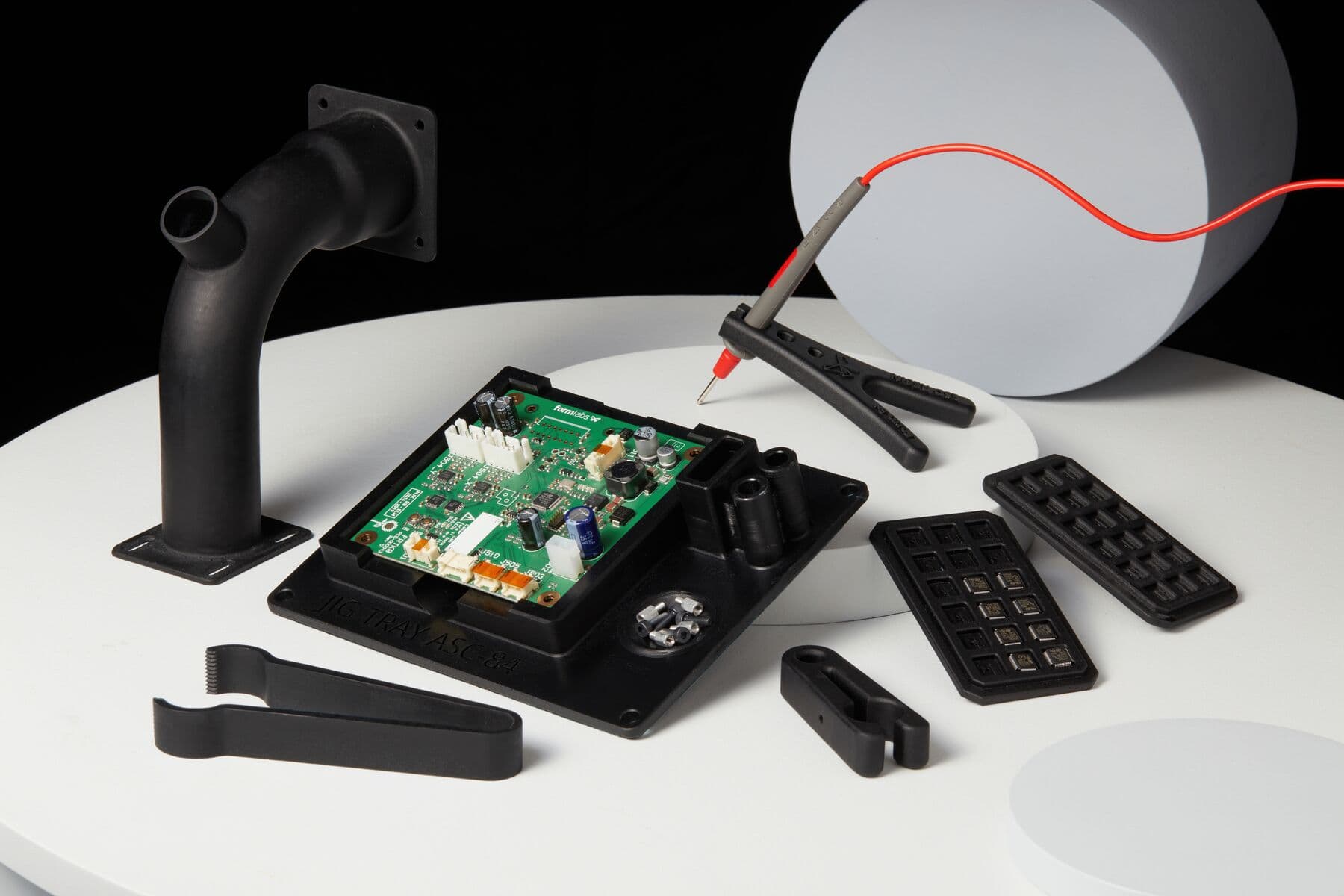

Applications
ESD Resin is a cost-effective solution for producing static-dissipative parts designed to endure use on the factory floor.

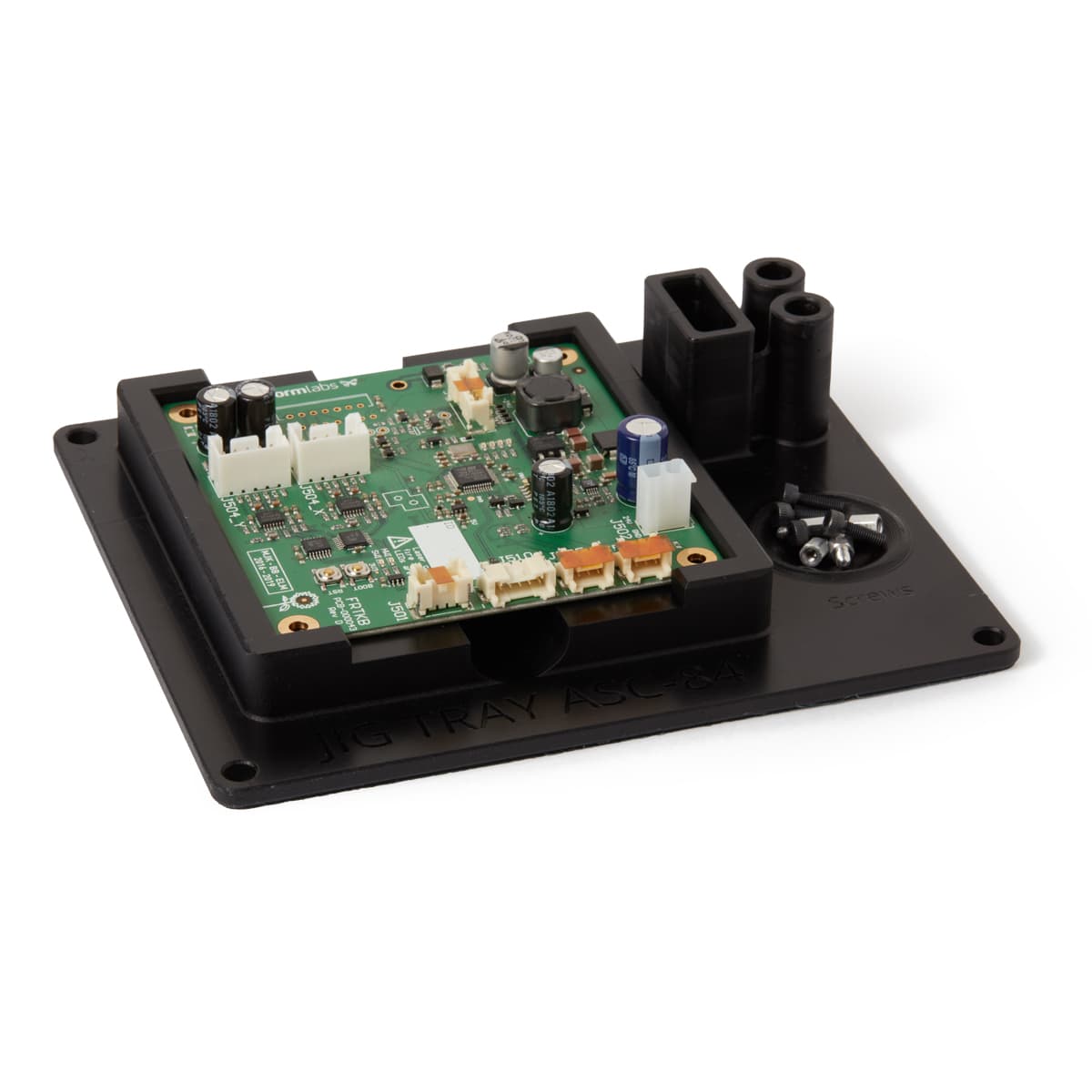

Tooling & fixturing for electronics manufacturing

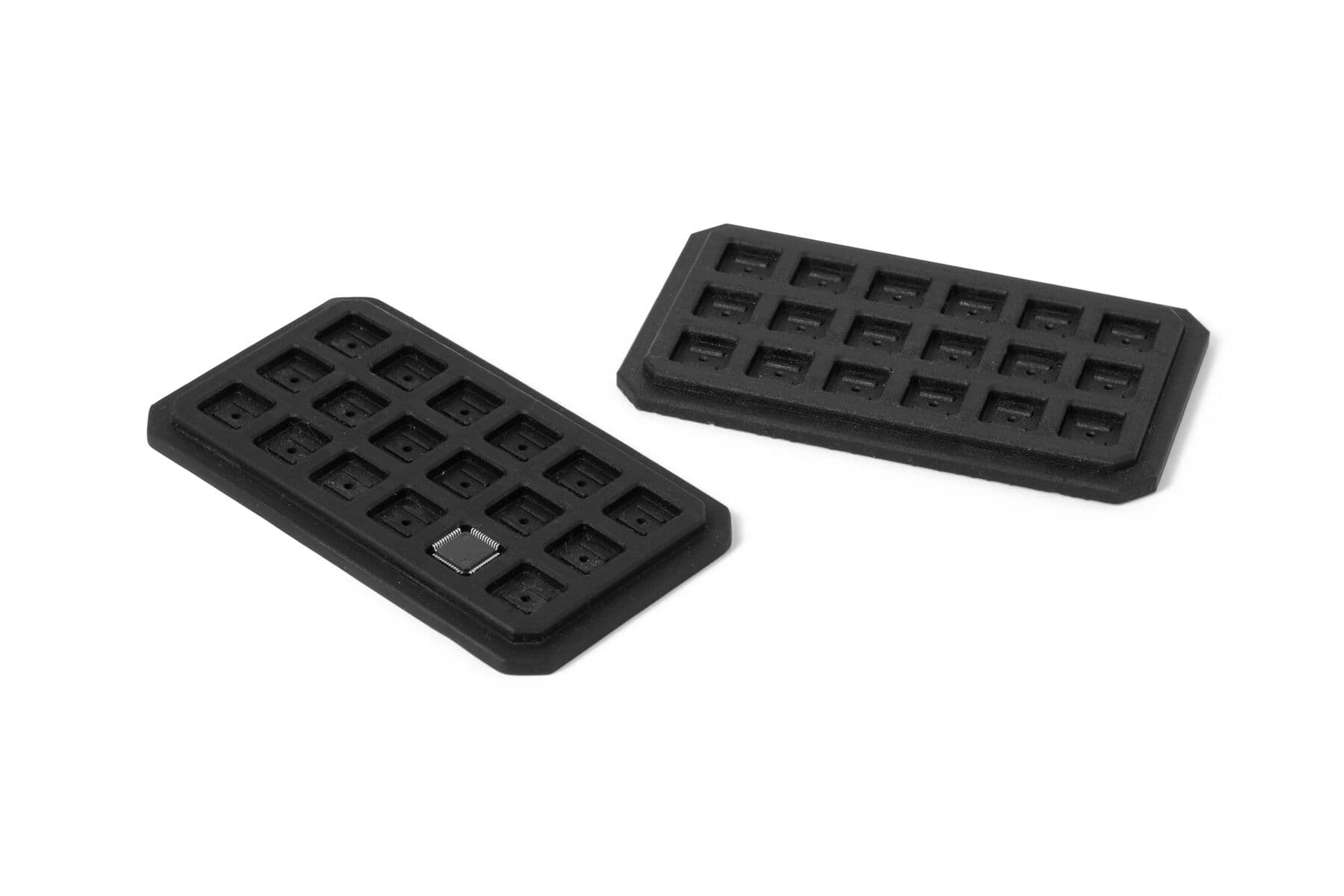

Custom trays for component handling and storage

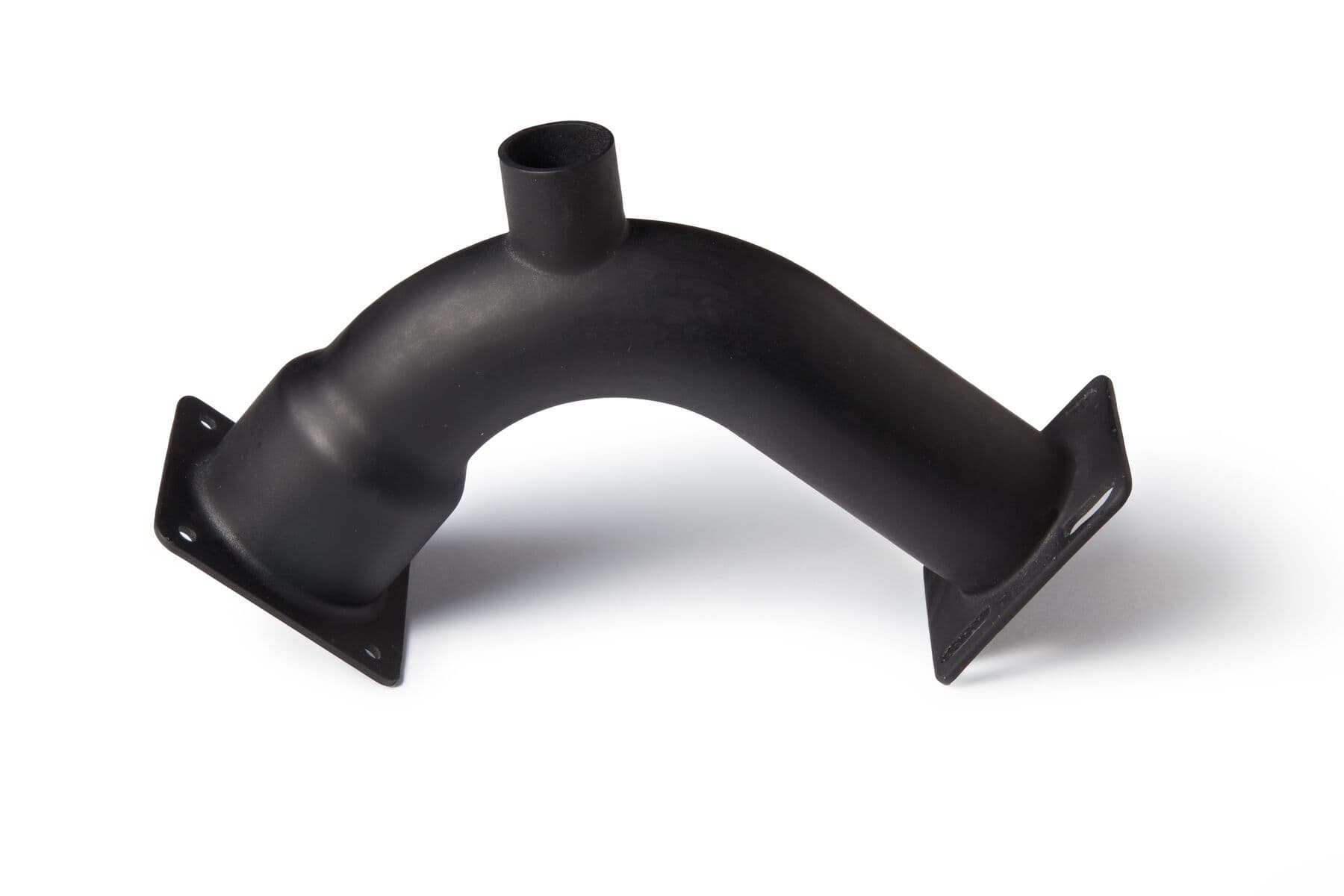

Anti-static prototype and end-use components
Material Properties*
| Parameter |
Post-cured at 70ºC |
|---|---|
|
Surface Resistivity |
105 - 108 Ohms/sq |
|
Ultimate Tensile Strength |
44.2 MPa |
|
Tensile Modulus |
1.937 GPa |
|
Strain at break |
12% |
|
Notched Izod |
26 J/m |
|
Heat Deflection Temperature 0.45 MPA |
62.2ºC |
|
Heat Deflection Temperature 1.8 MPA |
54.2ºC |
Post-Processing
Washing
The foundational step in any SLA post-processing workflow is to remove any excess resin on the surface of the parts through an alcohol or ether wash.
SETTINGS
Curing
Post-curing Engineering and Specialty Resins is essential for parts to achieve their full strength and functionality. This step completes the chemical reaction initiated during printing, transforming the part from its green state into a fully finished component.
SETTINGS
Form Cure V1 | Form Cure V2 | Form Cure L V1 | Form Cure L V2
