- Print Technology
- SLA
- Colors
- Translucent
- Characteristics
- Heat Resistant, Fine Details, Ultra Stiff
- Tensile Modulus
- 2800.0 MPa
- Flexural Modulus
- 2800.0 MPa
- Ultimate Tensile Strength
- 49.0 MPa
- Flexural Strength
- 97.0 MPa
- Notched Izod
- 17.0 J/m
- Elongation at Break
- 2.3 %
- Heat Deflection Temp. @ 1.8 MPa
- 101.0 °C
- Heat Deflection Temp. @ 0.45 MPa
- 238.0 °C
- Thermal Expansion
- 75.0 μm/m/°C
High Temp Resin is among the most heat-resistant resins, with a heat deflection temperature (HDT) of 238 °C at 0.45 MPa.
Choose High Temp Resin to print detailed, precise prototypes and end-use parts that require high thermal stability, such as molds and inserts, parts exposed to hot air, gas, and fluid flow, as well as heat-resistant mounts, housings, and fixtures.
- Print Technology
- SLA
- Colors
- Translucent
- Characteristics
- Heat Resistant, Fine Details, Ultra Stiff
- Tensile Modulus
- 2800.0 MPa
- Flexural Modulus
- 2800.0 MPa
- Ultimate Tensile Strength
- 49.0 MPa
- Flexural Strength
- 97.0 MPa
- Notched Izod
- 17.0 J/m
- Elongation at Break
- 2.3 %
- Heat Deflection Temp. @ 1.8 MPa
- 101.0 °C
- Heat Deflection Temp. @ 0.45 MPa
- 238.0 °C
- Thermal Expansion
- 75.0 μm/m/°C
Select Printer Series and Resin Volume
Bulk Order Discount
- 15%
- 30 L
- 20%
- 60 L
- 25%
- 120 L
- 30%
- 240 L
- 35%
- 1,000 L
- 40%
- 2,000 L
- 45%
- 3,000 L
Compatibility
- 3D Printer
- Form 4L, Form 4BL, Form 4, Form 4B, Form 3, Form 3L, Form 3B, Form 3BL, Form 2
- Build Platform
- Form 4 Build Platform, Form 4 Flex Build Platform, Form 3 Build Platform, Form 3 Build Platform 2, Form 3 Stainless Steel Build Platform, Form 3L Build Platform, Form 3L Build Platform 2L, Form 4L Build Platform, Form 4L Flex Build Platform
- Tank
- Form 2 Resin Tank (PDMS), Form 2 LT Tank, Form 3 Resin Tank V2.1, Form 3L Resin Tank V3, Form 4 Resin Tank
High Temp Resin—
Why Choose High Temp Resin
Our best material for stability under heat, High Temp Resin offers the highest heat deflection temperature among Formlabs resins.
High Thermal Stability
High Temp Resin offers the highest heat deflection temperature of any Formlabs material.
Ease of Use
Formlabs' accessible technology makes it easy to experiment with high temperature applications.
Applications
With the highest Heat Deflection Temperature of any Formlabs material, High Temp Resin is ideal for applications that require resistance to high temperatures.

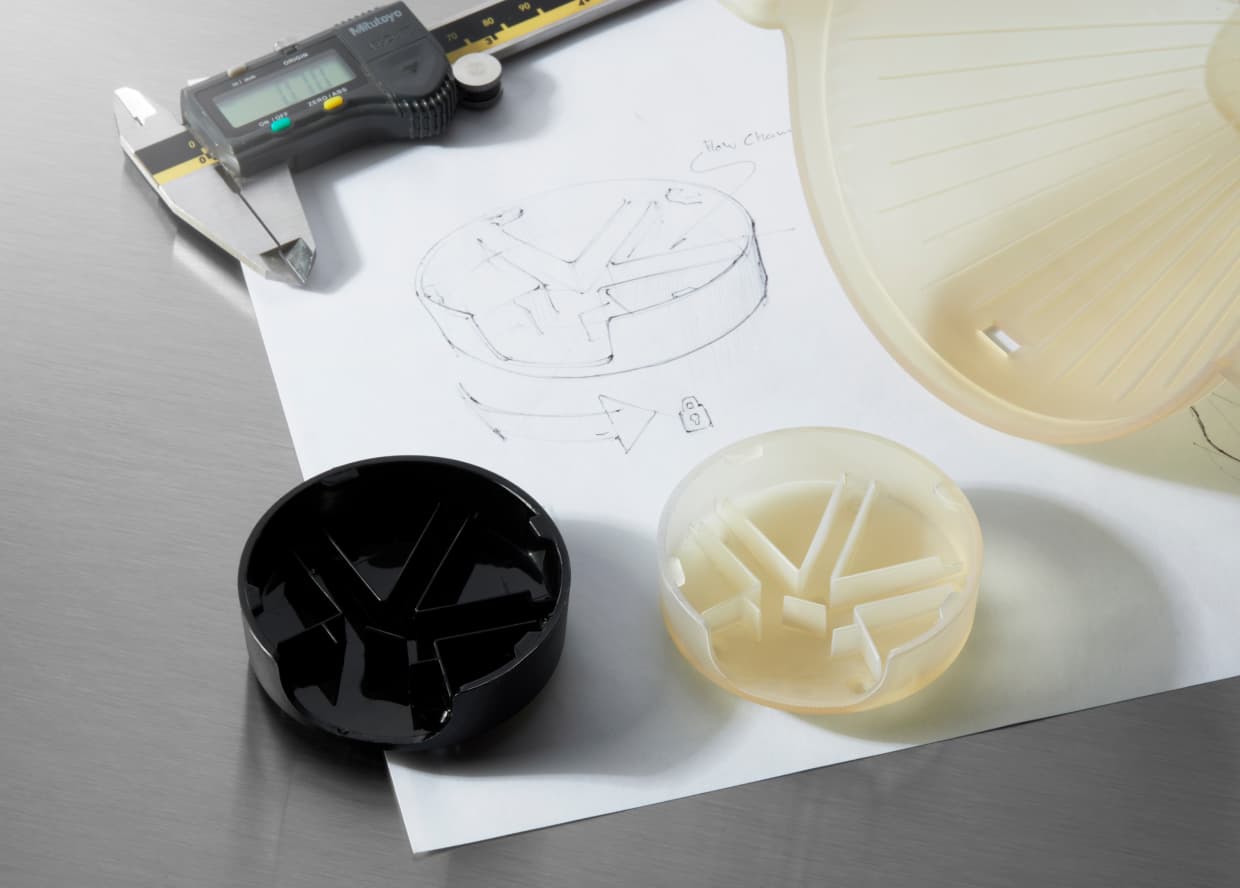

Heat-resistant prototypes

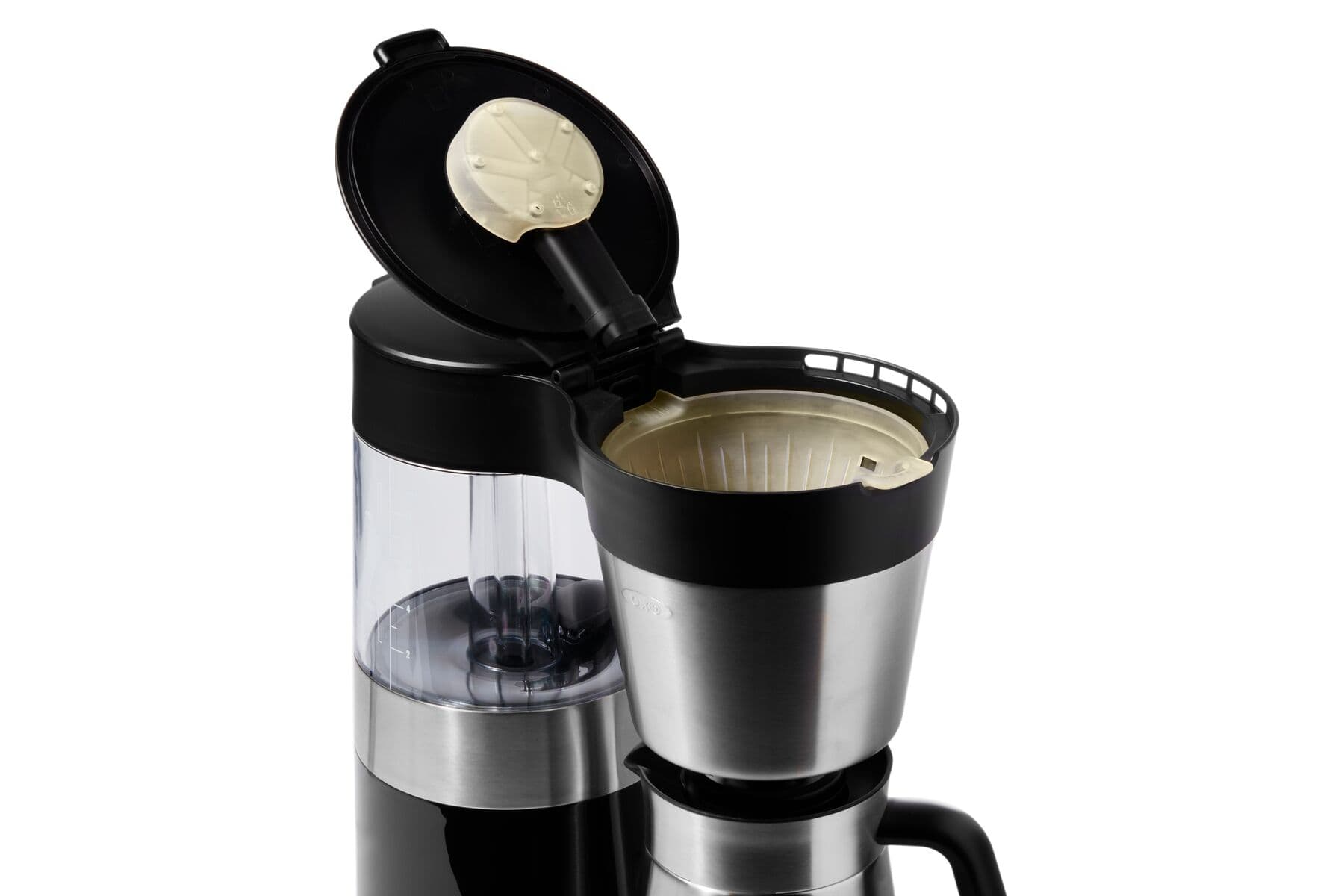

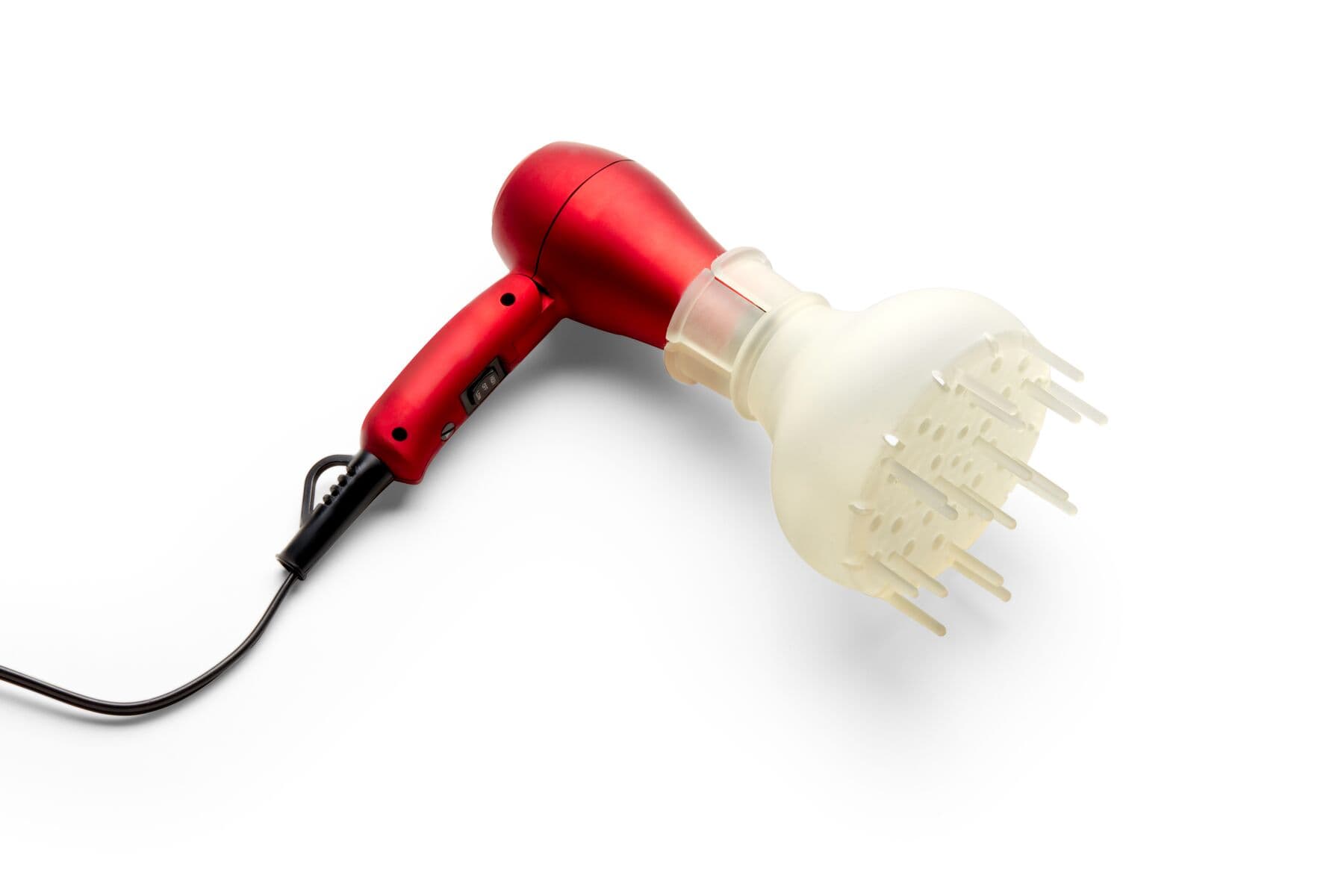

Hot air, gas, and fluid flow

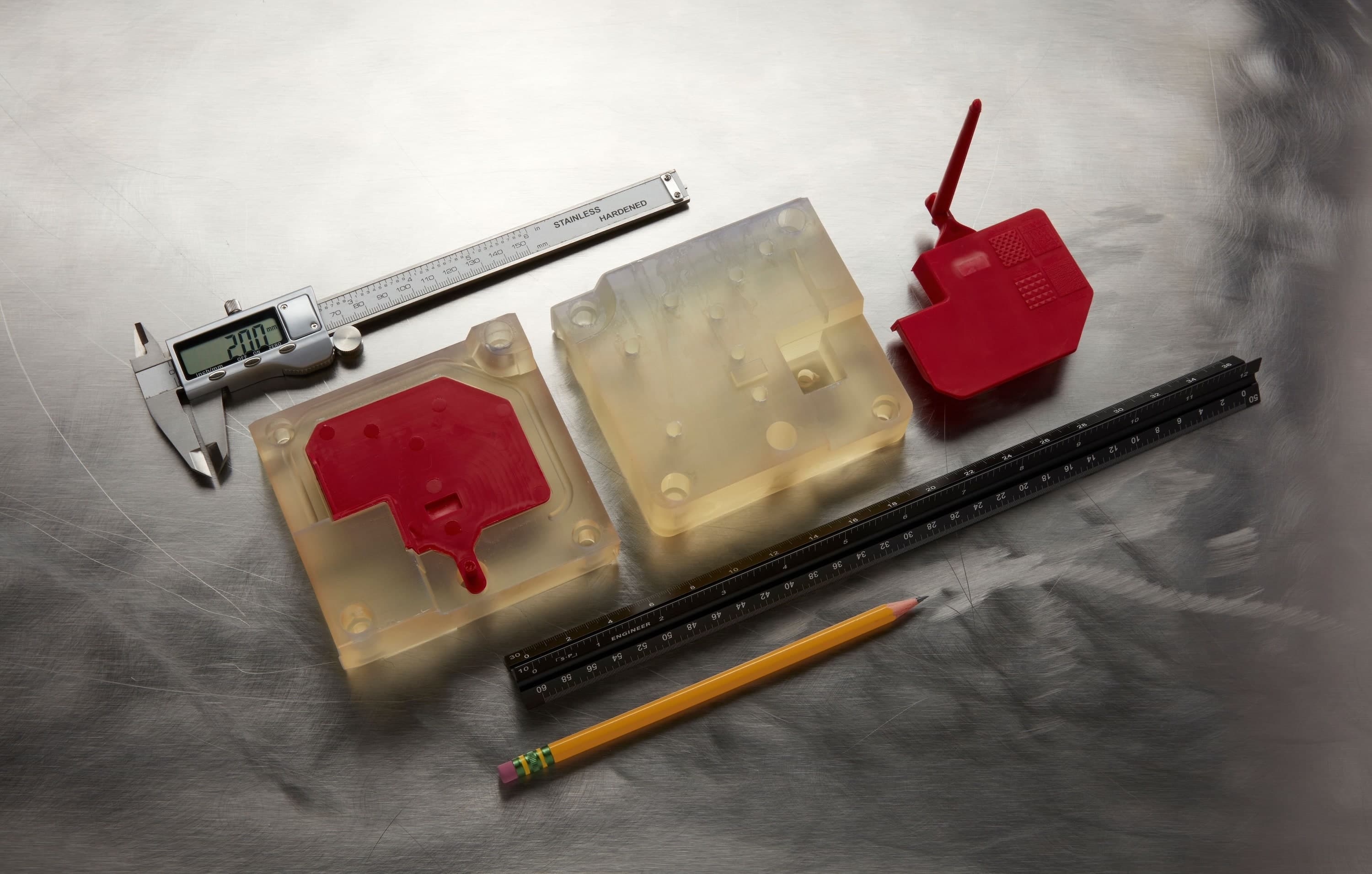

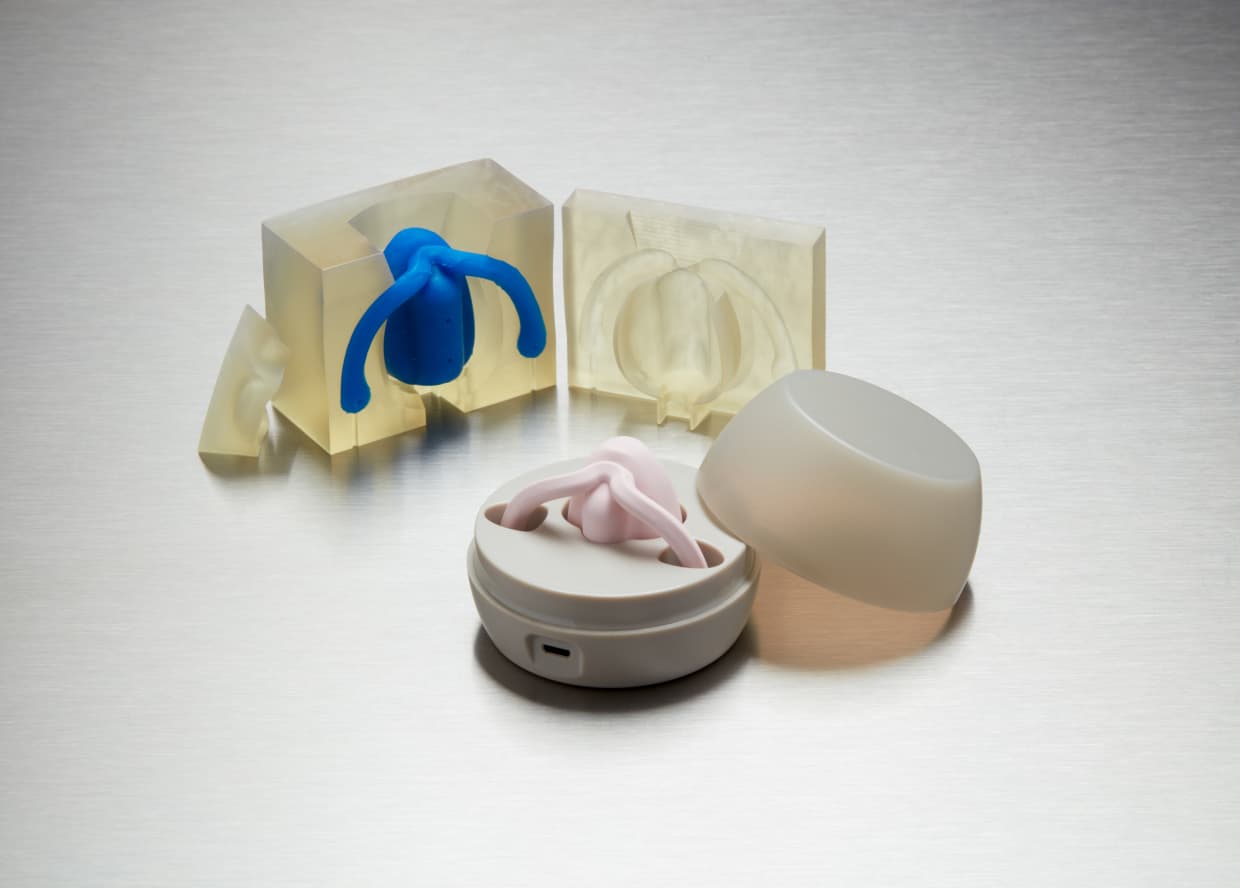

Molds and inserts

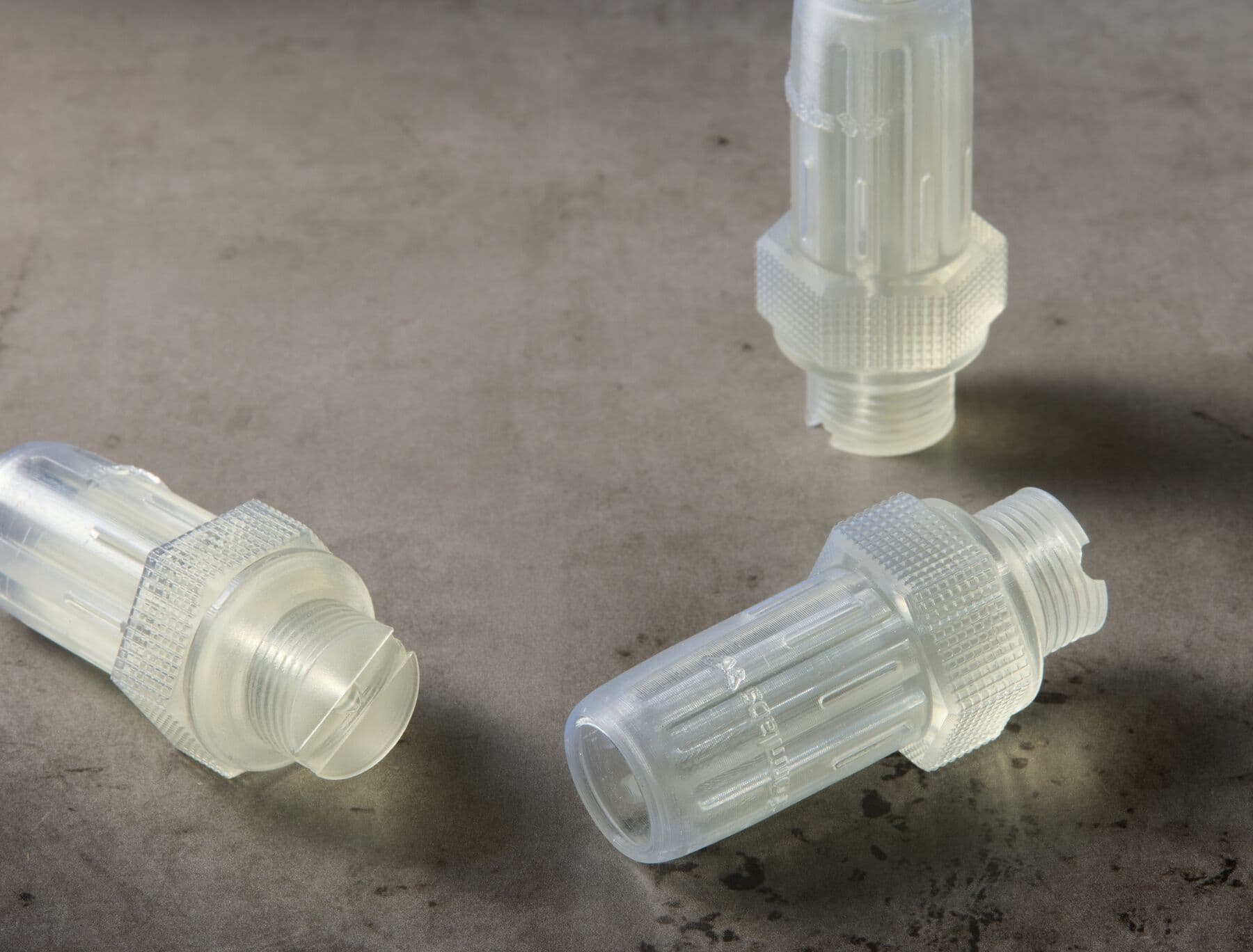

Heat resistant mounts, housings, and fixtures
Material Properties
| Parameter |
Green |
Post-Cured at 60 °C |
Post-Cured for 120 min at 80 °C and 180 min at 160 °C |
|---|---|---|---|
|
Ultimate Tensile Strength |
21 MPa |
58 MPa |
49 MPa |
|
Tensile Modulus |
0.75 GPa |
2.8 GPa |
2.8 GPa |
|
Elongation at Break |
14% |
3.3% |
2.3% |
|
Flexural Modulus |
0.7 GPa |
2.6 GPa |
2.8 GPa |
|
Notched Izod |
33 J/m |
18 J/m |
17 J/m |
| Heat Deflection Temp. @ 1.8 MPa | 44 °C | 78 °C | 101 °C |
| Heat Deflection Temp. @ 0.45 MPa | 49 °C | 120 °C | 238 °C |
Post-Processing
Washing
The foundational step in any SLA post-processing workflow is to remove any excess resin on the surface of the parts through an alcohol or ether wash.
SETTINGS
Curing
Post-curing Engineering and Specialty Resins is essential for parts to achieve their full strength and functionality. This step completes the chemical reaction initiated during printing, transforming the part from its green state into a fully finished component.
SETTINGS
Form Cure V1 | Form Cure V2 | Form Cure L V1 | Form Cure L V2
Request a Free High Temp Resin Sample Part
See and feel Formlabs quality firsthand. We’ll ship a free High Temp Resin 3D printed sample part to your office.
