- Print Technology
- SLS
- Characteristics
- Heat Resistant, Impact Resistant, Ultra Stiff, Ultra High Strength, Carbon Fiber Filled
- Tensile Modulus
- 5300.0 MPa
- Ultimate Tensile Strength
- 69.0 MPa
- Flexural Strength
- 110.0 MPa
- Notched Izod
- 74.0 J/m
- Elongation at Break
- 9.0 %
- Heat Deflection Temp. @ 1.8 MPa
- 178.0 °C
- Heat Deflection Temp. @ 0.45 MPa
- 188.0 °C
- Flexural Modulus
- 4200.0 MPa

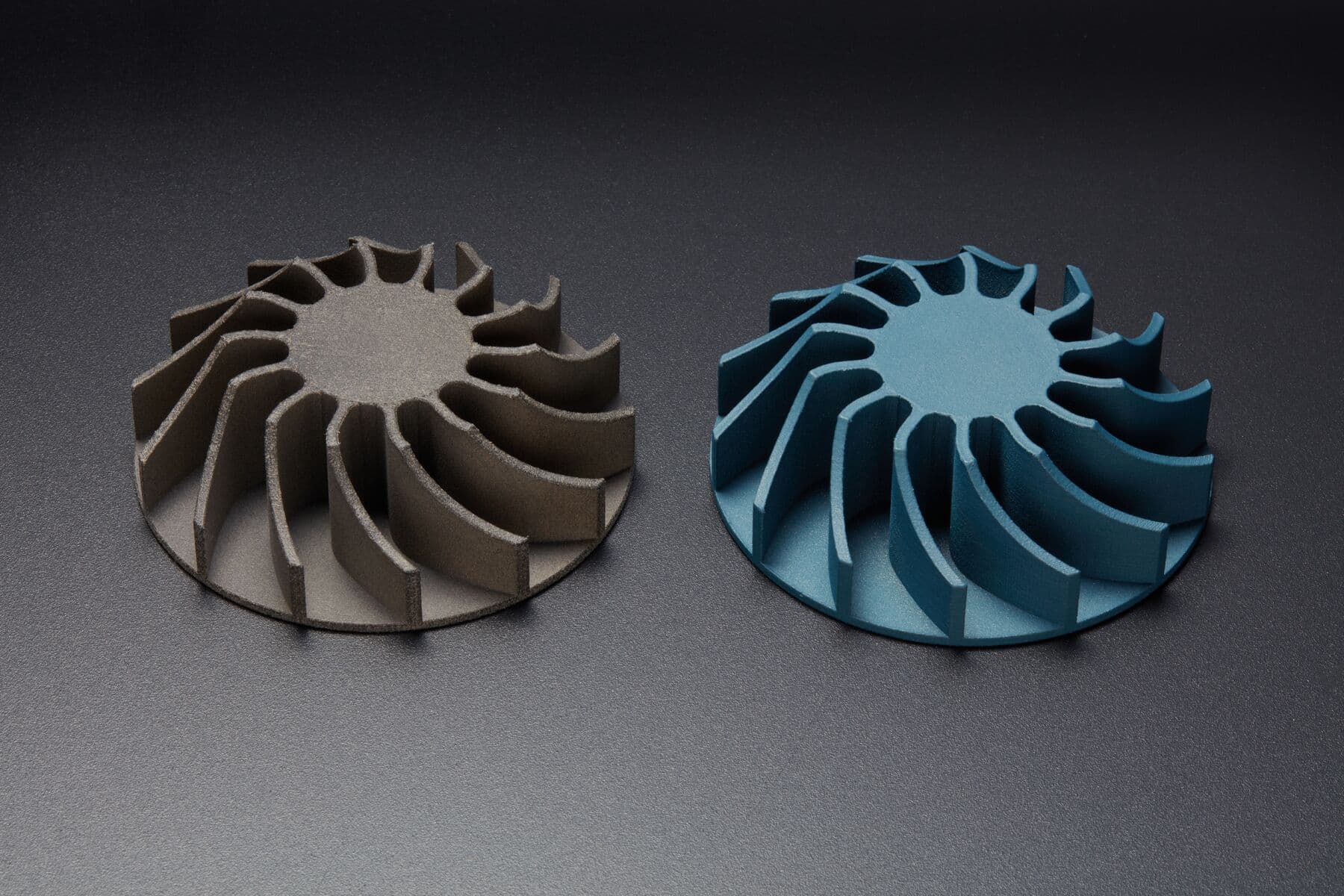

Nylon 11 CF Powder is a carbon fiber-filled material, perfect for applications that require both superior stiffness and strength. Produce lightweight, rigid parts that remain structurally and thermally stable and can sustain repeated impact.
Choosing the Right SLS Powder
Certain SLS Powders may be better suited for your specific applications than others. Read this article for expectations and guidelines.
- Print Technology
- SLS
- Characteristics
- Heat Resistant, Impact Resistant, Ultra Stiff, Ultra High Strength, Carbon Fiber Filled
- Tensile Modulus
- 5300.0 MPa
- Ultimate Tensile Strength
- 69.0 MPa
- Flexural Strength
- 110.0 MPa
- Notched Izod
- 74.0 J/m
- Elongation at Break
- 9.0 %
- Heat Deflection Temp. @ 1.8 MPa
- 178.0 °C
- Heat Deflection Temp. @ 0.45 MPa
- 188.0 °C
- Flexural Modulus
- 4200.0 MPa
Bulk Order Discount
- 20%
- 50 kg
- 25%
- 100 kg
- 30%
- 200 kg
- 35%
- 400 kg
- 40%
- 1,000 kg
- 45%
- 2,500 kg
- 55%
- 5,000 kg
Compatibility
- 3D Printer
- Fuse 1+ 30W
Nylon 11 CF Powder 6 kgPD-FS-P11C-01
Why Choose Nylon 11 CF Powder
Nylon 11 CF Power is a carbon-fiber reinforced material, ideal for producing stiff, strong, and lightweight end-use parts.
Carbon Fiber-Filled
Produce high-performance composite parts for strenuous end-use applications.
Stiff & Strong
Get the best of both worlds with the rigidity of carbon fibers and the ductility of nylon 11.
Lightweight
Push the limits of design with a high strength-to-weight ratio on top of the geometric freedom of 3D printing.
High Thermal Stability
Deliver heat-resistant parts for long-term use that maintain dimensional accuracy over time and can take repeated impact.

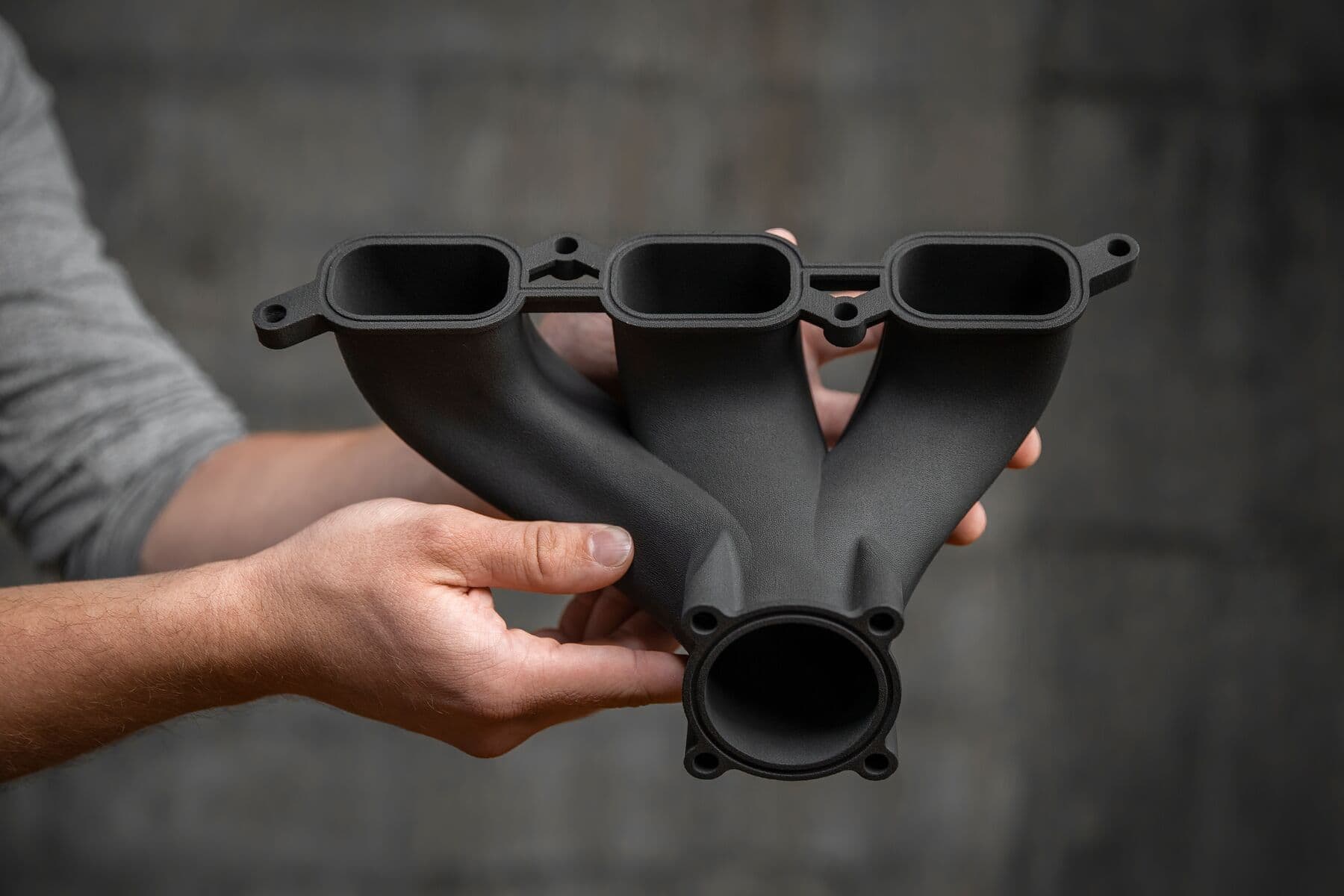

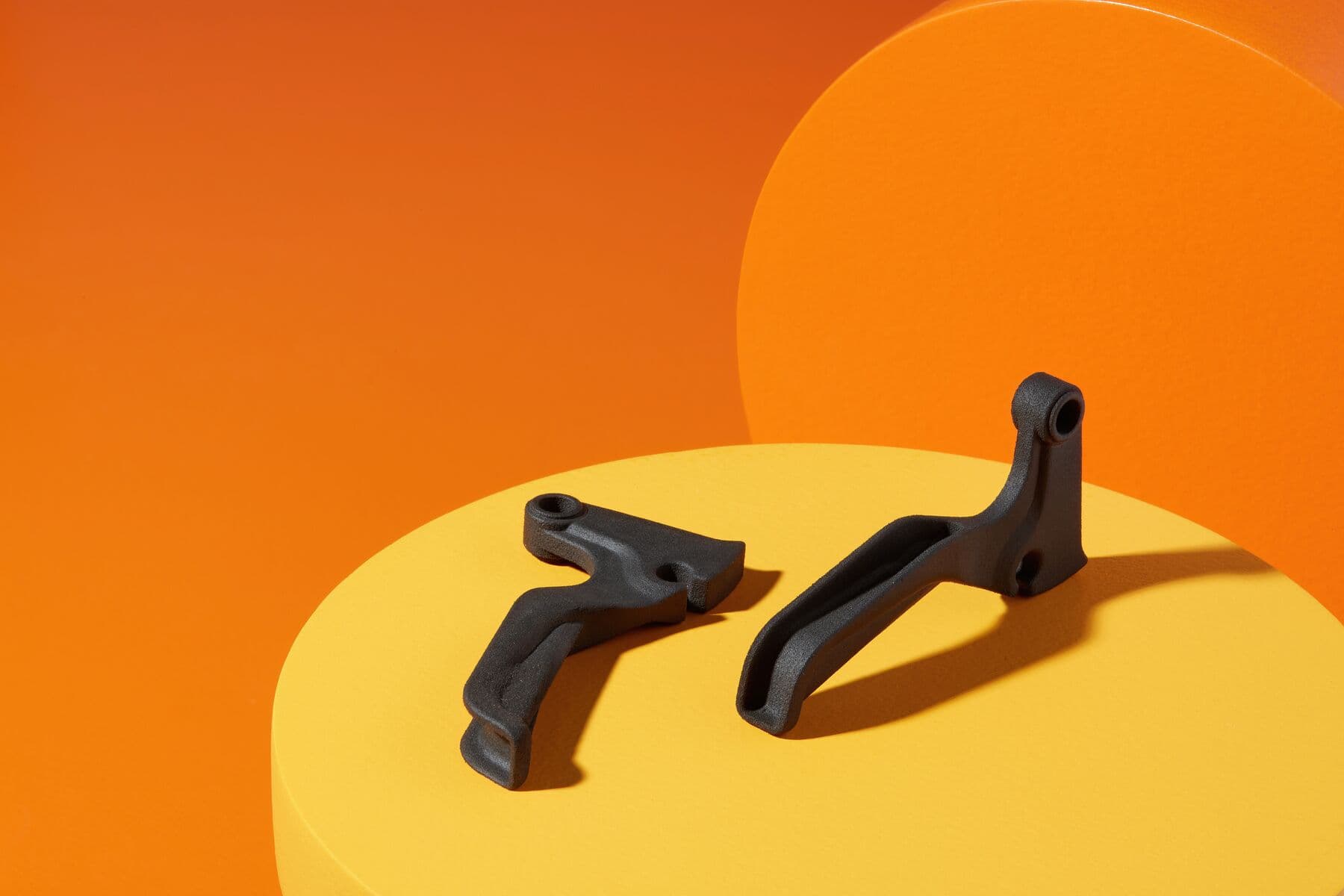

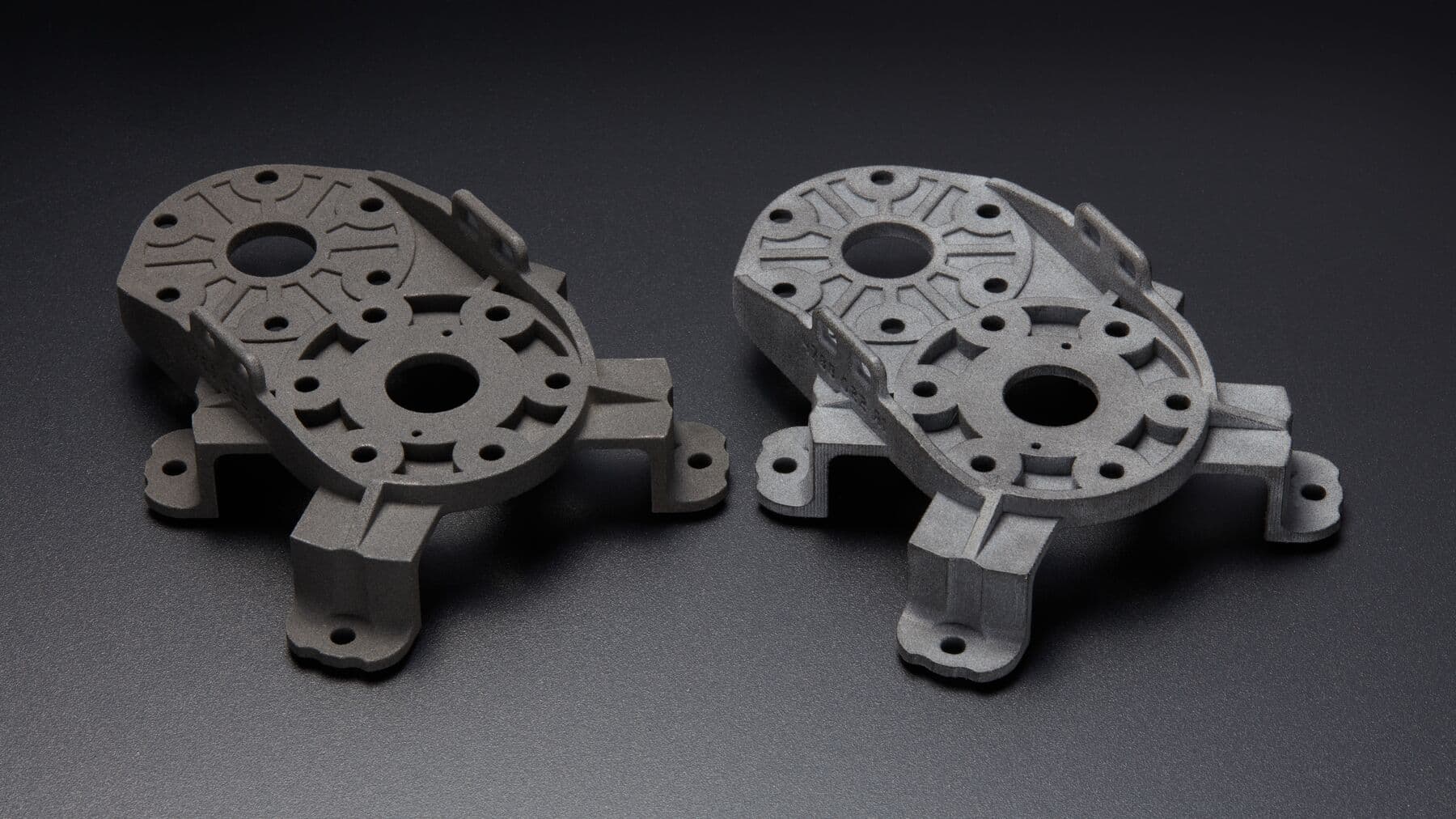

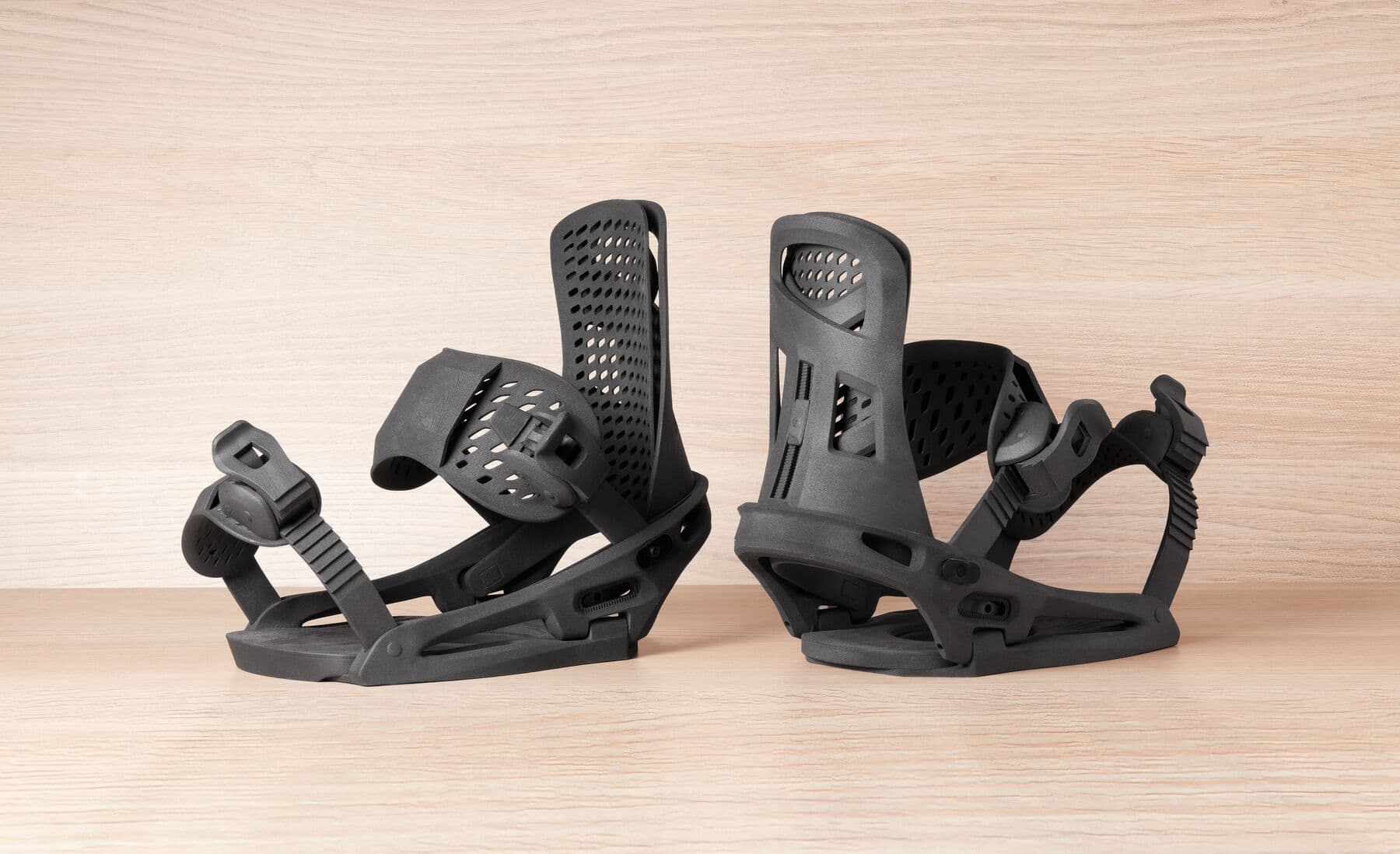

Applications
Nylon 11 CF Powder is our highest performance material for the Fuse 1+ 30W. Choose this material for parts that need to be strong, lightweight and stable over time, even at elevated temperatures.
Replacement and spare alternatives to metal parts
High-impact equipment
Tooling, jigs, fixtures
Functional composite prototypes
Material Properties*
| Parameter | Value (X) | Value (Y) | Value (Z) |
|---|---|---|---|
|
Ultimate Tensile Strength |
69 MPa |
52 MPa | 38 MPa |
|
Tensile Modulus |
5.3 GPa |
2.8 GPa | 1.6 GPa |
|
Elongation at Break |
9% |
15% | 5% |
|
Flexural Strength |
110 MPa |
110 MPa | 110 MPa |
| Flexural Modulus | 4.2 GPa | 4.2 GPa | 4.2 GPa |
| Notched Izod | 74 J/m | 74 J/m | 74 J/m |
| Heat Deflection Temp. @ 1.8 MPa | 178 °C | 178 °C | 178 °C |
| Heat Deflection Temp. @ 0.45 MPa | 188 °C | 188 °C | 188 °C |
| Vicat Softening Temperature | 188 °C | 188 °C | 188 °C |
Compare Printability of SLS Powders
| Nylon 12 (Recommended) |
Nylon 12 Tough | Nylon 12 White | Nylon 11 | Nylon 12 GF | Nylon 11 CF | TPU 90A | |
|---|---|---|---|---|---|---|---|
| Air/ Inert Recommendation | Air | Air | Nitrogen* | Nitrogen** | Air | Nitrogen | Air |
| Refresh Rate | 30% | 20% | 30% | 30% | 50% | 30% | 20% |
| Printer Compatibility | Fuse 1 Fuse 1+ 30W |
Fuse 1+ 30W | Fuse 1+ 30W | Fuse 1+ 30W | Fuse 1 Fuse 1+ 30W |
Fuse 1+ 30W | Fuse 1 Fuse 1+ 30W |
| Dimensional Accuracy | Best | Best | Good | Good | Best | Good | Fair |
| Surface Finish | Best | Good | Good | Good | Best | Good | Fair |
| Print Speed | Best | Good | Fair | Fair | Fair | Fair | Good |
| Fine Feature Resolution | Best | Best | Good | Fair | Fair | Fair | Good |
| High Aspect Ratio Parts | Best | Best | Best | Fair | Good | Good | Fair |
| Large Cross Section Parts | Good | Best | Good | Fair | Good | Good | Fair |
* Nylon 12 White Powder is recommended to print in nitrogen to maintain the most consistent white appearance. Printing in air has been correlated with yellowing of powder over time. Powder yellowing has little to no impact on the ability and efficacy of dyeing printed parts.
** Nylon 11 Powder is recommended to print in nitrogen environment. Printing in air is possible, but will compromise material properties and lead to powder degradation at a faster rate.

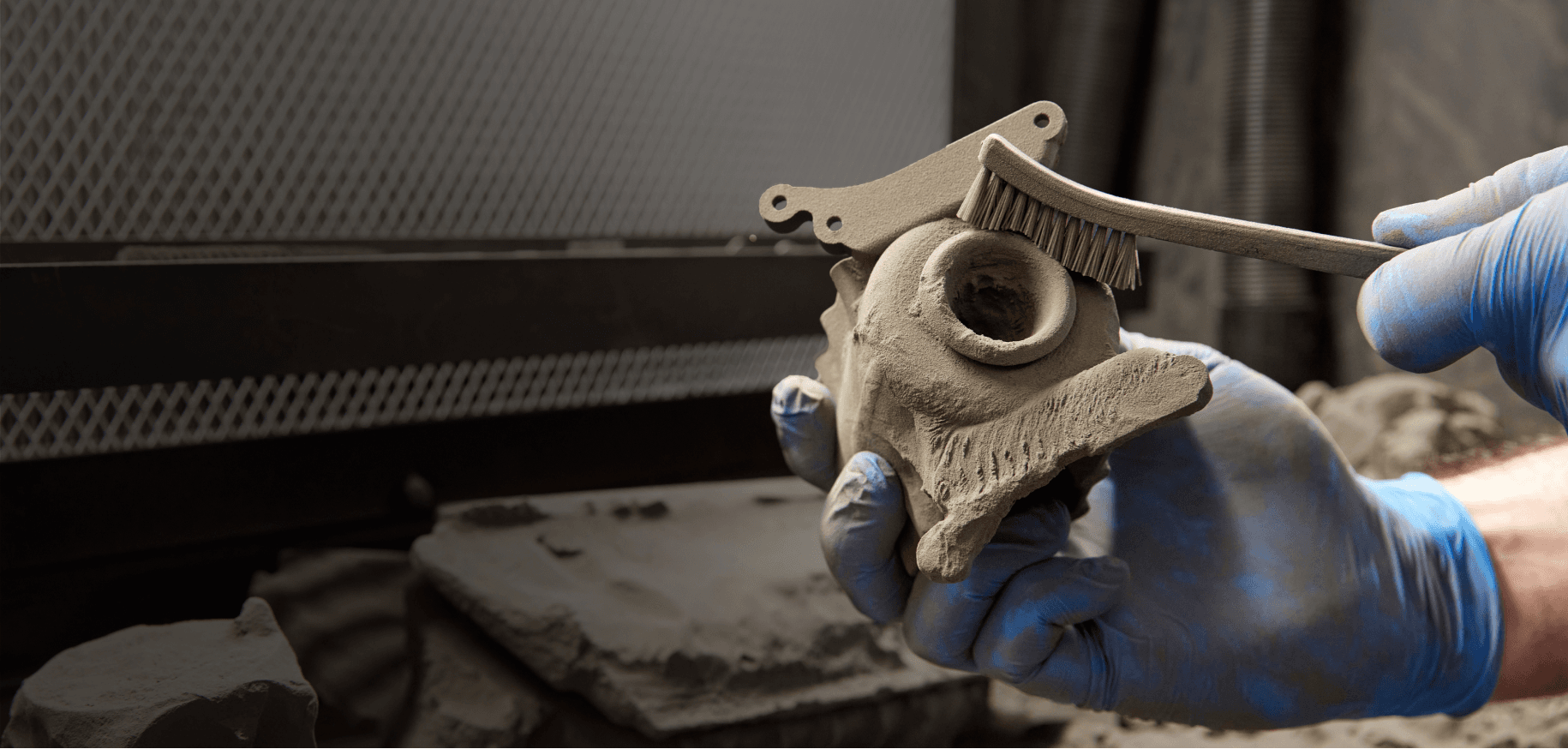

Post-Processing
Post-processing with the Fuse Sift powder recovery station and media blasting is necessary. To learn more about post-processing Fuse Series prints, download our workflow guide.
Bulk Powder Pricing for Your Lowest Cost Per Part
3D printing is now cost-effective even at higher volumes thanks to substantial volume discounts for our SLS Powders. Discounts start at 20% for customers purchasing 50 kg of powder in bulk and prices can reach as low as $45 per kilogram.
Request a Free Nylon 11 CF Powder Sample Part
See and feel Formlabs quality firsthand. We’ll ship a free Nylon 11 CF Powder 3D printed sample part to your office.
