- Print Technology
- SLA
- Colors
- Matte
- Characteristics
- High Accuracy, Fine Details
- Elongation at Break
- 8.6 %
- Flexural Strength
- 87.0 MPa
- Notched Izod
- 32.0 J/m
- Unnotched Izod
- 262.0 J/m
- Heat Deflection Temp. @ 0.45 MPa
- 53.5 °C
- Heat Deflection Temp. @ 1.8 MPa
- 46.0 °C
- Thermal Expansion
- 81.1 μm/m/°C
- Ultimate Tensile Strength
- 50.0 MPa
- Flexural Modulus
- 2300.0 MPa
- Tensile Modulus
- 2200.0 MPa
Precision Model Resin is a fast-printing material for the production of high-accuracy models, such as miniatures, figurines, or restorative models in dentistry. Create beautiful models with high opacity, beige color, and a smooth, matte finish to capture fine details.
Precision Model Resin is the next generation of Model Resin that leverages the Form 4 Series to print three times faster, while offering better accuracy and improved aesthetics.
- Print Technology
- SLA
- Colors
- Matte
- Characteristics
- High Accuracy, Fine Details
- Elongation at Break
- 8.6 %
- Flexural Strength
- 87.0 MPa
- Notched Izod
- 32.0 J/m
- Unnotched Izod
- 262.0 J/m
- Heat Deflection Temp. @ 0.45 MPa
- 53.5 °C
- Heat Deflection Temp. @ 1.8 MPa
- 46.0 °C
- Thermal Expansion
- 81.1 μm/m/°C
- Ultimate Tensile Strength
- 50.0 MPa
- Flexural Modulus
- 2300.0 MPa
- Tensile Modulus
- 2200.0 MPa
Select Printer Series and Resin Volume
Bulk Order Discount
- 15%
- 30 L
- 20%
- 60 L
- 25%
- 120 L
- 30%
- 240 L
- 35%
- 1,000 L
- 40%
- 2,000 L
- 45%
- 3,000 L
Compatibility
- 3D Printer
- Form 4L, Form 4BL, Form 4, Form 4B
- Build Platform
- Form 4 Build Platform, Form 4 Flex Build Platform, Form 4L Build Platform, Form 4L Flex Build Platform
- Tank
- Form 4 Resin Tank, Form 4L Resin Tank
Precision Model Resin (Form 4)—
Why Choose Precision Model Resin?
Precision Model Resin is a high-accuracy 3D printing resin formulated to create restorative models with over 99% of their printed surface area within 100 μm of the design parameters.

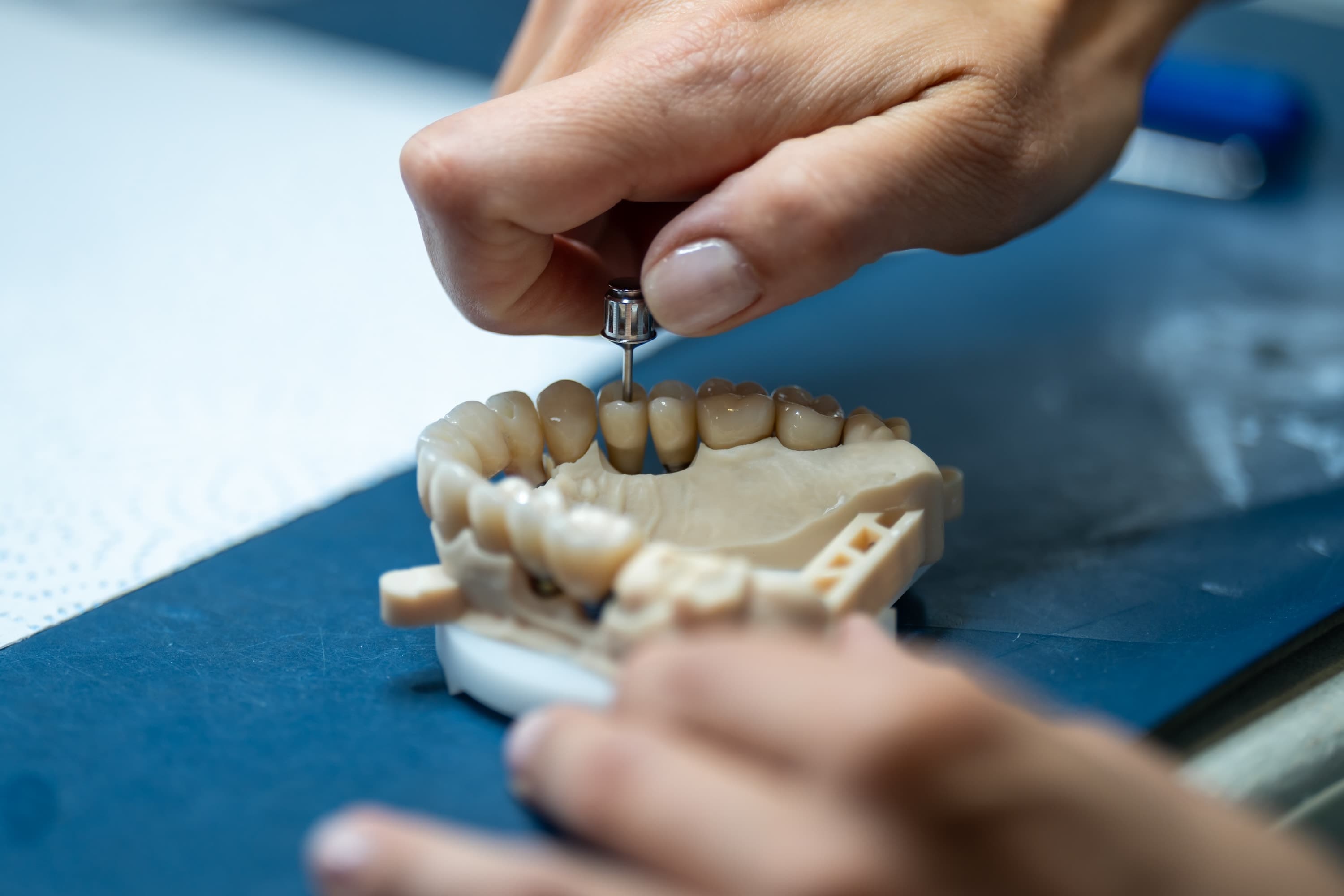

Ultra High-Accuracy Models
Consistently create restorative models with over 99% of printed surface area within 100 μm of the digital model.
Unmatched Reliability
Print confidently with an end-to-end product ecosystem rigorously validated for continuous uptime and reliability.

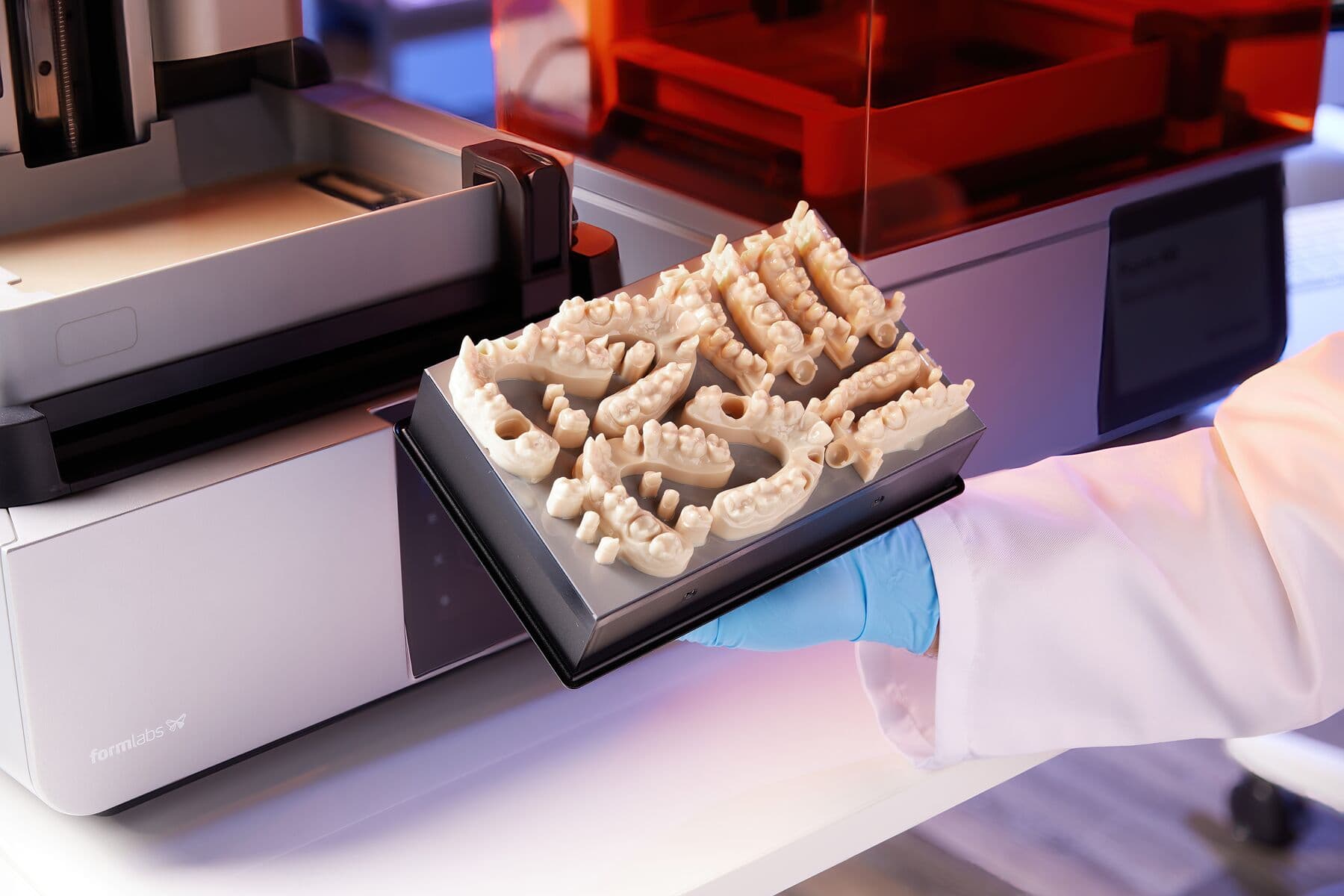

Production-Capable Print Speed
Print eight models in as little as 90 minutes and post-process parts quickly with a 5-minute wash and 5-minute room temperature post-cure.
Gypsum-Like Appearance
Easily visualize crisp margins with the matte, opaque beige color.
What’s New With Precision Model Resin?
Precision Model Resin is the next generation of Model Resin, formulated to leverage the new Form 4 ecosystem. Compared to Model Resin V3, Precision Model Resin is:
- More accurate — better fine feature resolution and consistency
- More opaque and matte aesthetics to better visualize margin lines
- Faster — formulated to take advantage of the new Form 4 ecosystem to print three times faster
Material Properties*
| Parameter |
Value |
|---|---|
|
Ultimate Tensile Strength |
50 MPa |
|
Tensile Modulus |
2.2 GPa |
|
Elongation at Break |
8.60% |
|
Flexural Strength |
87 MPa |
|
Flexural Modulus |
2.3 GPa |
|
Notched Izod |
32 J/m |
| Unnotched Izod | 262 J/m |
| Heat Deflection Temperature @ 1.8 MPa | 46.3 °C |
| Heat Deflection Temperature @ 0.45 MPa | 53.5 °C |
Post-Processing
Washing
The foundational step in any SLA post-processing workflow is to remove any excess resin on the surface of the parts through an alcohol or ether wash.
SETTINGS
Curing
Post-curing for General Purpose Resins is optional. However, Formlabs recommends a short post-curing to reduce surface tack and improve mechanical properties.
SETTINGS
Form Cure V1 | Form Cure V2 | Form Cure L V1 | Form Cure L V2
Request a Free Sample Part
See and feel Formlabs quality firsthand. We’ll ship a free Precision Model Resin 3D printed sample part to your office.
