- Print Technology
- SLA
- Characteristics
- High Strength, Fine Details, Ultra Stiff, Glass Filled, Peek-Like
- Tensile Modulus
- 4100.0 MPa
- Ultimate Tensile Strength
- 69.0 MPa
- Flexural Strength
- 105.0 MPa
- Notched Izod
- 23.0 J/m
- Elongation at Break
- 5.3 %
- Heat Deflection Temp. @ 1.8 MPa
- 60.0 °C
- Heat Deflection Temp. @ 0.45 MPa
- 77.0 °C
- Thermal Expansion
- 63.0 μm/m/°C
- Flexural Modulus
- 3400.0 MPa
Rigid 4000 Resin is a glass-filled resin that is precise and offers similar stiffness to PEEK and PEKK thermoplastics. It prints with a smooth, matte, polished finish and is highly resistant to heat and chemicals.
Choose Rigid 4000 Resin for stiff and strong engineering-grade prototypes, general load-bearing applications, and industrial parts that need to withstand significant loads without bending.
- Print Technology
- SLA
- Characteristics
- High Strength, Fine Details, Ultra Stiff, Glass Filled, Peek-Like
- Tensile Modulus
- 4100.0 MPa
- Ultimate Tensile Strength
- 69.0 MPa
- Flexural Strength
- 105.0 MPa
- Notched Izod
- 23.0 J/m
- Elongation at Break
- 5.3 %
- Heat Deflection Temp. @ 1.8 MPa
- 60.0 °C
- Heat Deflection Temp. @ 0.45 MPa
- 77.0 °C
- Thermal Expansion
- 63.0 μm/m/°C
- Flexural Modulus
- 3400.0 MPa
Select Printer Series and Resin Volume
Bulk Order Discount
- 15%
- 30 L
- 20%
- 60 L
- 25%
- 120 L
- 30%
- 240 L
- 35%
- 1,000 L
- 40%
- 2,000 L
- 45%
- 3,000 L
Compatibility
- 3D Printer
- Form 4L, Form 4BL, Form 4, Form 4B, Form 3, Form 3L, Form 3B, Form 3BL, Form 2
- Build Platform
- Form 4 Build Platform, Form 4 Flex Build Platform, Form 3 Build Platform, Form 3 Build Platform 2, Form 3 Stainless Steel Build Platform, Form 3L Build Platform, Form 3L Build Platform 2L, Form 4L Build Platform, Form 4L Flex Build Platform
- Tank
- Form 2 LT Tank, Form 3 Resin Tank V2.1, Form 3L Resin Tank V3, Form 4 Resin Tank, Form 4L Resin Tank
Rigid 4000 Resin—
Why Choose Rigid 4000 Resin?
Rigid 4000 Resin is a glass-filled material that has the highest tensile strength in our Engineering Resin Library.
Stiff
Resistant to deformation under a variety of forces, pressures, and torques.
High Thermal and Chemical Resistance
Withstands high temperatures and a variety of chemicals.
Precise
Produce strong, detailed, and accurate molds or models.
Smooth, Matte Finish
Deliver parts that look and feel like a finished product.
Applications
Produce stiff and strong engineering-grade prototypes that can be load-bearing.

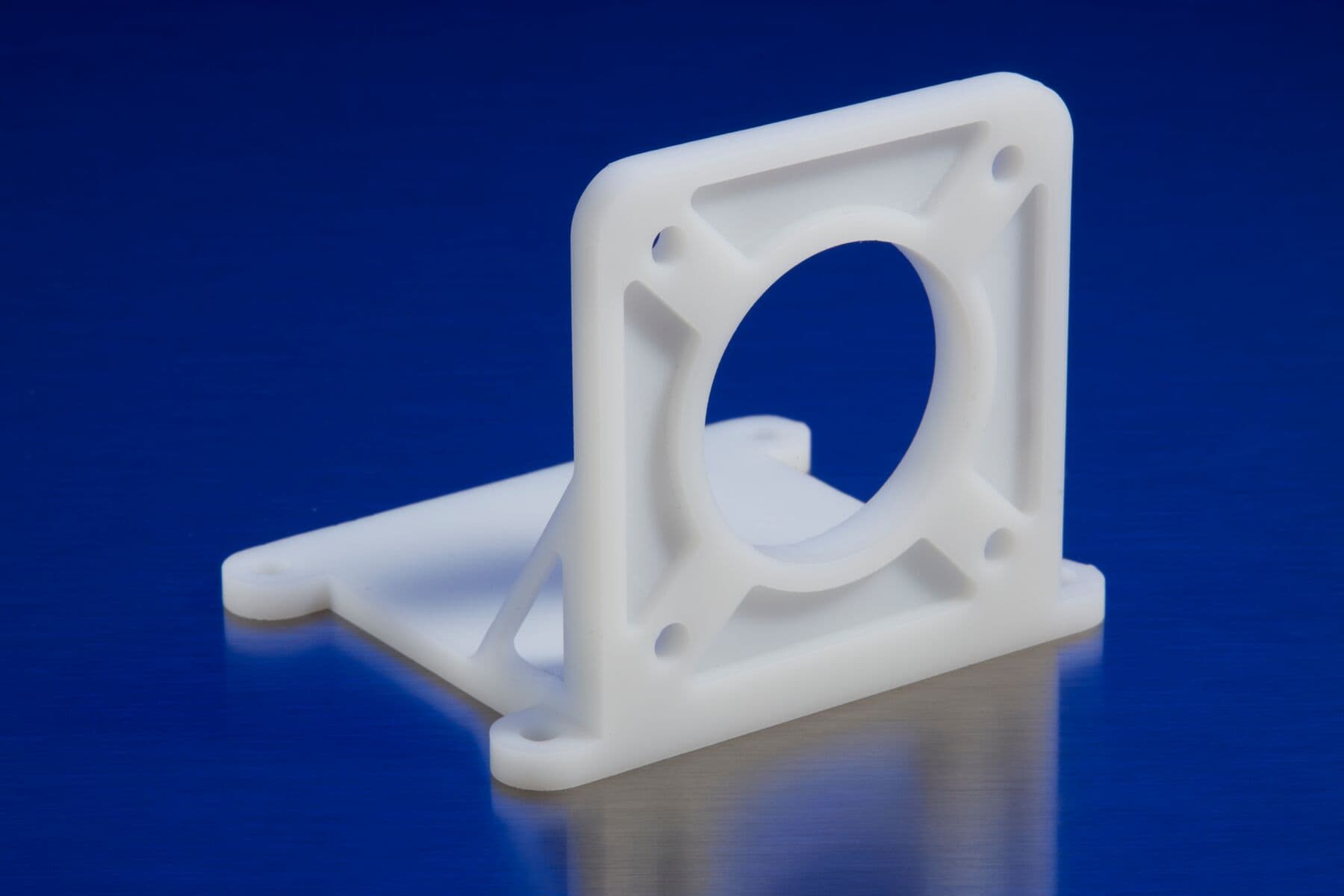

Mounts and brackets
Jigs and fixtures

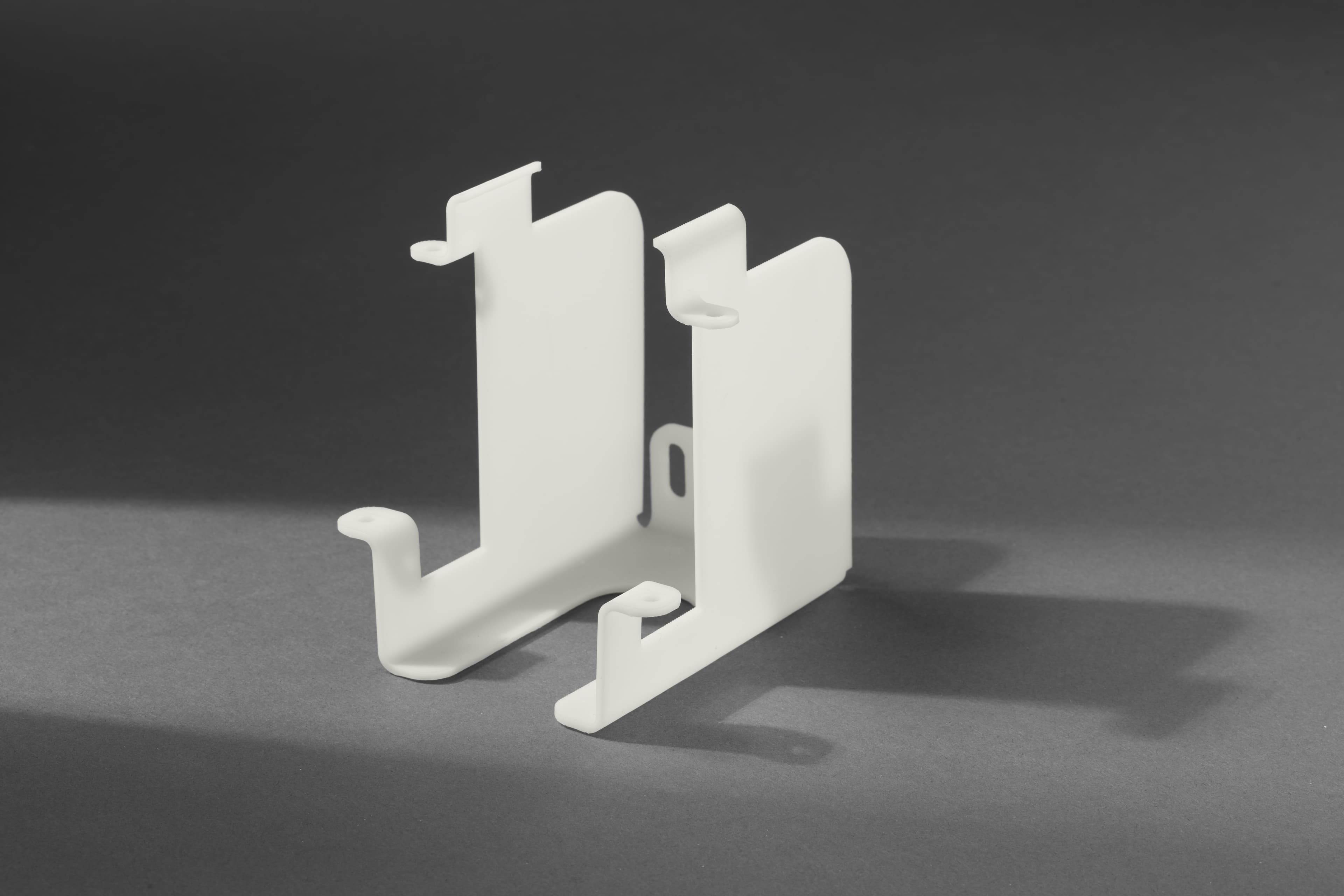

Thin-walled parts
Prototypes that simulate the stiffness of PEEK
Material Properties*
| Parameter | Color Base Resin |
|---|---|
|
Ultimate Tensile Strength |
69 MPa |
|
Tensile Modulus |
4.1 GPa |
|
Elongation |
5.3% |
|
Flexural Modulus |
3.4 GPa |
|
Notched Izod |
22 J/m |
|
Heat Deflection Temp @ 0.45 MPa |
77 ºC |
|
Thermal Expansion (0-150 °C) |
63 μm/m/°C |
* Material properties can vary with part geometry, print orientation, print settings, and temperature. Data was obtained from parts printed using Form 3, 100 μm, Rigid settings and post-cured with a Form Cure for 15 minutes at 80 °C.
Post-Processing
Washing
The foundational step in any SLA post-processing workflow is to remove any excess resin on the surface of the parts through an alcohol or ether wash.
SETTINGS
Curing
Post-curing Engineering and Specialty Resins is essential for parts to achieve their full strength and functionality. This step completes the chemical reaction initiated during printing, transforming the part from its green state into a fully finished component.
SETTINGS
Form Cure V1 | Form Cure V2 | Form Cure L V1 | Form Cure L V2
Request a Free Rigid 4000 Resin Sample Part
See and feel Formlabs quality firsthand. We’ll ship a free Rigid 4000 Resin 3D printed sample part to your office.
