- Print Technology
- SLA
- Characteristics
- Impact Resistant, Wear resistant, HDPE-Like
- Elongation at Break
- 180.0 %
- Tensile Modulus
- 932.0 MPa
- Flexural Modulus
- 761.0 MPa
- Notched Izod
- 72.0 J/m
- Gardner at 1/32" (0.97 mm) thickness
- 13.1 J
- Gardner at 1/16" (1.9 mm) thickness
- 14.5 J
- Ross Flexing Fatigue
- 100000.0 cycles
- Maximum Stress Intensity Factor (Kmax)
- 1.94 MPa-m1/2
- Work of Fracture (Wf)
- 3200.0 J/m
- Heat Deflection Temp. @ 1.8 MPa
- 44.6 °C
- Heat Deflection Temp. @ 0.45 MPa
- 55.3 °C
- Thermal Expansion
- 168.2 μm/m/°C
- Ultimate Tensile Strength
- 26.3 MPa
- Flexural Strength
- 29.0 MPa
- Key Characteristics
Toughest and most ductile
- Comparable Thermoplastic
HDPE Delrin (POM)
- Recommended application
Impact-resistant jigs, fixtures, and parts, and squeezable prototypes
Low-friction assemblies, such as gears and ball joints
Tough 1000 Resin is a ductile, impact-resistant material with comparable strength, stiffness, and toughness to high-density polyethylene (HDPE), designed with exceptional wear and fatigue resistance for long-term toughness and utility.
The 180% elongation at break (EAB) and Gardner impact strength of 128 in-lb surpass HDPE, making it ideal for parts that bend, compress, or deform without cracking. Hinges and functional parts can handle repeated stress and wear with a work of fracture of 3,200 J/m2 and a Ross flex fatigue of >100,000 cycles (at 23 °C). With a matte, dark grey color, Tough 1000 Resin is engineered for applications that require smooth surfaces and low-friction finishes.
Tough 1000 Resin is a new material formulation that leverages the technology of Form 4 Series printers, with 5x higher fracture toughness, 2x higher EAB, and improved temperature, creep, and aging resistance compared to Durable Resin.
- Print Technology
- SLA
- Characteristics
- Impact Resistant, Wear resistant, HDPE-Like
- Elongation at Break
- 180.0 %
- Tensile Modulus
- 932.0 MPa
- Flexural Modulus
- 761.0 MPa
- Notched Izod
- 72.0 J/m
- Gardner at 1/32" (0.97 mm) thickness
- 13.1 J
- Gardner at 1/16" (1.9 mm) thickness
- 14.5 J
- Ross Flexing Fatigue
- 100000.0 cycles
- Maximum Stress Intensity Factor (Kmax)
- 1.94 MPa-m1/2
- Work of Fracture (Wf)
- 3200.0 J/m
- Heat Deflection Temp. @ 1.8 MPa
- 44.6 °C
- Heat Deflection Temp. @ 0.45 MPa
- 55.3 °C
- Thermal Expansion
- 168.2 μm/m/°C
- Ultimate Tensile Strength
- 26.3 MPa
- Flexural Strength
- 29.0 MPa
- Key Characteristics
Toughest and most ductile
- Comparable Thermoplastic
HDPE Delrin (POM)
- Recommended application
Impact-resistant jigs, fixtures, and parts, and squeezable prototypes
Low-friction assemblies, such as gears and ball joints
Select Printer Series and Resin Volume
Bulk Order Discount
- 15%
- 30 L
- 20%
- 60 L
- 25%
- 120 L
- 30%
- 240 L
- 35%
- 1,000 L
- 40%
- 2,000 L
- 45%
- 3,000 L
Compatibility
- 3D Printer
- Form 4, Form 4B, Form 4L, Form 4BL
- Build Platform
- Form 4 Build Platform, Form 4 Flex Build Platform, Form 4L Build Platform, Form 4L Flex Build Platform
- Tank
- Form 4 Resin Tank, Form 4L Resin Tank
Tough 1000 Resin (Form 4)—
Why Choose Tough 1000 Resin V2?
Ductile, impact-resistant material with toughness that rivals high-density polyethylene (HDPE).
Durable and Ductile
Elongation at break of 180% and Gardner impact strength of 128 in-lb surpass HDPE, for durable enclosures and components that withstand significant impact.
Environmentally Stable Parts for End-Use Applications
Improved temperature, creep, and aging resistance compared to Durable Resin. Parts resist warping and sagging at corners and edges
Exceptional Fatigue Resistance and Toughness
Produce jigs, fixtures, and functional parts that experience repeated stress and wear with a work of fracture of 3,200 J/m2 and a Ross flex fatigue of >100,000 cycles (30 degree deflection at 1 Hz).
Low-Friction and Wear-Resistant

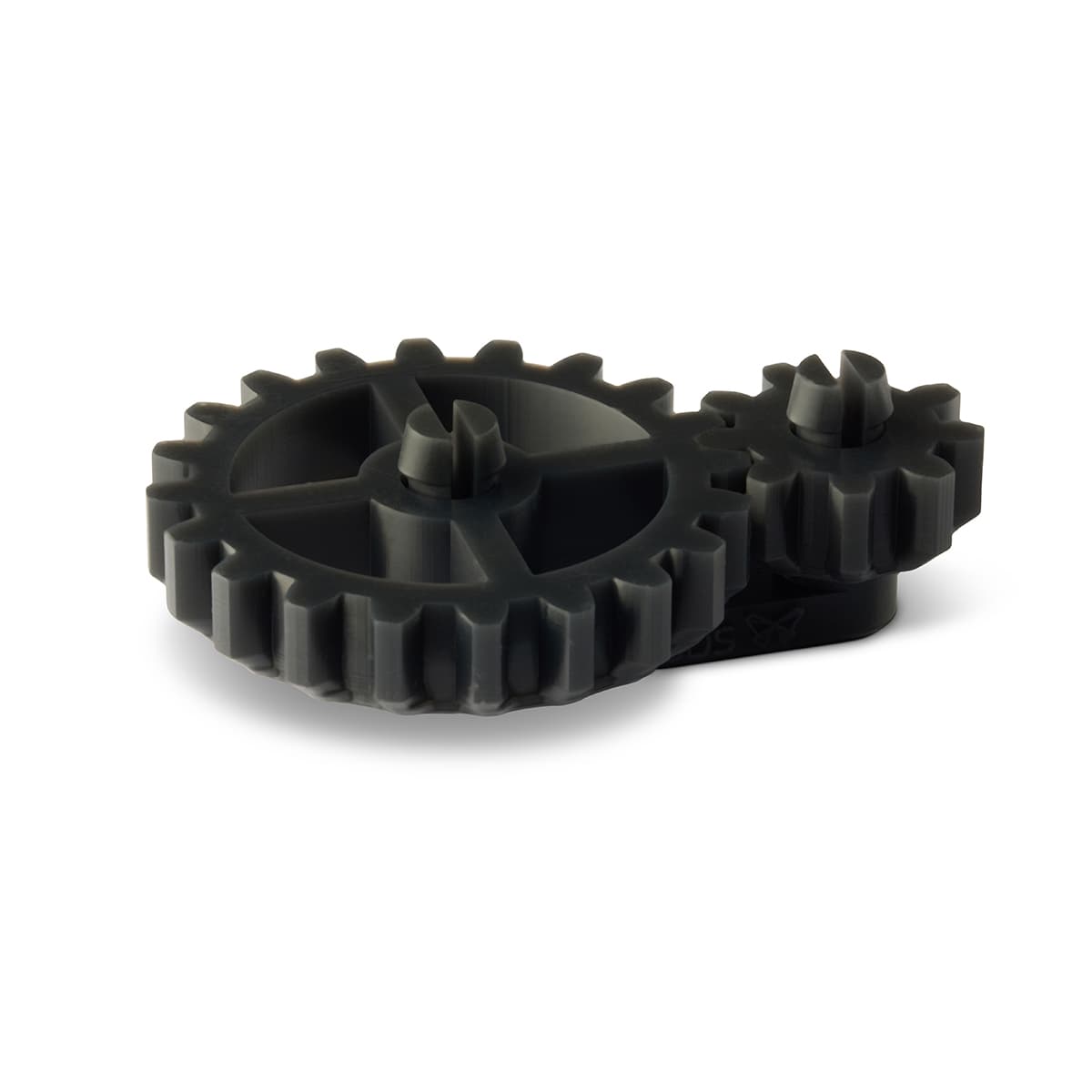

Comparable lubricity to Delrin (POM), for surfaces that slide against each other without abrasion or scratches. Ideal for moving assemblies such as hinges, gears, and fixtures.
Applications
Parts requiring the strength and stiffness of HDPE

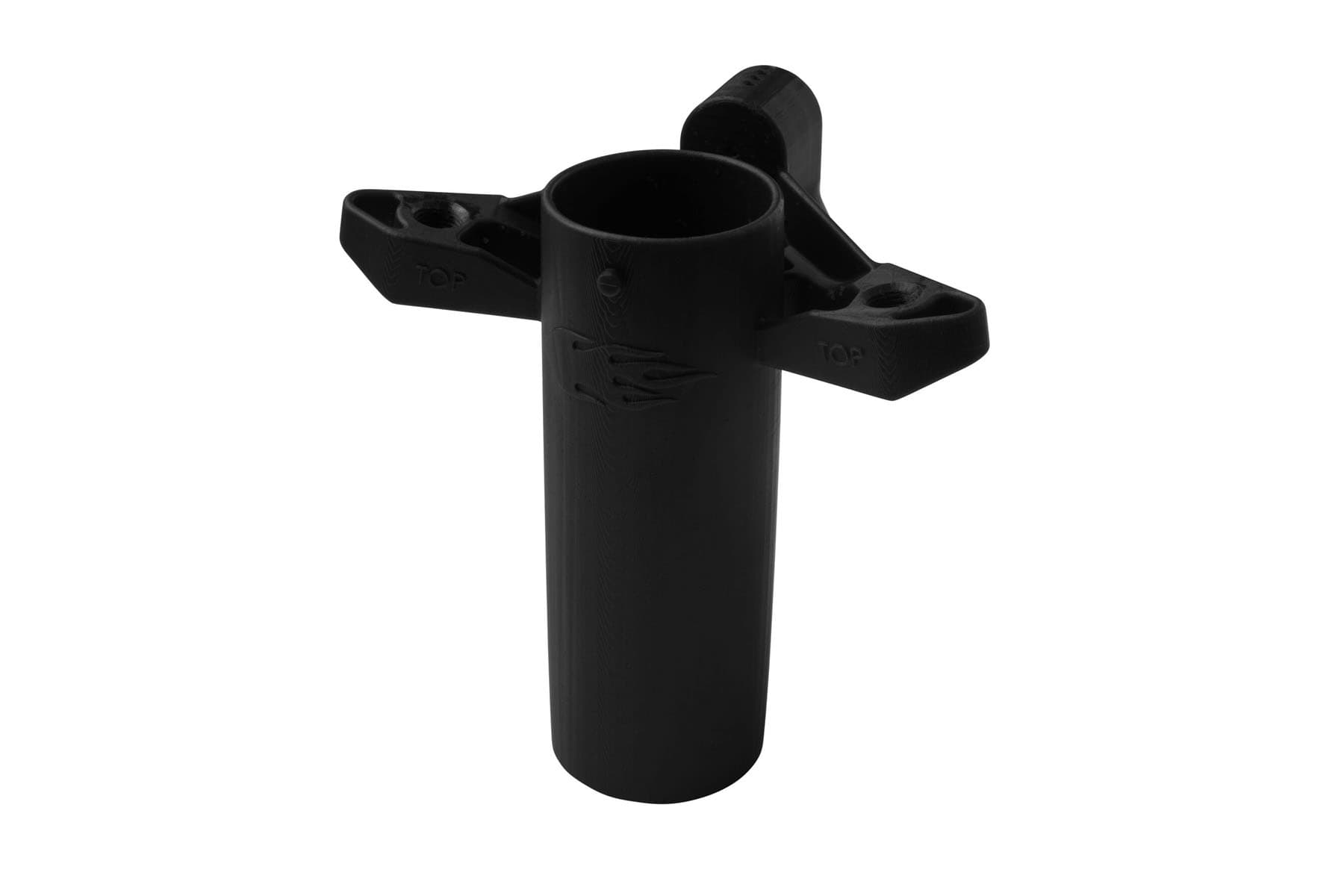

Impact-resistant jigs and fixtures that survive long-term use on the factory floor

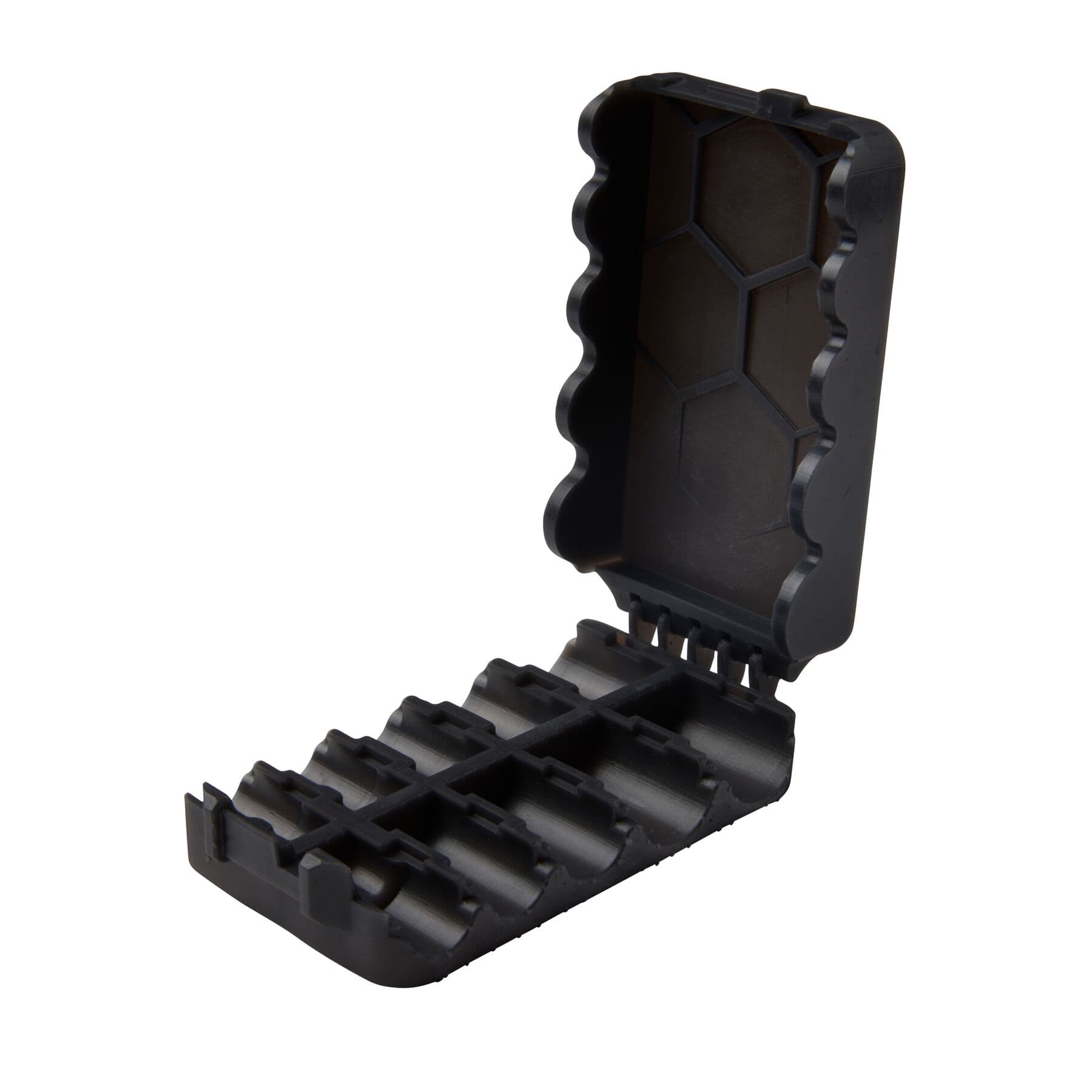

Compliant mechanisms that withstand repeated flexing
Low-friction assemblies and non-degrading surfaces (like ball joints)
Mechanical Properties*
| Parameter |
Tough 1000 Resin |
HDPE, Extruded Sheet, McMaster-Carr |
|---|---|---|
|
Ultimate Tensile Strength |
26.3 MPa | 3810 psi |
30 MPa | 4351 psi |
|
Tensile Modulus |
932 MPa | 135 ksi | 1000 MPa | 145 ksi |
|
Elongation at Break |
180% |
100% |
|
Gardner Impact @ 1/32” (0.8 mm) |
13.1 J | 116 in-lb |
5.4 J | 48 in-lb |
|
Work of Fracture |
3200 J/m2 | 219 ft-lb/ft2 | Not tested. From literature, ~5000-6000 J/m2 | 343-411 ft-lb/ft2 |
|
Heat Deflection Temp @ 0.45 MPa |
55.3 ºC | 135.5 ºF |
Not tested. From literature, ~70-90 ºC | 158-194 ºF |
* Material properties may vary based on part geometry, print orientation, print settings, and temperature. Data was obtained from parts printed using Form 4, 100 μm, Tough 1000 Resin settings and post-cured with a Form Cure V2 for 12 minutes at 70 °C
Formlabs Tough Resins
Next-Generation Tough Resins That Rival Thermoplastics
Compare Formlabs Tough Resins
Learn moreTough 1000 Resin is a ductile, impact-resistant material with comparable strength, stiffness, and toughness to high-density polyethylene (HDPE), designed with exceptional wear and fatigue resistance for long-term toughness and utility.
The 180% elongation at break (EAB) and Gardner impact strength of 128 in-lb surpass HDPE, making it ideal for parts that bend, compress, or deform without cracking. Hinges and functional parts can handle repeated stress and wear with a work of fracture of 3,200 J/m2 and a Ross flex fatigue of >100,000 cycles (at 23 °C). With a matte, dark grey color, Tough 1000 Resin is engineered for applications that require smooth surfaces and low-friction finishes.
Tough 1000 Resin is a new material formulation that leverages the technology of Form 4 Series printers, with 5x higher fracture toughness, 2x higher EAB, and improved temperature, creep, and aging resistance compared to Durable Resin.
Learn moreTough 1500 Resin V2 is a resilient material with strength, stiffness, and toughness comparable to polypropylene (PP), offering exceptional resistance to fractures, impacts, and shattering.
Create parts that balance stiffness and ductility, whether for compliant mechanisms or rugged enclosures with self-tapping screws and snap fits. Tough 1500 Resin V2 enables a wide range of applications, from functional prototypes to end-use jigs and fixtures.
Tough 1500 Resin V2 is a new material formulation that leverages the Form 4 Series to deliver 10 times higher fracture toughness than the previous version.
Toughest and most ductile
Balanced blend of stiffness and compliance
HDPE Delrin (POM)
PP
Impact-resistant jigs, fixtures, and parts, and squeezable prototypes
Low-friction assemblies, such as gears and ball joints
Parts that need a combination of stiffness and ductility to create compliant mechanisms like latches, flexures, and dampers
Clasps and buckles, self-tapping screw bosses, hinges
Post-Processing
Washing
The foundational step in any SLA post-processing workflow is to remove any excess resin on the surface of the parts through an alcohol or ether wash.
For the best surface finish, Formlabs recommends allowing parts printed in Tough 1000 Resin to air dry for at least 30 minutes after washing, before handling.
SETTINGS
Curing
Post-curing Engineering and Specialty Resins is essential for parts to achieve their full strength and functionality. This step completes the chemical reaction initiated during printing, transforming the part from its green state into a fully finished component.
SETTINGS
Form Cure V1 | Form Cure V2 | Form Cure L V1 | Form Cure L V2
