- Print Technology
- SLA
- Characteristics
- Wear resistant, Pliable, PP-Like
- Ultimate Tensile Strength
- 34.0 MPa
- Elongation at Break
- 155.0 %
- Flexural Strength
- 41.0 MPa
- Notched Izod
- 42.0 J/m
- Unnotched Izod
- 910.0 J/m
- Gardner at 1/16" (1.9 mm) thickness
- 11.1 J
- Gardner at 1/32" (0.97 mm) thickness
- 5.9 J
- Maximum Stress Intensity Factor (Kmax)
- 1.7 MPa-m1/2
- Work of Fracture (Wf)
- 1011.0 J/m
- Heat Deflection Temp. @ 0.45 MPa
- 66.0 °C
- Heat Deflection Temp. @ 1.8 MPa
- 53.0 °C
- Tensile Modulus
- 1460.0 MPa
- Flexural Modulus
- 1370.0 MPa
- Ross Flexing Fatigue
- 8000.0 cycles
Tough 1500 Resin V2 is a resilient material with strength, stiffness, and toughness comparable to polypropylene (PP), offering exceptional resistance to fractures, impacts, and shattering.
Create parts that balance stiffness and ductility, whether for compliant mechanisms or rugged enclosures with self-tapping screws and snap fits. Tough 1500 Resin V2 enables a wide range of applications, from functional prototypes to end-use jigs and fixtures.
Tough 1500 Resin V2 is a new material formulation that leverages the Form 4 Series to deliver 10 times higher fracture toughness than the previous version.
- Print Technology
- SLA
- Characteristics
- Wear resistant, Pliable, PP-Like
- Ultimate Tensile Strength
- 34.0 MPa
- Elongation at Break
- 155.0 %
- Flexural Strength
- 41.0 MPa
- Notched Izod
- 42.0 J/m
- Unnotched Izod
- 910.0 J/m
- Gardner at 1/16" (1.9 mm) thickness
- 11.1 J
- Gardner at 1/32" (0.97 mm) thickness
- 5.9 J
- Maximum Stress Intensity Factor (Kmax)
- 1.7 MPa-m1/2
- Work of Fracture (Wf)
- 1011.0 J/m
- Heat Deflection Temp. @ 0.45 MPa
- 66.0 °C
- Heat Deflection Temp. @ 1.8 MPa
- 53.0 °C
- Tensile Modulus
- 1460.0 MPa
- Flexural Modulus
- 1370.0 MPa
- Ross Flexing Fatigue
- 8000.0 cycles
Select Printer Series and Resin Volume
Bulk Order Discount
- 15%
- 30 L
- 20%
- 60 L
- 25%
- 120 L
- 30%
- 240 L
- 35%
- 1,000 L
- 40%
- 2,000 L
- 45%
- 3,000 L
Compatibility
- 3D Printer
- Form 4, Form 4B, Form 4L, Form 4BL
- Build Platform
- Form 4 Build Platform, Form 4 Flex Build Platform, Form 4L Build Platform, Form 4L Flex Build Platform
- Tank
- Form 4 Resin Tank, Form 4L Resin Tank
Tough 1500 Resin V2 (Form 4)—
Why Choose Tough 1500 Resin V2?
Robust, resilient and ductile material that rivals the toughness of polypropylene.
Tougher Where It Matters
10 times higher work of fracture, so parts don’t fail when drilled, tapped, or cracked. Three times higher Gardner impact strength for thin walls that don’t shatter.
Ductile and Resilient for Long-Lasting Compliant Parts
Extremely high elongation at break (155%) and Ross flex fatigue (8,000 cycles) for features like snap fits and compliant mechanisms.
High Environmental Stability for Demanding Applications
The highest temperature and UV resistance (66 °C HDT and ~30.4% EAB* after 400 hours accelerated aging) of any high-compliance (>100% EAB) SLA material.
*When tested under ASTM D4459 Accelerated indoor aging standard.
Tough Parts That Don’t Deform Over Time
High creep resistance matching polypropylene, with less than 3% strain under 4 MPa load after 2 weeks.
Applications
Tough 1500 Resin V2 is ideal for resilient prototyping or simulating the toughness of polypropylene (PP).
Prototypes requiring the toughness, compliance and resilience of polypropylene.

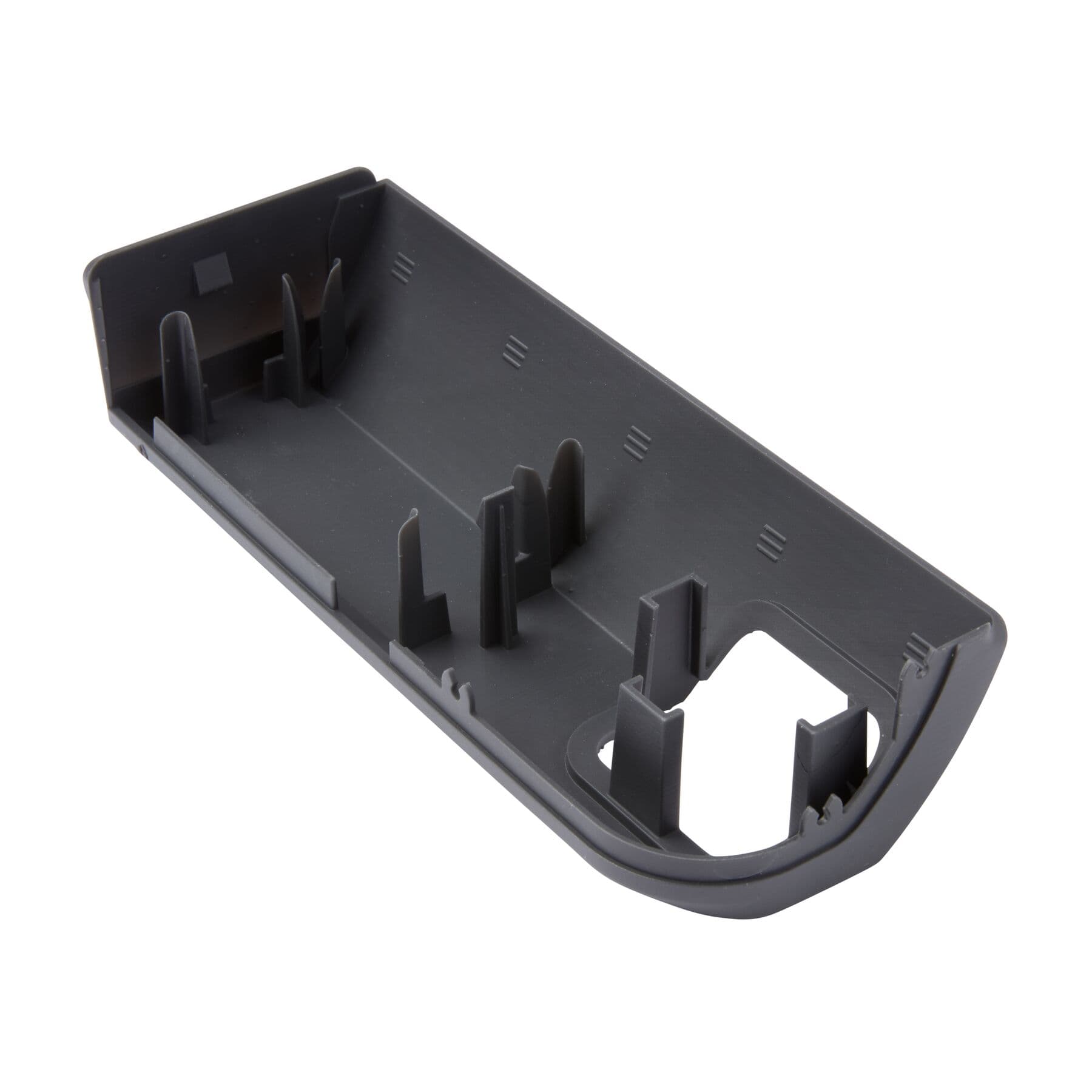

Tough and rugged enclosures with functional elements like self-tapping screw bosses and snap fits.
Impact resistant jigs and fixtures that survive long term use on the factory floor.
Parts that need a combination of stiffness and ductility to create compliant mechanisms like latches, flexures, and dampers.
Mechanical Properties*
| Parameter |
Tough 1500 Resin V2 |
Polypropylene (extrusion grade) |
|---|---|---|
|
Ultimate Tensile Strength |
34 MPa | 4930 psi |
29.2 MPa | 4235 psi |
|
Tensile Modulus |
1460 MPa | 212 ksi | 1600 MPa | 232 ksi |
|
Elongation at Break |
155% |
125% |
|
Gardner Impact @ 1/32” (0.8 mm) |
5.9 J | 52 in-lb |
2.7 J | 24 in-lb |
|
Work of Fracture |
1011 J/m2 | 69.3 ft-lb/ft2 | ~2000 J/m2 | 137 ft-lb/ft2 |
|
Heat Deflection Temp @ 0.45 MPa |
66 °C | 151 °F |
Not tested. From literature, ~85-100 °C | 185-212 °F |
* Material properties may vary based on part geometry, print orientation, print settings, and temperature. Data was obtained from parts printed using Form 4, 100 μm, Tough 1500 V2 settings and post-cured with a Form Cure V2 for 12 minutes at 70 °C.
Formlabs Tough Resins
Next-Generation Tough Resins That Rival Thermoplastics
Compare Formlabs Tough Resins
Learn moreTough 1000 Resin is a ductile, impact-resistant material with comparable strength, stiffness, and toughness to high-density polyethylene (HDPE), designed with exceptional wear and fatigue resistance for long-term toughness and utility.
The 180% elongation at break (EAB) and Gardner impact strength of 128 in-lb surpass HDPE, making it ideal for parts that bend, compress, or deform without cracking. Hinges and functional parts can handle repeated stress and wear with a work of fracture of 3,200 J/m2 and a Ross flex fatigue of >100,000 cycles (at 23 °C). With a matte, dark grey color, Tough 1000 Resin is engineered for applications that require smooth surfaces and low-friction finishes.
Tough 1000 Resin is a new material formulation that leverages the technology of Form 4 Series printers, with 5x higher fracture toughness, 2x higher EAB, and improved temperature, creep, and aging resistance compared to Durable Resin.
Learn moreTough 1500 Resin V2 is a resilient material with strength, stiffness, and toughness comparable to polypropylene (PP), offering exceptional resistance to fractures, impacts, and shattering.
Create parts that balance stiffness and ductility, whether for compliant mechanisms or rugged enclosures with self-tapping screws and snap fits. Tough 1500 Resin V2 enables a wide range of applications, from functional prototypes to end-use jigs and fixtures.
Tough 1500 Resin V2 is a new material formulation that leverages the Form 4 Series to deliver 10 times higher fracture toughness than the previous version.
Toughest and most ductile
Balanced blend of stiffness and compliance
HDPE Delrin (POM)
PP
Impact-resistant jigs, fixtures, and parts, and squeezable prototypes
Low-friction assemblies, such as gears and ball joints
Parts that need a combination of stiffness and ductility to create compliant mechanisms like latches, flexures, and dampers

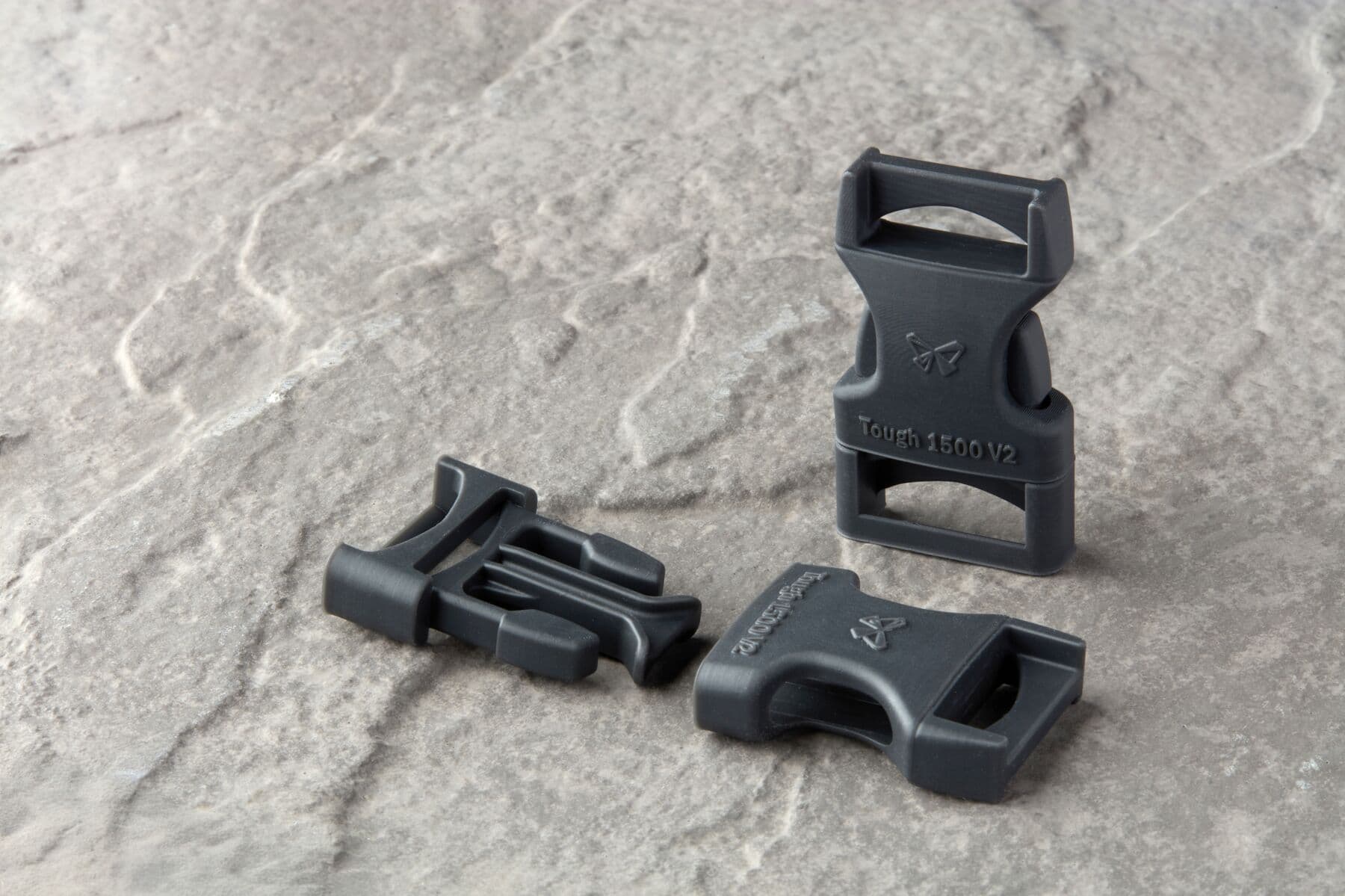

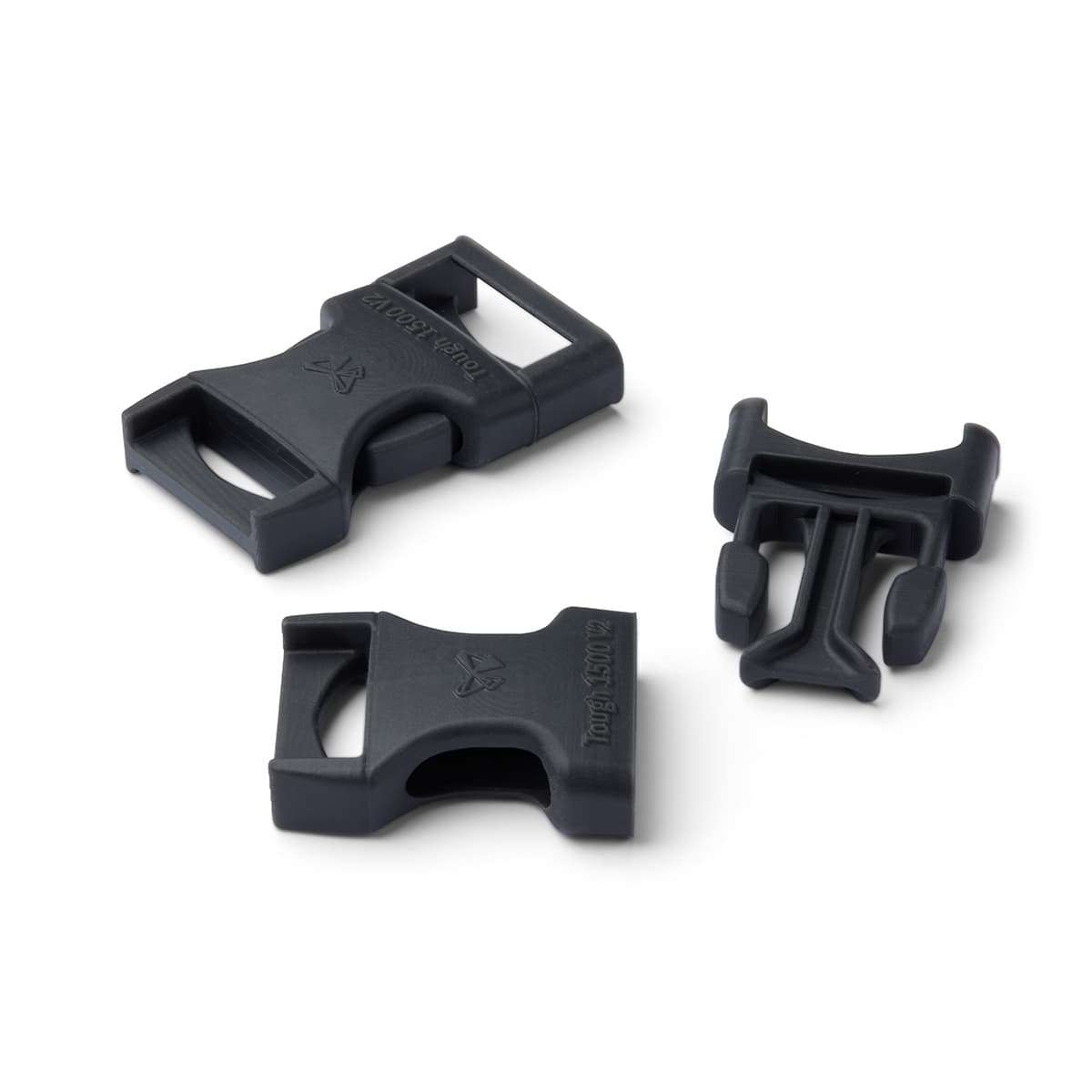

Clasps and buckles, self-tapping screw bosses, hinges
Post-Processing
Washing
The foundational step in any SLA post-processing workflow is to remove any excess resin on the surface of the parts through an alcohol or ether wash.
For the best surface finish, Formlabs recommends allowing parts printed in Tough 1500 Resin V2 to air dry for at least 10 minutes after washing, before handling.
SETTINGS
Curing
Post-curing Engineering and Specialty Resins is essential for parts to achieve their full strength and functionality. This step completes the chemical reaction initiated during printing, transforming the part from its green state into a fully finished component.
SETTINGS
Form Cure V1 | Form Cure V2 | Form Cure L V1 | Form Cure L V2
Request a Free Tough 1500 Resin Sample Part
See and feel Formlabs quality firsthand. We’ll ship a free Tough 1500 Resin 3D printed sample part to your office.
