- Print Technology
- SLA
- Compatible Printer
- Form 4
- Material Family
- Casting
- Applications
- Rapid Tooling, Patterns for Casting & Pressing
- Characteristics
- High Accuracy, Fine Details, Clean Burnout
- Ash Content
- 0.03 %
- Thermal Expansion
- 174.1 μm/m/°C
True Cast Resin is a wax-filled material designed for precision casting of intricate jewelry to complex engineering components up to 5 mm thick. It delivers highly accurate parts with exceptional detail and smooth surfaces.
Engineered for reliability, quality, and versatility, True Cast Resin integrates easily into a wide range of burnout schedules. Low thermal expansion, minimal shrinkage, and 0.03% ash content ensure clean burnout and consistently excellent casting outcomes.
- Print Technology
- SLA
- Compatible Printer
- Form 4
- Material Family
- Casting
- Applications
- Rapid Tooling, Patterns for Casting & Pressing
- Characteristics
- High Accuracy, Fine Details, Clean Burnout
- Ash Content
- 0.03 %
- Thermal Expansion
- 174.1 μm/m/°C
Select Printer Series and Resin Volume
Bulk Order Discount
- 15%
- 30 L
- 20%
- 60 L
- 25%
- 120 L
- 30%
- 240 L
- 35%
- 1,000 L
- 40%
- 2,000 L
- 45%
- 3,000 L
Compatibility
- 3D Printer
- Form 4, Form 4B
- Build Platform
- Form 4 Build Platform, Form 4 Flex Build Platform
- Tank
- Form 4 Resin Tank
True Cast Resin (Form 4)RS-C2-TCLV-01
Why Choose True Cast Resin?
Castable Resin Formulated for Reliable, Precise Casting of Detailed Patterns
Designed for Consistent, High-Quality Casting
Crisp features, smooth surfaces, and superior accuracy enable highly detailed cast parts.
Reliable Printing and Forgiving Casting
Printed parts have low thermal expansion and maintain surface integrity with no wax migration or residue over time, allowing for a more forgiving casting experience.
Clean Burnout
With 0.03% ash content and low shrinkage, True Cast Resin delivers a clean burnout that integrates easily into existing investment casting workflows.
Versatile Casting Applications
Cast intricate jewelry patterns, heavy jewelry, and complex engineering components up to 5 mm thick.
Applications
True Cast Resin delivers precise, high-quality cast parts with crisp features, smooth surfaces, and clean burnout, making it ideal for a wide range of demanding casting applications.

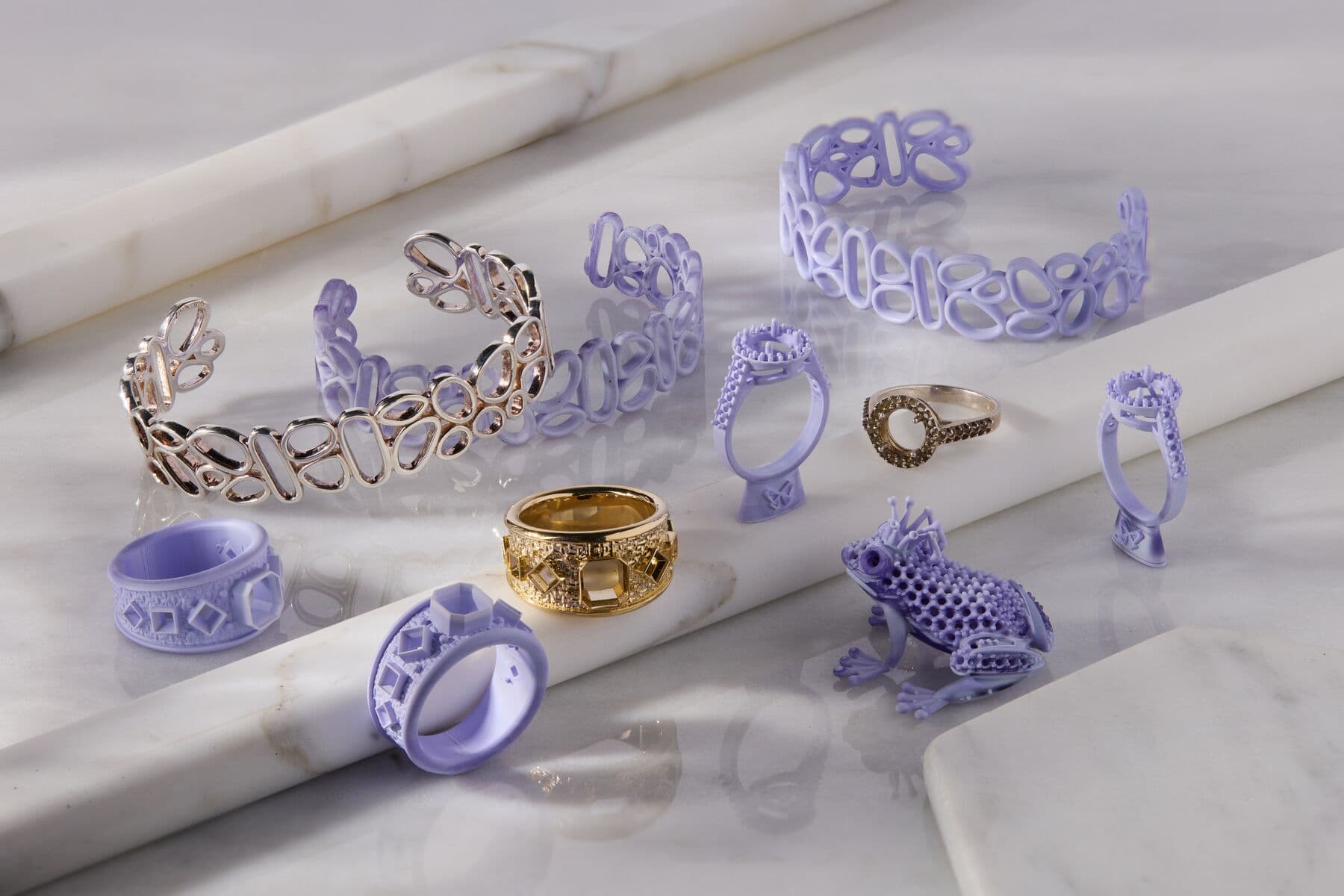

Medium and heavy jewelry

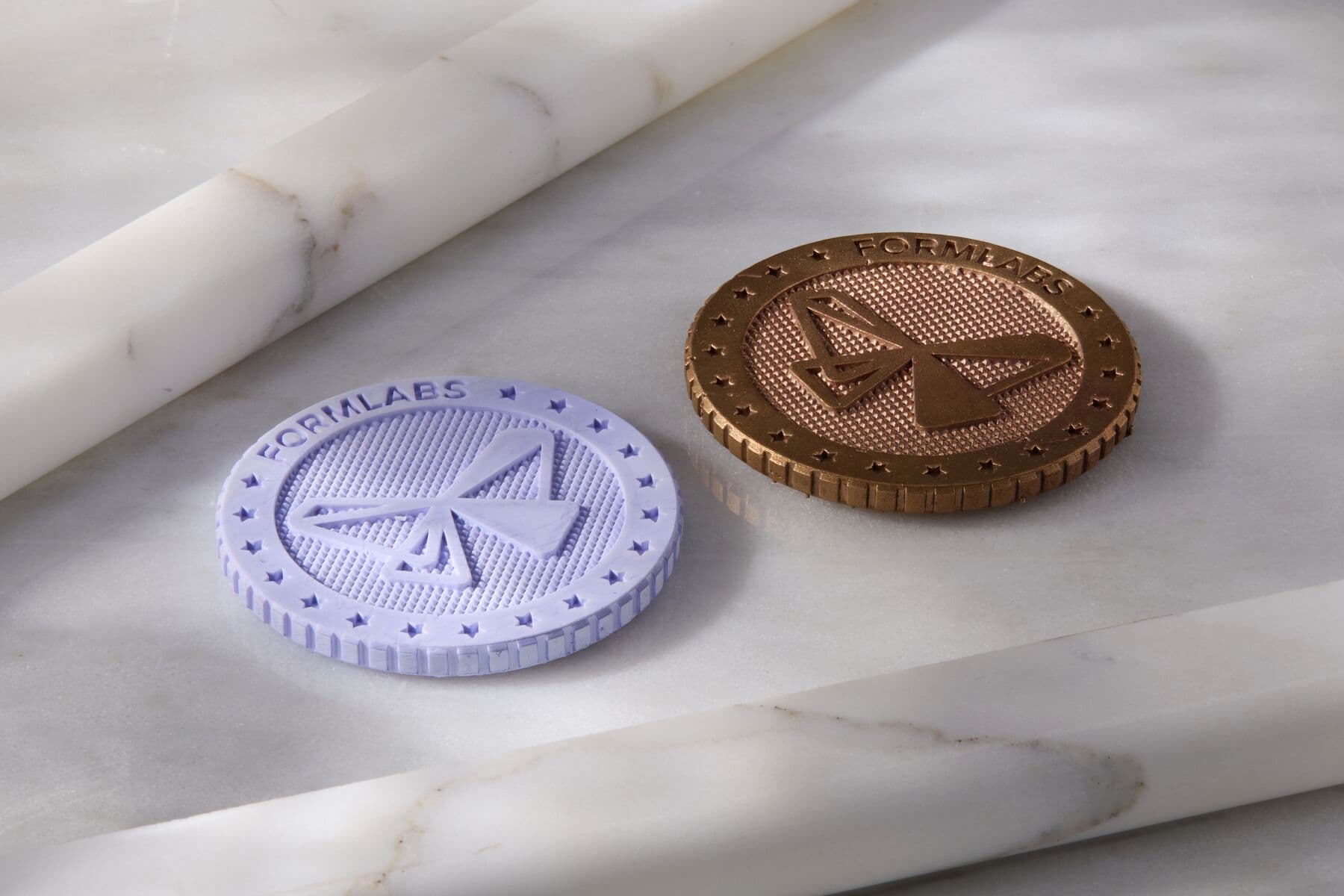

Medallions
Figurines
Small engineering components
Material Properties*
Material Properties
| Parameter | True Cast Resin |
|---|---|
|
Ash Content |
0.03 % |
|
Thermal Expansion |
174.2 μm/m/°C |
|
Detected Transition Metals (>10 ppm) |
Al, Ca, K, Mg, Na, Pb, Si, Sn |
|
High Concentration Transition Metals (>50 ppm) |
None |
Post-Processing
For design guidelines and best practices, read our application guide.
Form Wash V2 Settings
Parts should be washed for 5 minutes in IPA or ethyl alcohol (concentration of 91% or higher). Immediately afterwards, dry the part thoroughly using compressed or forced air. Spray (or rinse) parts with fresh IPA or ethyl alcohol, then dry again using compressed or forced air.
SETTINGS
Form Cure V2 Settings
It is highly recommended to cure parts - this will significantly reduce any potential defects during casting. Cure for 10 minutes without heat in Form Cure or equivalent third-party curing machine. Cure for 3 minutes without heat in Form Cure V2.
SETTINGS
Form Cure V1 | Form Cure V2 | Form Cure L V1 | Form Cure L V2
Compare Formlabs Castable Resins
Learn moreCastable Wax Resin is a 20% wax-filled material for casting that can capture intricate features and offers a smooth surface finish for accurate castings with zero ash content and clean burnout. It is ideal for ultrafine structures in jewelry.
Castable Wax Resin offers high strength and stiffness, making it capable of printing ultrafine structures. The high green strength ensures excellent shape retention for thin patterns such as wire filigree.
Learn moreTrue Cast Resin is a wax-filled material designed for precision casting of intricate jewelry to complex engineering components up to 5 mm thick. It delivers highly accurate parts with exceptional detail and smooth surfaces.
Engineered for reliability, quality, and versatility, True Cast Resin integrates easily into a wide range of burnout schedules. Low thermal expansion, minimal shrinkage, and 0.03% ash content ensure clean burnout and consistently excellent casting outcomes.
Fine filigree
Lightweight jewelry
Dental
Medium to heavy jewelry
Medallions
Figurines
Small engineering components up to 5 mm thick
Form 2
Form 3/B/+
Form 3L/BL
Form 4/B
Form 4L/BL
Form 4/B
Request a Free True Cast Resin Sample Part
See and feel Formlabs quality firsthand. We’ll ship a free True Cast Resin 3D printed sample part to your office.
