Tough 1000 Resin
Engineering
SLA
Impact Resistant
14.5 J
100,000 cycles
1.94 MPa-m1/2
Select Printer Series and Resin Volume
| Bulk order quantity (L) | Discount % |
|---|---|
| 1 | 0% |
| 30 | 15% |
| 60 | 20% |
| 120 | 25% |
| 240 | 30% |
| 1,000 | 35% |
| 2,000 | 40% |
| 3,000 | 45% |
Tough 1000 Resin is a ductile, impact-resistant material with comparable strength, stiffness, and toughness to high-density polyethylene (HDPE), designed with exceptional wear and fatigue resistance for long-term toughness and utility.
The 180% elongation at break (EAB) and Gardner impact strength of 128 in-lb surpass HDPE, making it ideal for parts that bend, compress, or deform without cracking. Hinges and functional parts can handle repeated stress and wear with a work of fracture of 3,200 J/m2 and a Ross flex fatigue of >100,000 cycles (at 23 °C). With a matte, dark grey color, Tough 1000 Resin is engineered for applications that require smooth surfaces and low-friction finishes.
Tough 1000 Resin is a new material formulation that leverages the technology of Form 4 Series printers, with 5x higher fracture toughness, 2x higher EAB, and improved temperature, creep, and aging resistance compared to Durable Resin.
Form 4(B)L print settings are in progress, view the settings roadmap to see when settings for this material will be available on the Form 4(B)L.
Tough 1000 Resin has been added to your cart.
Why Choose Tough 1000 Resin?
Ductile, impact-resistant material with toughness that rivals high-density polyethylene (HDPE).
Durable and Ductile
Elongation at break of 180% and Gardner impact strength of 128 in-lb surpass HDPE, for durable enclosures and components that withstand significant impact.
Exceptional Fatigue Resistance and Toughness
Produce jigs, fixtures, and functional parts that experience repeated stress and wear with a work of fracture of 3,200 J/m2 and a Ross flex fatigue of >100,000 cycles (30 degree deflection at 1 Hz).
Environmentally Stable Parts for End-Use Applications
Improved temperature, creep, and aging resistance compared to Durable Resin. Parts resist warping and sagging at corners and edges
Low-Friction and Wear-Resistant
Comparable lubricity to Delrin (POM), for surfaces that slide against each other without abrasion or scratches. Ideal for moving assemblies such as hinges, gears, and fixtures.
Applications
Consider using Tough 1000 Resin for:
Mechanical Properties*
| Resin | Tough 1000 Resin | HDPE, Extruded Sheet, McMaster-Carr |
|---|---|---|
| Ultimate Tensile Strength | 26.3 MPa | 30 MPa |
| Tensile Modulus | 932 MPa | 1000 MPa |
| Elongation at Break | 180% | 100% |
| Gardner Impact @ 1/32” (0.8 mm) | 13.1 J | 5.4 J |
| Work of Fracture | 3200 J/m2 | Not tested. From literature, ~5000-6000 J/m2 |
| Heat Deflection Temp @ 0.45 MPa | 55.3 ºC | Not tested. From literature, ~70-90 ºC |
* Material properties may vary based on part geometry, print orientation, print settings, and temperature. Data was obtained from parts printed using Form 4, 100 μm, Tough 1000 Resin settings and post-cured with a Form Cure V2 for 12 minutes at 70 °C
Formlabs Tough Resins
Next-Generation Tough Resins That Rival Thermoplastics
Compare Formlabs Tough Resins
Tough 1000 Resin
Key Characteristics
Toughest and most ductile
Comparable Thermoplastic
HDPE
Delrin (POM)
Recommended Applications
Impact-resistant jigs, fixtures, and parts, and squeezable prototypes

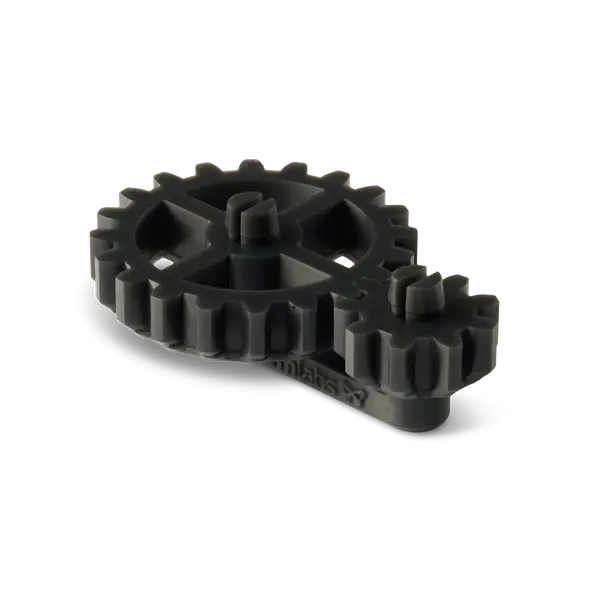

Low-friction assemblies, such as gears and ball joints
Tough 1500 Resin V2
Key Characteristics
Balanced blend of stiffness and compliance
Comparable Thermoplastic
PP
Recommended Applications
Parts that need a combination of stiffness and ductility to create compliant mechanisms like latches, flexures, and dampers
Clasps and buckles, self-tapping screw bosses, hinges
Tough 2000 Resin V2
Key Characteristics
Strongest and stiffest
Comparable Thermoplastic
ABS
Recommended Applications
Robust jigs, fixtures, protective shells, and snap-fit enclosures
Parts that require high temperature and creep resistance
Post-Processing
Washing
The foundational step in any SLA post-processing workflow is to remove any excess resin on the surface of the parts through an alcohol or ether wash.
For the best surface finish, Formlabs recommends allowing parts printed in Tough 1000 Resin to air dry for at least 30 minutes after washing, before handling.
Curing
Post-curing Engineering and Specialty Resins is essential for parts to achieve their full strength and functionality. This step completes the chemical reaction initiated during printing, transforming the part from its green state into a fully finished component.
