Form 2 Tech Specs

Hardware

Dimensions

Weight
35 × 33 × 52 cm
13.5 × 13 × 20.5 in
13 kg
28.5 lbs
Operating Temperature

Auto-heats to 35° C
Auto-heats to 95° F
Self-heating Resin Tank
Power Requirements100–240 V
1.5 A 50/60 Hz
65 W
Laser SpecificationsEN 60825-1:2007 certified
Class 1 Laser Product
405nm violet laser
250mW laser
Connectivity
Optical Path
Printer control
Wifi, Ethernet and USB
Protected
Interactive Touch-screen with Push-button

Printing Properties

Technology
Peel Mechanism
Resin Fill System
Stereolithography (SLA)
Sliding Peel Process with wiper
Automated
Build Volume145 × 145 × 175 mm
5.7 × 5.7 × 6.9 in
Layer Thickness (Axis Resolution)

Laser Spot Size (FWHM)
25, 50, 100 microns
0.001, 0.002, 0.004 inches
140 microns
0.0055 inches
SupportsAuto-Generated
Easily Removable

PreForm Software

System RequirementsWindows 7 (64-bit) and up
Mac OS X 10.10 and up
OpenGL 2.1
4GB RAM
Hardware RequirementsFormlabs Form 2 3D Printer
FeaturesSimple print setup
Auto-orient for optimal print position
Auto-mesh repair
Auto-generation of supports
Rotation, scaling and duplication
Layer slicer for path inspection
.STL and .OBJ file input
.FORM file output

Finish Kit

IncludesFinishing Tray
Scraper
Pre and Post-Rinse Tubs
Rinse Basket
Squeeze Bottle
Flush Cutters
Tweezers
Disposable Nitrile Gloves
PEC*PAD Wipes
Microfiber cloth
Removal Tool
Removal Jig

Data Sheets

Download safety and technical data sheets for all Formlabs materials.

Handling & Safety

Handling & Safety

Resin should be handled with care. Proper handling will ensure safe printing and efficient use. Our resins have been designed to be similar or safer to handle as other household chemicals or adhesives. Formlabs materials do not contain volatile solvents so special ventilation is not required. Skin contact should be avoided.

The Safety Data Sheets (SDS) are up to date for every resin product and follow the latest government guidelines. Always consult the SDS as the primary source of information to understand safety and handling of Formlabs materials. For more information about handling resin, learn more tips for resin maintenance in our Help Center.

Technical Data

Technical Data

Plastics are complex materials, and finding the right one for your specific application requires balancing multiple attributes. Our library of resins is ideal for product development, rapid prototyping, and a variety of specialized applications. Download our Technical Data Sheets to explore the mechanical properties of each material.

  • Material

  • Language


Technical Data Sheets

There is no technical data sheet available for the chosen material.


    Safety Data Sheets

    There is no safety data sheet available for the chosen material.

      Form 2

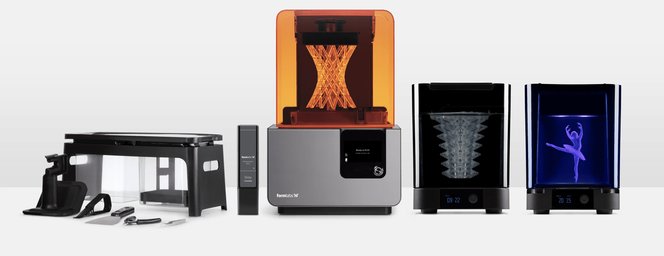

      Formlabs products image
