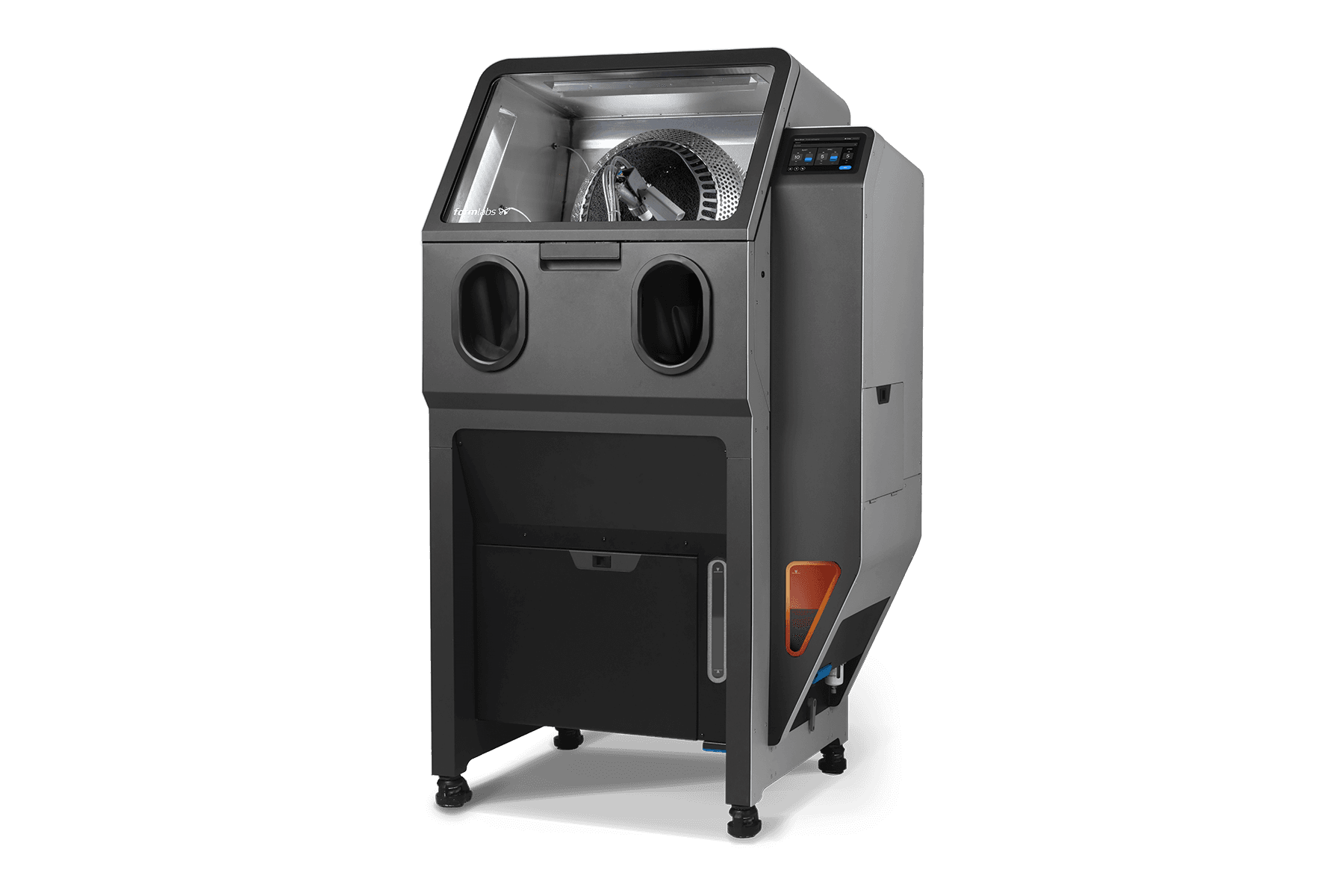

Fuse Blast
- Post-Processing
- Automated
Achieve professional, consistent parts that are clean to the touch faster and easier than ever before with Fuse Blast, an easy-to-use, fully automated cleaning and polishing solution for post-processing SLS 3D printed parts. Fuse Blast seamlessly integrates into the Fuse Series ecosystem and streamlines your post-processing workflow, empowering you to fully clean a whole build chamber of printed parts in as little as 15 minutes and drastically reducing labor time and cost.
With the optional Polishing System, Fuse Blast takes your parts to another level by polishing them to a smooth, semi-gloss, and dye-ready surface finish, to deliver consistent, professional-grade results every time.
- Post-Processing
- Automated
Compatibility
- Compatible Printer
- Fuse 1+ 30W
Fuse BlastFS1-FB-01
Why Choose Fuse Blast
Fuse Blast delivers 100% hands-off cleaning and polishing for SLS parts.
Finished Parts In 15 Minutes
Cleaning routines automatically post-process an entire build chamber in as little as 15 minutes, while the passive filtering reduces media saturation and extends media life to save on overhead costs.
Consistent Results

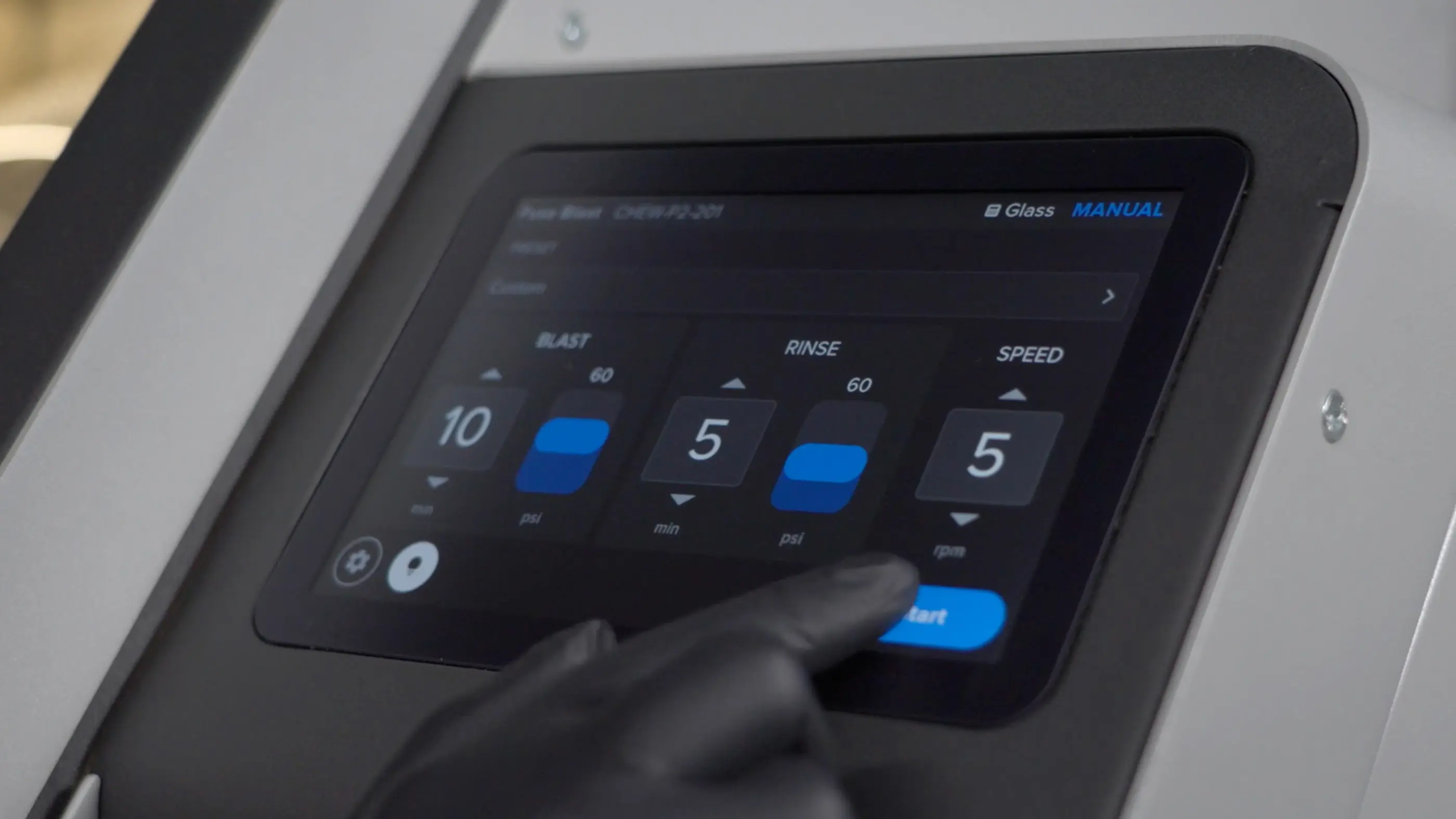

Pre-programmed routines take out the guesswork for consistent results, while manual mode allows you to adapt to any part requirements.

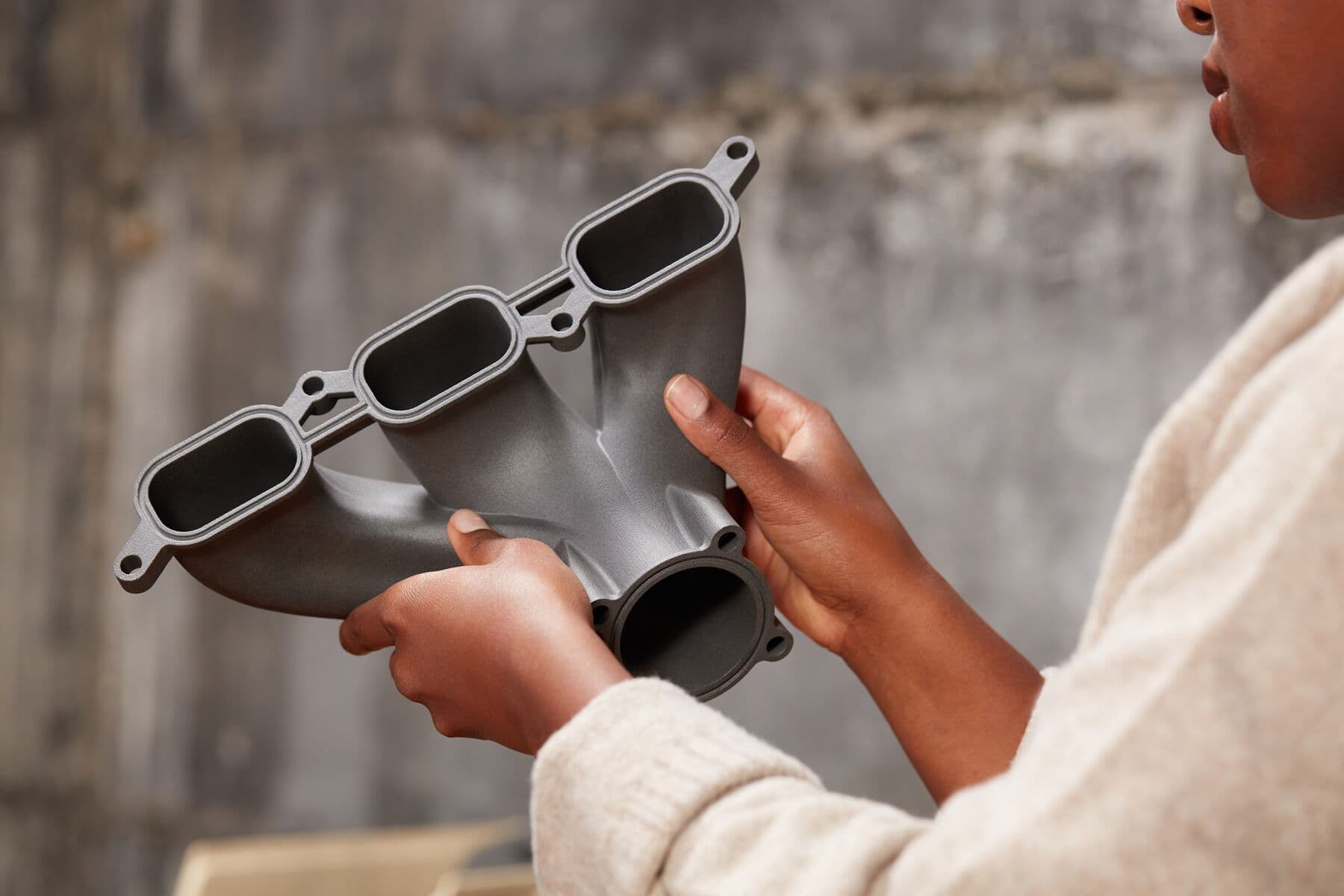

Professional Parts
Deliver clean-to-the-touch parts thanks to the in-line ionizer that prevents dust and media from re-settling on your parts, or get the most out of your SLS prints with the Fuse Blast Polishing System for smooth, semi-gloss, scuff-resistant, and dye-ready surface finishes.
Streamlined Post-Processing
Fuse Blast seamlessly integrates into the Fuse ecosystem for an automated post-processing workflow that reduces labor time by 80% and delivers finished parts in as little as 15 minutes.
Features
Fuse Blast is a fast, automated solution that delivers professional results, consistently.

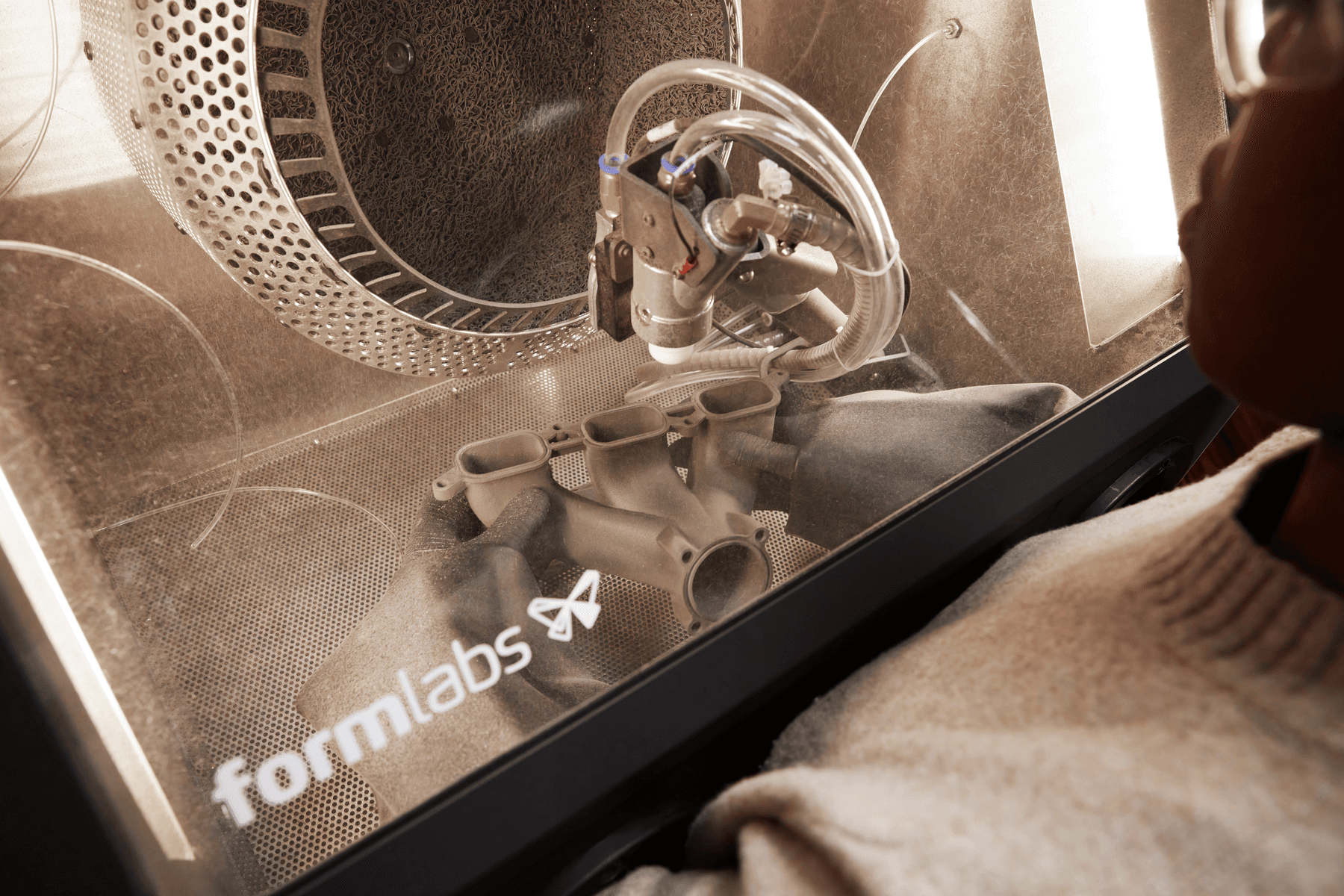

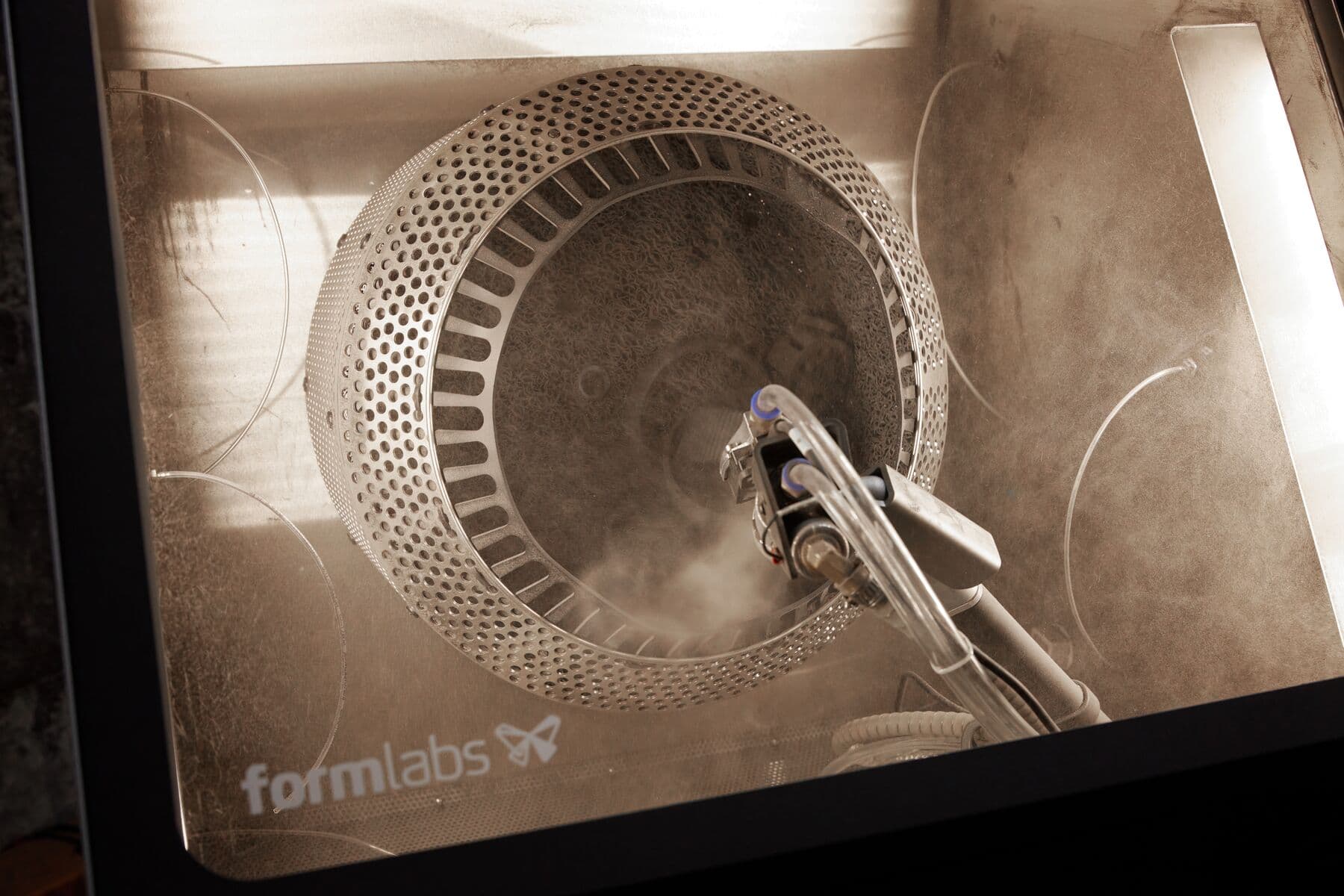

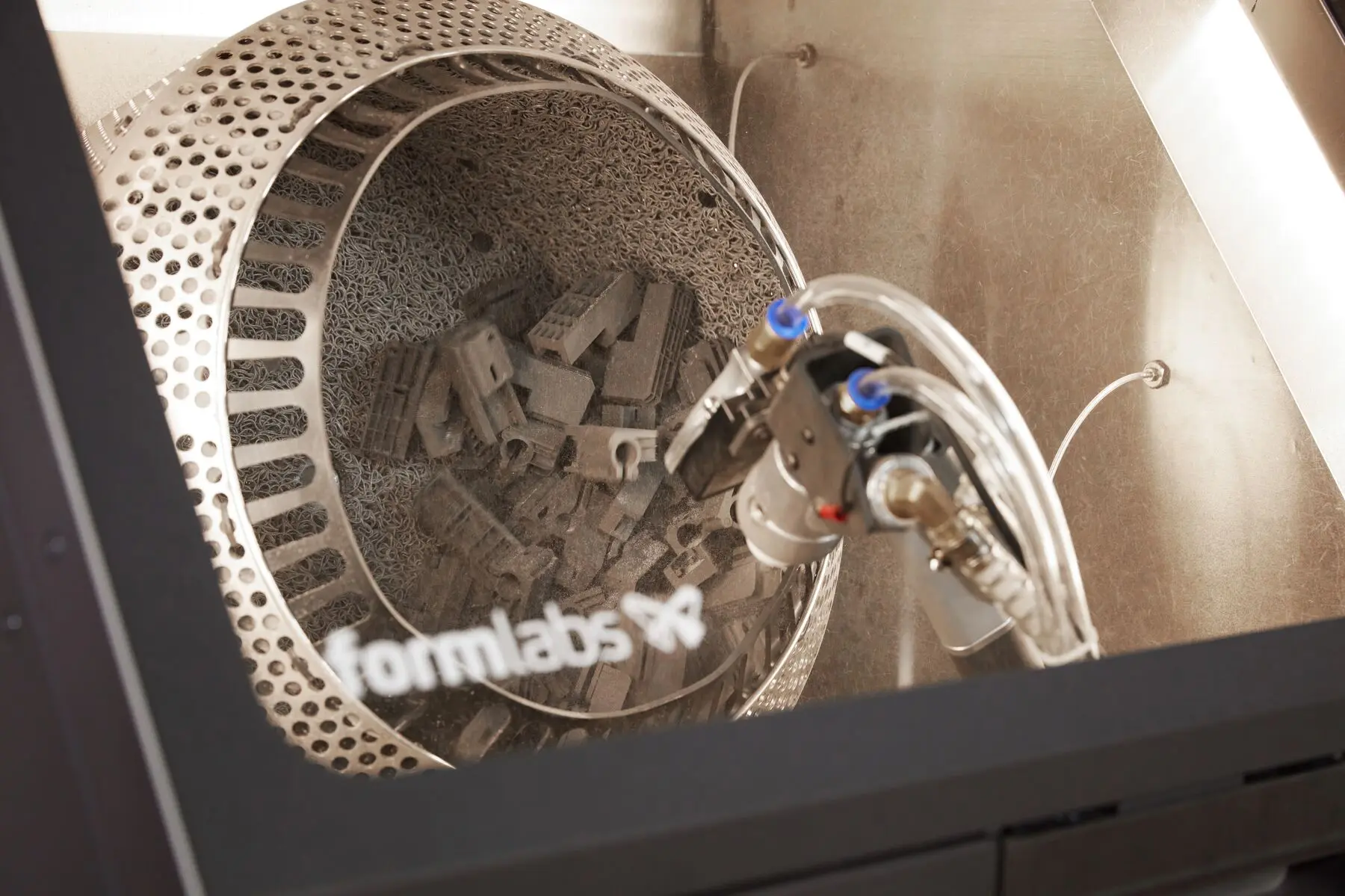

Hands-off post-processing with automated cleaning
Manual-assisted or handheld modes to ensure thorough cleaning for any part size or geometry
Pre-programmed routines
Fully sealed and workshop-friendly operation
Passive recycling for extended media life and faster processing on Fuse Sift
In-line ionizer for clean-to-the-touch parts

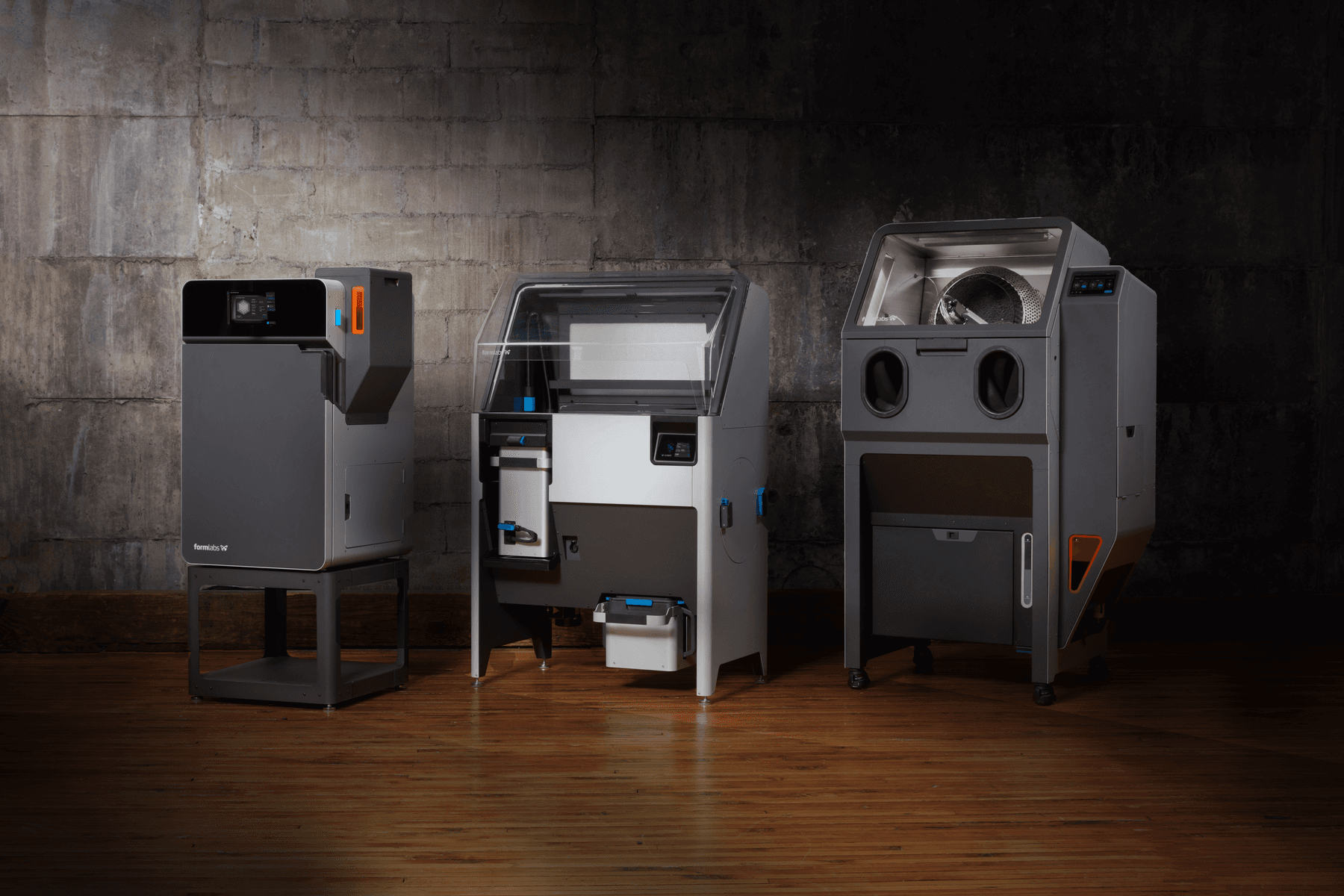

Fuse Series Workflow in Minutes
Fuse Blast is a part of an SLS 3D printing ecosystem that’s easy to learn and use and requires little intervention or maintenance. Watch the video to learn the basics of how to use the Fuse Series, from the software and materials to printing and post-processing.
Fuse Blast Tech Specs
| Parameter | Fuse Blast |
|---|---|
| Printer Compatibility | Fuse Series SLS 3D Printers Third-party powder bed fusion 3D printers |
| Minimum Dimensions for Convenient Access (W × D × H) | 145 × 150 × 210 cm 57.4 × 59.6 × 82.6 in |
| Dimensions (W x D x H) | 100 × 75 × 175 cm 39 × 29.6 × 68.7 in Height when open: 195 cm (76.8 in) |
| Weight | 164 kg (without blasting media) 360 lb (without blasting media) |
| Media Hopper Capacity | Media hopper capacity 8.3 L: 13 kg of 200-300 µm glass media 5.2 kg of Polishing Media |
| Waste Hopper Capacity | 10.6 L |
| Operating Environment | 10–36 ºC 50–96.8 ºF Elevation up to 7500 ft / 2286 meters |
| Air Handling | Negatively pressurized hood with replaceable HEPA filter Independent venting system |
| Power Requirements | EU: 230 VAC, 3 A US: 120 VAC, 6 A |
| Compressed Air Requirements | Supply at least 10 SCFM at 90 PSI / 285 SLPM at 6 bar. Regulate pressure input between 90-120 PSI / 6-8 bar. Typically achieved by a single 4 HP compressor. |
| Connectivity | Wi-Fi: 2.4 GHz Ethernet: 1000 Mbit USB: 2.0 |
| Wi-Fi Connectivity | Protocol: IEEE 802.11 b/g/n Frequency: 2.4 / 5.0 GHz Supported security: WPA/WPA2 |
| Ethernet Connectivity | RJ-45 Ethernet (10BASE-T/100BASE-TX/1000BASE-T) LAN port Connect with a shielded Ethernet cable (not included): minimum Cat5, or Cat5e or Cat6 for 1000BASE-T. |
| USB Connectivity | USB (rev 2.0) C port with a USB A-C or C-C cable |
| Sound Emission | Does not exceed 75 dB(A). |
| Product Control | Interactive touchscreen, foot pedals for manual control. |
| Included Accessories | Transfer container Control pedals ESD wrist strap 7 mm socket wrench Blast orifice (3 mm) Blast orifice (4 mm) T-20 driver Floor mat |

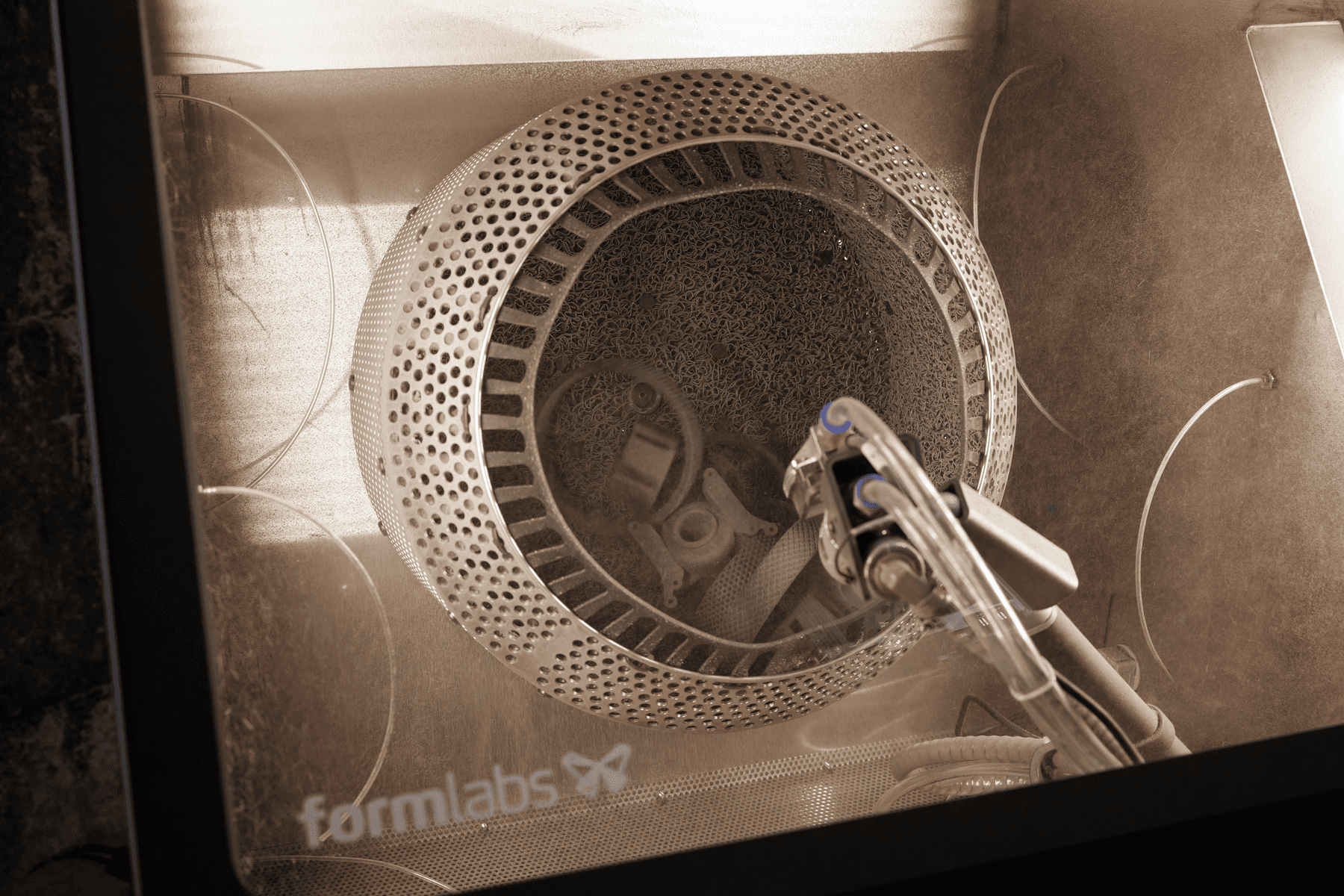

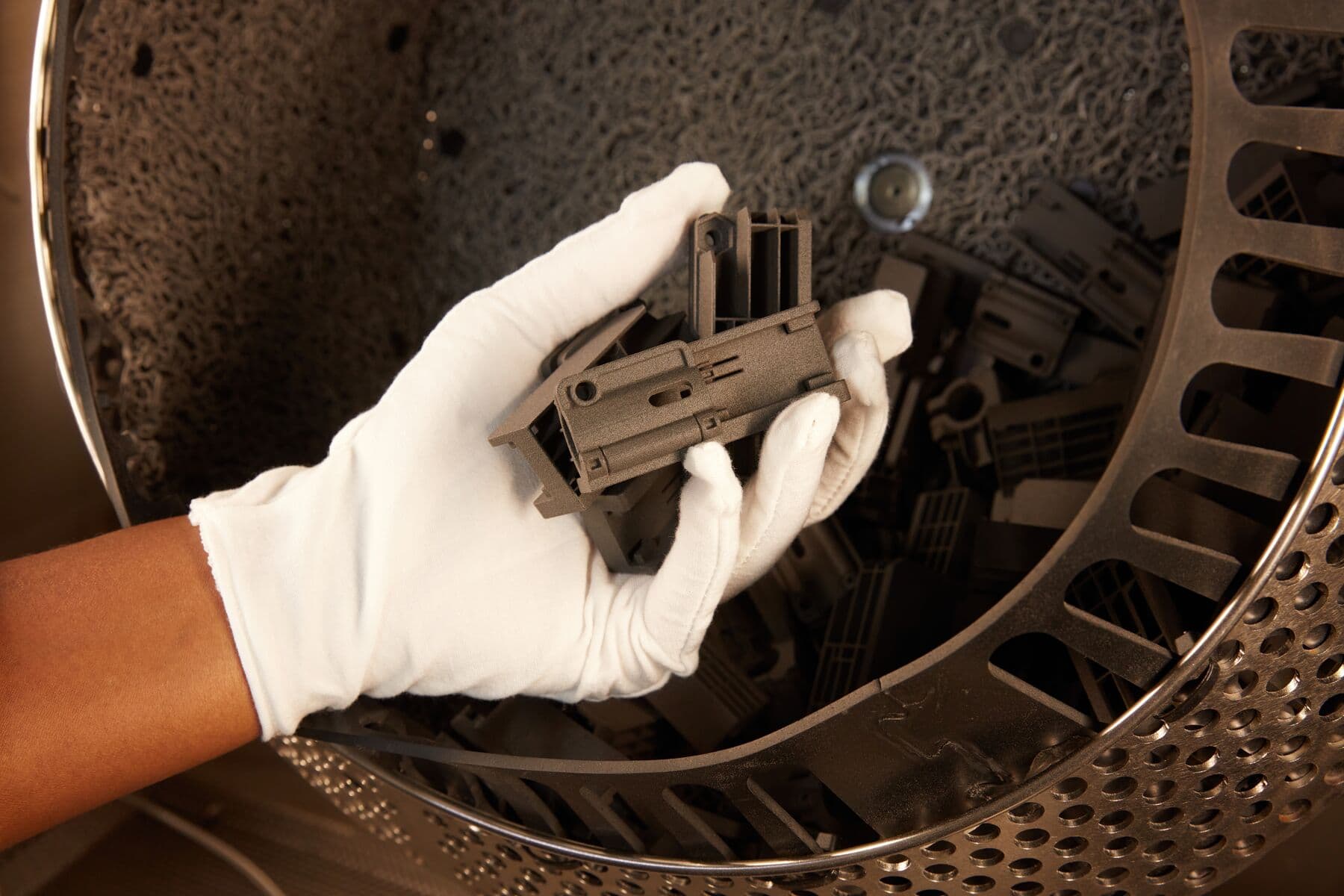

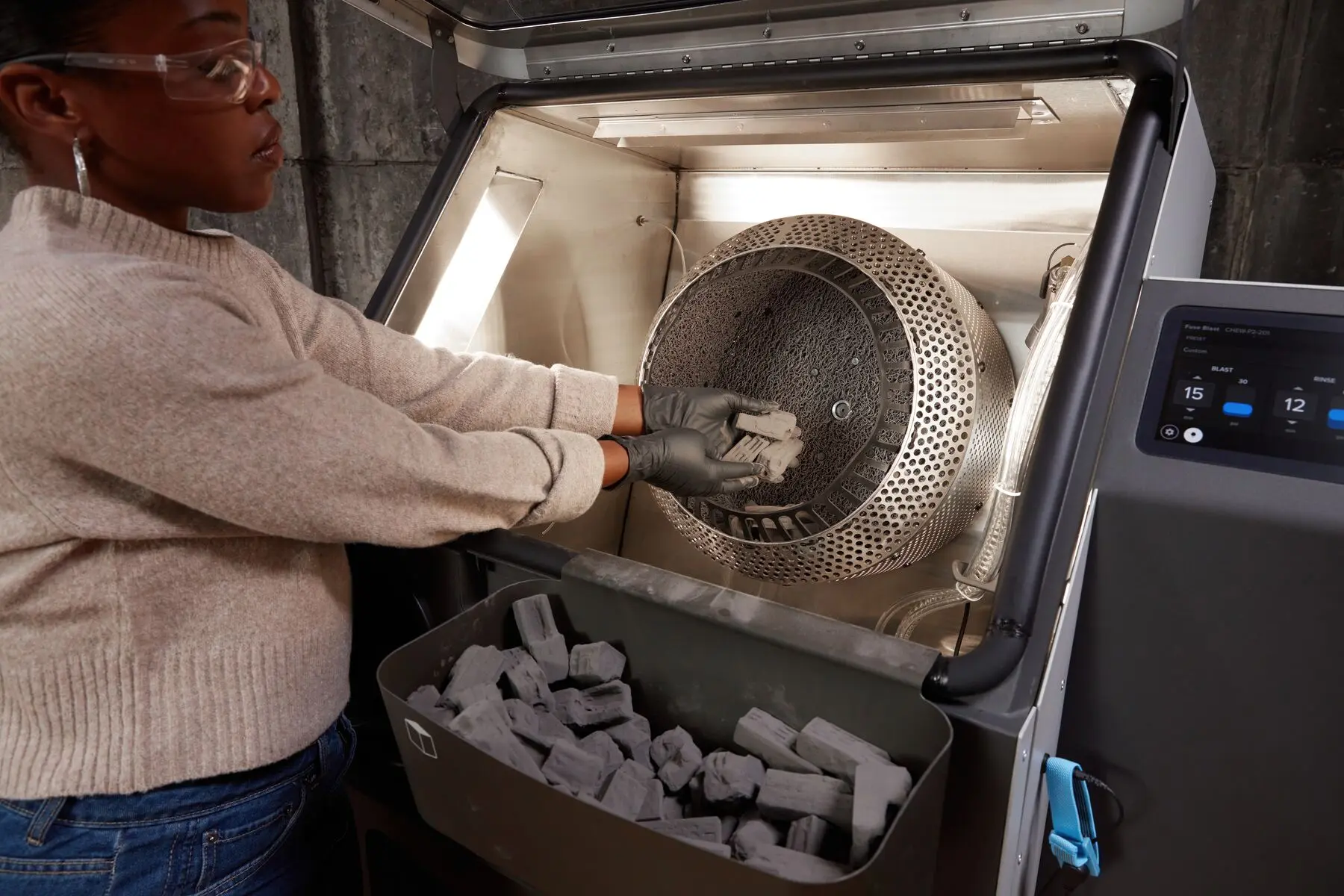

| Tumbling Basket | Internal diameter: 45 cm / 17.7 in Opening diameter: 34.5 cm / 13.6 in Basket depth: 25 cm / 9.8 in Basket is removable without tools. Fits a full Fuse build volume. |
| Internal Work Area (W x D x H) | 71 x 55 x 67 cm 27.9 x 21.6 x 26.3 in |
| Accessible Work Area (W x D x H) | 57 x 50 x 67 cm 22.4 x 19.6 x 26.4 in (basket removed) |
