Fuse Sift 230V
- Post-Processing
- Automated
Fuse Sift is a safe, efficient powder recovery system for Fuse 1 Series SLS printers. This easy-to-use, all-in-one station combines part extraction, powder recovery, storage, and mixing in a single free-standing device, for the most functionality in a single device available on the SLS market.
- Post-Processing
- Automated
Compatibility
- Compatible Printer
- Fuse 1+ 30W
Fuse Sift 230VFS1-SIFT-230V
Why Choose Fuse Sift
Fuse Sift streamlines your workflow with Fuse Series 3D printers by creating a seamless, contained environment for SLS powder management.
Mess-Free Post-Processing
Keep your workspace clean thanks to the negative air pressure system that keeps powder inside while enabling open access and easy cleanup.
Nonstop Printing
Reduce downtime by transferring modular build chambers and powder cartridges between the Formlabs SLS 3D printer and Fuse Sift for an uninterrupted, cyclical workflow.
Automated Powder Mixing
Fuse Sift filters used powder and dispenses and mixes new powder automatically in a seamless workflow that lets you control your supply and reduce waste.
A Complete Toolkit
Fuse Sift includes a set of finishing tools to help you clean excess powder from parts with ease.
Features
Fuse Sift makes it easy to extract parts, reclaim powder, and mix powder for your next print.
Compact, Enclosed System
Fuse Sift is equipped with an HEPA filter, as well as a negative air pressure system that keeps powder inside, while enabling open access and easy cleanup.
Low Waste
Fuse Sift efficiently collects unsintered powder and filters out debris so it can be reused in the next print. Competitive material recyclability allows you to use up to 80% used powder.
Automatic Powder Mixing
Fuse Sift will dispense, mix, and store used and new powder automatically so you can reduce waste and control your powder supply easily.
Nonstop Printing

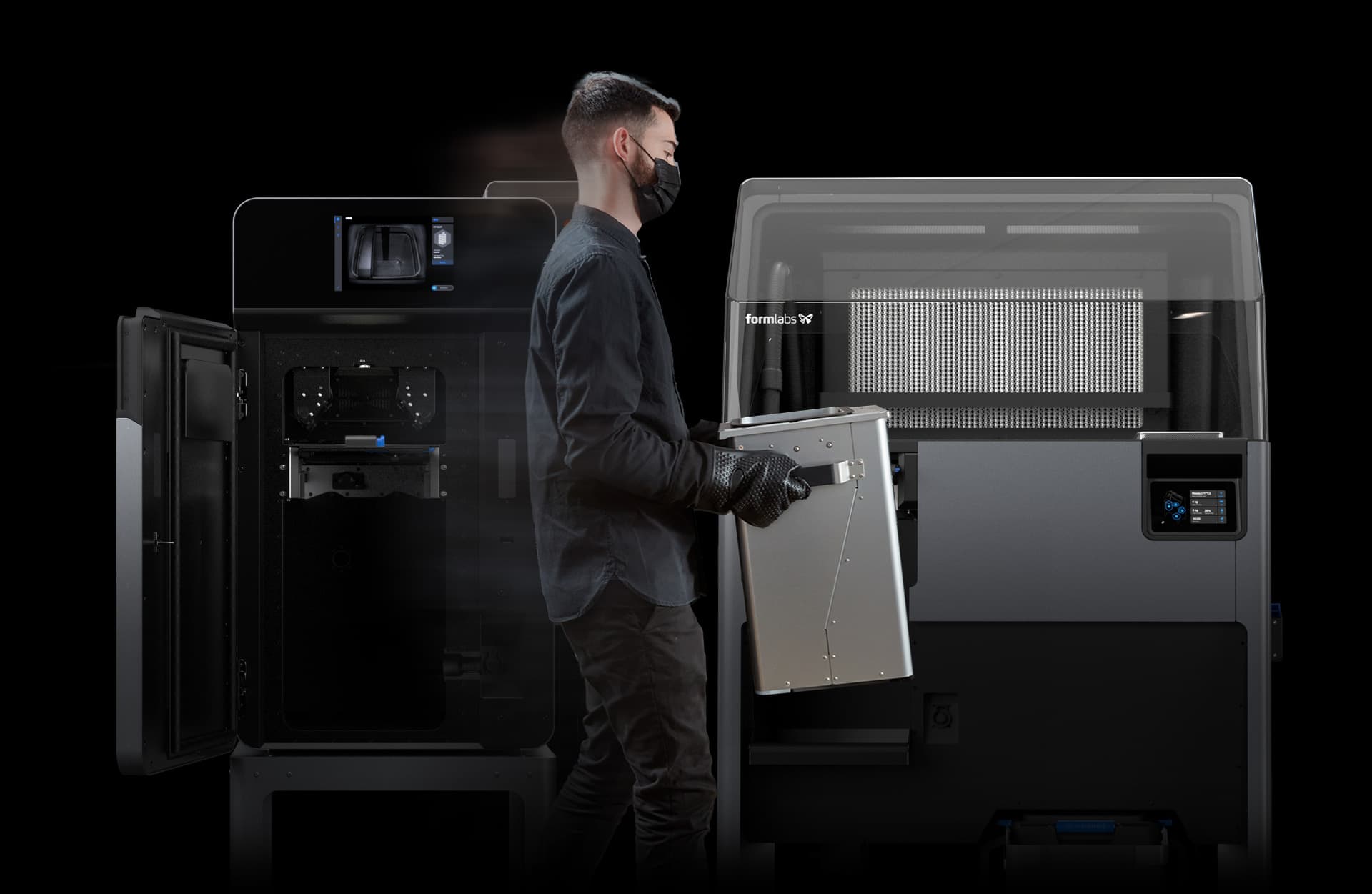

Reduce downtime by transferring modular build chambers and powder cartridges between the printer and Fuse Sift for a nonstop, cyclical workflow with minimum downtime — even during cooldown.

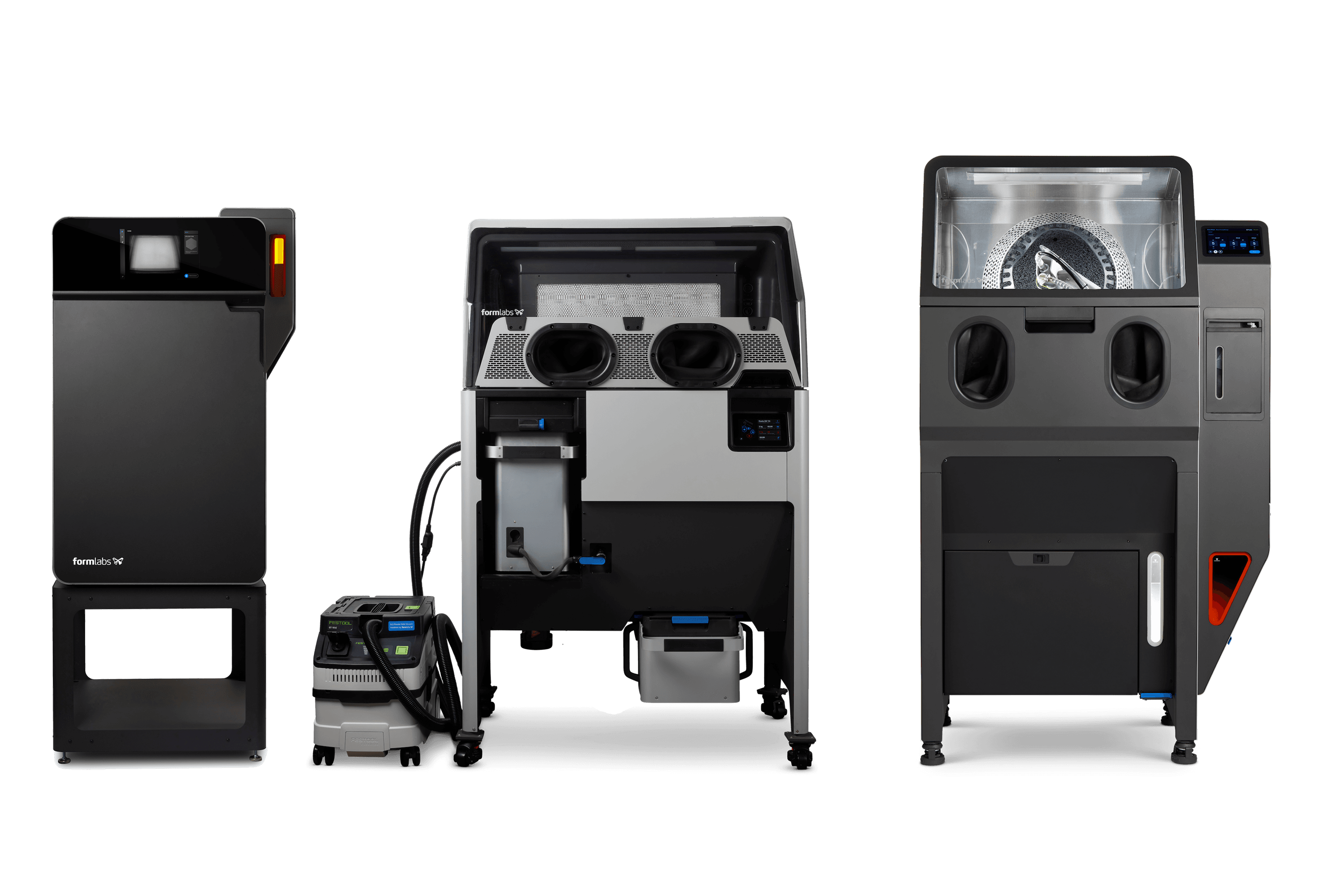

Fuse Series Workflow in Minutes
Fuse Blast is a part of an SLS 3D printing ecosystem that’s easy to learn and use and requires little intervention or maintenance. Watch the video to learn the basics of how to use the Fuse Series, from the software and materials to printing and post-processing.
Fuse Sift Tech Specs
| Fuse Sift | |
|---|---|
| Printer Compatibility | Fuse Series SLS 3D printers |
| Dimensions (W x D x H) | 101.5 × 61.0 × 154.5 cm 39.9 × 24.0 × 60.8 in |
| Height When Open | 190 cm (75 in) |
| Fuse Sift Weight | 93 kg (without build chamber or powder) 205 lb (without build chamber or powder) |
| Build Chamber Dimensions (W × D × H) | 27.9 × 34.2 × 48.9 cm 11.0 × 13.5 × 19.3 in |
| Minimum Access Dimensions (W × D × H) | 221.1 × 122.0 × 218.0 cm 87.1 × 48.0 × 85.8 in |
| Build Chamber Weight | 11 kg (17.6 kg, full with 20% packed powder) 24.3 lb (38.8 lb, full with 20% packed powder) |
| Build Chamber Dimensions (W × D × H) | 27.9 × 34.2 × 48.9 cm 11.0 × 13.5 × 19.3 in |
| Build Volume | 16.5 x 16.5 x 30.0 cm (with radiused corners) 6.5 × 6.5 × 11.8 in (with radiused corners) |
| Fresh Powder Hopper Capacity | 17 liters |
| Used Powder Hopper Capacity | 18 liters |
| Operating Environment | 18 – 26 ºC 68 – 80 ºF ≤ 30% ambient humidity |
| Air Handling | Negatively pressurized hood with replaceable HEPA filter Independent venting system |
| Air Filtration | Replaceable HEPA medium |
| Power Requirements (with a vacuum that draws less than 6 A (230 VAC) / 12 A (120 VAC)) | EU: 230 VAC, 7.5 A (dedicated circuit) US: 120 VAC, 15 A (dedicated circuit) |
| Power Requirements (with a vacuum that draws more than 6 A (230 VAC) / 12 A (120 VAC)) | EU: 230 VAC, 10 A (dedicated circuit) US: 120 VAC, 20 A (dedicated circuit) |
| Vacuum Requirements | Auxiliary vacuum with static dissipative components that is grounded and bonded (e.g., a NFPA 652 compliant vacuum) |
| Connectivity | Wi-Fi (2.4 GHz) Ethernet (1000 Mbit) USB 2.0 |
| Ethernet Connectivity | RJ-45 Ethernet (10BASE-T/100BASE-TX/1000BASE-T) LAN port Connect with a shielded Ethernet cable (not included): minimum Cat5, or Cat5e or Cat6 for 1000BASE-T. |
| Wi-Fi Connectivity | Protocol: IEEE 802.11 b/g/n Frequency: 2.4 GHz Supported security: WPA/WPA2 |
| USB Connectivity | USB (rev 2.0) B port with a USB A-B cable |
| Sound Emission | Does not exceed 76.5 dB(A) |
| Fuse Sift Control | Interactive touchscreen, physical buttons |
| Included Accessories | Large Brush, Small Brush x 2 Pipe Cleaners Dental Picks Gloves Dust Mask Safety Glasses Vacuum Brush Tool Vacuum Crevice Tool Lifting Straps |

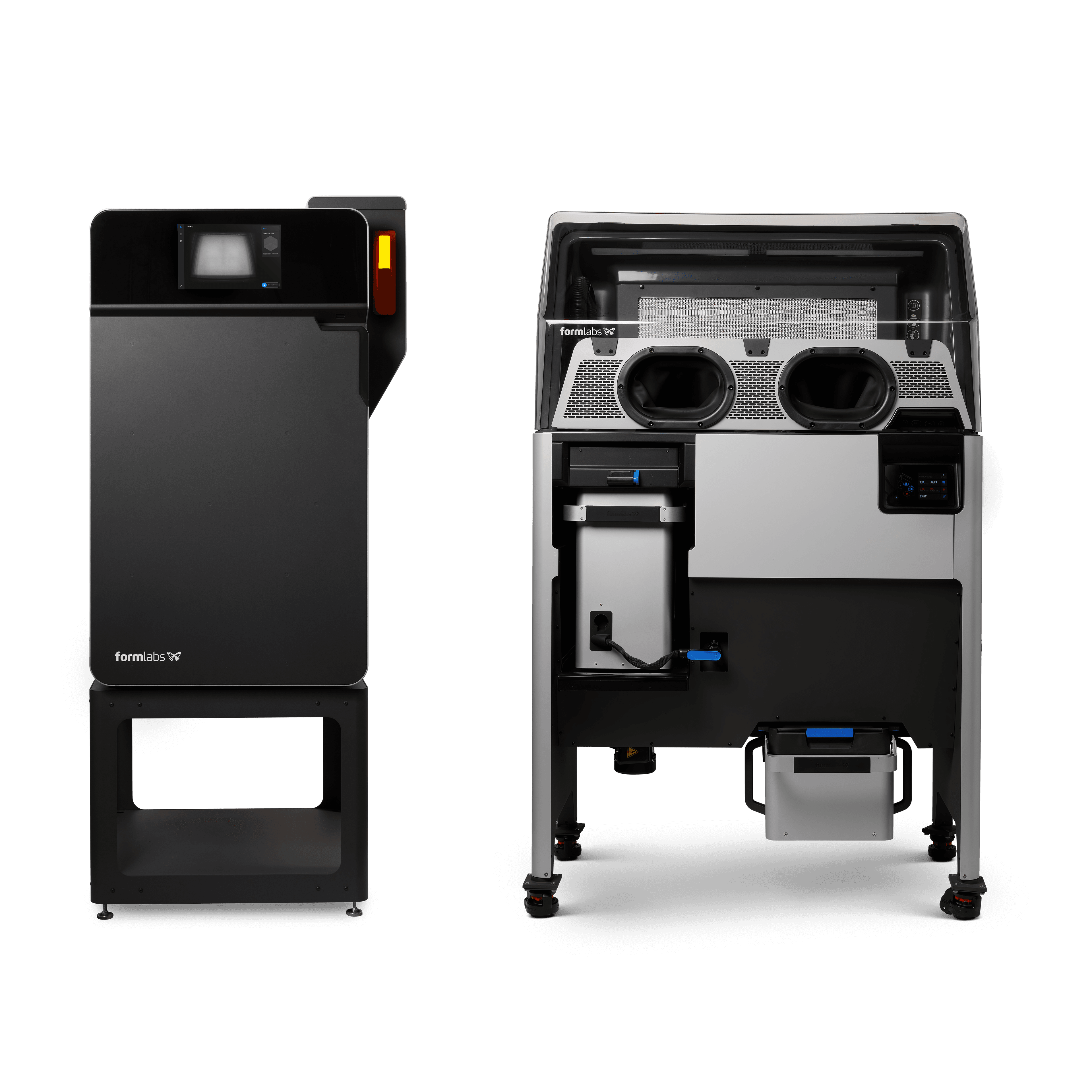

| Optional Accessories | Fuse Sift Glovebox Panel Parts Carrier |
