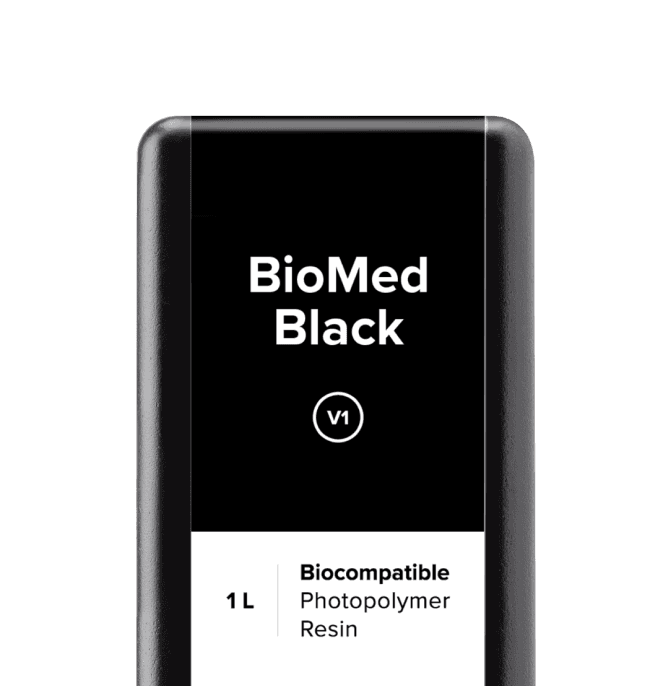

BioMed Black Resin

Why Choose BioMed Black Resin?

Fuel medical innovation using 3D printing and BioMed Black Resin for producing end-use devices where performance and biocompatibility are critical.


Medical-Grade Material

Leverage a material manufactured within our Quality Management System, with strict adherence to ISO 13485.


Excellent Definition

Produce parts and assemblies with complex designs and geometries.


High Contrast

Create contrast between substances or surfaces to aid in visualization with the black, matte finish of BioMed Black Resin.


Biocompatible and Sterilizable Parts

Testing conducted by Formlabs for common use cases is intended to instill confidence that this material is suitable for biocompatible applications.

Applicazioni

Use BioMed Black Resin for producing rigid parts for point-of-care and medical manufacturing applications requiring biocompatibility and matte finish.

Consider BioMed Black Resin for:

Dispositivi e componenti per dispositivi medici
Stampi, dime e fissaggi biocompatibili
Parti per utilizzo finale che richiedono il contatto con i pazienti
Beni di consumo

*Unlike Formlabs Dental Resins, no intended uses are provided for BioMed Resins. Material properties may vary based on part design, manufacturing practices and other methods. It is the manufacturer’s responsibility and its respective customers and end-users to determine the biocompatibility and performance of all printed parts for their respective application and use. To instill confidence in potential users, Formlabs has tested biocompatibility and sterilization compatibility for common use cases and manufactures BioMed Resins in an ISO 13485 certified facility. We can offer representative examples of what customers have done with our products and the supporting documentation we make freely available.

Proprietà del materiale

BioMed Black Resin

Carico di rottura a trazione

35.71 MPa

Modulo di elasticità

1523.74 MPa

Allungamento

14%

Resistenza alla flessione

57.16 MPa

Modulo di flessione

1668.53 MPa

Durezza Shore D

77 D

Resistenza all'urto Izod con intaglio

24.77 J/m

Temperatura di distorsione termica a 0,45 MPa

67.9ºC

1 Material properties may vary based on part geometry, print orientation, print settings, temperature, and disinfection or sterilization methods used.

2 Data were measured on post-cured samples printed on a Form 3B with 100um BioMed Black Resin settings, washed in a Form Wash for 5 minutes in 99% Isopropyl Alcohol.

3 BioMed Black Resin was tested at NAMSA World Headquarters, OH, USA.
