Producing Temperature-Resistant Brackets With 3D Printing

The Nuclear Advanced Manufacturing Research Centre (Nuclear AMRC) is a collaboration of academic and industrial partners from across the nuclear supply chain that conducts research in advanced manufacturing solutions for the civil nuclear industry to help UK manufacturers win work at home and worldwide.

A project the centre has recently worked on aims to develop an autonomous welding solution for the welding of pressure vessels for the nuclear industry. To achieve this, the team had to integrate multiple sensors into the equipment in a hazardous, high-temperature environment.

Learn from Matthew Smart, the projects technical lead at the machining group at Nuclear AMRC, how the team used 3D printing to quickly iterate different designs and produced dozens of parts that withstood the elevated temperatures in close proximity to the welding.

Smart and the research team worked with the AMRC’s open access additive manufacturing station to manufacture the parts they needed. Read our case study to learn how open access to 3D printing can support hundreds of engineers across the site.

Why Welding Vessels Can Take Months in the Nuclear Industry

Current methods for welding pressure vessels require performing frequent hold points for manual inspection that requires cooling down and heating up components multiple times. This results in a lengthy process; welding a large vessel can take months. The Nuclear AMRC’s project aims to cut this lead time by developing an autonomous system that can detect flaws as they happen so the process is only halted if there is an actual flaw.

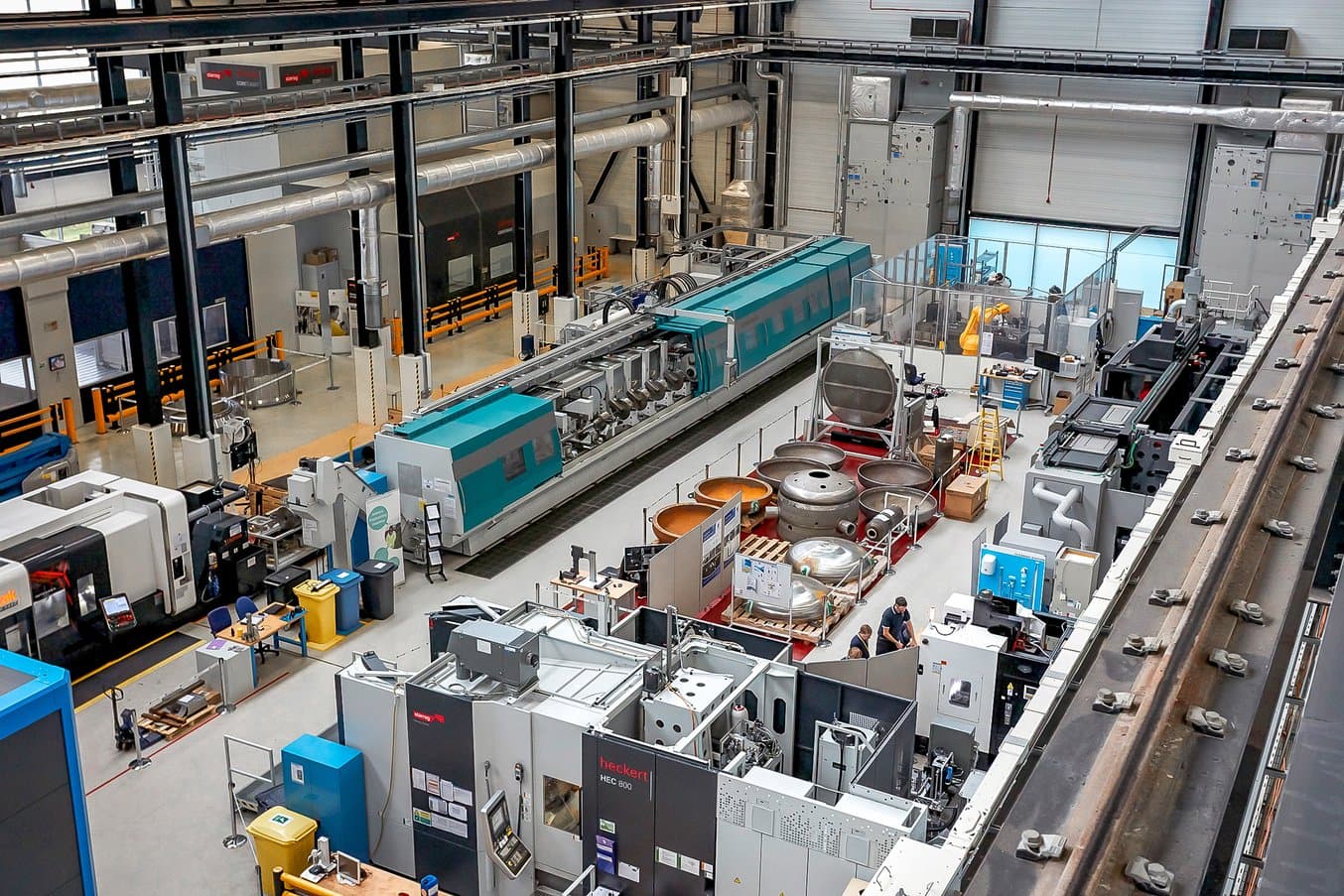

The Nuclear AMRC conducts research in advanced manufacturing solutions for the civil nuclear industry.

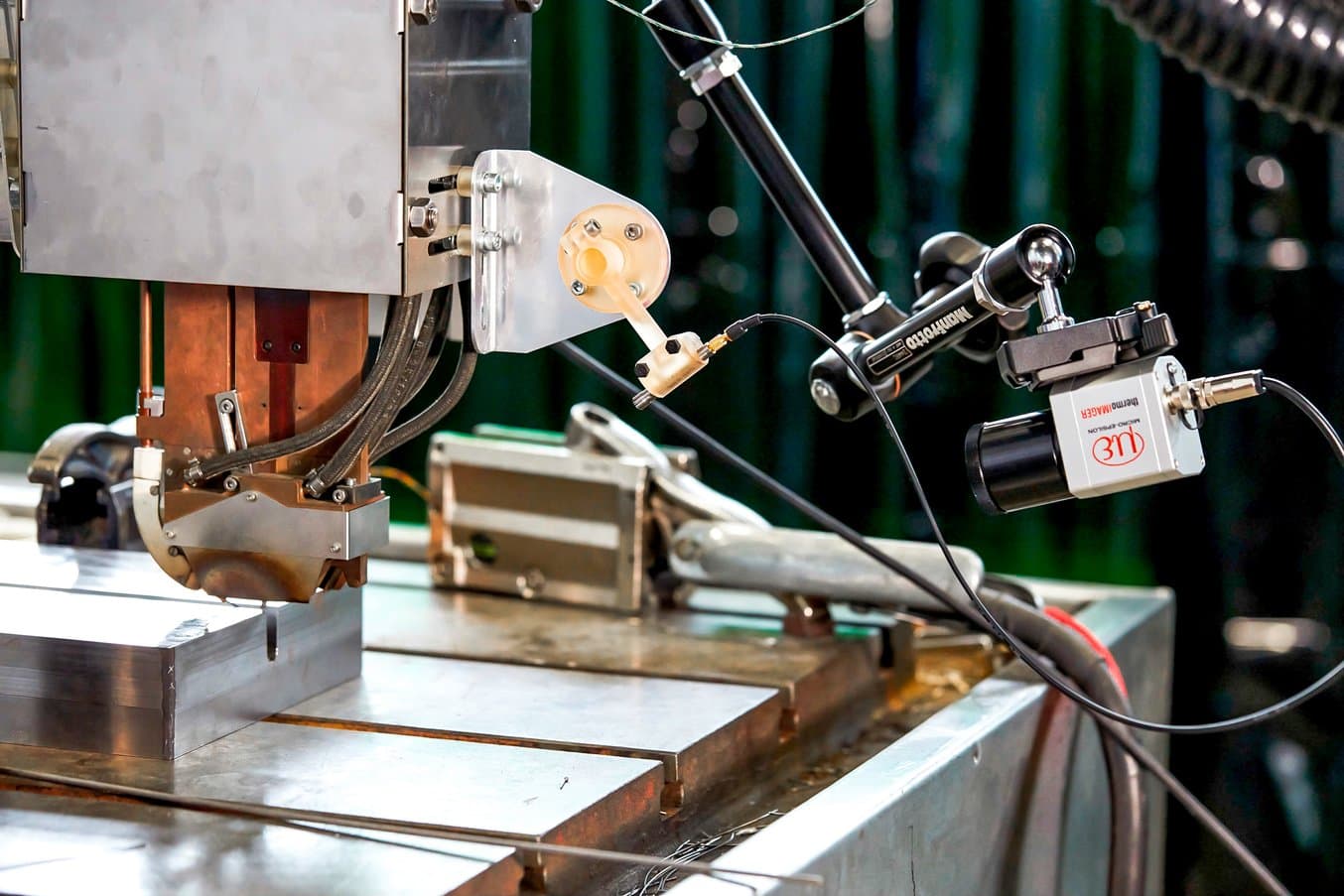

To analyze the welding process in real time, the researchers’ concept integrates a number of different sensors, such as laser scanners, acoustic monitoring, process monitoring for voltage and current, thermal imaging, and a camera system.

“The mechanical integration of all these different sensors is a challenge in this hazardous environment. We need to test different setups and orientations to find out where all the sensors are going to be. But we need to be very flexible in how we test and use the equipment because it's very expensive to book time on this machine,” Smart said.

The researchers’ concept integrates a number of different sensors that analyze the welding process in real time.

Rapidly Iterating Sensor Configurations and Mounting Strategy With 3D Printing

The current sensor setup contains about a dozen different 3D printed parts, mainly washers that hold brackets together and a mounting system for the acoustic microphones. All of these parts have to be able to withstand the elevated temperatures in close proximity to the welding.

Formlabs High Temp Resin offers a heat deflection temperature (HDT) of 238 °C @ 0.45 MPa, making it ideal for parts that require high temperature resistance.

“If we had to make these parts through a traditional method, we would have had to be a lot more arduous in the design process in terms of capturing the requirements and fully locking down all of the exact tolerances before we fabricated the parts. Being able to 3D print the brackets means that we can go by a bit of trial and error, print multiple versions with different tolerances and test different orientations and sizes. It means that we can be a lot more innovative and test things much more quickly,” Smart said.

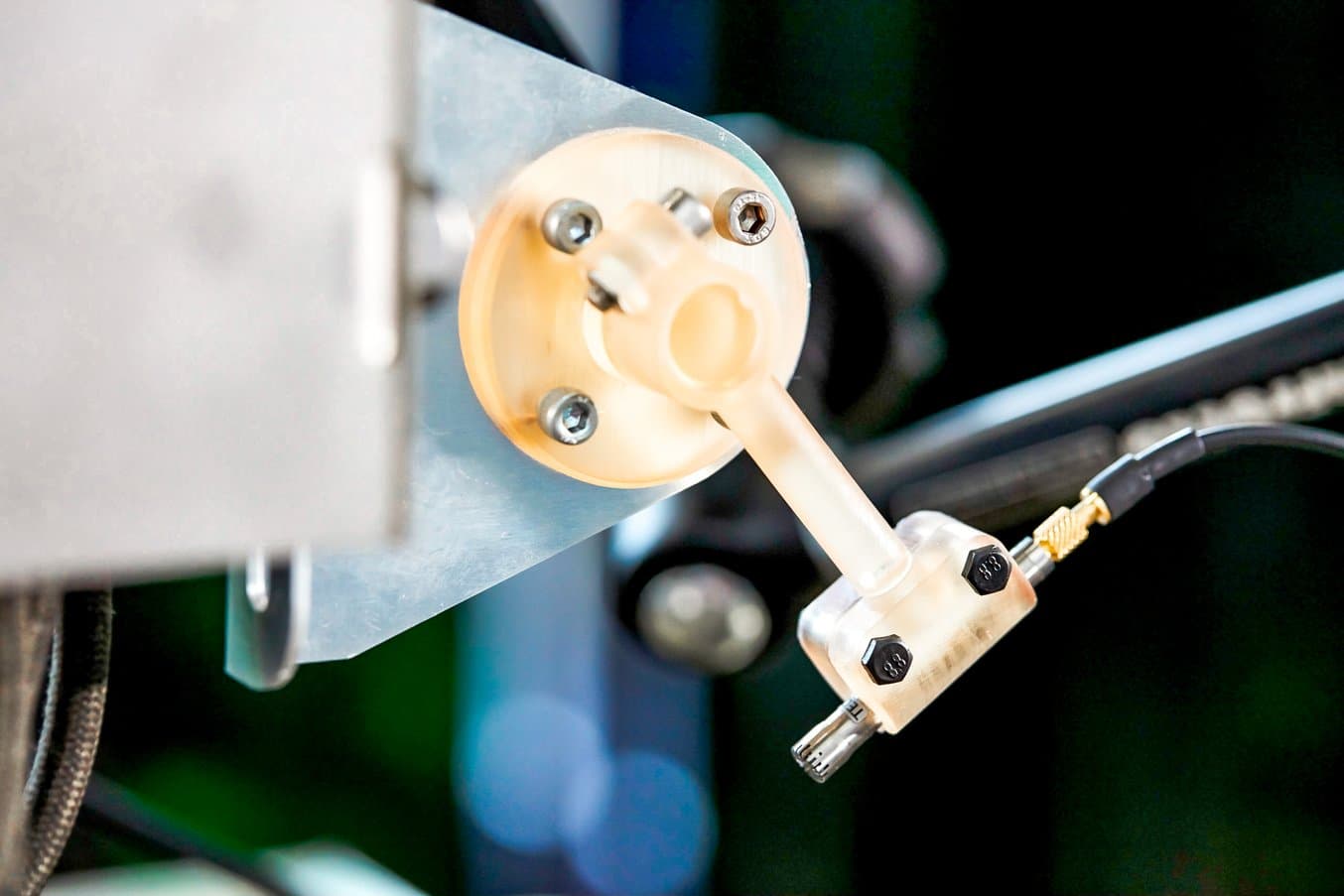

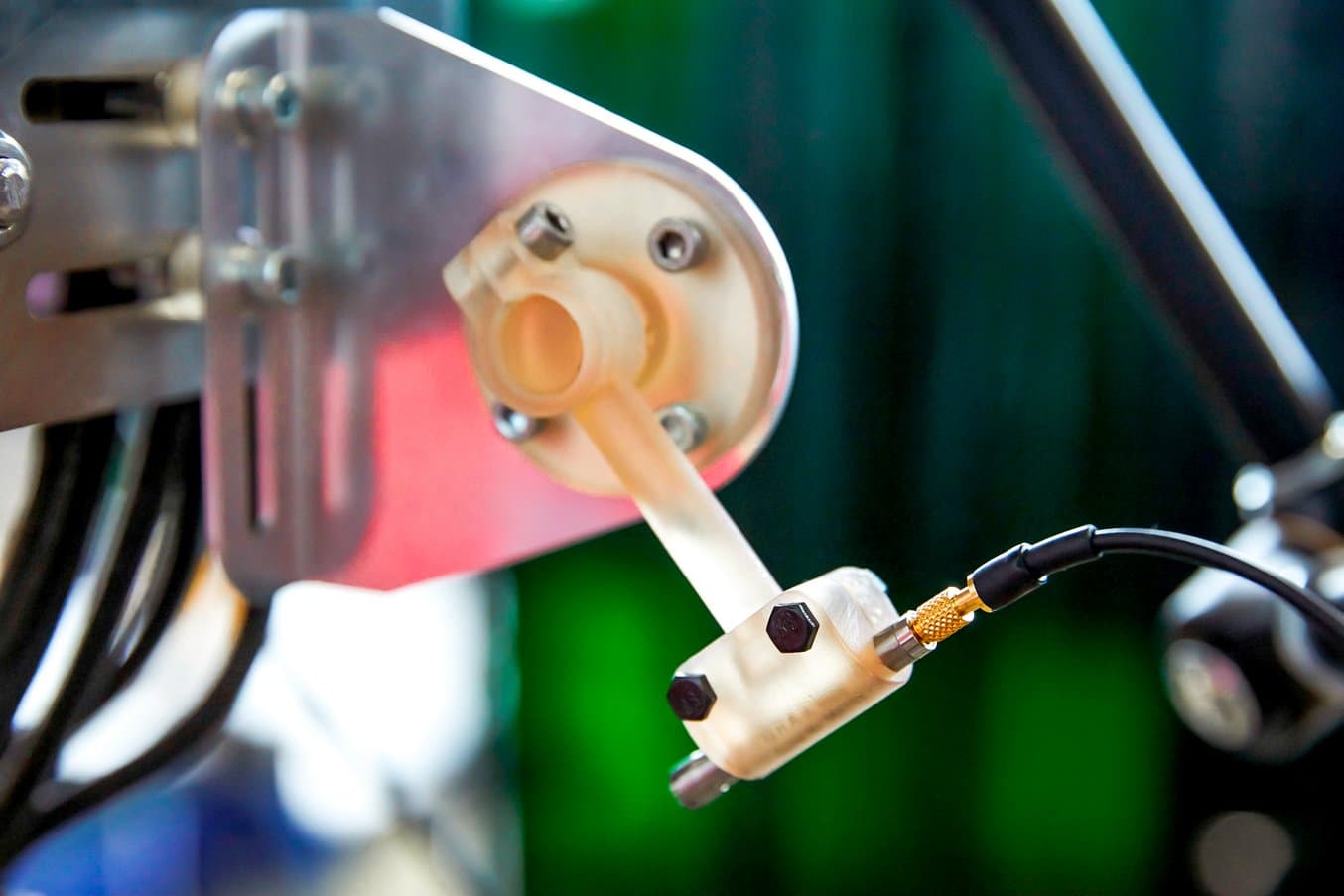

One of the 3D printed brackets holds the temperature sensor. The part was printed in Formlabs High Temp Resin to withstand the heat in close proximity to the welding.

Being able to use 3D printing to rapidly test the different sensor configurations and mounting strategy let the team be very versatile and significantly reduced cost and time to get the parts fabricated.

“We would be talking about days of engineering time to get all the paperwork, sort the material, do design work, and subcontract a company, versus a couple of hours on a CAD program and then the cost of the plastic. It's fractional compared to doing it traditionally,” Smart said.

“You can't really quantify the agility of it, because it just lets you test and iterate much more. Let’s say if you sent a design for fabrication and it wasn't fit for purpose, you'd have to go through that again, so we'd be talking about weeks to go from testing one prototype to another. With 3D printing, it's two days. The pace of innovation is unquantifiable.”
