Flexible 80A Resin V2 (Form 4)
- Print Technology
- SLA
- Material Family
- Engineering
- Characteristics
- Flexible & Elastic
- Ultimate Tensile Strength
10 MPa
- Elongation at Break
230%
- Key Characteristics
Resilient and tear-resistant
- Comparable to
80A cast urethanes and hard rubbers
- Recommended Applications

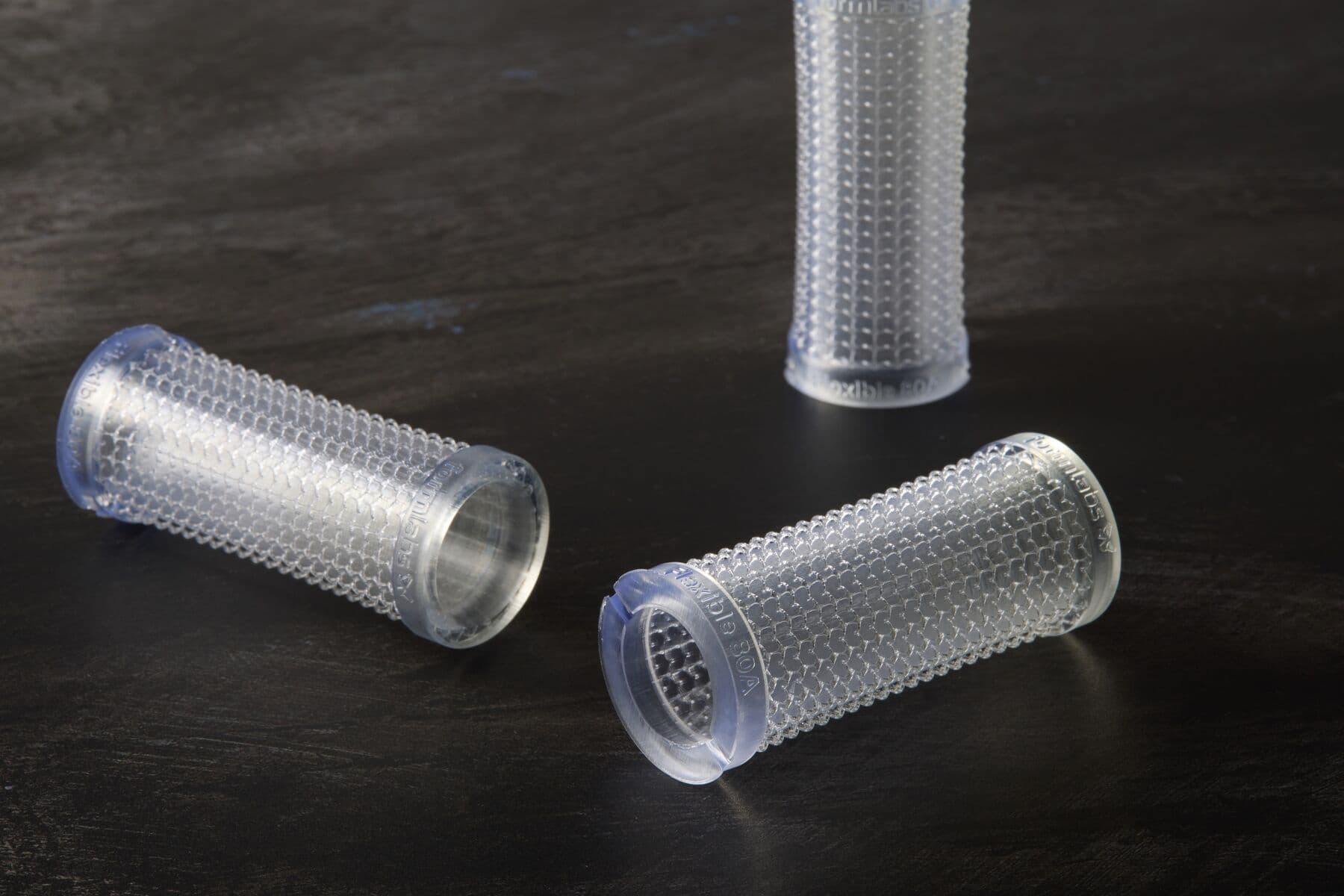

Resilient bumpers and enclosures, soft inserts and fixtures, shock-absorbing padding and grips, seals and gaskets
Flexible 80A Resin V2 is a resilient 3D printing elastomer that rivals the look, feel, and function of 80A cast urethanes, TPUs, and hard rubbers.
Parts printed in Flexible 80A Resin V2 snap back into place and withstand repeated bending, tension, and compression. Create tear-resistant functional prototypes and end use parts, protect sensitive components with soft inserts and fixtures, or design refined padding and grips with tack-free surfaces and a matte, black finish.
Flexible 80A Resin V2 is a new material formulation that leverages the technology of Form 4 Series printers to deliver 2x higher tear strength, 2x higher elongation at break, 4x higher rebound, and improved aesthetics and aging compared to the previous version.
- Print Technology
- SLA
- Material Family
- Engineering
- Characteristics
- Flexible & Elastic
- Ultimate Tensile Strength
10 MPa
- Elongation at Break
230%
- Key Characteristics
Resilient and tear-resistant
- Comparable to
80A cast urethanes and hard rubbers
- Recommended Applications
Resilient bumpers and enclosures, soft inserts and fixtures, shock-absorbing padding and grips, seals and gaskets
Select Printer Series and Resin Volume
Bulk Order Discount
- 15%
- 30 L
- 20%
- 60 L
- 25%
- 120 L
- 30%
- 240 L
- 35%
- 1,000 L
- 40%
- 2,000 L
- 45%
- 3,000 L
Flexible 80A Resin V2 (Form 4)—
Why Choose Flexible 80A Resin?
Resilient elastomeric 3D printing material that rivals the look, feel, and function of 80A cast urethanes, TPUs, and hard rubbers.
Exceptionally High Rebound
Produce resilient parts that snap back to shape with a 56% pendulum rebound, comparable to 80A cast urethanes.
Tough and Tear-Resistant
Create durable, stretchable parts that resist failure with a tear strength of 28 kN/m and elongation at break of 230%, 2x higher than the previous generation.
Looks and Feels Like a Cast Urethane
Print functional prototypes and end-use parts that matches the look and feel of traditional cast urethanes with a matte, black appearance and tack-free surfaces.
Fatigue-Resistant, Long-term Performance
Create long-lasting connectors, fixtures, and covers that survive 5x more cycles (Ross Flex fatigue) compared to the previous generation and retain 87% of their initial elongation at break after 1000 hours of accelerated indoor aging.
Applications

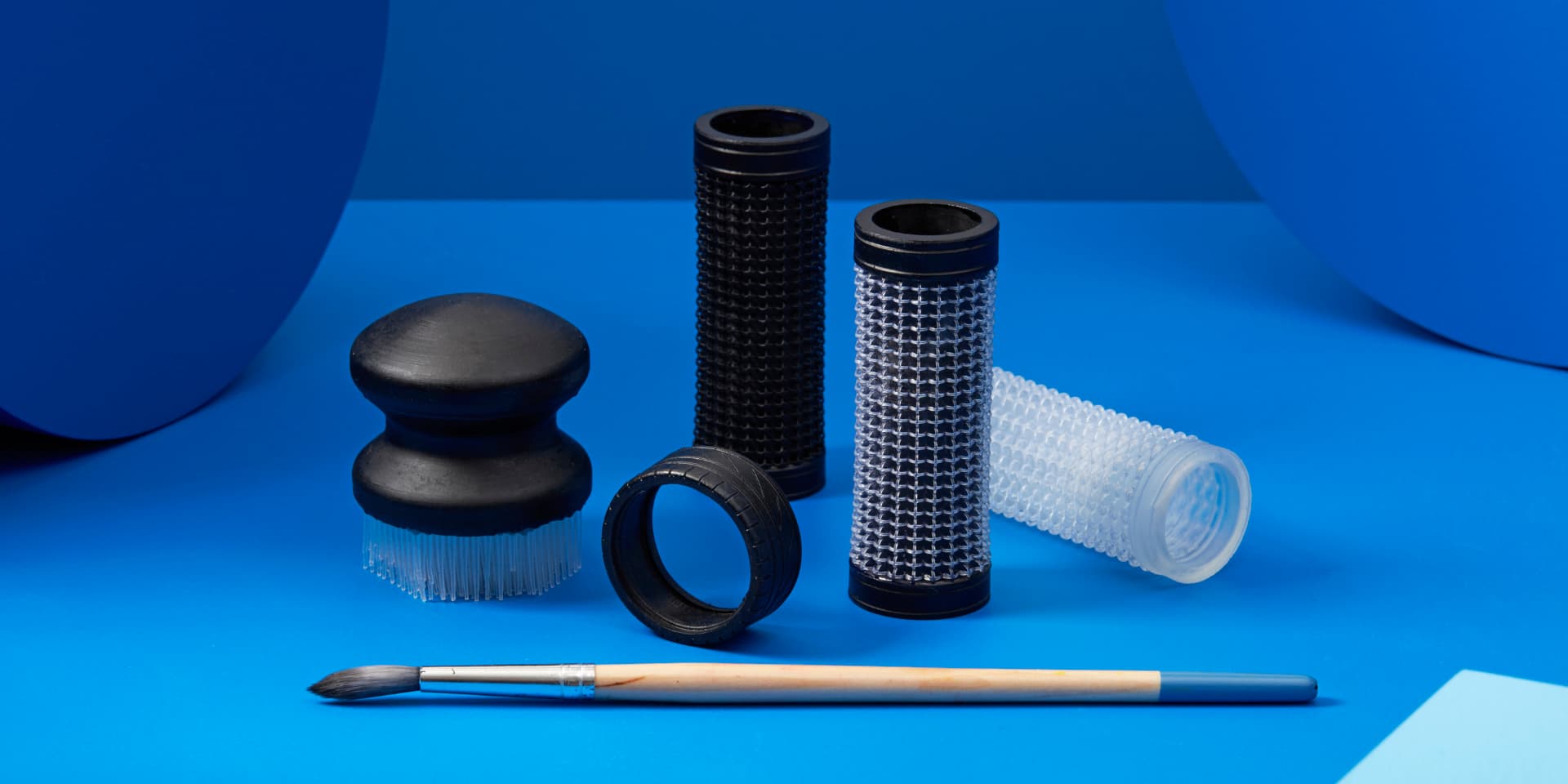

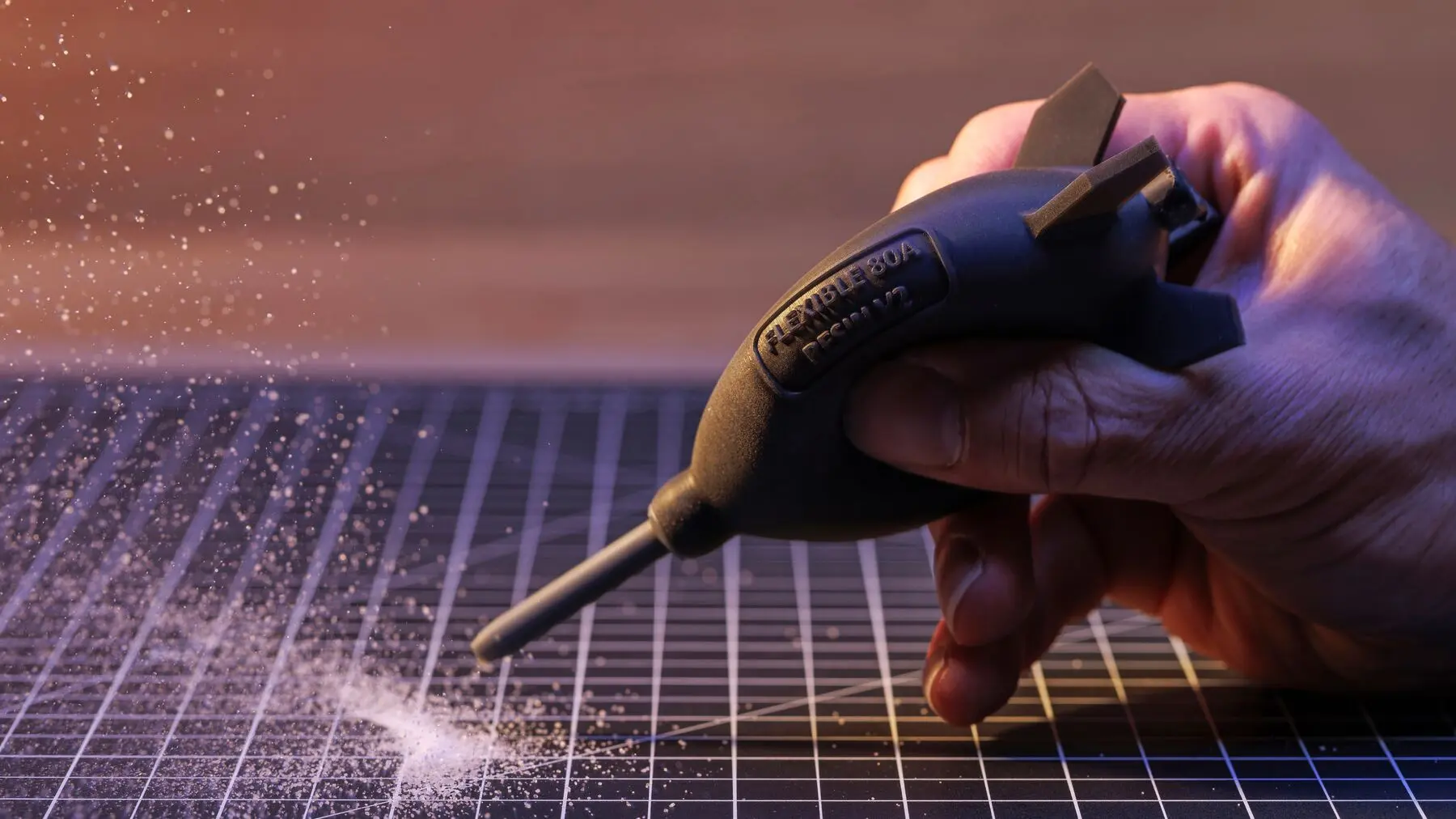

Functional prototypes and end-use parts with the look and feel of cast urethanes

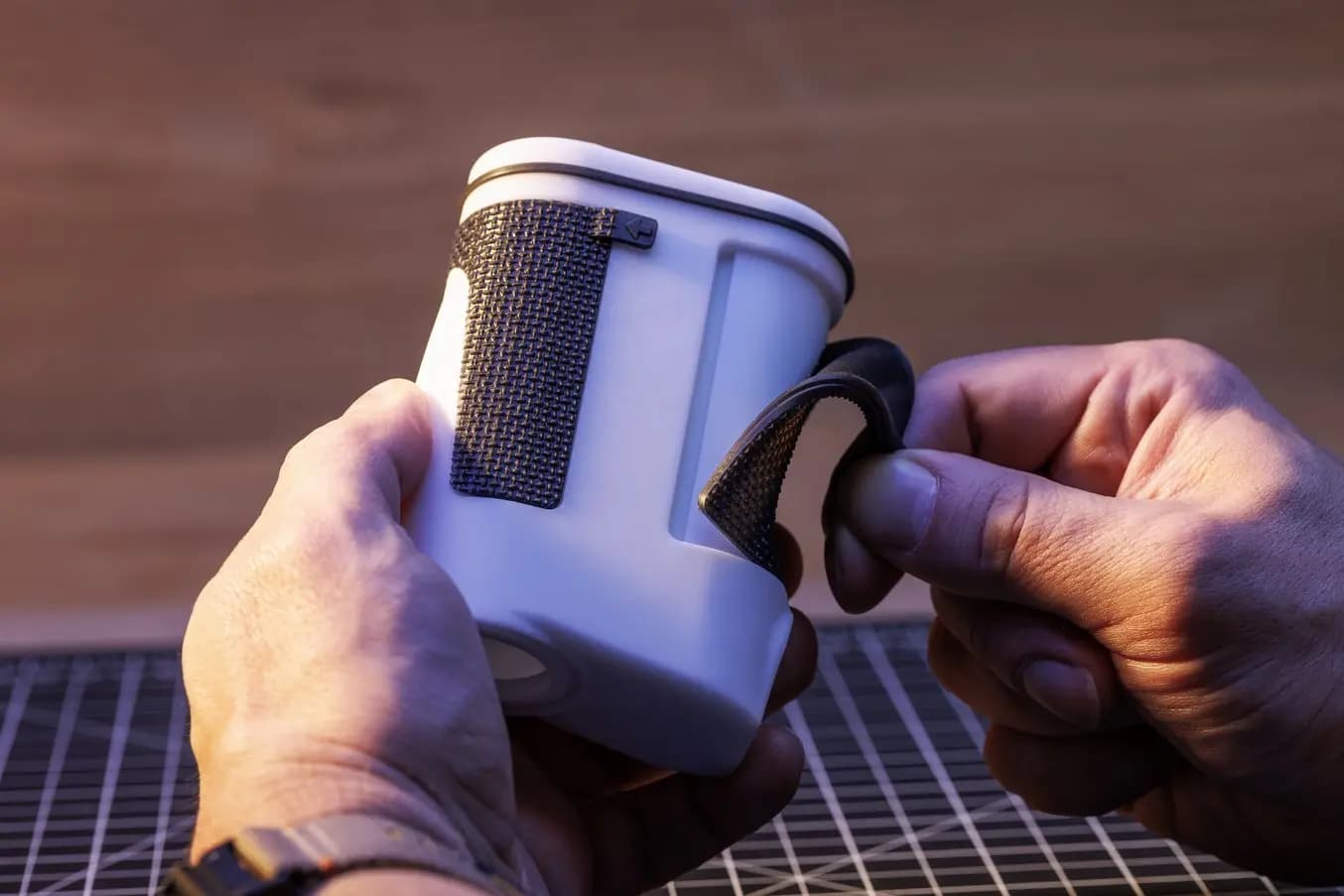

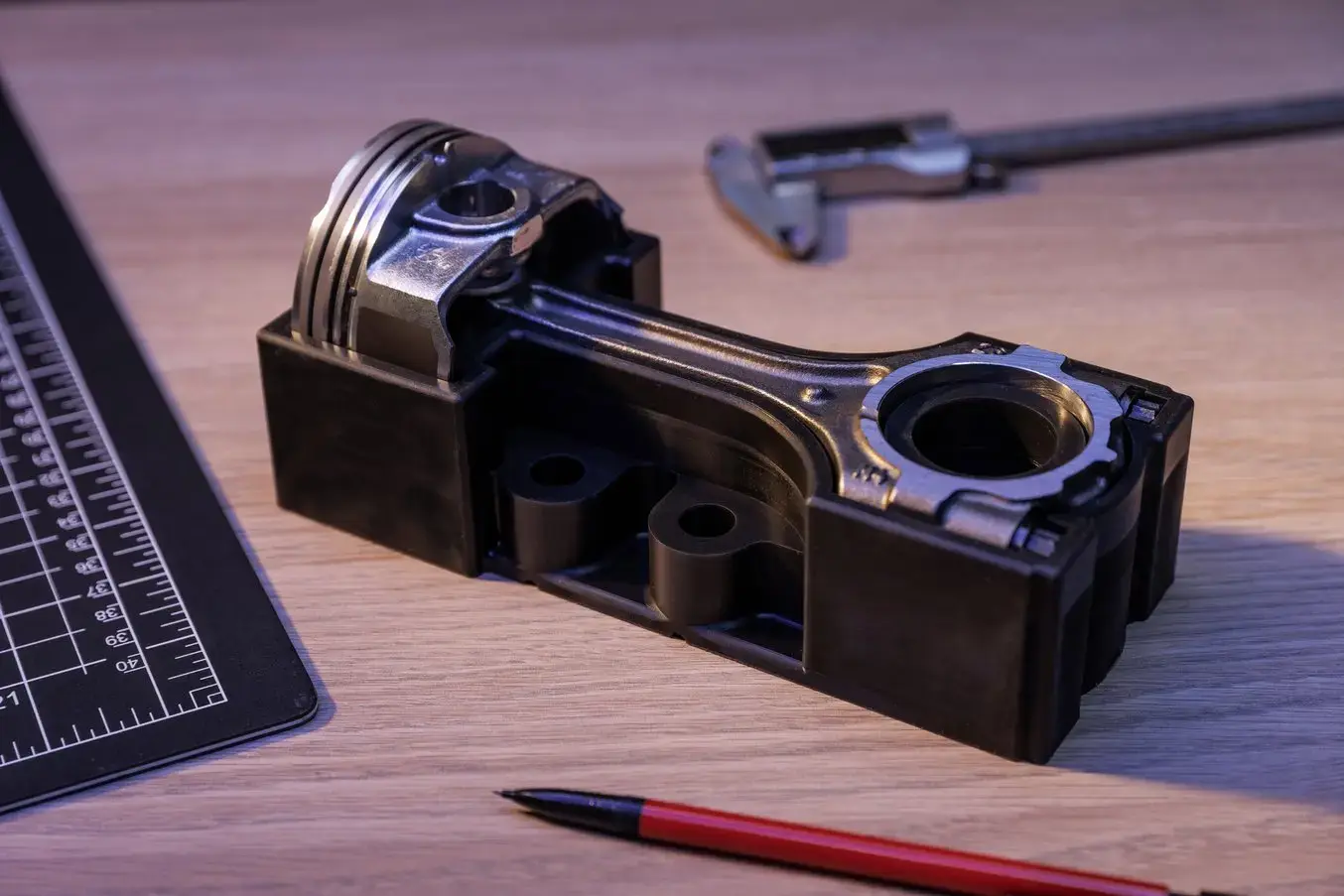

Soft inserts, jigs, and fixtures that protect precision components and finished surfaces while withstanding repeated use.

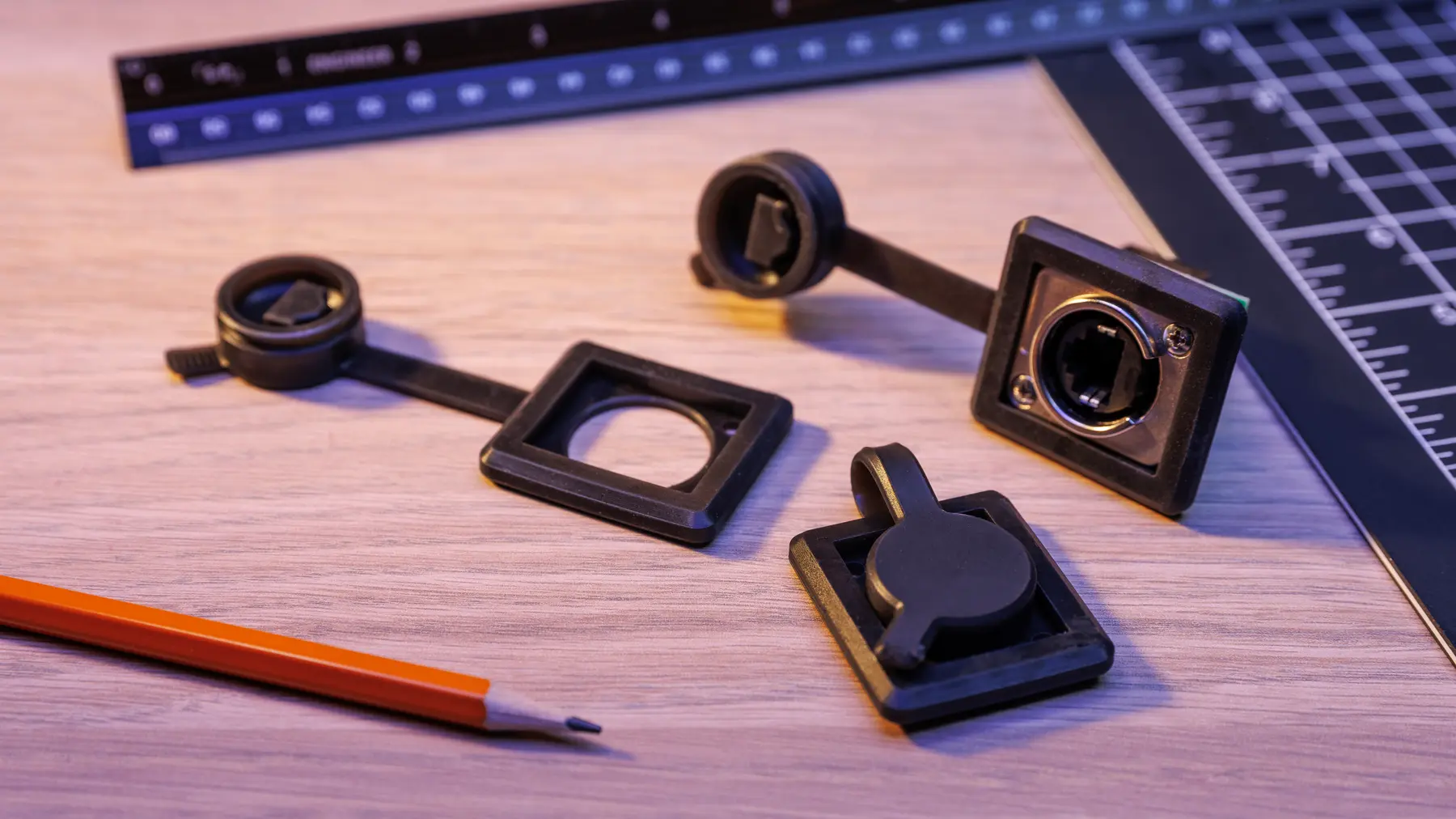

Custom covers, gaskets, and seals

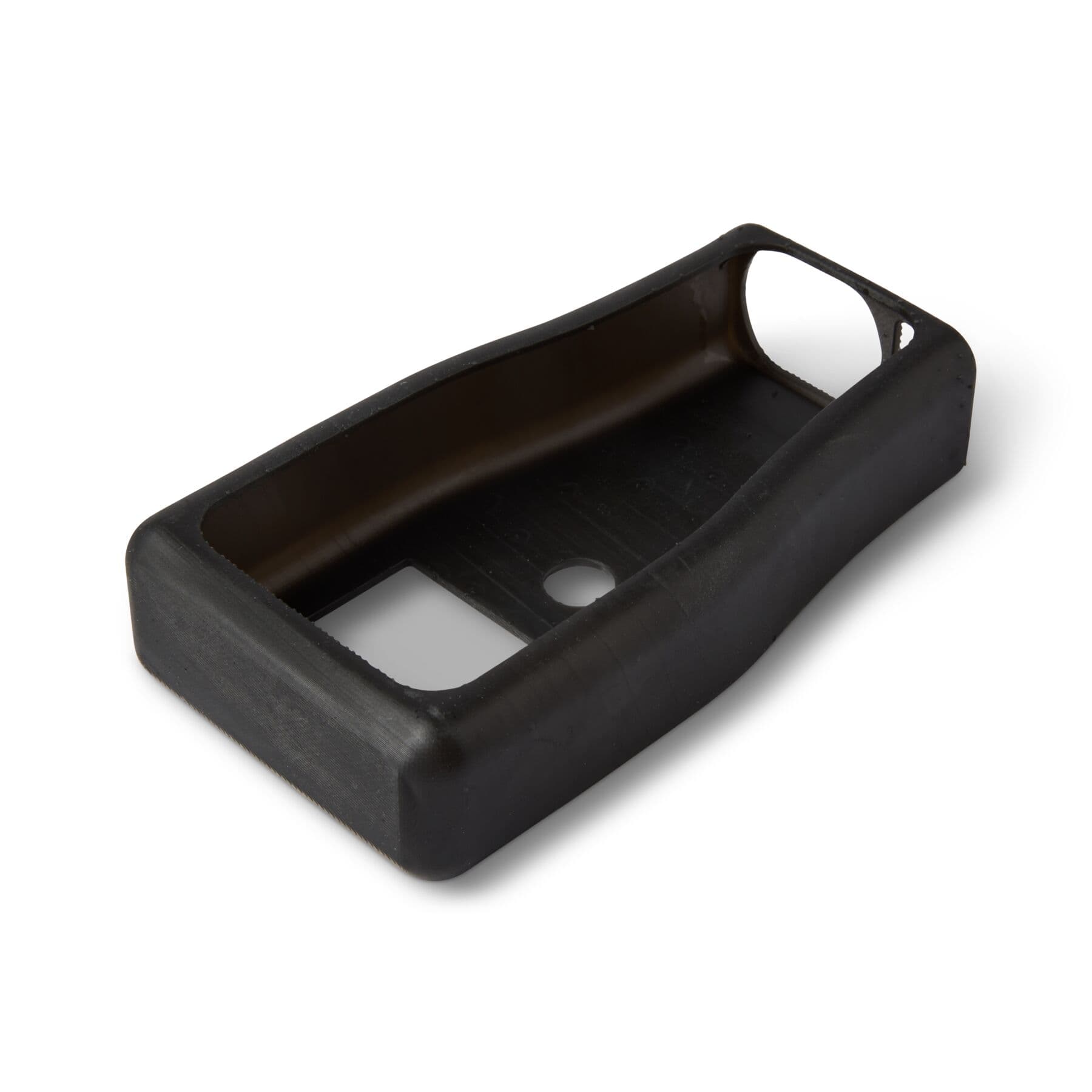

Shock-absorbing bumpers and enclosures
| Parameter |
Flexible 80A V2 Resin |
Cast Urethane (Smooth-on Task™ 16) |
|---|---|---|
|
Hardness (Shore A) |
83A |
80A* |
|
Tear Strength |
28 kN/m | 160 pli |
34.5 kN/m | 197 pli* |
|
Elongation at Break |
230% |
233%* |
|
Pendulum Rebound (Schob Type) |
56% |
54% |
|
Ross Flex Fatigue |
12,800 cycles** |
38,600 cycles** |
|
Compression Set (25% Strain) |
32% |
– |
*Value reported by manufacturer and not tested directly by Formlabs
**Internally tested with no environmental control
Flexible 80A Resin V2 is a resilient 3D printing elastomer that rivals the look, feel, and function of 80A cast urethanes, TPUs, and hard rubbers.
Parts printed in Flexible 80A Resin V2 snap back into place and withstand repeated bending, tension, and compression. Create tear-resistant functional prototypes and end use parts, protect sensitive components with soft inserts and fixtures, or design refined padding and grips with tack-free surfaces and a matte, black finish.
Flexible 80A Resin V2 is a new material formulation that leverages the technology of Form 4 Series printers to deliver 2x higher tear strength, 2x higher elongation at break, 4x higher rebound, and improved aesthetics and aging compared to the previous version.

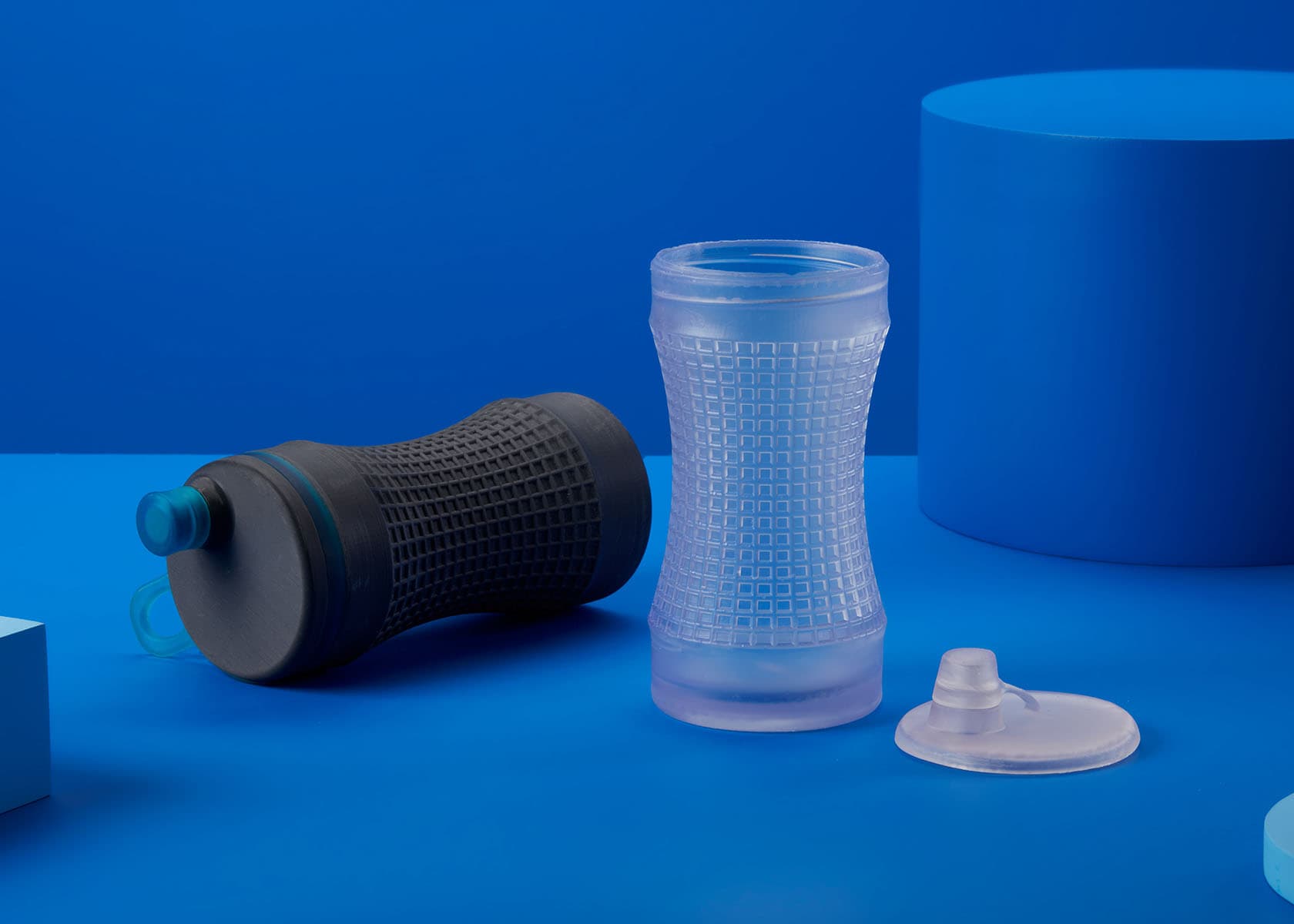

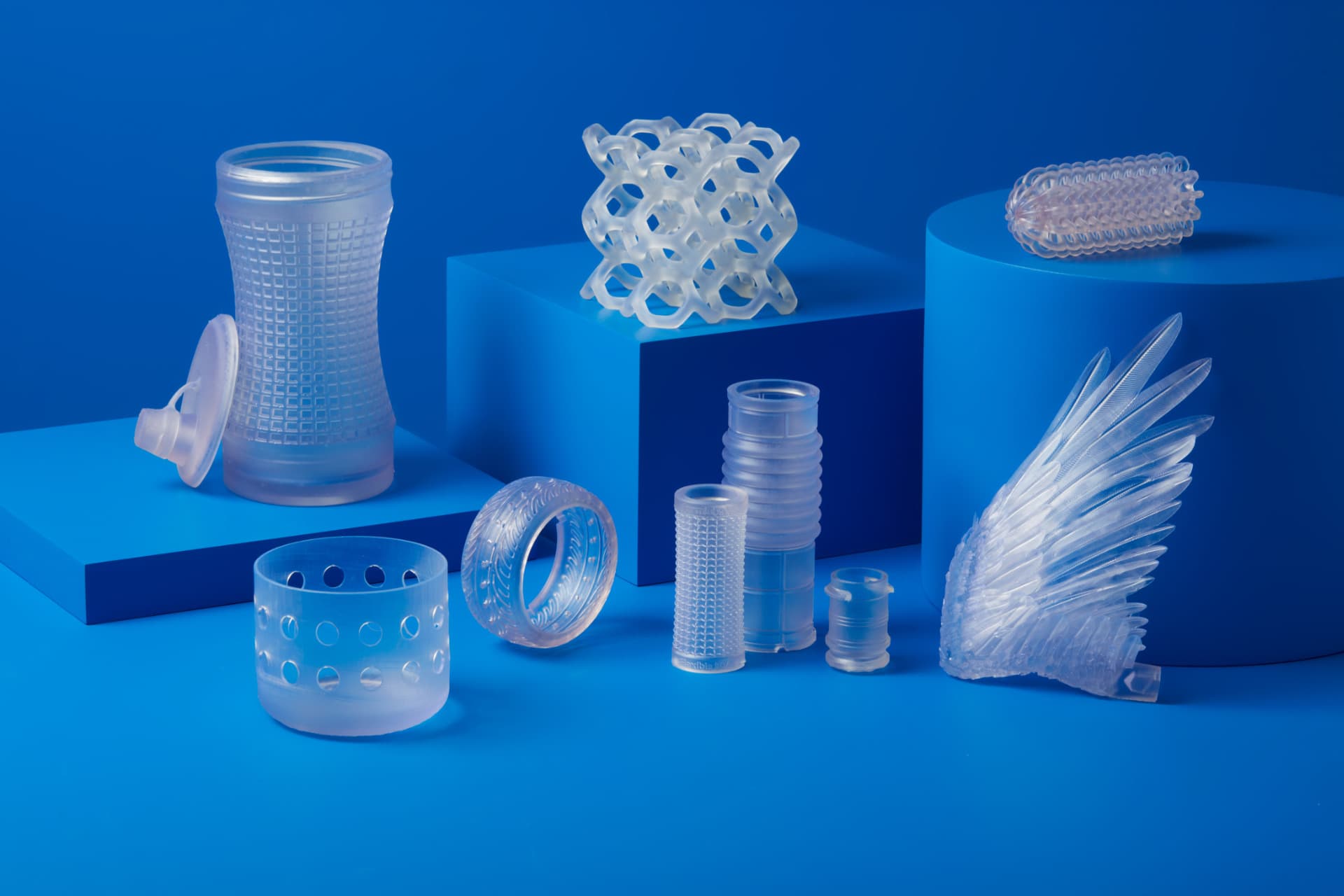

Flexible 50A Resin is a soft, translucent elastomer with a 50A Shore durometer that is ideal for prototyping parts normally produced with softer rubbers and silicones.
Parts printed in Flexible 50A Resin will bend, stretch, compress, and hold up to repeated cycles without tearing, and spring back quickly to their original shape.
Resilient and tear-resistant
Pliable and transparent
80A cast urethanes and hard rubbers
Soft rubbers and silicones
Resilient bumpers and enclosures, soft inserts and fixtures, shock-absorbing padding and grips, seals and gaskets

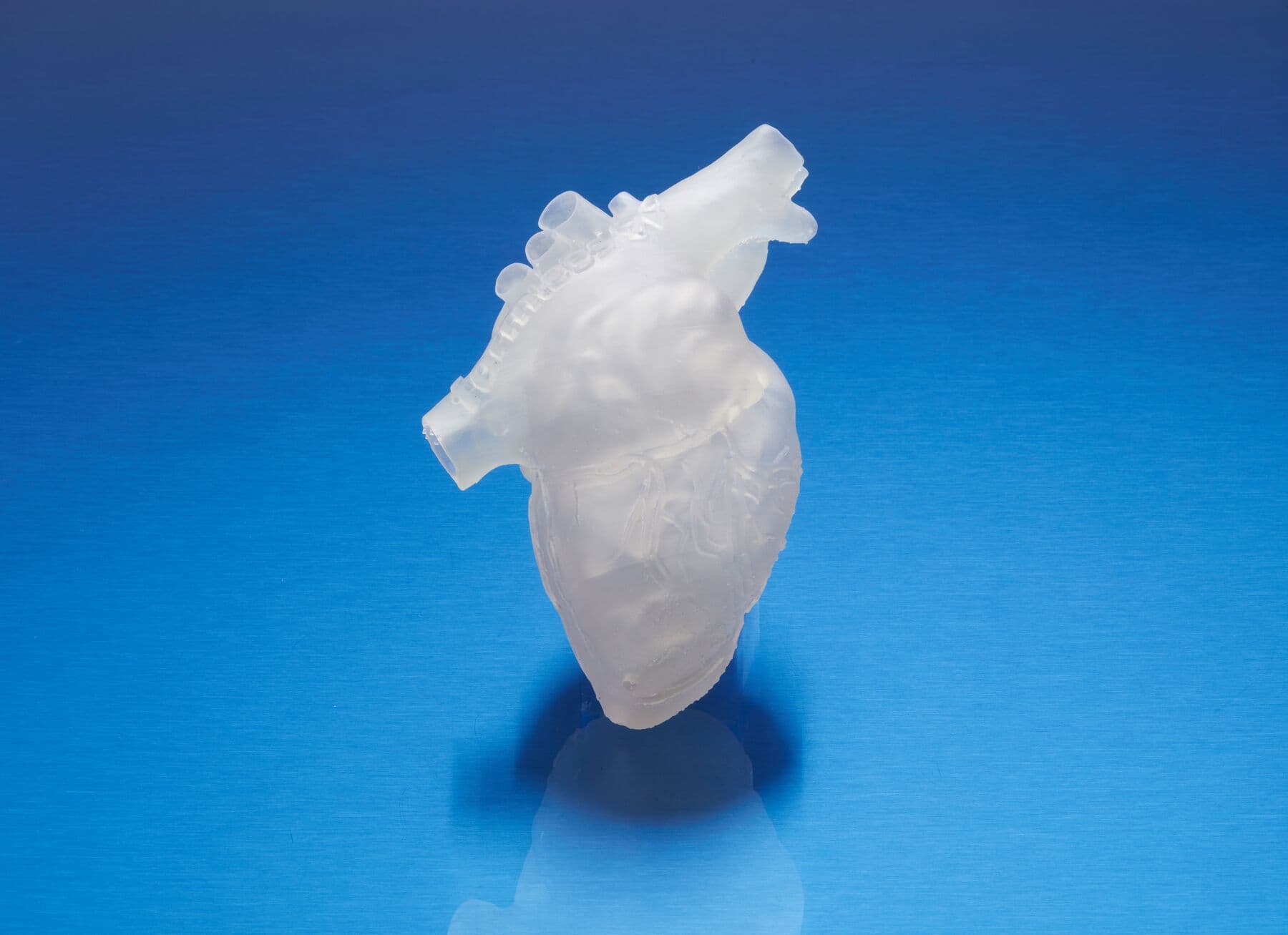

Compliant features, compressible buttons, soft tissue anatomy and medical models
Post-Processing
Washing
The foundational step in any SLA post-processing workflow is to remove any excess resin on the surface of the parts through a solvent.
Use clean ≥ 90% IPA to wash Flexible 80A Resin V2. Flexible 80A Resin V2 is not compatible with Formlabs Resin Washing Solution.
For the best surface finish, Formlabs recommends allowing parts printed in Flexible 80A Resin V2 to air dry for at least 30 minutes after washing, before handling.
SETTINGS
Curing
Post-curing Engineering and Specialty Resins is essential for parts to achieve their full strength and functionality. This step completes the chemical reaction initiated during printing, transforming the part from its green state into a fully finished component.
Flexible 80A Resin V2 has a two-step curing process that ensures tack-free surfaces. Cure parts submerged in a water bath in a UV- transparent container at room temperature. After drying, cure in air at an elevated temperature. See the links below for the specific settings.
SETTINGS
Form Cure V1 | Form Cure V2 | Form Cure L V1 | Form Cure L V2
