What Material is Right for You?

Tough 1500 Resin V2
Learn More
Fast Model Resin
Learn More

Overview

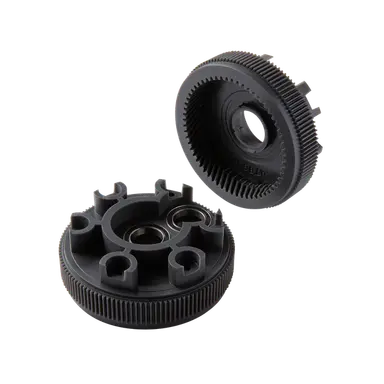

Tough 1500 Resin V2 is a resilient material with strength, stiffness, and toughness comparable to polypropylene (PP), offering exceptional resistance to fractures, impacts, and shattering.

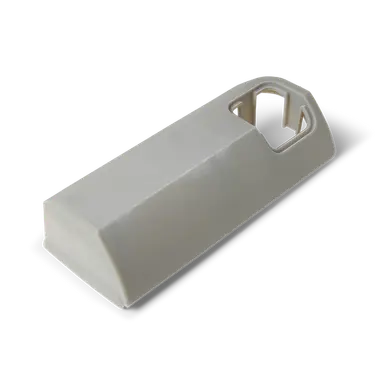

Fast Model Resin is Formlabs’ fastest resin, capable of printing at speeds of over 100 mm per hour. Print dental models in minutes or large prototypes in less than two hours. Formulated specifically for the Form 4 ecosystem, this material prints three times faster than the previous version.
Sample
Sample

Material properties1

34 MPa
Ultimate Tensile Strength
62 MPa
Ultimate Tensile Strength
41 MPa
Flexural Strength
106 MPa
Flexural Strength
1.37 MPa
Flexural Modulus
2.74 GPa
Flexural Modulus
42 J/m
Notched Izod
37 J/m
Notched Izod
155 %
Elongation at Break
11 %
Elongation at Break
53 °C
Heat Deflection Temp. @ 1.8 MPa
61 °C
Heat Deflection Temp. @ 1.8 MPa
66 °C
Heat Deflection Temp. @ 0.45 MPa
76 °C
Heat Deflection Temp. @ 0.45 MPa
1,460 MPa
Tensile Modulus
2.67 GPa
Tensile Modulus
910 J/m
Unnotched Izod
—
Unnotched Izod
1,090 J/m
Work of Fracture (Wf)
—
Work of Fracture (Wf)
1.7 MPa-m1/2
Maximum Stress Intensity Factor (Kmax)
—
Maximum Stress Intensity Factor (Kmax)
5.9 J
Gardner at 1/32" (0.97 mm) thickness
—
Gardner at 1/32" (0.97 mm) thickness
11.1 J
Gardner at 1/16" (1.9 mm) thickness
—
Gardner at 1/16" (1.9 mm) thickness
8,000 cycles
Ross Flexing Fatigue
—
Ross Flexing Fatigue
186Elongation [%]3.74FlexuralModulus [GPa]128FlexuralStrength [MPa]80HDT @ 0.45MPa [°C]64HDT @ 1.8MPa [°C]51Izod ImpactStrength [J/m]1,752TensileModulus [GPa]75TensileStrength [MPa]
Tough 1500 Resin V2
Fast Model Resin

Ultimate Tensile Strength (MPa)

34
62
0
16
31
47
62

Flexural Strength (MPa)

41
106
0
27
53
80
106

Flexural Modulus (MPa)

1.37
2.74
0.00
0.69
1.37
2.06
2.74

Notched Izod (J/m)

42
37
0
11
21
32
42

Unnotched Izod (J/m)

910
No Measurement
0
228
455
683
910

Elongation at Break (%)

155
11
0
39
78
117
155

Heat Deflection Temp. @ 1.8 MPa (°C)

53
61
0
16
31
46
61

Heat Deflection Temp. @ 0.45 MPa (°C)

66
76
0
19
38
57
76

Work of Fracture (Wf) (J/m)

1090
No Measurement
0
273
545
818
1090

Maximum Stress Intensity Factor (Kmax) (MPa-m1/2)

1.7
No Measurement
0.00
0.42
0.85
1.27
1.70

Tensile Modulus (MPa)

1460
2.67
0
365
730
1095
1460

Gardner at 1/32" (0.97 mm) thickness (J)

5.9
No Measurement
0.0
1.5
3.0
4.4
5.9

Gardner at 1/16" (1.9 mm) thickness (J)

11.1
No Measurement
0
3
6
9
12

Ross Flexing Fatigue (cycles)

8000
No Measurement
0
2000
4000
6000
8000

1: Post-cured measurements. See more details in material properties data
