3D printed Flock of Jacks by Caitlin Dashiell, Clint Johnson, Eric Lawler, and Linh Ngo

Unique joints build a bigger picture

in Interviews

Less is more, as seen in these beautifully minimalist structures designed by a group of architecture students at Ball State University. With the Form 1+ 3D printer, the designers created a series of joints, which were efficient both in function and form.

The design challenge: to create systems whose final form would be larger than build volume of their tool, the Form 1+ 3D printer. It was in part inspired by Hyperform by Skyler Tibbits, a feat which created the world’s longest 3D printed chain on the Form 1+.

“Rather than creating large robotics to fabricate large-scale objects, we will focus on designing a compact system with the ability to aggregate into larger, more robust forms,” says Andrew John Wit, who designed and taught this class.

“The question we were attempting to answer throughout the process was what can you do with 3D printers that would be difficult or impossible through other means of fabrication.”

With the Form 1+, the designers could quickly design, print and test effective parts on the fly. “This is especially helpful for our work in robotics, where all end effectors have to be custom fabricated. And with the new 200 micron resolution, we could print them extremely quickly,” says Andrew.

Check out some of the projects, photographed in stunning detail by Andrew John Wit, below:

Flock of Jacks close up
Flock of Jacks by Caitlin Dashiell, Clint Johnson, Eric Lawler, Linh Ngo

Flock of Jacks

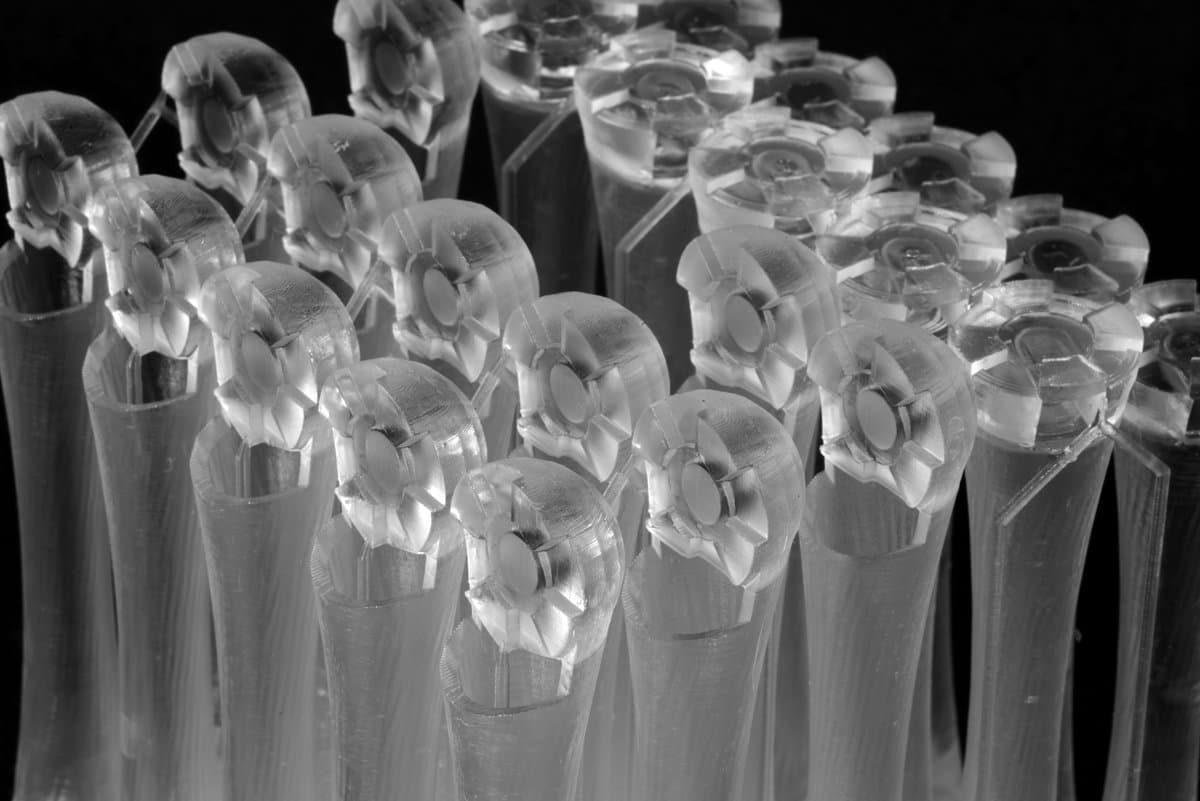

This group designed volumetric “jacks” with embedded magnets, which could be built into complex structural systems many times the print size.

Flock of Jacks
Flock of Jacks by Caitlin Dashiell, Clint Johnson, Eric Lawler, Linh Ngo

Flock of Jacks PreForm model
Flock of Jacks by Caitlin Dashiell, Clint Johnson, Eric Lawler, Linh Ngo

Formlapse
A system of high precision magnetic joints allows the user to reconfigure and grow the system in many ways.

Formlapse joints
Formlapse by Tyler Bracht, Jared Monce, Logan Richmond, Craig Zehr

Formlase close up
Formlapse by Tyler Bracht, Jared Monce, Logan Richmond, Craig Zehr

Formlapse in PreForm
Formlapse by Tyler Bracht, Jared Monce, Logan Richmond, Craig Zehr

Telescope
Talk about efficiency. The group integrated PreForm print structures as part of their design to create a telescoping and locking action after printing.

Telescope
Telescope by Jamie Craine, Shelby Harris, Joel Sterling, Maeleen Taylor

Telescope close up
Telescope by Jamie Craine, Shelby Harris, Joel Sterling, Maeleen Taylor

Telescope in PreForm without supports
Telescope by Jamie Craine, Shelby Harris, Joel Sterling, Maeleen Taylor

Telescope in PreForm with supports
Telescope by Jamie Craine, Shelby Harris, Joel Sterling, Maeleen Taylor
