Form X is a line of products to get innovative manufacturing processes into the hands of experts that want to use powerful manufacturing technologies with the help of 3D printing.

Form X products are not as “plug and play” as some of our other products, but they push the boundaries of what’s possible with 3D printing.

Pushing the Boundries of Materials and Manufacturing

Materials within the Form X family feature novel chemistries and multi-step workflows to transcend the existing limitations of 3D printing materials to create final parts in extremely robust polymers — or even sintered technical ceramics.

Form X materials are not as "plug and play" as some of our other products and require equipment not provided by Formlabs. These products are intended for experts and are not suitable for users that either do not have experience or are not willing to invest significant time and effort learning the material workflow.

Print Farm

Unparalleled Properties

Mechanical performance suited for demanding applications.

Impact Strength (Notched)

impact strength

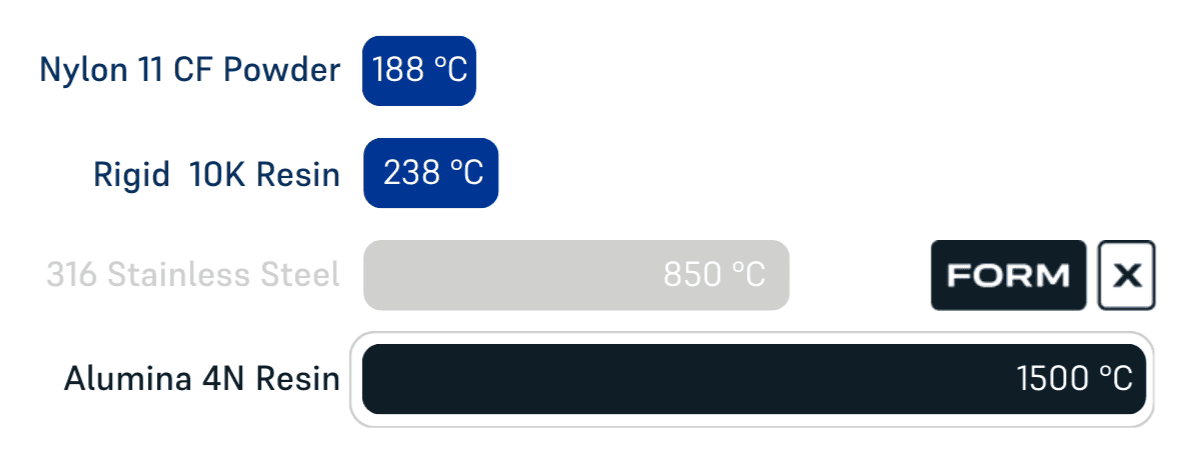

Maximum Temperature

maximum temperature

Form X Materials

PU Rigid 650
Polyurethane

PU Rigid 650 Resin

PU Rigid 650 is a pliable, tough, and impact-resistant material for demanding mechanical applications. Create real polyurethane parts that are resistant to light, heat, and chemicals using a unique workflow leveraging a hybrid chemistry. PU Rigid 650 is a Form X material with an advanced workflow suited for expert users.

PU Rigid 1000 Resin
Polyurethane

PU Rigid 1000 Resin

PU Rigid 1000 Resin is a stiff, sturdy, and strong material for demanding mechanical applications. Create real polyurethane parts that are resistant to light, heat, and chemicals using a unique workflow leveraging a hybrid chemistry. PU Rigid 1000 is a Form X material with an advanced workflow suited for expert users.

Alumina 4n Resin
Ceramic

Alumina 4N Resin

Alumina 4N Resin is the first accessible high-density and high-purity technical ceramic 3D printing material with exceptional performance in extreme environments: thermally resistant, hard, abrasion resistant, mechanically strong, and chemically inert. Alumina 4N is a Form X material with an advanced workflow suited for expert users.

Learn More About Form X Material Workflows

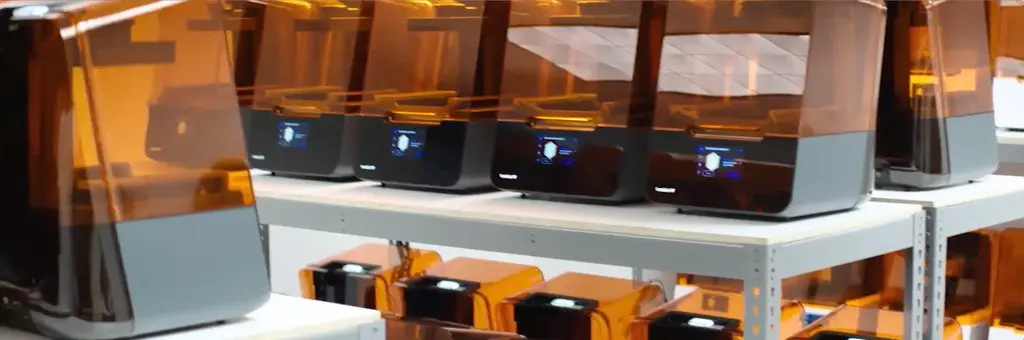

Print Farm

Polyurethane Workflow

Polyurethane Resins react with ambient humidity and have a limited pot life. When printing in a dry cabinet this pot life is 1-2 weeks. Polyurethane resins also require PGDA wash solvent, blowing off with compessed air, and a several day humidity cure.

Learn More

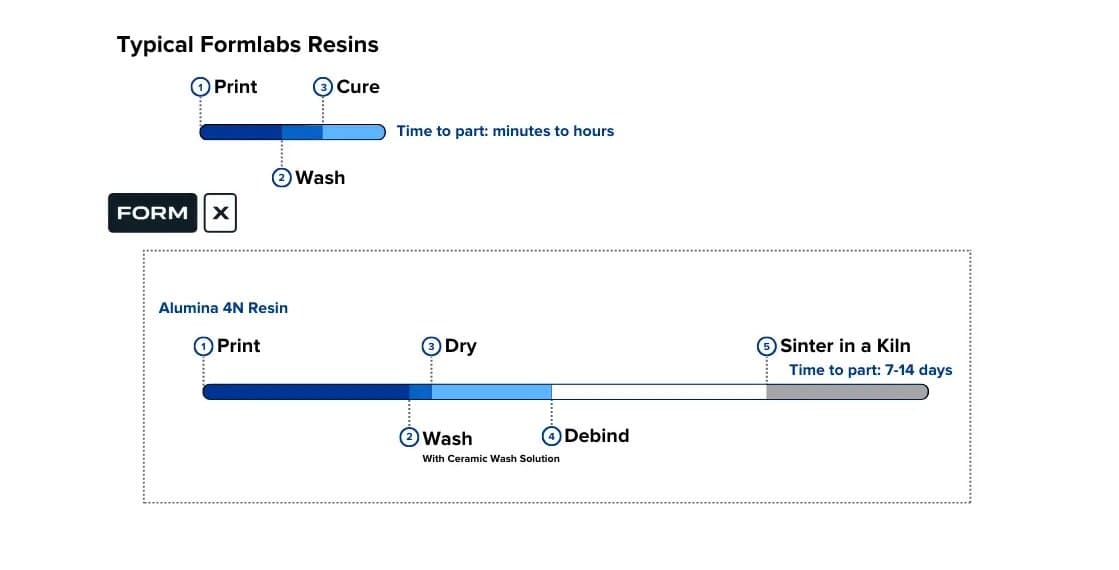

Ceramic Workflow

Alumina 4N Resin, like other ceramics, shrinks when fired. The material also requires a special wash solution provided by Formlabs and the dried green parts a 4.5-day burnout and 2-day sintering cycle in an oven that is capable of at least 1500 °C.

Learn More

Interested in a Form X Material?
