Introducing Elastic Resin: A Soft, Resilient 3D Printing Material

Jan. 8, 2019 in News

Formlabs is pleased to announce Elastic Resin, the latest addition to our library of Engineering Resins for the Form 2 desktop stereolithography (SLA) 3D printer.

Elastic Resin is the most pliable of our Engineering Resins, with a Shore durometer of 50A as well as high elongation and energy return. Parts printed in this material look and behave like a molded silicone part, and are durable enough to use for multiple cycles.

Order Elastic Resin Now

Read on to learn how using Elastic Resin can cut down on lead time and costs in engineering, healthcare, and more, and why it’s now possible to directly print soft, resilient materials like this one on the desktop.

Request a free sample part to feel Elastic Resin for yourself. Elastic Resin has a Shore durometer of 50A, while our harder flexible material, Flexible Resin, has a Shore durometer of 80A.



Elastomeric Materials: An Emerging Category

Typically, soft silicone and urethane parts for applications like wearables, medical models, robotics, and special effects props are produced through moldmaking techniques or outsourcing.

Some soft materials for direct 3D printing have started to appear, but parts printed in these materials might only last for one or two cycles, and don’t offer the feel expected from a “silicone-like” part. Developing soft stereolithography (SLA) resins can be challenging. Parts must be highly elastic, yet strong enough not to tear during printing—two properties that are typically diametrically opposed.

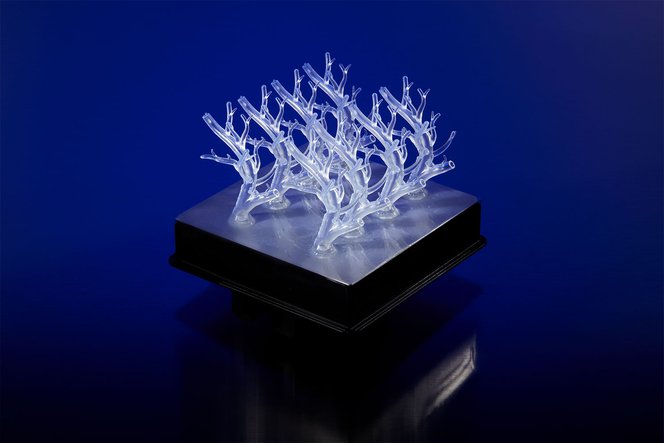

Eight artery models on a Form 2 build platform
Elastic Resin is suitable for directly printing soft flexible prototypes and models that once needed to be produced with moldmaking.

Producing quality elastic materials was once only possible for expensive industrial equipment, but with affordable, industrial-quality 3D printers like the Form 2 and new advancements like Resin Tank LT, it’s possible to produce elastic parts on the desktop in a matter of hours.

Elastic Resin requires Resin Tank LT for successful printing.

Faster Turnaround Time for Rapid Product Development

For companies like NeoSensory, a designer of wearables that create novel sensory experiences, and RightHand Robotics, a designer of robotic grippers for manufacturing lines, the ability to rapidly prototype silicone parts before manufacturing is key to successful development of final products with the potential to change an industry.

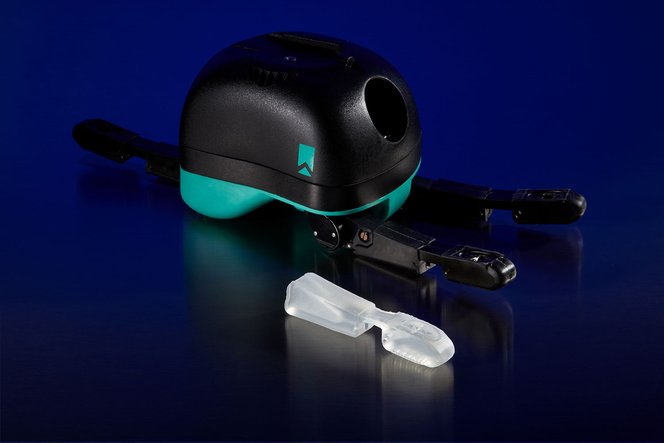

The ReFlex Hand robotic gripper and a 3D printed prototype
The ReFlex Hand, a robotic gripper designed by RightHand Robotics, and a prototype finger 3D printed on the Form 2 using Elastic Resin.

Engineers and product designers have traditionally used moldmaking techniques (such as RTV molding, transfer molding, and injection molding) to create short runs of prototype parts in silicone. Directly printing these parts saves time and labor, allowing for deeper iteration and shorter product development cycles.

Use Elastic Resin to produce batches of small to moderately sized soft flexible parts with the ability to make changes to design between and within batches. Moldmaking may be preferable for producing larger numbers of the same part, or for using the final production material during later stages of development.

“We had been looking for a softer material with higher elongation for prototyping of grips and frame protection pieces. Until now we were urethane casting these soft parts in 3D printed molds. The parts we have printed in Elastic Resin simulate 50-60A TPU very well. Printing these parts directly will be a big cost and time saver. Elastic Resin is a great addition to our material library.”
—Jeremy Mikesell, Engineering Manager, Research at Cycling Sports Group

View Technical Data Sheet (PDF)

Reducing Costs for Patient-Specific Anatomical Models

Surgeons, researchers, radiologists, and other healthcare professionals depend on patient-specific medical models to better prepare for complex cases and operations. Models facilitate better communication both within surgical teams and between practitioners and patients. We’ve heard many requests from healthcare professionals for a clear flexible material to support cases in cardiac surgery, neurosurgery, surgical oncology, and other specialties.

3D printed anatomical model of a prefrontal cortex
An anatomical model of a prefrontal cortex 3D printed in Elastic Resin on the Form 2. Model provided by Embodi3D.

Notice: Parts printed with Elastic Resin are not biocompatible.

Historically, medical models from service providers and traditional industrial machines have been prohibitively expensive, with slow turnaround times. The ability to quickly and affordably 3D print educational and preoperative planning models on demand expands access across the industry, and we’re excited to see the future impact of Elastic Resin on doctors, researchers, and patients.

“Elastic Resin's opacity illuminates internal cavities well and its durability means that educators, trainees, and clinicians can handle and examine models without worry of breakage. This material will be of particular interest to cardiovascular surgeons and interventional radiologists, as well as those conducting fluid dynamics studies and working in catheterization labs. It is relatively cost effective when compared with other similar materials on the market, which can only help accelerate adoption of 3D printing in medicine.”
—Sanjay Prabhu, MBBS, FRCR; Pediatric Neuroradiologist and Clinical Director, SIMPeds3D, Boston Children’s Hospital

Download our white paper on 3D printing anatomical models to learn how to start creating 3D printed anatomical models from patient scans.

Design Guidelines for Elastic Resin

We’ve worked to develop and test a material that will print to the high quality standard you’ve come to expect from Formlabs materials. However, soft 3D printing materials in general require denser support structures and attention to specific design guidelines before you print.

Read our “Using Elastic Resin” support article for a deeper look at how to support and orient parts for printing with this material.

Help Center: Using Elastic Resin



Start Printing

As 3D printers and their subsystems evolve, so does access to new materials. With the launch of Elastic Resin, we’re excited to continue evolving our library of Engineering Resins and open up new possibilities in product design, healthcare, and beyond.

Order Elastic Resin Now
Request a Free Sample Part

A toy RC car and tires 3D printed in Elastic Resin
A toy RC car (right), alongside prototype tires printed in Elastic Resin (left).
