Clear Resin V5 Technical Datatsheet

Workflow

Printer Compatibillity

Printers Compatibility Validated Layer Heights

Form 4, Form 4L, Form 4B, Form 4 BL

Compatible

0.1 mm, 0.05 mm, 0.25 mm

Form 3/+, Form 3B/+, Form 3L

Not Compatible
use Clear Resin V4.1

Handling and Storage

Shelf-life 2 years
Storage temperature 10 - 25 °C

Storage and Handling notes

Review Safety Data Sheet to ensure safe handling, storage, and disposal.

Shake resin containers before printing to ensure the resin is thoroughly mixed.

To avoid contamination, do not pour resin back into cartridges.

For best performance and shelf life, store resin between 10–25 °C (50–77 °F), and keep opened resin away from direct light.

Short-term freezing (e.g., during shipping) is generally not detrimental to shelf life. Thaw and shake the resin cartridge thoroughly before use.

High temperatures decrease shelf life. Transient high temperature conditions (e.g., during shipping) should have a minimal effect.

Post-Processing

Step Recommended Hardware Default Max Strength
Washing Form Wash V2
Form Wash L V2		 5 minutes in Wash Gen 2 or until clean
Drying -- 10 min

Post-Curing

 Form Cure V1
Form Cure L V1		 5 min at room temperature 15 min at 60 °C
Form Cure V2
Form Cure L V2		 1 min at room temperature 4 min at 60°C

Material Properties

Green Properties

Property No Post-Cure 2, 3 Method
Metric Imperial
Ultimate Tensile Strength 46 MPa 6700 psi ASTM D638-14
Tensile Modulus 2200 MPa 320 ksi
Elongation at Break 13%

Tensile Properties

Property Default Post-Cure 2, 3 Max Strength Post-Cure 2, 3 Method
Metric Imperial Metric Imperial
Ultimate Tensile Strength 51 MPa 7300 psi 60 MPa 8700 psi ASTM D638-14
Tensile Modulus 2600 MPa 370 ksi 2800 MPa 400 ksi
Elongation at Break 10% 8.0%

Flexural Properties

Property Default Post-Cure 2, 3 Max Strength Post-Cure 2, 3 Method
Metric Imperial Metric Imperial
Flexural Strength 92 MPa 13000 psi 105 MPa 15000 psi ASTM D790
Flexural Modulus 2400 MPa 360 ksi 2700 MPa 392 ksi

Toughness Properties

Property Default Post-Cure 2, 3 Max Strength Post-Cure 2, 3 Method
Metric Imperial Metric Imperial
Izod Impact Strength
(Unnotched)		 150 J/m 2.8 (ft·lb)/in 170 J/m 3.2 (ft·lb)/in ASTM D256-10
Izod Impact Strength
(Notched)		 29 J/m 0.54 (ft·lb)/in 29 J/m 0.54 (ft·lb)/in
Gardner at 1/16" thickness <0.1 J <2 in·lb <0.1 J <2 in·lb ASTM D5420-21
Maximum Stress Intensity Factor (Kmax) 0.63 MPa·m1/2 57 psi in1/2 -- -- ASTM D5045-14
Work of Fracture (Wf) 27 J/m2 1.8 (ft·lb)/ft2 -- --

General Properties

Property Default Post-Cure 2, 3 Max Strength Post-Cure 2, 3 Method
Metric Imperial Metric Imperial
Density 1.21 g/cm3 0.0437 lb/in3 1.21 g/cm3 0.0437 lb/in3 ASTM D792
Shore Hardness 78D 80D ASTM D2240-15

Thermal Properties

Property Default Post-Cure 2, 3 Max Strength Post-Cure 2, 3 Method
Metric Imperial Metric Imperial
Glass Transition Temp (Tg) 101 °C 214 °F 107 °C 225 °F ASTM D4065
Heat Capacity at 25 °C 1.8 J/(g·K) 0.43 BTU/(lb·°F) -- -- ASTM E1269
Coefficient of Thermal Expansion (-30–140 °C) 110 (µm/m)/°C 63 (µin/in)/°F -- -- ASTM E831-19
Heat Deflection Temp. at 1.8 MPa 59 °C 138 °F 65 °C 149 °F ASTM D648-16
Heat Deflection Temp. at 0.45 MPa 51 °C 124 °F 54 °C 129 °F
Thermal Conductivity 0.54 W/m·K 3.8 BTU·in/(hr·ft²·°F) 0.54 W/m·K 3.8 BTU·in/(hr·ft²·°F) ASTM E1530-25

Electrical Properties

Property Default Post-Cure 2, 3 Max Strength Post-Cure 2, 3 Method
Metric Imperial Metric Imperial
Surface Resistivity >1×1012 Ω/sq >1×1012 Ω/sq >1×1012 Ω/sq >1×1012 Ω/sq ASTM D257
Comparative Tracking Index 600 V 600 V -- -- ASTM D3638
Dielectric Strength 16 kV/mm 420 V/mil -- -- ASTM D149-20
Dielectric Constant (k') at 1 MHz 4.3 4.3 -- -- ASTM D150-22
Dielectric Dissipation (D) at 1 MHz 0.036 0.036 -- --

Optical Properties

Property Default Post-Cure 2, 3, 5 Max Strength Post-Cure 2, 3, 5 Method
Refractive Index 1.62 1.62 ASTM D542-22
Gloss Level (60°, XY) 89 GU -- ASTM D523
Gloss Level (60°, Z) 24 GU --
Transmission (2 mm) 85 % 85 % ASTM D1003-21
a* (2 mm) -4.0 -4.3 ASTM E1348-15
b* (2 mm) 7.5 5.6
Transmission (10 mm) 59 % 59 % ASTM D1003-21
a* (10 mm) -4.2 -4.0 ASTM E1348-15
b* (10 mm) 6.0 5.9
Outgassing 4 RT 5 min
TML 1.70%
CVCM < 0.01%
WVR 0.33%

The Outgas Test was performed in a vacuum environment of less than 5 X 10-5 torr according to ASTM E595, for a duration of 24 hours, at 125°C on three specimens per sample

Extended Properties

Representative Tensile Curve

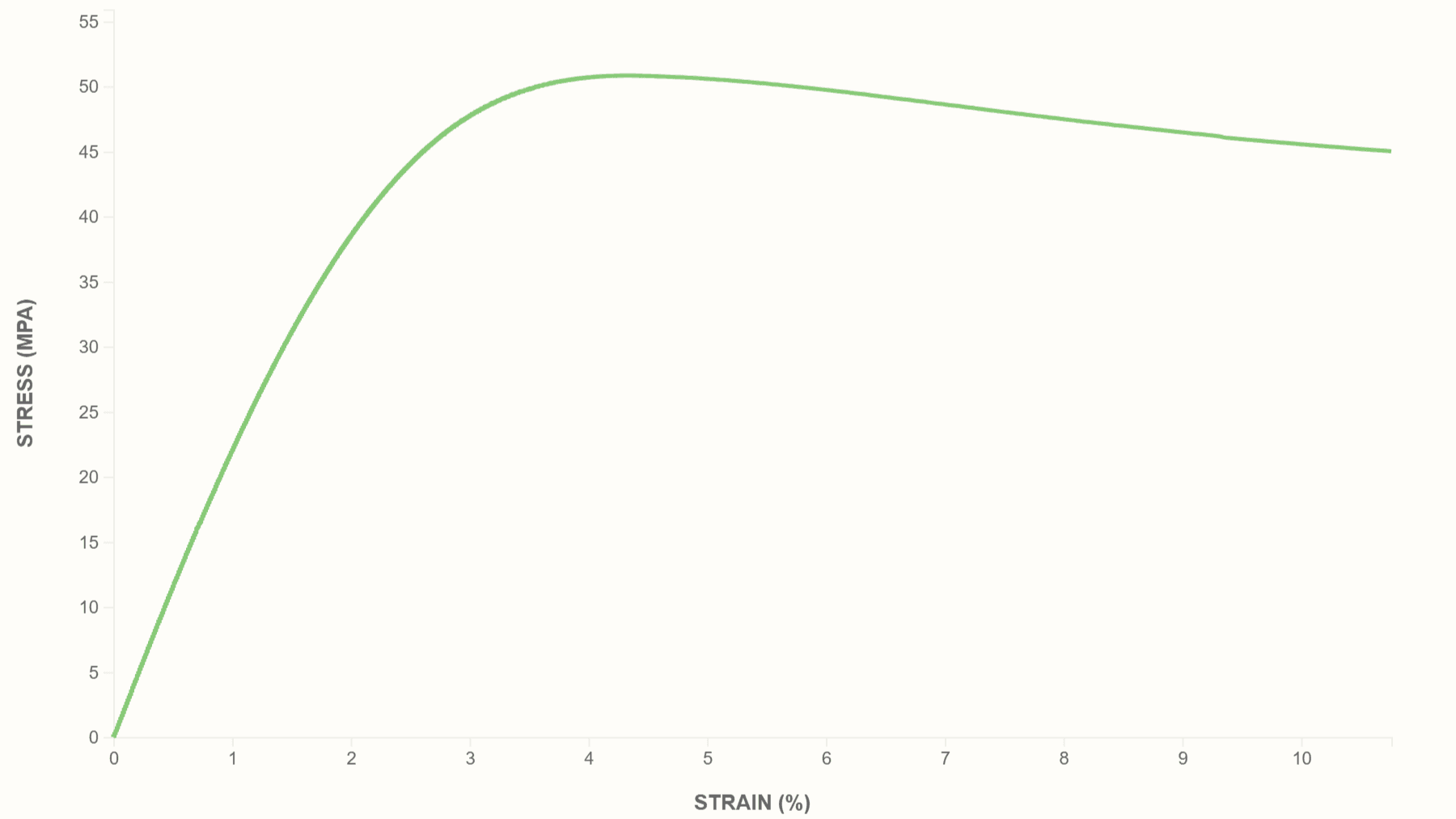

Tensile properties were determined according to ASTM D638 (Type I). Samples were prepared following the Default post-processing workflow and conditioned at 23°C and 50% RH for 48 hours prior to testing. The displayed curve represents a single sample selected to illustrate typical stress-strain behavior. See the Material Properties section for average values.

Dynamic Mechanical Analysis (DMA)

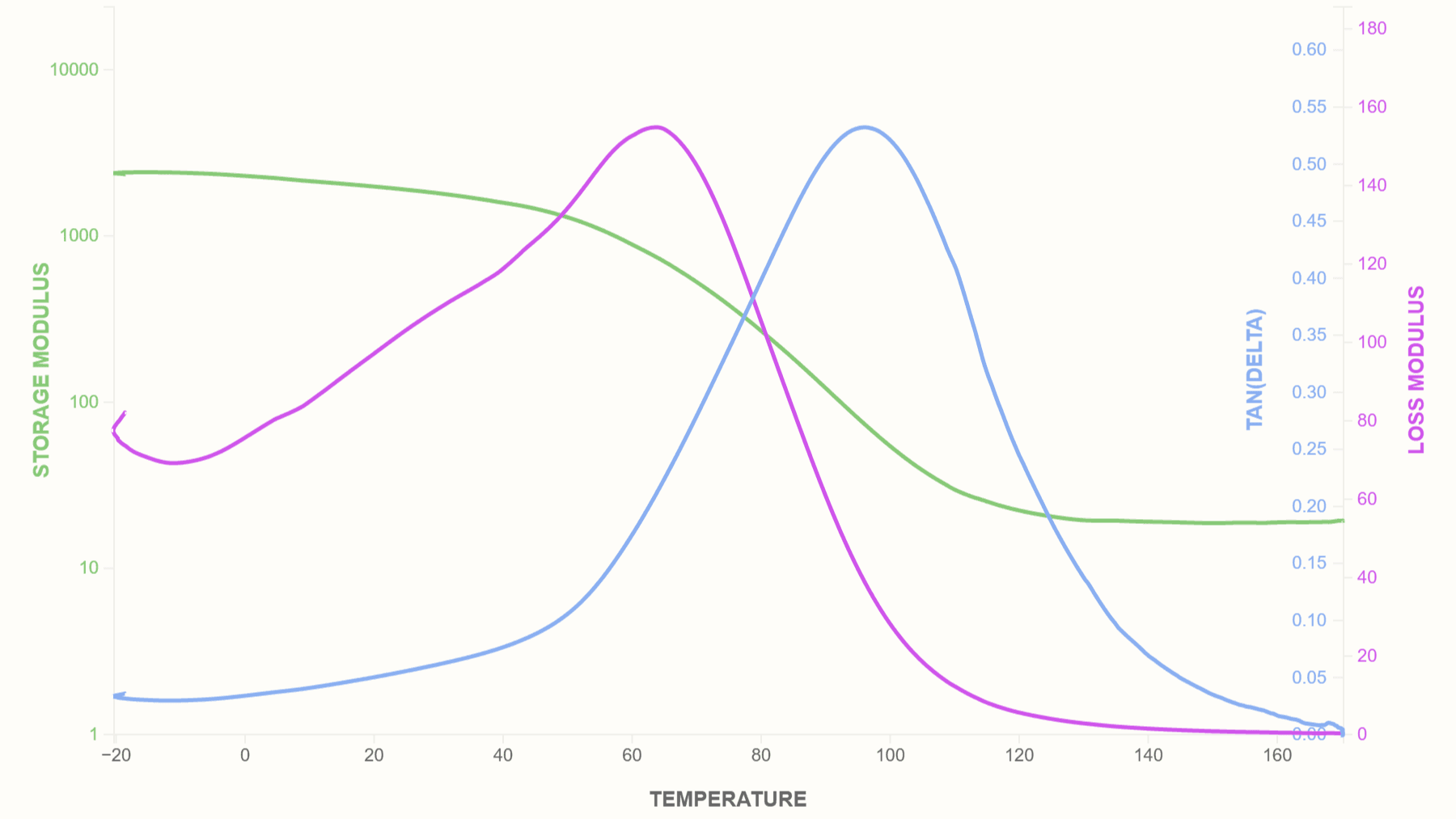

DMA was performed using a TA Q800 with dual cantilever clamps from -20°C to 170°C using a heating rate of 3°C/min. Samples were prepared following the Default post-processing workflow. The resulting curve characterizes the material’s viscoelastic response over the temperature range and indentifies the glass transition (Tg).

ASTM D543

Chemical Compatibility

Chemical resistance was evaluated according to ASTM D543. Samples were prepared following the Default post-processing workflow then fully immersed in test chemicals for durations of 1 day and 1 week. Following exposure, samples were manually wiped off and conditioned at 23°C and 50% RH for 24 hours. Mechanical testing was conducted per ASTM D638 (Type IV). Results are reported as the percentage change from non-exposed control samples. 6

Light Transmission Curve

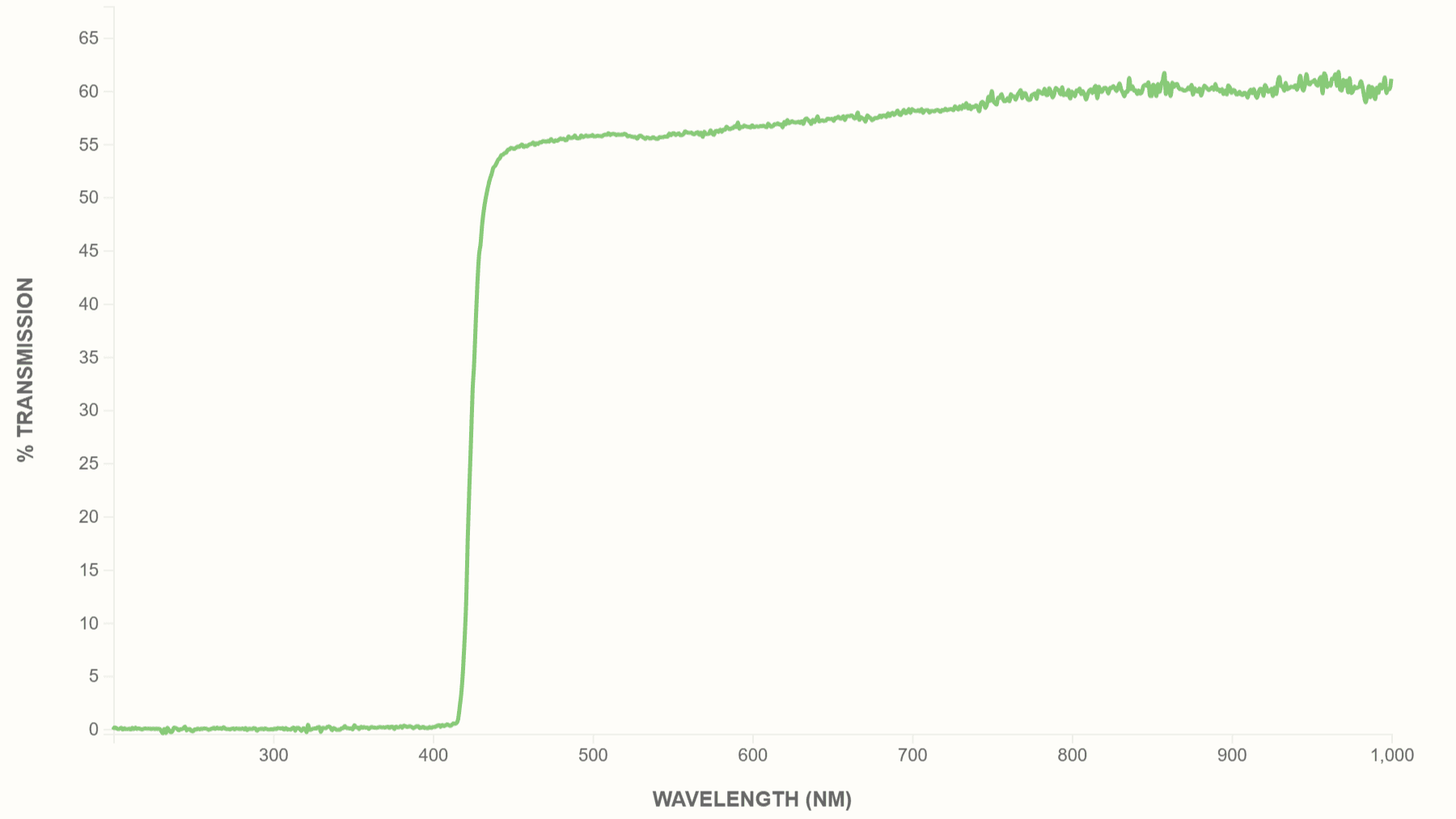

Transmission spectra were recorded from 200 nm to 1000 nm using a Varian Cary 50 Spectrophotometer. The 3 mm sample was prepared following the Default post-processing workflow. The measured surface was vertical and unpolished.

Thermal Expansion by TMA

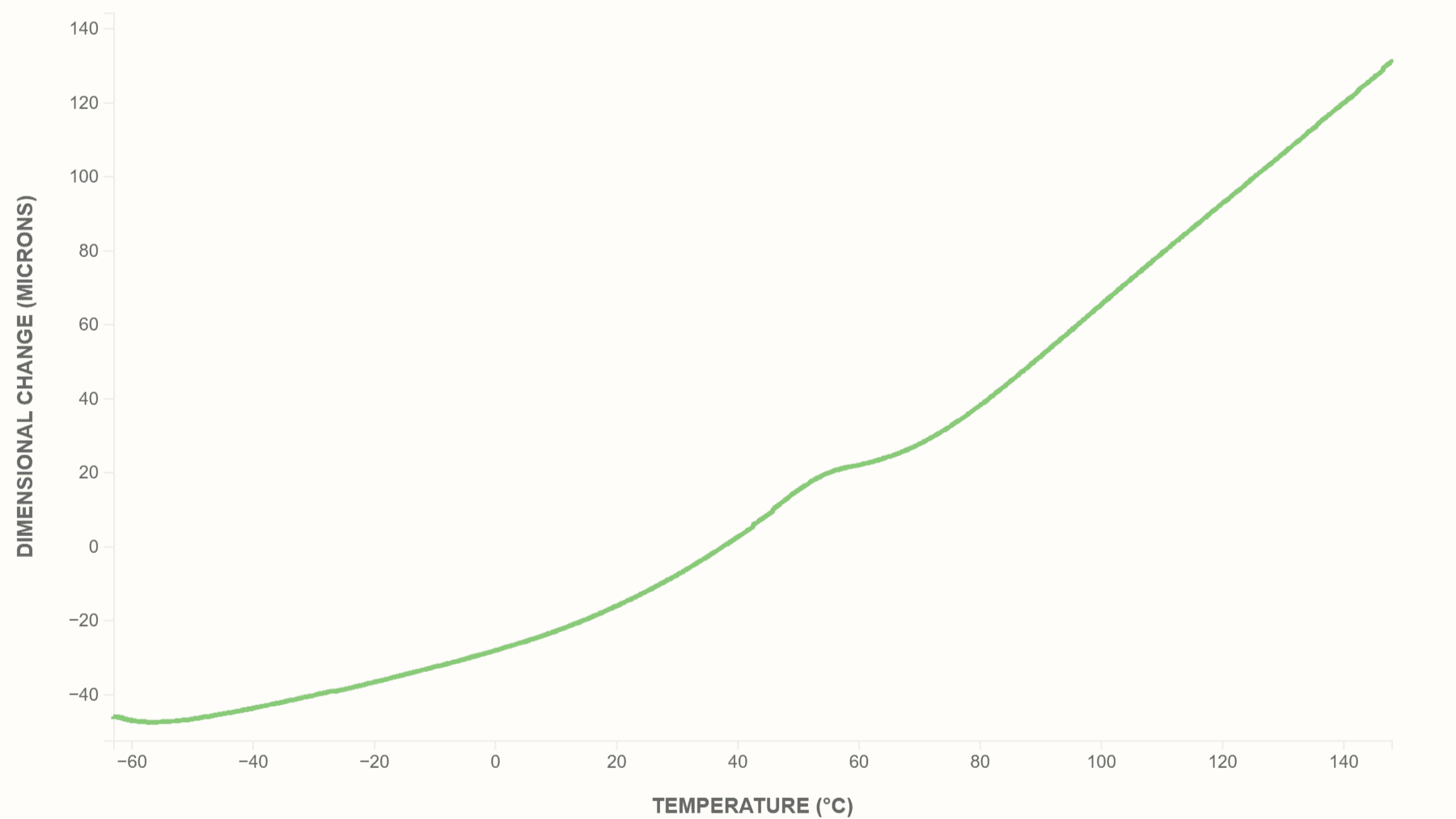

The Coefficient of Thermal Expansion (CTE) was measured according to ASTM E831. Samples were prepared following the Default post-processing workflow. Testing was performed via TMA with a ramp rate of 5°C/min under a High Purity Nitrogen purge (50 cc/min).

Footnotes

  1. Material properties may vary based on part geometry, print orientation, print settings, temperature.
  2. Data was obtained from parts printed on a Form 4 printer with 100 µm Clear Resin V5 settings, washed in a Form Wash for 5 minutes in ≥99% Isopropyl Alcohol, and post-cured at room temperature for 5 minutes in a Form Cure.
  3. Data was obtained from parts printed on a Form 4 printer with 100 µm Clear Resin V5 settings, washed in a Form Wash for 5 minutes in ≥99% Isopropyl Alcohol, and post-cured at 60 °C for 15 minutes in a Form Cure.
  4. Data was obtained using Grey Resin V5, and is expected to fall in the same approximate range. Some results may vary. Consult Grey Resin V5 TDS for information on printing and post-processing of samples.
  5. Transmission refers to the amount of visible light that passes through the part
    a* and b* are more commonly associated with the CIELAB color space, where they denote axes for color measurement:
    a* axis: Ranges from green to red, with negative values indicating green and positive values indicating red.
    b* axis: Ranges from blue to yellow, with negative values indicating blue and positive values indicating yellow."
  6. Data shown was generated using Grey v5. Clear v5 is expected to exhibit similar performance.
