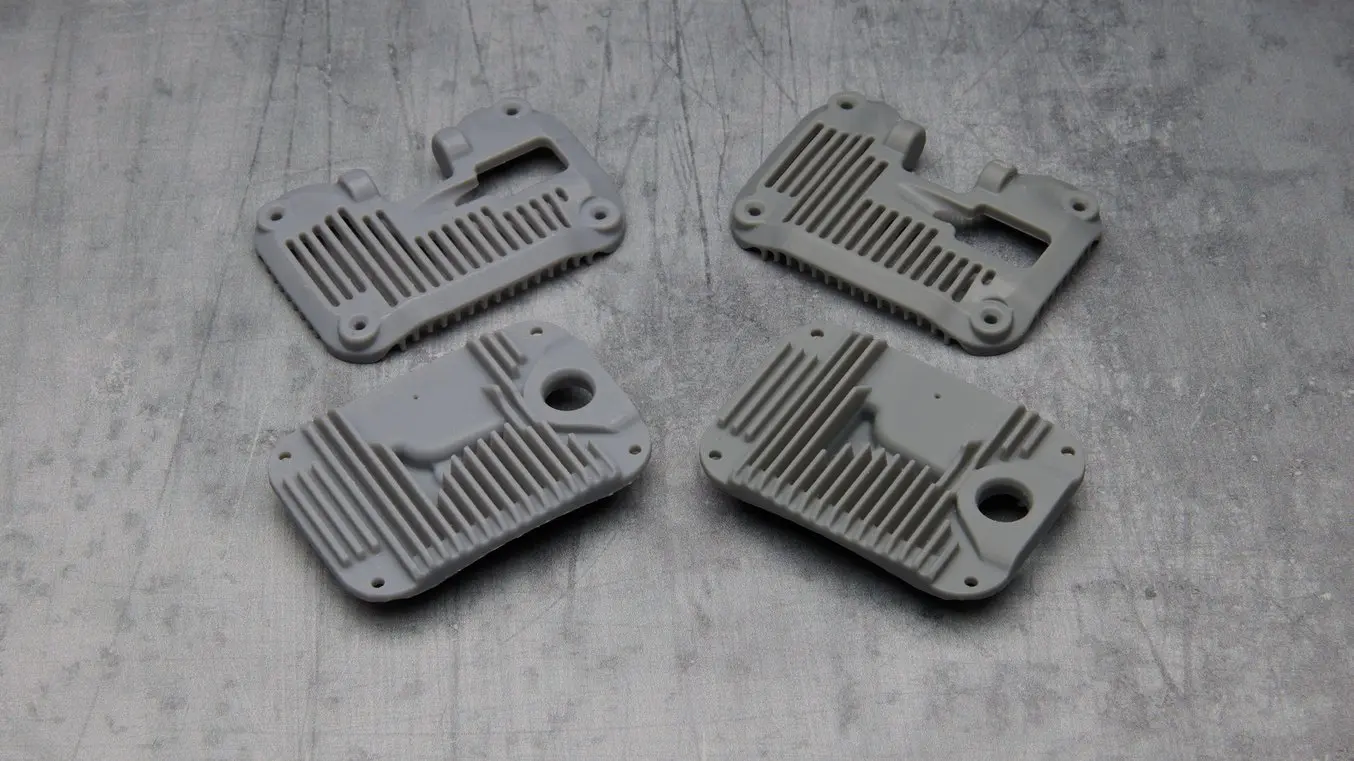

Parts 3D printed with Grey Resin

Why Choose Grey Resin?

Grey Resin V5 is a versatile 3D printing resin formulated to leverage the new Form 4 ecosystem, offering an optimal balance of fast print speed, high accuracy, presentation-ready appearance, strong mechanical properties, and an easy, reliable workflow.


Highest Dimensional Accuracy

Achieve precise tolerances with xy dimensional tolerances of ±0.15% (lower limit: ±0.02 mm)


Superior Aesthetics

Rival the appearance of injection-molded parts with rich, matte color and crisp fine feature performance.


Versatile Mechanical Properties

Create parts with the optimal balance of strength, toughness, and stiffness for a wide range of applications.


Extremely Low-Odor Printing

Print with ultra-low volatile organic compounds (VOCs) for a pleasant and comfortable user experience.

Applications for Grey Resin

Create dimensionally accurate parts that are stiff and strong with unmatched print reliability.

Consider Grey Resin for:

Form and fit prototyping
Presentation-ready models with fine features and intricate details
General dental models
Jigs and fixtures

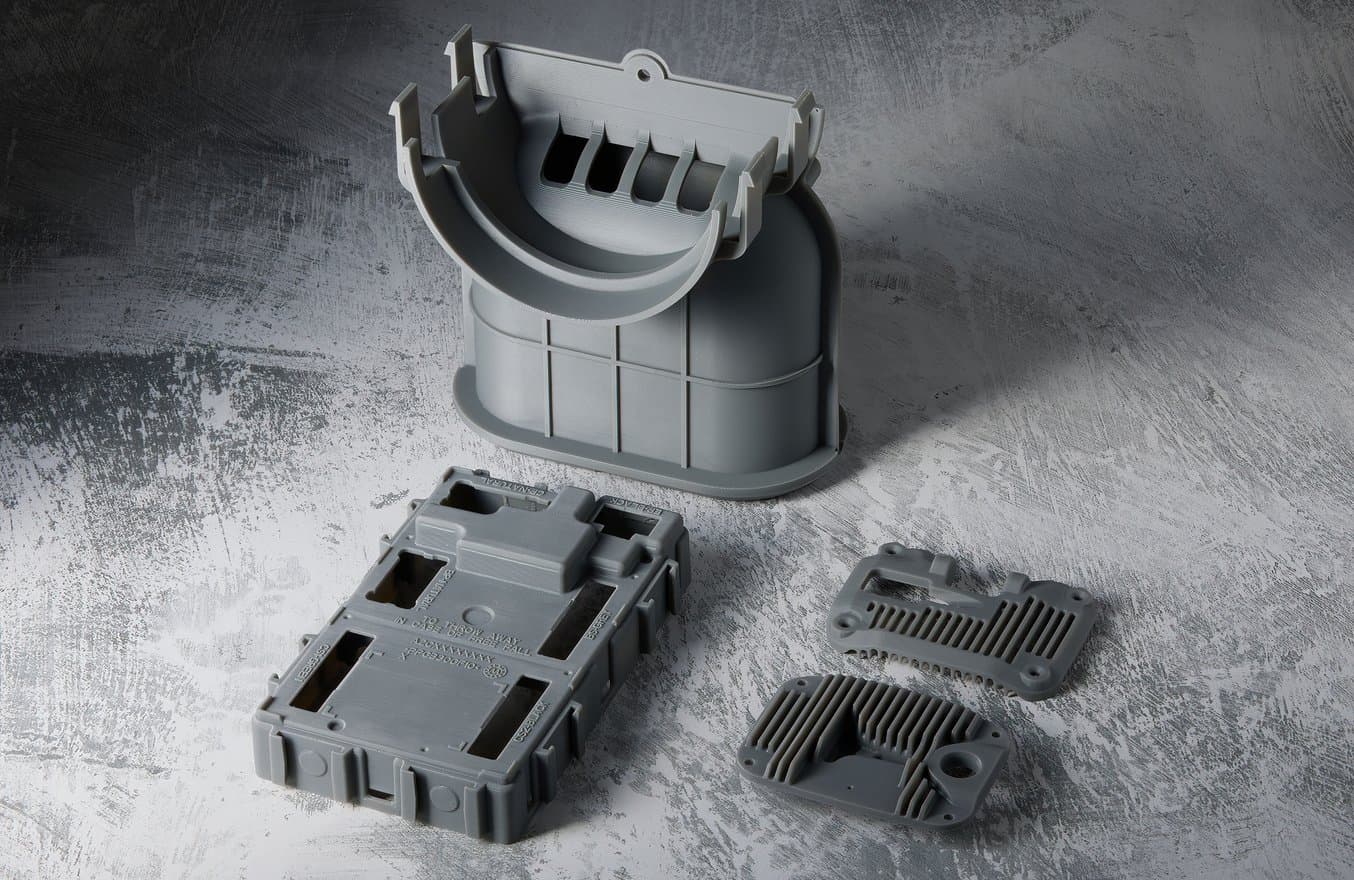

3D printed in Grey Resin

What’s New With Grey Resin V5?

Compared to Grey Resin V4, Grey Resin V5 is:

Faster — formulated to take advantage of the new Form 4 ecosystem to print three times faster
Tougher — 30% higher impact strength
Darker and richer in color

Mechanical Properties

Post-cured at room temperature for 5 minutes

Ultimate Tensile Strength

54 MPa

Tensile Modulus

2500 MPa

Elongation at Break

15%

Flexural Strength

91 MPa

Flexural Modulus

2450 MPa

Notched Izod

34 J/m

Heat Deflection Temperature at 0.45 MPa

62 °C

Post-cured at 60 °C for 15 minutes

Ultimate Tensile Strength

62 MPa

Tensile Modulus

2675 MPa

Elongation at Break

13%

Flexural Strength

103 MPa

Flexural Modulus

2750 MPa

Notched Izod

32 J/m

Heat Deflection Temperature at 0.45 MPa

71 °C

Post-Processing

Wash Settings

Duration

5 minutes

Notes

Start with a 5-minute wash and modify the wash time based on your part geometry and solvent purity.

Cure Settings

Default

5 minutes at room temperature

Enhanced

15 minutes at 60 °C

Notes

Post-curing is optional for parts printed in Grey Resin V5. However, we recommend either a 5-minute room temperature cure to reduce surface tack and improve mechanical properties, or a 15-minute cure at 60 °C for the highest strength, stiffness, and heat deflection temperature.
