What is Rapid Prototyping? Methods, Tools and Examples

Rapid prototyping is the group of techniques used to quickly fabricate a physical part or assembly from a three-dimensional design. With rapid prototyping, engineers and designers can create a better final product, iterating several times between digital designs and physical prototypes with a quick and cost-effective workflow.

With rapid prototyping tools such as Formlabs’ 3D printers, anyone can turn ideas into realistic proofs of concept, and advance these concepts to high-fidelity prototypes that actually look and work like final products. Best of all, 3D printed prototypes are cost-effective, enabling teams to create dozens of affordable prototypes with a quick turnaround.

In this guide, we'll showcase real-life examples of rapid prototypes from leading companies and you’ll learn the fundamentals of rapid prototyping, its applications, and how 3D printing can help you develop prototypes quickly and cost-effectively.

an engineer next to a 3D printer
Webinar

Rapid Prototyping: Choosing the Right Process and Materials

Create concept models and functional prototypes faster than ever before, and execute quick revisions of your designs based on real-world testing.

Watch the Webinar Now

Rapid Prototyping vs Prototyping

Prototyping is a crucial part of the product development process, but traditionally, it has been a bottleneck.

Product designers and engineers would create makeshift proof-of-concept models with basic tools, but producing functional prototypes and production-quality parts often required the same processes as finished products. Traditional manufacturing processes like injection molding require costly tooling and setup, which makes low-volume, custom prototypes prohibitively expensive.

On the other hand, rapid prototyping helps companies quickly turn ideas into realistic proofs of concept, advances these concepts to high-fidelity prototypes that look and work like final products, and guides products through a series of validation stages toward mass production.

With rapid prototyping, designers and engineers can create prototypes directly from digital models created in CAD software faster than ever before, and execute quick and frequent revisions of their designs based on real world testing and feedback.

3D Printing for Rapid Prototyping

A rapid prototype of a robot arm produced with 3D printing (left) and the final end-use assembly (right).

A rapid prototype of a robot arm produced with 3D printing (left) and the final end-use assembly (right).

As rapid prototypes are usually constructed using additive fabrication techniques as opposed to traditional subtractive methods, the phrase has become synonymous with additive manufacturing and 3D printing.

3D printing is a natural match for prototyping products. It provides almost unlimited form freedom, doesn’t require tooling, and can produce parts with mechanical properties closely matching various materials made with traditional manufacturing methods. 3D printing technologies have been around since the 1980s, but their high cost and complexity mostly limited use to large corporations, or forced smaller companies to outsource production to specialized services, waiting weeks between subsequent iterations.

rapid prototyping process graphic

Using 3D printing, designers can rapidly iterate between digital designs and physical prototypes, and get to production faster.

The advent of desktop and benchtop 3D printing has changed this status quo and inspired a groundswell of adoption that shows no sign of stopping. With in-house 3D printing, engineers and designers can quickly iterate between digital designs and physical prototypes. It is now possible to create prototypes within a day and carry out multiple iterations of design, size, shape, or assembly based on results of real-life testing and analysis. Ultimately, the rapid prototyping process helps companies get better products to market faster than their competition.

Stereolithography
White Paper

Introduction to 3D Printing With Desktop Stereolithography (SLA)

Looking for a 3D printer to realize your 3D models in high resolution? Download our white paper to learn how SLA printing works and why it's the most popular 3D printing process for creating models with incredible details.

Download the White Paper

Advantages of Rapid Prototyping

Realize and Explore Concepts Easily

Rapid prototyping elevates initial ideas to low-risk concept explorations that look like real products in no time. It allows designers to go beyond virtual visualization, making it easier to understand the look and feel of the design, and compare concepts side by side.

Communicate Ideas Effectively

Physical models empower designers to share their concepts with colleagues, clients, and collaborators to convey ideas in ways not possible by merely visualizing designs on screen. Rapid prototyping facilitates the clear, actionable user feedback that is essential for creators to understand user needs and then refine and improve their designs.

A 3D printed rapid prototype of a watch

A 3D printed rapid prototype of a watch produced using the Form 3 SLA 3D printer next to the final product.

Save Cost and Time

With 3D printing, there’s no need for costly tooling and setup; the same equipment can be used to produce different geometries. In-house rapid prototyping eliminates the high costs and lead time associated with outsourcing.

Speaker Housing Prototype
Speaker Housing Prototype

Dimensions: 16.5 x 13.5 x 13.5 cm | 6.5 x 5.3 x 5.3 in

Form 3+ With Draft ResinOutsourcing
Time9 hours7 days
Cost$80$450
3d printing cost
Interactive

Calculate Your Time and Cost Savings

Try our interactive ROI tool to see how much time and cost you can save when 3D printing on Formlabs 3D printers.

Calculate Your Savings

Design Iteratively and Instantly Incorporate Changes

Design is always an iterative process requiring multiple rounds of testing, evaluation, and refinement before getting to a final product. Rapid prototyping with 3D printing provides the flexibility to create more realistic prototypes faster and implement changes instantly, elevating this crucial trial and error process.

different prototypes of a robot gripper

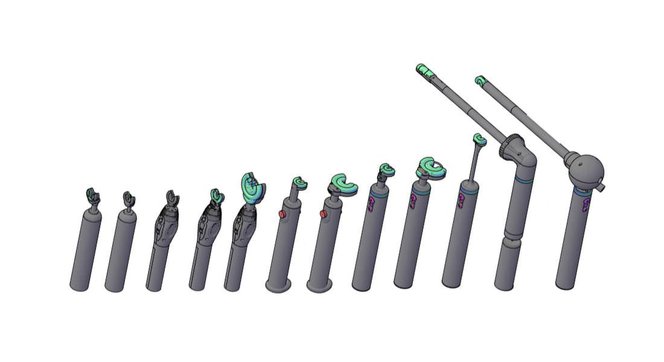

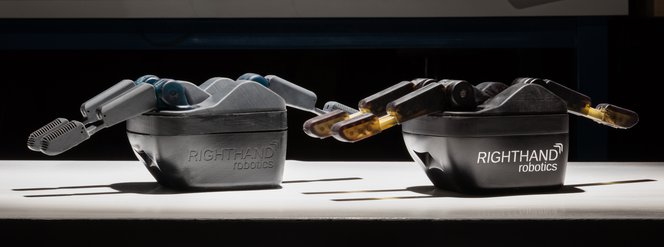

Consecutive iterations of a pick and place robot gripper prototyped on Formlabs SLA printers.

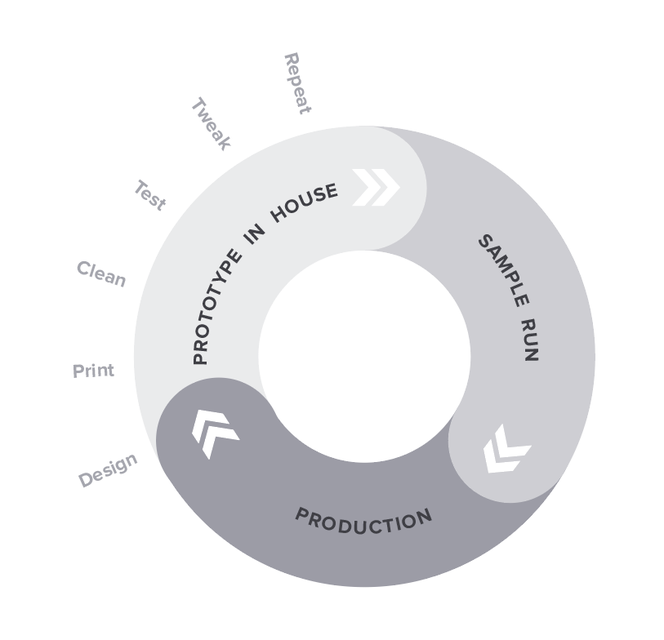

A good model is a 24-hour design cycle: design during work, 3D print prototype parts overnight, clean and test the next day, tweak the design, then repeat.

Test Thoroughly and Minimize Design Flaws

In product design and manufacturing, finding and fixing design flaws early can help companies avoid costly design revisions and tooling changes down the road.

Rapid prototyping allows engineers to thoroughly test prototypes that look and perform like final products, reducing the risks of usability and manufacturability issues before moving into production.

Types of Rapid Prototyping

Thanks to a variety of available technologies and materials, rapid prototyping supports designers and engineers throughout product development, from initial concept models through engineering, validation testing, and production.

The hardware development process

The hardware development process. Source: Ben Einstein, Bolt

Proof-of-Concept (PoC) Prototypes and Concept Models

Concept models or proof-of-concept (POC) prototypes help product designers validate ideas and assumptions, and test a product’s viability. Physical concept models can demonstrate an idea to stakeholders, create discussion, and drive acceptance or rejection using low-risk concept explorations.

PoC prototyping happens at the earliest stages of the product development process, and these prototypes include the minimum functionality needed to validate assumptions before moving the product into subsequent stages of development.

prototypes of a charging stand

A proof of concept should be simple, just sufficient to imitate how the product works. For example, the POC for a charging stand might just be a 3D printed enclosure connected to a standard USB charging cable.

The key to successful concept modeling is speed; designers need to generate a wealth of ideas, before building and evaluating physical models. At this stage, usability and quality are of less importance and teams rely on off-the-shelf parts as much as possible.

rapid prototypes of reading glasses

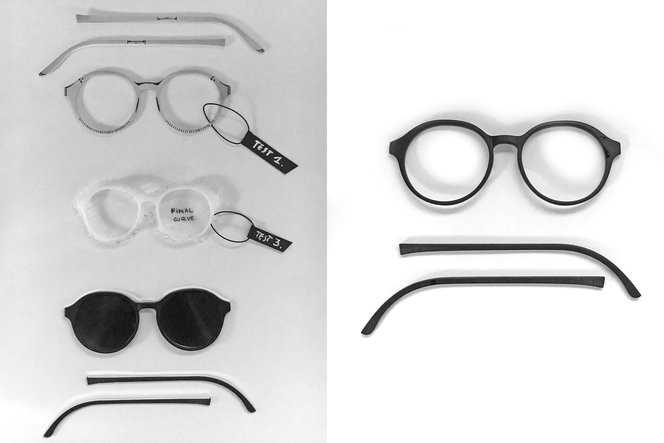

Designers at Swiss design and consultancy studio Panter&Tourron used SLA 3D printing to get from concept to showcase in two weeks.

3D printers are ideal tools to support concept modeling. They provide unmatched turnaround time to convert a computer file into a physical prototype, allowing designers to quickly test additional concepts. In contrast with the majority of workshop and manufacturing tools, desktop 3D printers are office-friendly, sparing the need for a dedicated space.

Looks-Like Prototypes

Looks-like prototypes represent the final product at an abstract level but may lack many of its functional aspects. Their purpose is to give a better idea of what an end product will look like and how the end user will interact with it. Ergonomics, user interfaces, and overall user experience can be validated with looks-like prototypes before spending significant design and engineering time to fully build out product features.

Looks-like prototype development usually starts with sketches, foam or clay models, then moves into CAD modeling. As design cycles progress from one iteration to the next, prototyping moves back and forth between digital renderings and physical models. As the design is finalized, industrial design teams aim to create looks-like prototypes that accurately resemble the end product by using the actual colors, materials, and finishes (CMF) they specify for the final product.

Looks-like prototypes of the Form 2 SLA 3D printer

Looks-like prototypes of the Form 2 SLA 3D printer with different solutions for cartridge placement.

Works-Like Prototypes

Parallel to the industrial design process, engineering teams work on another set of prototypes to test, iterate, and refine the mechanical, electrical, and thermal systems that make up the product. These works-like prototypes might look different from the final product, but they include the core technologies and functions that need to be developed and tested.

Often, these critical core functions are developed and tested in separate sub-units before being integrated into a single product prototype. This subsystem approach isolates variables, making it easier for teams to split up responsibilities and ensure reliability on a more granular level before folding all of the elements together.

Early works-like prototypes of the Form 3L large-format SLA 3D printer.
Early works-like prototypes of the Form 3L large-format SLA 3D printer.

Early works-like prototypes of the Form 3L large scale 3D printer

Engineering Prototypes

The engineering prototype is where design and engineering meet to create a minimum viable version of the final commercial product, that is designed for manufacturing (DFM). These prototypes are used for lab-based user testing with a select group of lead users, to communicate production intent to tooling specialists in subsequent stages, and to act as a demonstrator in the first sales meetings.

At this stage, details become increasingly important. 3D printing allows engineers to create high-fidelity prototypes that accurately represent the finished product. This makes it easier to verify the design, fit, function, and manufacturability before investing in expensive tooling and moving into production, when the time and cost to make change becomes increasingly prohibitive.

Diving camera prototype

Diving camera manufacturer Paralenz used 3D printing to create functional prototypes that endured testing 200+ meters below sea level.

Advanced 3D printing materials can closely match the look, feel, and material characteristics of parts produced with traditional manufacturing processes such as injection molding. Various materials can simulate parts with fine details and textures, soft-touch, smooth, and low-friction surfaces, rigid and robust housings, or clear components. 3D printed parts can be finished with secondary processes like sanding, polishing, painting, or electroplating to replicate any visual attribute of a final part, as well as threaded to create assemblies from multiple parts and materials.

Engineers at Wöhler built a looks-like, works-like prototype of a moisture meter from multiple materials with rigid housing and soft-touch buttons.

Engineers at Wöhler built a looks-like, works-like prototype of a moisture meter from multiple materials with rigid housing and soft-touch buttons.

Engineering prototypes require extensive functional and usability testing to see how a part or assembly will function when subjected to stresses and conditions of in-field use. 3D printing offers engineering plastics for high-performance prototypes that can withstand thermal, chemical, and mechanical stress.

Validation Testing and Manufacturing

Rapid prototyping allows engineers to create small-batch runs, one-off custom solutions, and sub-assemblies for engineering, design, and product validation (EVT, DVT, PVT) builds to test manufacturability.

3D printing makes it easier to test tolerances with the actual manufacturing process in mind, and to conduct comprehensive in-house and field testing before moving into mass production.

3D printed rapid tooling can also be combined with traditional manufacturing processes like injection molding, thermoforming, or silicone molding, to enhance production processes by improving their flexibility, agility, scalability, and cost-efficiency. The technology also provides an efficient solution for creating custom test jigs and fixtures to simplify functional testing and certification by gathering consistent data.

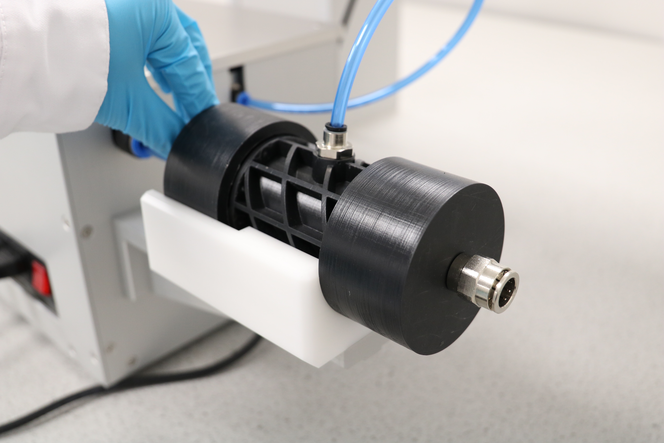

custom jigs for in-house testing

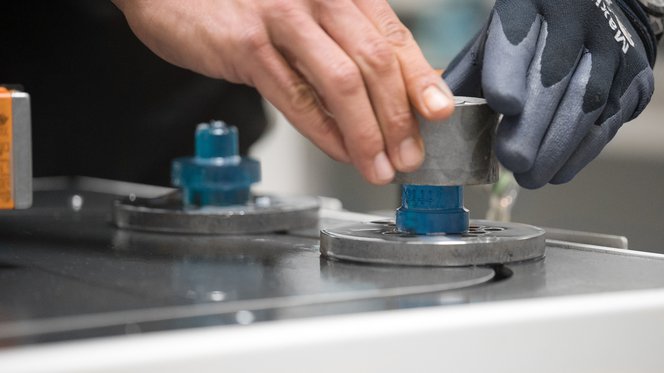

Medical device design company Coalesce uses custom jigs for in-house testing.

With 3D printing, design doesn't have to end when production begins. Rapid prototyping tools allow designers and engineers to continuously improve products, and respond quickly and effectively to issues on the line with jigs and fixtures that enhance assembly or QA processes.

E-Book

How to Find Success With 3D Printed Rapid Prototyping

This e-book covers six real-world case studies of companies driving innovation and improvement over
traditional processes with 3D printing.

Download the White Paper

Rapid Prototyping Tools and Methods

3D Printers For Rapid Prototyping

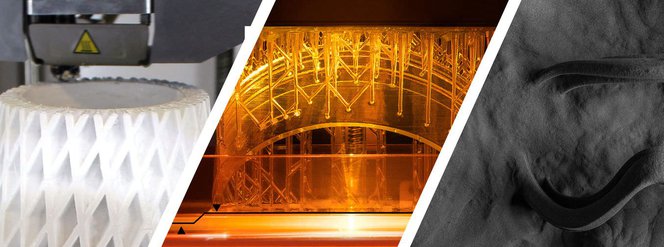

Rapid prototyping has essentially become synonymous with additive manufacturing and 3D printing. There are multiple 3D printing processes available, with the ones most commonly used for rapid prototyping being fused deposition modeling (FDM), stereolithography (SLA), selective laser sintering (SLS).

Fused Deposition Modeling (FDM)

FDM 3D printing, also known as fused filament fabrication (FFF), is a 3D printing method that builds parts by melting and extruding thermoplastic filament, which a printer nozzle deposits layer by layer in the build area.

FDM is the most widely used form of 3D printing at the consumer level, fueled by the emergence of hobbyist 3D printers. Professional FDM printers are, however, also popular with both designers and engineers.

FDM has the lowest resolution and accuracy when compared to other plastic 3D printing processes and is not the best option for printing complex designs or parts with intricate features. Higher-quality finishes may be obtained through chemical and mechanical polishing processes. Some professional FDM 3D printers use soluble supports to mitigate some of these issues.

FDM works with a range of standard thermoplastics, such as ABS, PLA, and their various blends, while more advanced FDM printers also offer a wider range of engineering thermoplastics or even composites. For rapid prototyping, FDM printers are particularly useful for producing simple parts, such as parts that might typically be machined.

Stereolithography (SLA)

SLA 3D printers use a laser to cure liquid resin into hardened plastic in a process called photopolymerization. SLA is one of the most popular processes among professionals due to its high resolution, precision, and material versatility.

SLA 3D printed prototypes in a wide range of materials

SLA 3D printing offers the widest range of materials for rapid prototyping with optical, mechanical, and thermal properties.

SLA parts have the highest resolution and accuracy, the clearest details, and the smoothest surface finish of all plastic 3D printing technologies, making SLA a great option for high-fidelity looks-like prototypes and functional works-like prototypes that require tight tolerances.

However, the main benefit of SLA lies in the versatility of its resin library. Material manufacturers have created innovative SLA photopolymer resin formulations with a wide range of optical, mechanical, and thermal properties to match those of standard, engineering, and industrial thermoplastics.

With Draft Resin, SLA 3D printing is also one of the fastest prototyping tools, up to 10X faster than FDM 3D printing.

rapid prototyping speed comparison FDM vs SLA 3D printing
Form 3L Sample Part
Sample part

Request a Free Sample Part

See and feel Formlabs quality firsthand. We’ll ship a free sample part to your office.

Request a Free Sample Part

Selective Laser Sintering (SLS)

Selective laser sintering is the most common additive manufacturing technology for industrial applications, trusted by engineers and manufacturers across different industries for its ability to produce strong, functional parts.

SLS 3D printers use a high-powered laser to fuse small particles of polymer powder. The unfused powder supports the part during printing and eliminates the need for dedicated support structures. This makes SLS ideal for complex geometries, including interior features, undercuts, thin walls, and negative features. Parts produced with SLS printing have excellent mechanical characteristics, with strength resembling that of injection-molded parts.

SLS 3D printed prototypes

SLS 3D printing can produce strong, functional works-like prototypes and engineering prototypes for rigorous functional testing of products.

In rapid prototyping, SLS 3D printing is mainly used for works-like prototypes and engineering prototypes for rigorous functional testing of products (e.g: ductwork, brackets) and in-field customer feedback.

Fuse 1 Sample Part
Sample part

Request a Free Sample Part

See and feel Formlabs SLS quality firsthand. We’ll ship a free sample part to your office.

Request a Free Sample Part

CNC Tools For Rapid Prototyping

Computer numerical control (CNC) tools—unlike FDM, SLA, or SLS—are subtractive manufacturing processes. They start with solid blocks, bars, or rods of plastic, metal, or other materials that are shaped by removing material through cutting, boring, drilling, and grinding.

CNC tools include CNC machining, which removes material by either a spinning tool and fixed part (milling) or a spinning part with a fixed tool (lathe). Laser cutters use a laser to engrave or cut through a wide range of materials with high precision. Water jet cutters use water mixed with abrasive and high pressure to cut through practically any material. CNC milling machines and lathes can have multiple axes, which allows them to manage more complex designs. Laser and water jet cutters are more suited for flat parts.

CNC tools can shape parts from plastics, soft metals, hard metals (industrial machines), wood, acrylic, stone, glass, composites. Compared to additive manufacturing tools, CNC tools are more complicated to set up and operate, while some materials and designs might require special tooling, handling, positioning, and processing, which makes them costly for one-off parts compared to additive processes.

In rapid prototyping, they’re ideal simple designs, structural parts, metal components, and other parts that are not feasible or cost-effective to produce with additive tools.

Rapid Prototyping Tools Comparison

Fused Deposition Modeling (FDM)Stereolithography (SLA)Selective Laser Sintering (SLS)CNC Tools
Resolution★★☆☆☆★★★★★★★★★☆★★★★★
Accuracy★★★★☆★★★★★★★★★★★★★★★
Surface Finish★★☆☆☆★★★★★★★★★☆★★★★★
Ease of Use★★★★★★★★★★★★★★☆★★★☆☆
Complex Designs★★★☆☆★★★★☆★★★★★★★★☆☆
Build VolumeUp to 300 x 300 x 600 mm (desktop and benchtop 3D printers)Up to 300 x 335 x 200 mm (desktop and benchtop 3D printers)Up to 165 x 165 x 300 mm (benchtop industrial 3D printers)Dependent on the tool
MaterialsStandard thermoplastics, such as ABS, PLA, and their various blends.Varieties of resin (thermosetting plastics). Standard, engineering (ABS-like, PP-like, silicone-like, flexible, heat-resistant, rigid), castable, dental, and medical (biocompatible).Engineering thermoplastics, typically nylon and its composites (nylon 12 is biocompatible + compatible with sterilization).Plastics, soft metals, hard metals (industrial machines), wood, acrylic, stone, glass, composites.
ApplicationsBasic proof-of-concept models, low-cost prototyping of simple parts.Quick prototypes, high-fidelity looks-like prototypes and functional works-like prototypes requiring tight tolerances and smooth surfaces.Complex geometries, functional works-like prototypes and engineering prototypes.Simple designs, structural parts, metal components.
Price RangeBudget printers and 3D printer kits start at a few hundred dollars. Higher quality mid-range desktop printers start around $2,000, and industrial systems are available from $15,000.Professional desktop printers start at $3,500, large-format benchtop printers at $11,000, and large-scale industrial machines are available from $80,000.Benchtop industrial systems start at $19,000, and traditional industrial printers are available from $100,000.Small CNC machines start around $2,000, but professional tools go well beyond that. Basic engravers are available for less than $500, while mid-range laser cutters start around $3,500. Water jet cutters start around $20,000.

Rapid Prototyping Services vs. In-House Rapid Prototyping

Outsourcing rapid prototyping to service bureaus is recommended when you require just a few parts occasionally, and for parts that are large or call for non-standard materials. Rapid prototyping services like HubsProtolabsFictiv, or local service bureaus offer prototyping and low volume production services on demand. These bureaus typically have multiple technologies available, including additive and subtractive processes, as well as rapid tooling. They can also provide advice on various materials and offer value-added services such as design or advanced finishing.

The main downsides of outsourcing to service providers are cost and lead time. One of the greatest benefits of rapid prototyping is its speed compared to traditional manufacturing methods, which quickly diminishes when the outsourced parts take a week or multiple weeks to arrive. Outsourcing prototypes is also often expensive, while 3D printers have become exceedingly affordable. Depending on the number of parts and volume, a business can often break even within a few weeks by simply investing in a 3D printer and printing prototypes in house.

With desktop and benchtop 3D printers, companies can pay for just as much capacity as their business needs, and scale production by adding extra units as demand grows. By using multiple 3D printers, you also get the flexibility to print parts in different materials simultaneously. Service bureaus can still supplement this flexible workflow for larger parts or unconventional materials.

Outsourcing vs. In-House: When Does it Make Sense to Bring SLS 3D Printing In-House?
White Paper

Outsourcing vs. In-House: When Does it Make Sense to Bring SLS 3D Printing In-House?

In this white paper, we evaluate the value proposition of bringing SLS 3D printers in-house, in comparison with outsourcing SLS parts from a service bureau.

Download the White Paper

Get Started With Rapid Prototyping

an engineer working on rapid prototypes on a table

Rapid prototyping is used in a variety of industries, by Fortune 500 companies and small businesses alike, to speed up development, decrease costs, improve communication, and ultimately create better products.

While 3D printing traditionally had been complex and cost-prohibitive, desktop and benchop 3D printers have made the technology accessible to any business.

Learn more about 3D printers and explore how leading manufacturers leverage 3D printing to save money and shorten lead times from design to production.
