How to Design 3D Printed Snap Fit Enclosures

3d printing snap fit enclosure

If you’re a product designer or an engineer, chances are you’ll need to make a custom enclosure at some point. This might be a simple container to keep small items organized or a fully functional prototype to show stakeholders. With CAD software and a desktop 3D printer, you can create a custom snap fit enclosure in five easy steps.

Step 1: Prepare Your Custom Enclosure Design

Measure your electronic component (left). Begin your 3D model with basic boxes (right).

Measure your electronic component (left). Begin your 3D model with basic boxes (right).

For this project, we’re going to make a case for a Pine 64, a single board computer (download the .STL file on Pinshape to follow along). This tutorial uses Solidworks because of its popularity in product design and engineering, but you can use a similar 3D design software.

First, use digital calipers or a ruler to measure your electronic component. We like to start enclosure designs by accurately reverse-engineering the PCB, measuring the board size, the location of mounting holes, and any ports or plugs that will need to be accessed through the enclosure. You might want to simply measure the overall maximum dimensions as a box, but it’s essential to know exactly where the main features are so that you can accommodate them. In Solidworks, reproduce these measurements as a grouping of basic boxes in a single part file.

Step 2: The Bottom Enclosure

In Solidworks, the enclosure is best designed as an assembly, with each half of the enclosure modeled as a separate part. Starting with the base half of the enclosure as a new part, the first important decision is to determine how much of a tolerance to have between the perimeter of the PCB and the enclosure. SLA and SLS 3D printers are highly accurate, so you can tighten the tolerance to 0.5 mm without much risk.


White paper - Introduction to 3D Printing With Desktop Stereolithography (SLA) - Formlabs
White Paper

Introduction to 3D Printing With Desktop Stereolithography (SLA)

How can you create dimensionally accurate enclosures in-house? Learn more about SLA 3D printing in our free introduction to SLA 3D printing white paper.

Download White Paper


An FDM printer may warp your design and lift it off of the print plate, so you should allow a larger tolerance of 1.5-2 mm to ensure that the PCB will still fit inside even if the walls are somewhat distorted.

Read our in-depth guide about FDM vs. SLA 3D printers to learn how they compare in terms of print quality, materials, applications, workflow, speed, costs, and more.

3d printing snap fit - Add space between the perimeter of your electronic component and the enclosure (left). Build the walls of the bottom enclosure in your 3D model (right).

Add space between the perimeter of your electronic component and the enclosure (left). Build the walls of the bottom enclosure in your 3D model (right).

Our next step is to start cutting away the openings for the ports. One common mistake is that you will only cut away just enough material to expose the port connection, be it a USB or HDMI, without taking into account that many cables around the male connector can be quite bulky and need to reach into your enclosure to connect to the port (especially if the port is set in from the edge of the PCB, farther away from the enclosure). So it’s best to be generous with the port openings. An extra 2 mm all the way around is a good starting point.

3d printing snap fit - Add extruded cuts and cutouts to the bottom enclosure to fit ports.

Add extruded cuts and cutouts to the bottom enclosure to fit ports.

As you can see in the image above, we included extruded cuts, which go all the way from the top, and one cutout for a Micro SD card. The reason that some of the cuts reach the top is that the ports on the board stick out beyond the edge of the PCB, so in order to fit the PCB, we need to allow room for them to slide down. We will close some of these off with our top enclosure part, but you could choose to create a larger bottom enclosure so that the entire PCB and ports fit inside. Just be aware that you will have to push your connecting cables further inside the enclosure.

Step 3: The Top Enclosure

3d printing snap fit - In general, the top enclosure mirrors the geometry of the bottom enclosure.

In general, the top enclosure mirrors the geometry of the bottom enclosure.

Now that you’ve completed the bottom enclosure, the top section is easy. The above image shows the effect of the parting line running around the perimeter between the two enclosure halves. The top enclosure has had the same treatment of cut details to accommodate some of the taller ports, as well as the addition of material to close off some of the gaps left by the bottom enclosure. We also added an optional sunken middle section.


White Paper: Engineering Fit - Formlabs
White Paper

Engineering Fit

Designing for proper tolerance and fit lowers post-processing time and ease of assembly, and reduces the material cost of iteration. Download our white paper to learn more about tolerance and fit in 3D printing designing functional 3D printed assemblies.

Download White Paper


Step 4: The Snap Detail

3d printing snap fit - With a basic internal cantilever snap, you can lengthen the amount of plastic engaging into the snap for a stronger lock.

With a basic internal cantilever snap, you can lengthen the amount of plastic engaging into the snap for a stronger lock.

There are many designs for snaps, but we opted for a basic internal cantilever. Above you can see the main details for the snap design, which is exactly the same on both sides of the enclosure. Depending on the space you have to work with, you can lengthen the amount of plastic engaging into the snap cavity to create a stronger lock. Ours is only 1.2 mm, but 2 mm or more would be much more secure. In this particular design, the pins on the PCB take up a lot of room, so the lock is designed to just squeeze in while providing enough force to hold the enclosure together. The snap detail is extruded 20 mm long, which adds to the strength.

3d printing snap fit - This sectioned exploded view shows the snap details on each side.

This sectioned exploded view shows the snap details on each side.

Above you can see a sectioned exploded view of the snap details, along with the PCB showing the location of the pins (in black), which limit the size of the snaps. Alternatively, instead of the snap cavity hiding inside of the bottom enclosure, you could cut this detail through to the outside, allowing your snaps to be longer.

3d printing snap fit - Lugs are small extrusions that slide within the opposite enclosure to secure the two halves.

Lugs are small extrusions that slide within the opposite enclosure to secure the two halves.

Add lugs to your design to keep the two halves from sliding. Lugs are small extrusions that insert into the opposite enclosure. Because we created two snaps on opposite sides, you might need these on just the two blank sides. For this larger case, we put them in each corner. The material extrudes only 3 mm down, but this is enough to prevent movement.

3d printing snap fit - This basic snap fit enclosure can be adapted for nearly any small electronic component.

This basic snap fit enclosure can be adapted for nearly any small electronic component.

Step 5: Add Final Details To Your Enclosure

While this might be enough detail for your project, a few added features can bring your enclosure to life. For this design, we extruded some text for the Pine 64 name and details like the SD card location. We included the Pine 64 logo as a visual feature, but also to provide ventilation on the top since these boards can heat up. Plus, these details reduce the amount of material used. Finally, a couple of grip details where the snaps are located helps indicate where to press your fingers to open the enclosure.

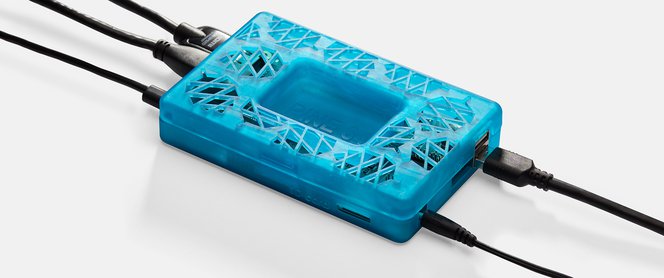

3d printing snap fit - The final design includes unique features along with the snap fit enclosure, ready to be 3D printed.

The final design includes unique features along with the snap fit enclosure, ready to be 3D printed.
