Form Cure L

PKG-FHL-CU-120V

Shipping time: Est. Dec 19 - 23

Add Warranty on Top of the Included 1 Year

Post-curing SLA 3D printed parts helps them reach their maximum mechanical properties and achieve peak dimensional accuracy.

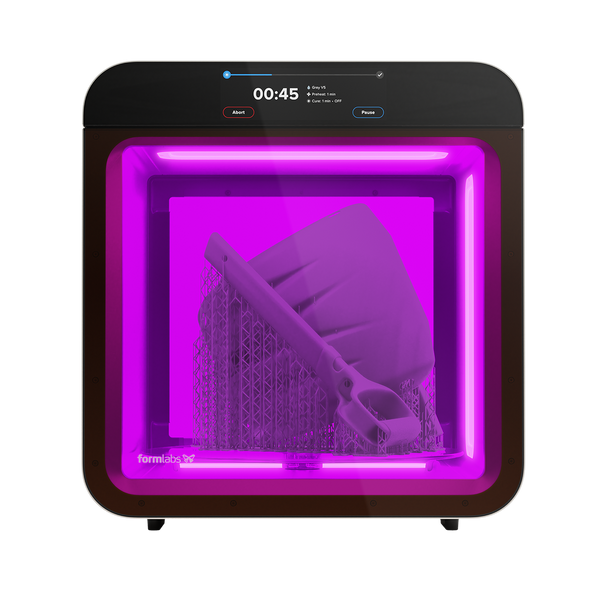

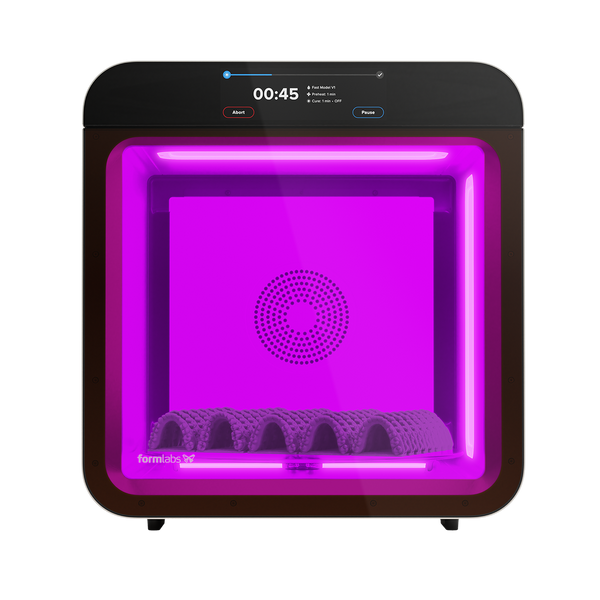

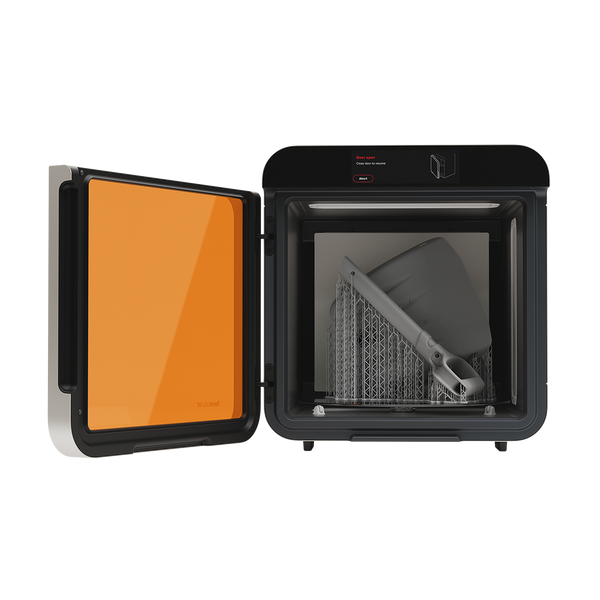

Form Cure L uses two 500W heaters and high-powered UV lights alongside a reflective inner cavity and rotating turntable to provide a consistent, high-intensity cure.

Whether it’s for large prints or high throughput production of smaller parts, Form Cure L can be used with all of your Formlabs SLA 3D printers

  • Form Cure L 120V
Form Cure L Ecosystem

Automate Post-Curing With Form Cure L

Precisely controlled temperature and light to cure 3D printed parts to optimal performance properties.

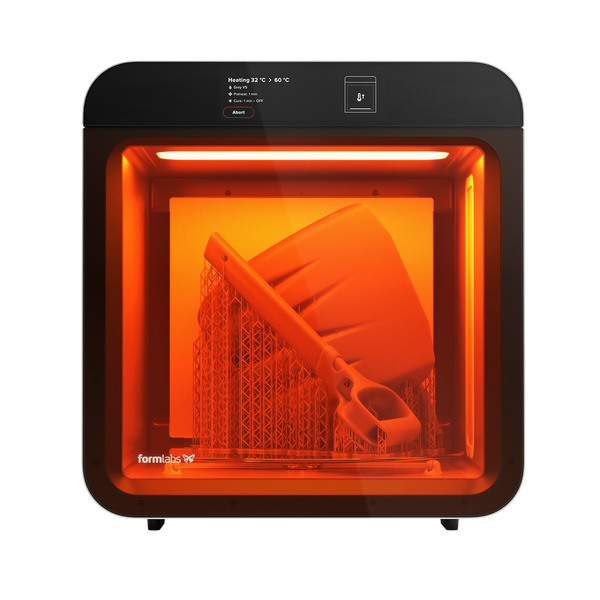

Advanced Heating

Preheat the chamber to get parts ready for optimum post-curing.


Uniform Exposure

Provide consistent curing with a rotating turntable.


Maximize Material Properties

Leverage Form Cure L's default time and temperature settings unique to each material for optimum performance.


Rapid, High-Intensity Curing

Two 500W heaters bring temperatures up to 80°C in less than 10 minutes while three UV light modules emit the optimal wavelength of light for fast, effective curing.

Tech Specs

Form CureForm Cure L
Printer CompatibilityForm 4, Form 4B, Form 3/+, Form 3B/+, Form 2Form 4L, Form 4BL, Form 3L, Form 3BL, Form 4, Form 4B, Form 3/+, Form 3B/+, Form 2
Dimensions26.2 x 26.2 x 34.0 cm
10.3 x 10.3 x 13.4 in
Height when open: 64 cm (25.2 in)
69.0 x 54.0 x 44.5 cm
27.2 x 21.3 x 17.5 in
Weight5.6 kg
12.4 lbs
24kg
53 lb
Turntable Diameter19.3 cm
7.6 in
39.5 cm
15.6 in
Maximum Part Height18.5 cm
7.28 in
32 cm
12.6 in
Operating TemperatureSuggested 18—28 °C
Suggested 64—82 °F
Suggested 18—28 °C
Suggested 64—82 °F
Maximum Cure Chamber80 °C
176 °F
80 °C
176 °F
Light Source13 multi-directional LEDs45 multi-directional LEDs
LED Power39 W70W
LED Radiant9.1 W36W
LED Wavelength 405 nm 375 nm, 405nm
Power Requirements90–240 V
6.0 A 50/60 Hz
144 W
Input (NA) 100 - 120 VAC, 50-60Hz, 15A
Input (EU) 220 - 240 VAC, 50-60Hz, 8A
