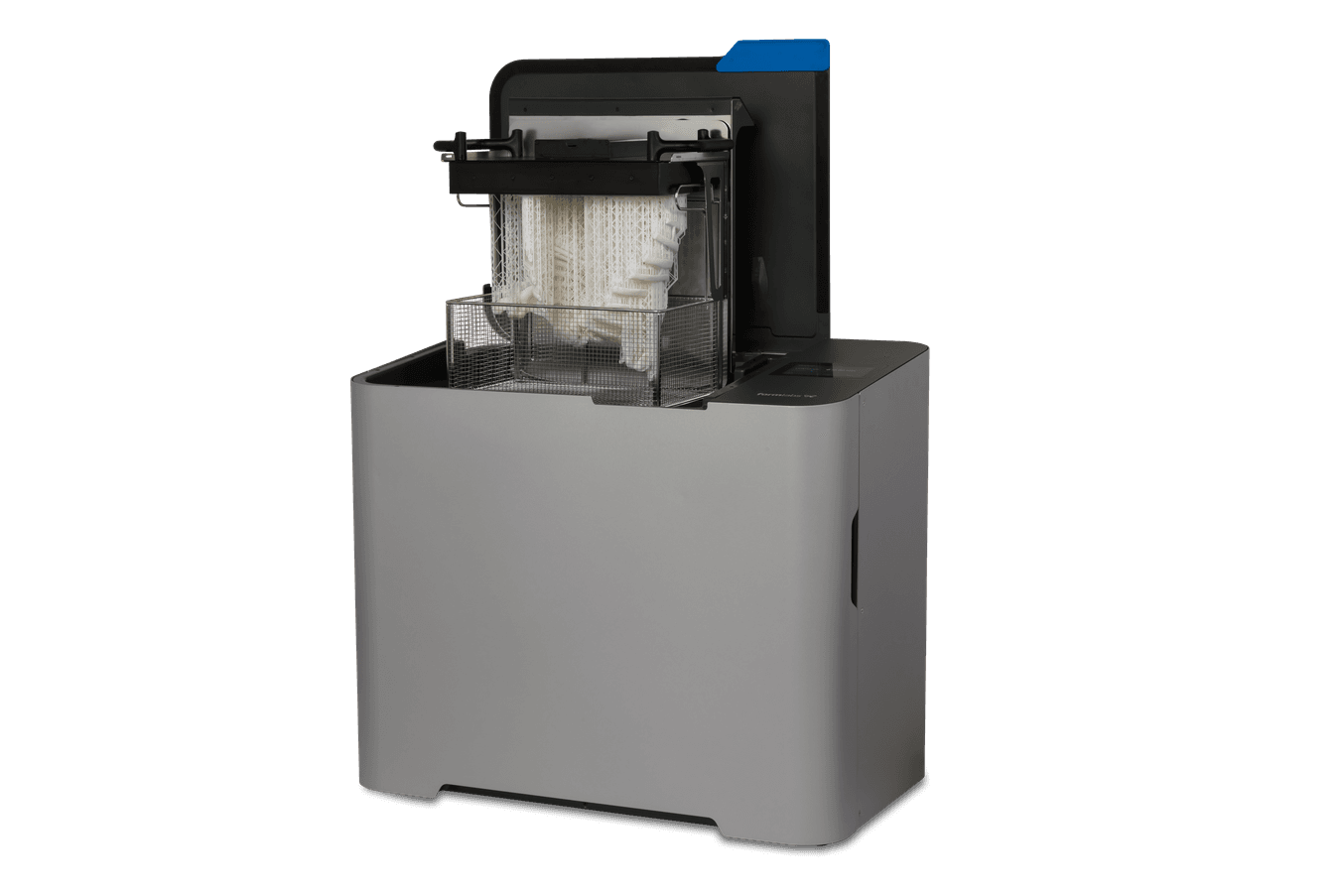

Form Wash L
PKG-FHL-WA
All SLA 3D printed parts require washing to remove residual resin. Form Wash L automates this process, leaving you with smooth, clean, high-quality parts every time.
Once washing completes, parts are lifted out of the solvent to air dry, avoiding over-soaked, warped prints. The embedded solvent monitor helps you maintain peak cleaning performance by notifying you when it’s time to replace your solvent.
Use Form Wash L with all of your Formlabs SLA 3D printers. Wash one Form 3L build platform or two Form 3 build platforms with the included build platform adapter.
- Form Wash L
Automate Cleaning With Form Wash L
Streamline your 3D printing process to help you produce high-quality large-scale parts with less time and effort.
Quick Set Up
Keep parts directly on the Build Platform L as you transition them from the printer to Form Wash L, or remove parts and place them in the basket.
Compatible With All Formlabs Materials
Select your material from a list and let Form Wash L auto clean your parts for the appropriate time.
Perfectly Cleaned
Deep clean your parts without lifting a finger. Parts are precisely agitated in IPA with an impeller, getting every nook and cranny perfectly clean.
Automated Wash Cycle
Don't worry about manual washing, as parts left too long in IPA can warp. When washing completes, Form Wash L automatically raises parts out of IPA for them to air dry.
Set It And Forget It
Use the pre-programmed wash settings or save your own frequently used custom profiles to improve post-processing efficiency.
Informed Maintenance
The embedded solvent monitor and cycle counter help you maintain peak cleaning performance by notifying you when it’s time to replace the solvent.
One Size Fits All
Wash one Form 3L Build Platform or use a build platform adaptor to fit two Form 3/B/+ or Form 4/B Build Platforms.
Tech Specs
| Form Wash (2nd Generation) | Form Wash L | |||
|---|---|---|---|---|
| Printer Compatibility | Form 4, Form 4B, Form 3/+, Form 3B/+, Form 2 | Form 3L, Form 3BL, Form 4, Form 4B, Form 3/+, Form 3B/+, Form 2 | ||
| Dimensions | 31.5 x 29.3 x 40.5 cm 12.4 x 11.5 x 15.9 in Height when open: 71.4 cm (28.1 in) | 78.0 x 46.0 x 67.0 cm 30.7 x 18.1 x 26.4 in Height when open: 113 cm (44.5 in) | ||
| Weight | 8.6 kg (without solvent) 18.9 lbs (without solvent) | 56.7 kg (without solvent) 125lbs (without solvent) | ||
| Bucket Volume | 14.4 L 3.8 US gal | 43 L 11.4 US gal | ||
| Maximum Part Size | 20 x 14.5 x 19.5 cm 7.9 x 5.7 x 7.6 in | 33.5 x 20 x 30 cm 13.2 x 7.9 x 11.8 in | ||
| Suggested Operating Environment | Suggested 18—28 °C Suggested 64—82 °F | Suggested 18—28 °C Suggested 64—82 °F | ||
| Agitation Method | Magnetically coupled impeller | Magnetically coupled impeller | ||
| Included Accessories | a. Wash Bucket b. Wash Basket c. Hydrometer d. 2x Platforms Mounts | a. Wash Bucket b. Wash Basket c. Electric Solvent Pump d. Flexible Scraper e. Scraper f. Flush Cutters g. Rinse Bottle h. Gloves i. Form 3 Build Platform Adaptor | ||
| Power Requirements | 90–240 V 2.0 A 50/60 Hz 50 W | Input (NA) 100 - 120 VAC, 50-60Hz, 1A Input (EU) 220 - 240 VAC, 50-60Hz, 1A | ||
| Compatible Solvents | Formlabs Resin Washing Solution, IPA, TPM, Water | Formlabs Resin Washing Solution, IPA, TPM, Water |
