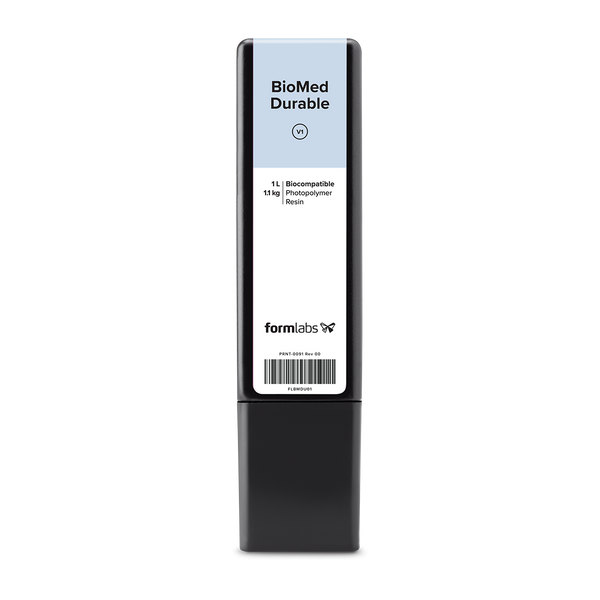

BioMed Durable Resin

From$429excl. sales tax

BioMed Durable Resin

Bulk Order Discount

15%
30 L
20%
60 L
25%
120 L
30%
240 L
35%
1,000 L
40%
2,000 L
45%
3,000 L

Contact Sales

1

Select Printer Series and Resin Volume

  • $429
  • $1,930
  • $475
  • $2,125
2

Accessories

  • $119

    Form 4 Resin Tank

    Low Force Display™ (LFD) 3D printing uses a flexible yet strong dual-layer film tank for consistent, high-quality prints. Every resin tank includes a reusable lid, making it easy to stack tanks and store resin outside of the machine. With a separate tank for each individual resin color or type, switching materials is as easy as sliding in a new tank.

    Resin Tanks are built to last and deliver consistent performance for at least 75,000 layers of printing — approximately 190 prints using average height model (39 mm tall), any resin, and 100 µm layer height.

    Form 4 Resin Tank

    Tech specs

    Compatible Printer
    Form 4, Form 4B
    Accessory type
    Resin Tank
    $119
  • $50

    Form 4 Mixer

    The Form 4 Resin Mixer improves material performance by keeping resin homogenous in the tank during the printing process. A Resin Mixer is required anytime you are printing. Resin Mixers typically last for the lifetime of your Resin Tank or more.

    For convenience, we recommend having one Resin Mixer for each Form 4 Resin Tank.

    Form 4 Mixer

    Tech specs

    Compatible Printer
    Form 4, Form 4B
    Accessory type
    Resin Tank
    $50
  • $299

    Form 4L Resin Tank

    Low Force Display™ (LFD) 3D printing uses a flexible yet strong dual-layer film tank for consistent, high-quality prints. Every resin tank includes a reusable lid, making it easy to stack tanks and store resin outside of the machine. With a separate tank for each individual resin color or type, switching materials is as easy as sliding in a new tank.

    Resin Tanks are built to last and deliver consistent performance for at least 75,000 layers of printing — approximately 190 prints using average height model (39 mm tall), any resin, and 100 µm layer height.

    Form 4L Resin Tank

    Tech specs

    Compatible Printer
    Form 4L, Form 4BL
    Accessory type
    Resin Tank
    $299
  • $99

    Form 4L Mixer

    The Form 4L Resin Mixer improves material performance by keeping resin homogenous in the tank during the printing process. A Resin Mixer is required anytime you are printing. Resin Mixers typically last for the lifetime of your Resin Tank or more.

    For convenience, we recommend having one Resin Mixer for each Form 4L Resin Tank.

    Form 4L Mixer

    Tech specs

    Compatible Printer
    Form 4L, Form 4BL
    Accessory type
    Resin Tank
    $99
  • $149

    Form 3 Resin Tank V2.1

    Low Force Stereolithography (LFS)™ 3D printing uses linear illumination and a flexible film tank to turn liquid resin into flawless parts. A key component of the LFS process, the strong dual-layer film at the bottom of the Form 3 Resin Tank, allows for a dynamic and precise print process.

    Notice: Form 3 Resin Tank V2.1 is compatible with all Formlabs resins, but is required for use with some specific materials. There are two previous versions of the Form 3 Resin Tank, Tank V1 and Tank V2, each with their own compatibility requirements. Read more about all tank versions, compatibility, lifetime, and maintenance in our support article.

    Form 3 Resin Tank V2.1

    Tech specs

    Compatible Printer
    Form 3, Form 3B
    Accessory type
    Resin Tank
    $149
  • $299

    Form 3L Resin Tank V3

    Low Force Stereolithography (LFS)™ 3D printing uses linear illumination and a flexible film tank to turn liquid resin into flawless parts. A key component of the LFS process, the strong dual-layer film at the bottom of the Form 3L Resin Tank allows for a dynamic and precise print process, scaled up for large format printing.

    Form 3L Resin Tank V3 offers an improved print success rate in some cases compared to the previous version of the Form 3L Resin Tank V2.

    Form 3L Resin Tank V3

    Tech specs

    Compatible Printer
    Form 3L, Form 3BL
    Accessory type
    Resin Tank
    $299

Why Choose BioMed Durable Resin?

Fuel medical innovation using 3D printing and BioMed Durable Resin for producing end-use devices where performance, impact resistance, and biocompatibility are critical.

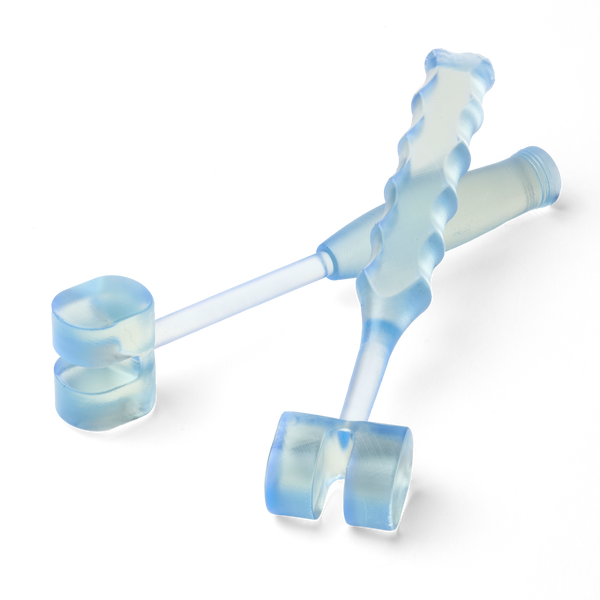

Surgical Mallets in BioMed Durable Resin

Impact, Shatter, and Abrasion Resistant

Produce medical-grade parts that are impact resistant with a Notched Izod of 98 J/m.

Certified Medical-Grade Material

Leverage a material manufactured within our Quality Management Systems, with strict adherence to ISO 13485.

Biocompatible Parts

Common use case testing by Formlabs is intended to instill confidence that this material is suitable for biocompatible applications.

Excellent Clarity and Surface Finish

Parts produced using this material look and feel like end-use parts and have a very smooth surface finish.

Applications*

Introduce cutting-edge patient-specific instruments (PSI) and procedure-specific medical devices at the point of care. Improve patient outcomes, reduce complications, and reduce operating time with medical devices printed in BioMed Durable Resin.

*Unlike Formlabs Dental Resins, no intended uses are provided for BioMed Resins. Material properties may vary based on part design, manufacturing practices, and other methods. It is the manufacturer’s responsibility and its respective customers and end-users to determine the biocompatibility and performance of all printed parts for their respective application and use. To instill confidence in potential users, Formlabs has tested biocompatibility for common use cases and manufactures BioMed Resins in an ISO 13485-certified facility. We can offer representative examples of what customers have done with our products and the supporting documentation we make freely available.

Patient-specific instruments

Single-use instruments

End-use devices and components requiring biocompatibility and impact resistance

isocert logo

Manufactured in an ISO 13485-Certified Facility

Formlabs manufactures our Biomed and Medical Device Resins at our FDA-registered facility in Ohio. These materials are designed and manufactured within our robust Quality Management System that is ISO 13485 and EU MDR certified. A dedicated team of operators and quality assurance professionals makes the resins inside a certified ISO Class 8 clean room. All of our Medical Device Resins are appropriately registered with the FDA and CE marked according to the EU MDR.

View Our Certification

Material Properties*

Download the Biomed Durable Resin Technical Data Sheet

Download the Biomed Durable Resin Safety Data Sheet

Request Material Certificate of Analysis (COA)

Parameter

Value

Ultimate Tensile Strength

29.1 MPa

Tensile Modulus

994 MPa

Elongation at Break

33%

Flexural Strength

21 MPa

Flexural Modulus

643 MPa

Shore Hardness

75D

Notched Izod

98 J/m

Heat Deflection Temperature @ 0.45 MPa

46 ºC
See How Formlabs Customers Use Biomed Durable Resin
See all
How PSYONIC Uses Agile Manufacturing to Build the World’s Most Accessible Bionic Hands
Blog
How PSYONIC Uses Agile Manufacturing to Build the World’s Most Accessible Bionic Hands
Formlabs Biocompatible Resins: A Comprehensive Guide To Choosing the Right Material
White Paper
Formlabs Biocompatible Resins: A Comprehensive Guide To Choosing the Right Material
Creating Bone-Simulation Models for Cutting and Drilling
White Paper
Creating Bone-Simulation Models for Cutting and Drilling
Reduce Costs and Expedite FDA Approval With Formlabs FDA Master Files
Blog
Reduce Costs and Expedite FDA Approval With Formlabs FDA Master Files
Creating Bone-Simulation Models for Cutting and Drilling
Blog
Creating Bone-Simulation Models for Cutting and Drilling
Formlabs Introduces BioMed Durable Resin for Strong, Impact-Resistant Medical Devices
Blog
Formlabs Introduces BioMed Durable Resin for Strong, Impact-Resistant Medical Devices

Post-Processing

Manufacturing Guide: BioMed Durable Resin

Washing

BioMed Durable Resin may be washed using either a Formlabs-validated wash unit (1) or an ultrasonic wash unit (2).

The foundational step in any SLA post-processing workflow is to remove excess resin on the surface of the parts through an alcohol wash. Please refer to the material's manufacturing guide/IFU for washing instructions.



SETTINGS

Manufacturing Guide

Curing

For biocompatible materials, post-curing is necessary to achieve the safety standards determined by regulatory agencies. Please follow the material’s manufacturing guide/IFU for proper post-processing.



SETTINGS

Manufacturing Guide



FAQ

BioMed Durable Resin is a transparent, impact-resistant SLA 3D printing material developed for medical and biocompatible applications. It is designed for end-use devices where performance, shatter resistance, and abrasion resistance are critical requirements.

BioMed Durable Resin is USP Class VI certified. It is suitable for long-term skin contact (more than 30 days), mucosal membrane contact (more than 30 hours), and short-term tissue, bone, and dentin contact (less than 24 hours). Its USP Class VI status also makes it appropriate for pharmaceutical and drug delivery applications.

BioMed Durable Resin is produced at a Formlabs FDA-registered facility in Ohio. The facility operates under an ISO 13485 and EU MDR certified Quality Management System, with dedicated operators and quality assurance professionals working inside a certified ISO Class 8 clean room. All Medical Device Resins are appropriately registered with the FDA and CE marked per the EU MDR. You can view the ISO certification here.

BioMed Durable Resin is well suited for patient-specific instruments (PSI), single-use surgical instruments, and end-use devices or components that require both biocompatibility and impact resistance. It enables point-of-care production of procedure-specific medical devices aimed at improving patient outcomes and reducing operating time.

BioMed Durable Resin achieves a Notched Izod rating of 98 J/m and an Unnotched Izod rating of 1340 J/m, making it a high-toughness option within the Formlabs medical materials library. Additional mechanical properties include an Ultimate Tensile Strength of 29.1 MPa, an Elongation at Break of 33%, and a Shore Hardness of 75D.

Parts printed with BioMed Durable Resin are transparent and have a very smooth surface finish, giving them the look and feel of end-use medical components.

BioMed Durable Resin is compatible with the Form 4B, Form 4BL, Form 3B, and Form 3BL printers. It is available in cartridges sized for both the Form 4 and Form 3 printer series.

After printing, parts must be washed to remove uncured resin from the surface using either a Formlabs-validated wash unit or an ultrasonic wash unit. Post-curing is also required for biocompatible materials to meet the safety standards set by regulatory agencies. Specific settings and procedures are detailed in the BioMed Durable Resin Manufacturing Guide.

The Technical Data Sheet, Safety Data Sheet, and Certificate of Analysis (COA) are all available from Formlabs. You can download the data sheets at the Formlabs Data Sheets page or request a COA directly.

Pricing varies by printer series and order volume. Formlabs offers tiered bulk order discounts starting at a certain volume threshold and scaling upward for larger quantities. For current pricing details or to discuss a high-volume order, contact the Formlabs sales team.

Request a Free BioMed Durable Resin Sample Part

See and feel Formlabs quality firsthand. We’ll ship a free BioMed Durable Resin 3D printed sample part to your office.

Biomed Durable Resin

Request a Sample Part
